6-75 — MAT AND CARPET (#43649) — 112 parça

222 221

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	221	DAMPER; FLOOR	8-97139-100-1	01	1	0009-	●	●
	222	BOLT; DAMPER M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0009-	●	●

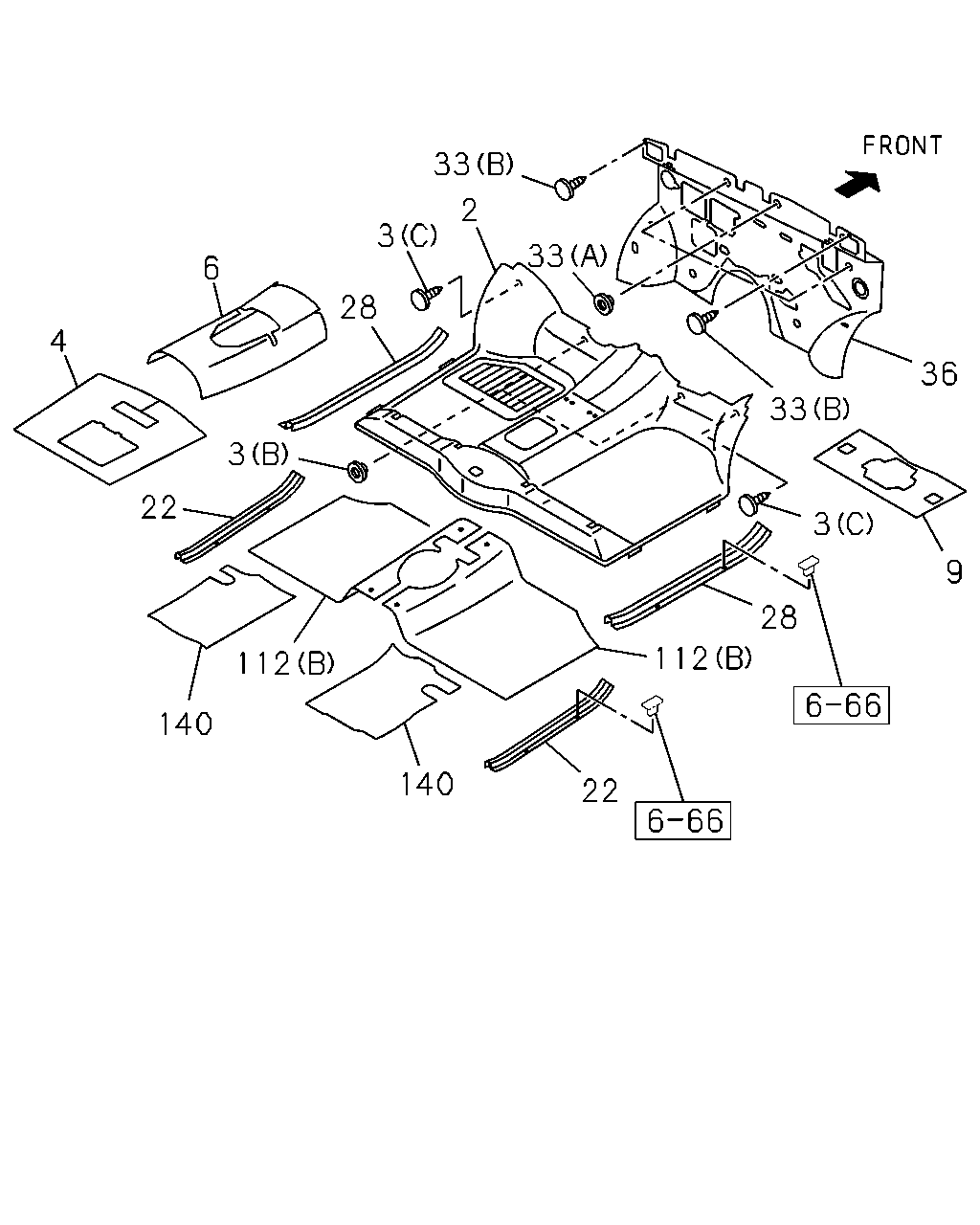

33 2 3 33 6 28 4 36 33 3 22 3 28 112 112 140 140 22 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	MAT; FLOOR COOLER WO/HEATER<YL1> EXC. FLOOR CARPET<B30> THA	8-97910-026-4	01	1	0009-			●
2	MAT; FLOOR EXC. FLOOR CARPET<B30> THA	8-97910-025-4	01	1	0009-				●
3	CLIP; CARPET FIX (B) THA	8-97910-918-0	02	1	0009-	●	●	●	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-			●	●	●
3	CLIP; CARPET FIX (A)	8-94321-035-0	03	1	0009-				●	●
4	INSULATOR; FRT THA	8-97910-941-0	01	1	0009-						●	●	●
4	INSULATOR; FRT EXC. FLOOR CARPET<B30> THA	8-97910-941-0	01	1	0009-				●
4	INSULATOR; FRT EXC. FLOOR CARPET<B30> THA	8-97910-939-0	01	1	0009-			●
6	DEADENER; FLOOR GEAR BOX FRT SKI THA	8-97910-915-0	01	1	0009-	●	●	●	●	●	●	●	●
6	DEADENER; FLOOR GEAR BOX FRT SNC THA	8-97910-916-0	01	1	0009-	●	●	●	●	●	●	●	●
9	INSULATION; PAD,RR FLOOR EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97920-367-0	01	1	0009-				●
22	PLATE; SILL,RR THA	8-97911-226-0	02	1	0009-							●
22	PLATE; SILL,RR GRAY	8-97153-630-0	02	1	0009-	●	●
28	PLATE; SILL,FRT THA	8-97910-022-0	01	1	0009-	●	●	●	●	●	●	●	●
28	PLATE; SILL,FRT THA	8-97910-021-0	01	1	0009-	●	●	●	●	●	●	●	●
33	CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	0009-	●	●	●	●	●	●	●	●
33	CLIP; INSULATION A/T AISIN<RMD> (A) THA	8-97910-918-0	03	1	0009-	●				●
33	CLIP; INSULATION M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA	8-97910-918-0	04	1	0009-	●				●
33	CLIP; INSULATION (A) THA	8-97910-918-0	04	1	0009-		●	●	●		●	●	●
36	INSULATION; PAD,DASH INNER SKI THA	8-97910-440-6	01	1	0009-	●	●		●	●
36	INSULATION; PAD,DASH INNER SKI THA	8-97910-943-6	01	1	0009-			●			●	●	●
36	INSULATION; PAD,DASH INNER SAS THA	8-97920-746-1	01	1	0009-			●			●	●	●
36	INSULATION; PAD,DASH INNER SAS THA	8-97920-745-1	01	1	0010-	●	●		●	●
112	INSULATION; PAD,FRT FLOOR (A) THA	8-97910-938-0	02	1	0009-	●	●			●
112	INSULATION; PAD,FRT FLOOR FLOOR CARPET<B30> (A) THA	8-97910-938-0	02	1	0009-				●
112	INSULATION; PAD,FRT FLOOR (B) THA	8-97910-937-0	01	1	0009-						●	●	●
112	INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30> (B) THA	8-97910-937-0	01	1	0009-			●	●
112	INSULATION; PAD,FRT FLOOR (B) THA	8-97910-936-0	01	1	0009-						●	●	●
112	INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30> (B) THA	8-97910-936-0	01	1	0009-			●	●
140	DEADENER; DASH LWR PANEL SKI THA	8-97910-913-0	02	1	0009-	●	●	●	●	●	●	●	●
140	DEADENER; DASH LWR PANEL SNC THA	8-97910-914-0	02	1	0009-	●	●	●	●	●	●	●	●

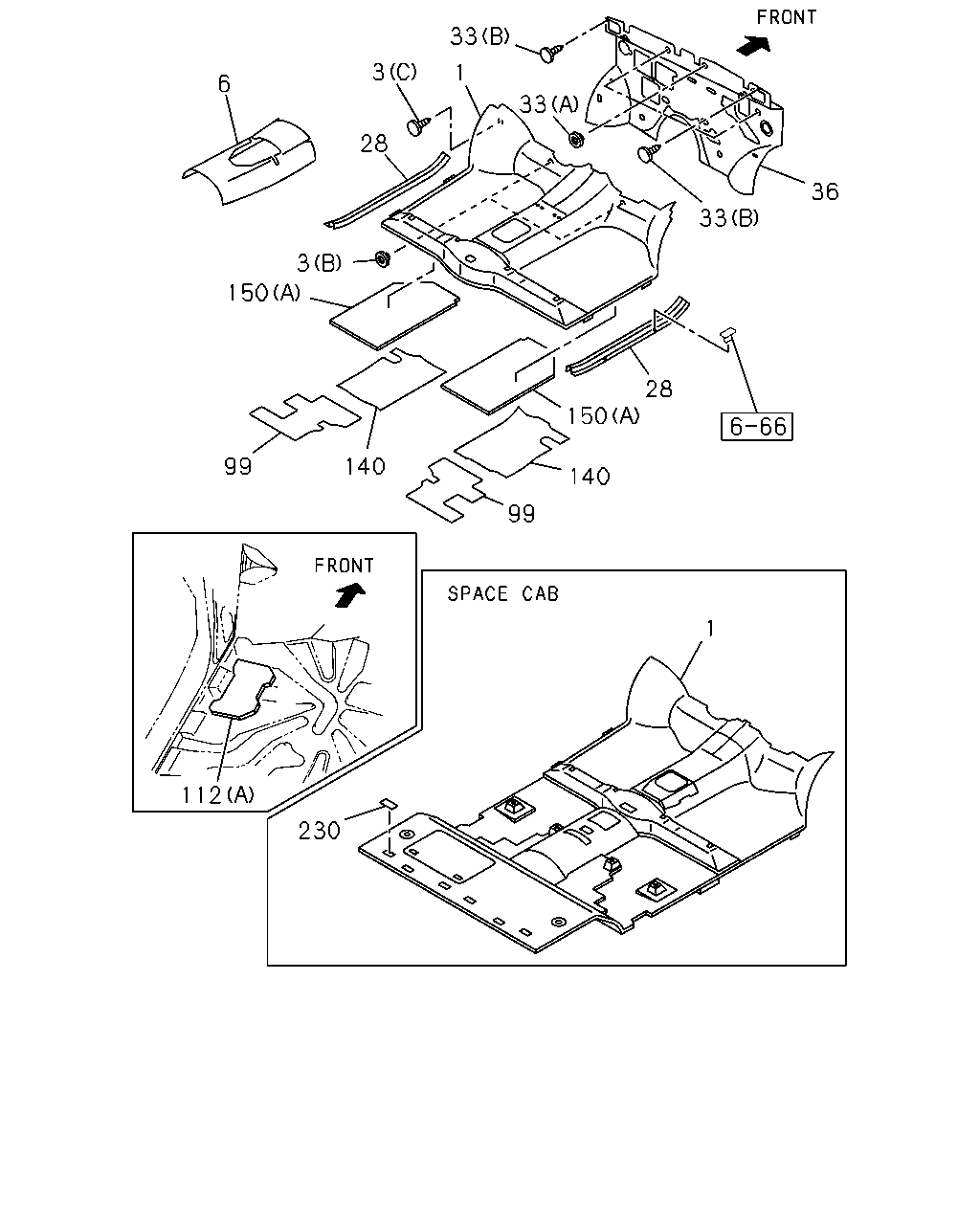

33 3 1 6 33 28 36 33 3 150 28 150 99 140 140 99 1 112 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	CARPET; FLOOR,FRT A/T AISIN<RMD> SPECIAL PACKAGE VAR 2<7SB> EXC. SPECIAL PACKAGE<7BB> FTMC THA	8-97919-855-6	01	1	0009-					●
1	CARPET; FLOOR,FRT A/T AISIN<RMD> SPECIAL PACKAGE<7BB> FTMC THA	8-97919-856-6	01	1	0009-					●
1	CARPET; FLOOR,FRT FLOOR REMOTE SHIFT<M11> SPECIAL PACKAGE<7BB> FTMC THA	8-97919-857-6	01	1	0009-					●
1	CARPET; FLOOR,FRT FLOOR CARPET<B30> SPECIAL PACKAGE VAR.2<7TB> FTMC THA	8-97919-857-6	01	1	0009-				●
1	CARPET; FLOOR,FRT FLOOR REMOTE SHIFT<M11> SPECIAL PACKAGE<7BB> CIH THA	8-97919-859-7	01	1	0009-					●
1	CARPET; FLOOR,FRT FLOOR CARPET<B30> SPECIAL PACKAGE VAR.2<7TB> CIH THA	8-97919-859-7	01	1	0009-				●
1	CARPET; FLOOR,FRT FLOOR REMOTE SHIFT<M11> SPECIAL PACKAGE<7BB> TCH-S THA	8-97919-861-6	01	1	0009-					●
1	CARPET; FLOOR,FRT FLOOR CARPET<B30> SPECIAL PACKAGE VAR.2<7TB> TCH-S THA	8-97919-861-6	01	1	0009-				●
1	CARPET; FLOOR,FRT FLOOR REMOTE SHIFT<M11> EXC. SPECIAL PACKAGE<7BB> FTMC THA	8-97919-854-6	01	1	0009-					●
1	CARPET; FLOOR,FRT FLOOR REMOTE SHIFT<M11> EXC. SPECIAL PACKAGE<7BB> CIH THA	8-97919-858-7	01	1	0009-					●
1	CARPET; FLOOR,FRT FLOOR REMOTE SHIFT<M11> EXC. SPECIAL PACKAGE<7BB> TCH-S THA	8-97919-860-6	01	1	0009-					●
1	CARPET; FLOOR,FRT FLOOR CARPET<B30> THA	8-97918-274-0	01	1	0009-			●
1	CARPET; FLOOR,FRT A/T AISIN<RMD> THA	8-97921-330-2	01	1	0009-	●
1	CARPET; FLOOR,FRT FLOOR REMOTE SHIFT<M11> THA	8-97921-329-2	01	1	0009-	●
1	CARPET; FLOOR,FRT THA	8-97921-329-2	01	1	0009-		●
1	CARPET; FLOOR,FRT FLOOR CARPET<B30> EXC. SPECIAL PACKAGE VAR.2<7TB> DARK GRAY THA	8-97155-368-3	01	1	0009-				●
3	CLIP; CARPET FIX (B) THA	8-97910-918-0	02	1	0009-	●	●	●	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-			●	●	●
3	CLIP; CARPET FIX (A)	8-94321-035-0	03	1	0009-				●	●
6	DEADENER; FLOOR GEAR BOX FRT SKI THA	8-97910-915-0	01	1	0009-	●	●	●	●	●	●	●	●
6	DEADENER; FLOOR GEAR BOX FRT SNC THA	8-97910-916-0	01	1	0009-	●	●	●	●	●	●	●	●
28	PLATE; SILL,FRT THA	8-97910-022-0	01	1	0009-	●	●	●	●	●	●	●	●
28	PLATE; SILL,FRT THA	8-97910-021-0	01	1	0009-	●	●	●	●	●	●	●	●
33	CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	0009-	●	●	●	●	●	●	●	●
33	CLIP; INSULATION A/T AISIN<RMD> (A) THA	8-97910-918-0	03	1	0009-	●				●
33	CLIP; INSULATION M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> (A) THA	8-97910-918-0	04	1	0009-	●				●
33	CLIP; INSULATION (A) THA	8-97910-918-0	04	1	0009-		●	●	●		●	●	●
36	INSULATION; PAD,DASH INNER SKI THA	8-97910-440-6	01	1	0009-	●	●		●	●
36	INSULATION; PAD,DASH INNER SKI THA	8-97910-943-6	01	1	0009-			●			●	●	●
36	INSULATION; PAD,DASH INNER SAS THA	8-97920-746-1	01	1	0009-			●			●	●	●
36	INSULATION; PAD,DASH INNER SAS THA	8-97920-745-1	01	1	0010-	●	●		●	●
99	DEADENER; FLOOR NOISE INSULATION PACK 2<7MW> THA	8-97919-651-0	02	1	0009-	●	●
112	INSULATION; PAD,FRT FLOOR (A) THA	8-97910-938-0	02	1	0009-	●	●			●
112	INSULATION; PAD,FRT FLOOR FLOOR CARPET<B30> (A) THA	8-97910-938-0	02	1	0009-				●
112	INSULATION; PAD,FRT FLOOR (B) THA	8-97910-937-0	01	1	0009-						●	●	●
112	INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30> (B) THA	8-97910-937-0	01	1	0009-			●	●
112	INSULATION; PAD,FRT FLOOR (B) THA	8-97910-936-0	01	1	0009-						●	●	●
112	INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30> (B) THA	8-97910-936-0	01	1	0009-			●	●
140	DEADENER; DASH LWR PANEL SKI THA	8-97910-913-0	02	1	0009-	●	●	●	●	●	●	●	●
140	DEADENER; DASH LWR PANEL SNC THA	8-97910-914-0	02	1	0009-	●	●	●	●	●	●	●	●
150	INSULATION; HEAT,FLOOR NOISE INSULATION PACK 2<7MW> (A)	8-97141-928-1	02	1	0009-	●	●			●
150	INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (A)	8-97141-928-1	02	1	0009-			●	●
150	INSULATION; HEAT,FLOOR NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-2	02	1	0009-	●	●			●
150	INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-2	02	1	0009-			●	●
230	FASTENER; FLOOR CARPET THA	8-97920-426-0	06	1	0009-					●
230	FASTENER; FLOOR CARPET FLOOR CARPET<B30> THA	8-97920-426-0	06	1	0009-				●

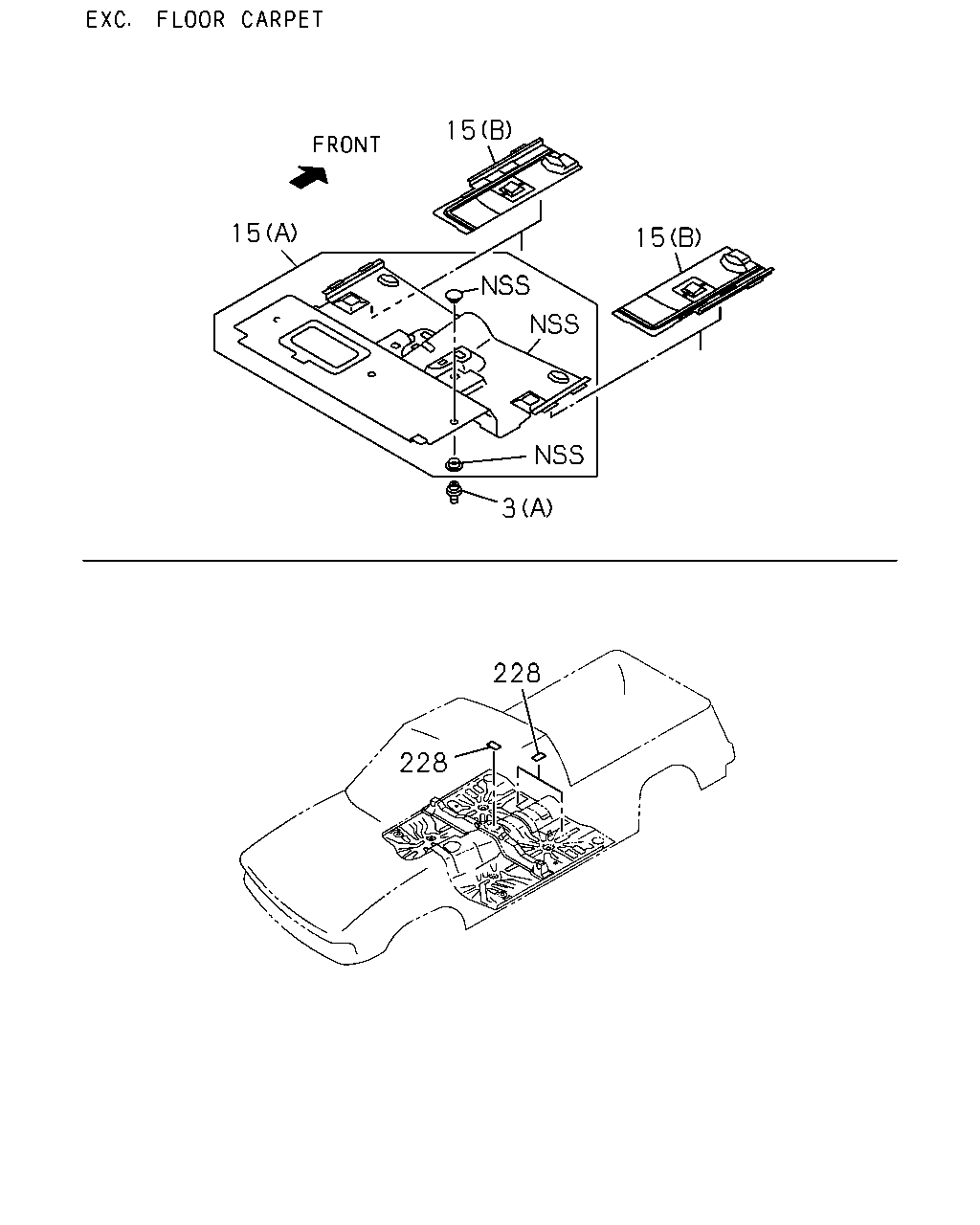

15 15 15 3 228 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	CLIP; CARPET FIX (B) THA	8-97910-918-0	02	1	0009-	●	●	●	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-			●	●	●
3	CLIP; CARPET FIX (A)	8-94321-035-0	03	1	0009-				●	●
15	MAT; FLOOR REAR COOLER WO/HEATER<YL1> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97910-028-2	01	1	0009-			●
15	MAT; FLOOR REAR COOLER WO/HEATER<YL1> (B) THA	8-97910-029-2	01	1	0009-			●
15	MAT; FLOOR REAR COOLER WO/HEATER<YL1> RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA	8-97920-053-1	01	1	0009-			●
15	MAT; FLOOR REAR EXC. FLOOR CARPET<B30> (A) THA	8-97920-052-0	01	1	0009-				●
228	SEAL; NOISE 27X40 THA	8-97919-357-0	01	1	0009-	●	●	●	●	●	●	●	●
228	SEAL; NOISE 27X40 THA	8-97919-357-0	02	1	0009-	●	●		●	●	●	●	●

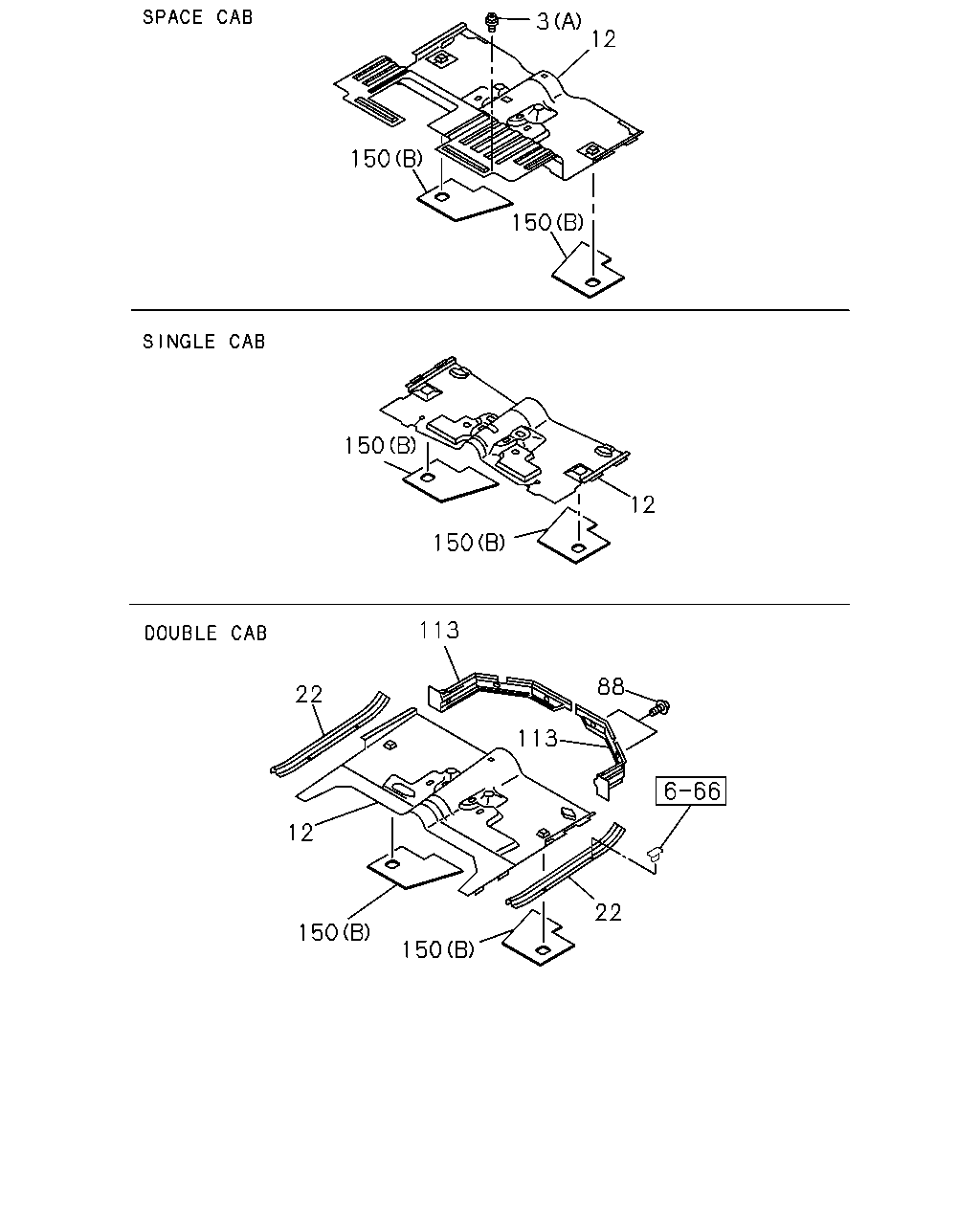

3 12 150 150 150 12 150 113 88 22 113 12 22 150 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	CLIP; CARPET FIX (B) THA	8-97910-918-0	02	1	0009-	●	●	●	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-	●	●	●	●	●
3	CLIP; CARPET FIX (C) DARK GRAY THA	8-97152-683-0	02	1	0009-			●	●	●
3	CLIP; CARPET FIX (A)	8-94321-035-0	03	1	0009-				●	●
12	CARPET; FLOOR,RR FLOOR CARPET<B30> EXC. RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97918-455-0	01	1	0009-			●
12	CARPET; FLOOR,RR NOISE INSULATION PACK 2<7MW> DARK GRAY THA	8-97292-451-1	01	1	0009-					●
12	CARPET; FLOOR,RR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> DARK GRAY THA	8-97292-451-1	01	1	0009-				●
12	CARPET; FLOOR,RR EXC. NOISE INSULATION PACK 2<7MW> DARK GRAY THA	8-97292-449-1	01	1	0009-					●
12	CARPET; FLOOR,RR FLOOR CARPET<B30> EXC. NOISE INSULATION PACK 2<7MW> DARK GRAY THA	8-97292-449-1	01	1	0009-				●
12	CARPET; FLOOR,RR FLOOR CARPET<B30> THA	8-97918-456-0	01	1	0009-			●
12	CARPET; FLOOR,RR FLOOR CARPET<B30> RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97920-054-1	01	1	0009-			●
12	CARPET; FLOOR,RR THA	8-97921-331-3	01	1	0009-	●	●
22	PLATE; SILL,RR THA	8-97911-226-0	02	1	0009-							●
22	PLATE; SILL,RR GRAY	8-97153-630-0	02	1	0009-	●	●
88	CLIP; TRIM COVER,RR SEAT RISER GRAY	8-97153-651-1	07	1	0009-	●	●
113	COVER; TRIM,RR SEAT RISER GRAY	8-97155-011-1	01	1	0009-	●	●
113	COVER; TRIM,RR SEAT RISER GRAY	8-97155-010-1	01	1	0009-	●	●
150	INSULATION; HEAT,FLOOR NOISE INSULATION PACK 2<7MW> (A)	8-97141-928-1	02	1	0009-	●	●			●
150	INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (A)	8-97141-928-1	02	1	0009-			●	●
150	INSULATION; HEAT,FLOOR NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-2	02	1	0009-	●	●			●
150	INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-2	02	1	0009-			●	●
