◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#43648) — 89 parça

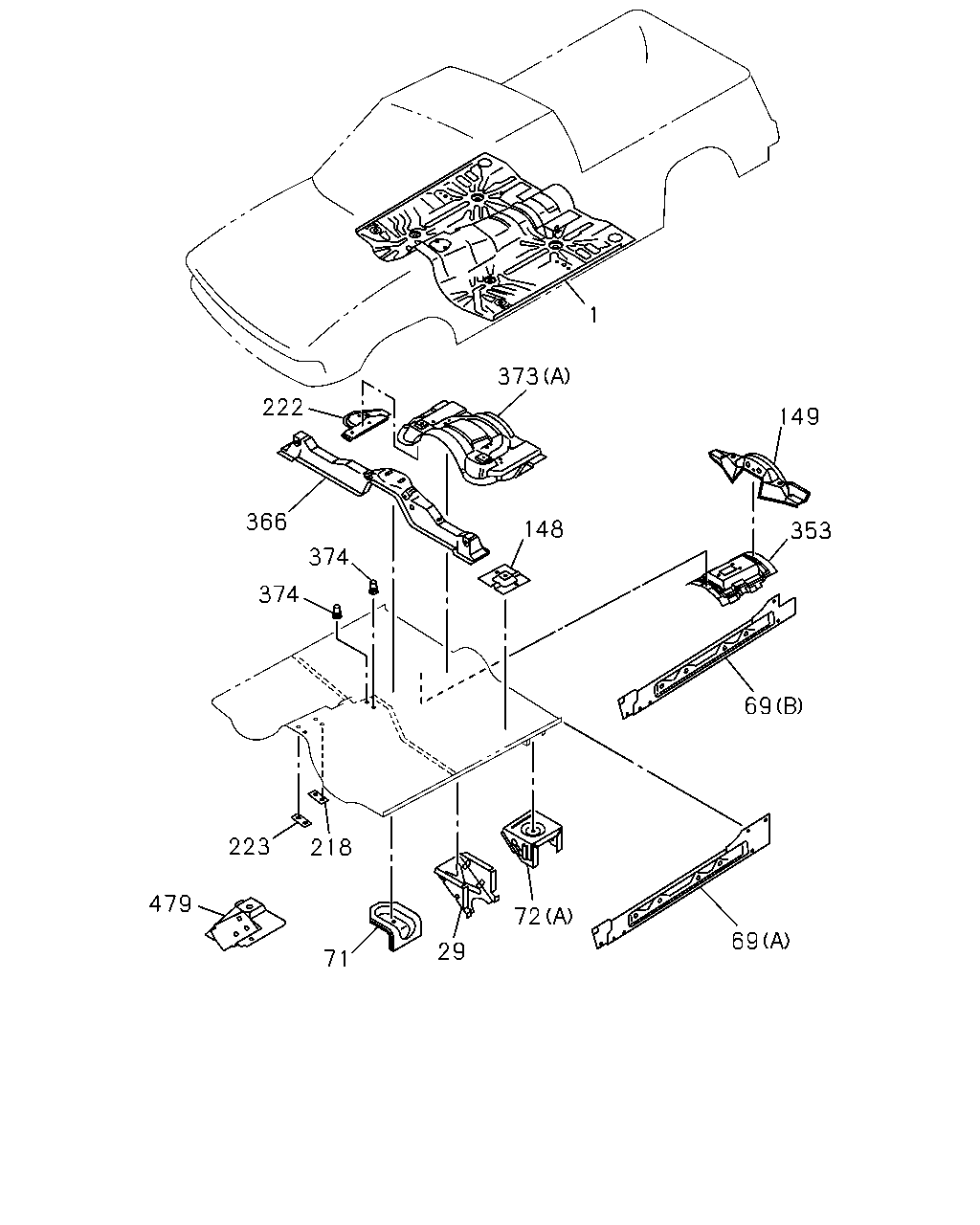

çizim 46796
1 373 222 149 366 148 353 374 374 69 218 223 479 72 69 29 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 PANEL; FLOOR
THA 		8-97920-798-0 01 1 0009- ● ● ● ● ● ● ●
1 PANEL; FLOOR
THA 		8-97920-799-0 01 1 0009- ●
29 GUSSET
THA 		8-97911-661-0 02 1 0009- ● ● ● ● ● ● ● ●
69 PANEL; ROCKER INNER
(A) THA 		8-97911-651-1 01 1 0009- ● ● ● ● ● ● ● ●
69 PANEL; ROCKER INNER
(A) THA 		8-97911-649-1 01 1 0009- ● ● ● ● ● ● ● ●
69 PANEL; ROCKER INNER
(B) THA 		8-97919-981-0 01 1 0009- ● ●
69 PANEL; ROCKER INNER
(B) THA 		8-97919-980-0 01 1 0009- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97911-629-1 01 1 0009- ● ● ● ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97911-627-1 01 1 0009- ● ● ● ● ● ● ● ●
72 BRACKET; CAB MTG,RR
(B) THA 		8-97941-429-0 01 1 0009- ● ●
72 BRACKET; CAB MTG,RR
(B) THA 		8-97941-428-0 01 1 0009- ● ●
72 BRACKET; CAB MTG,RR
(A) THA 		8-97911-634-1 01 1 0009- ● ● ● ● ● ●
72 BRACKET; CAB MTG,RR
(A) THA 		8-97911-632-1 01 1 0009- ● ● ● ● ● ●
148 BRACKET; SEAT
THA 		8-97911-647-0 02 1 0009- ● ● ● ● ● ● ● ●
149 BRACKET; SEAT BELT ROD
THA 		8-97912-400-1 01 1 0009- ● ● ● ● ● ● ●
218 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 0009- ● ● ● ● ● ● ● ●
222 PATCH; BRKT
THA 		8-94199-260-2 01 1 0009- ● ● ● ● ● ● ●
222 PATCH; BRKT
THA 		8-94199-259-2 01 1 0009- ● ● ● ● ● ● ●
223 PATCH; CONSOLE BOX
THA 		8-97911-648-0 01 1 0009- ● ● ● ● ● ● ● ●
353 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 0009- ● ● ● ● ● ● ●
366 BAR ASM; FRT SEAT MTG
THA 		8-97940-954-1 01 1 0009- ● ● ● ● ● ● ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97112-251-2 01 1 0009- ● ● ● ● ● ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97941-418-0 01 1 0009- ● ●
374 NUT; FLOOR
M8 POP NUT 		8-94279-538-0 02 1 0009- ● ● ● ● ● ● ● ●
479 BRACKET; FLOOR,OPENER
THA 		8-97920-468-0 01 1 0009- ● ● ● ● ●

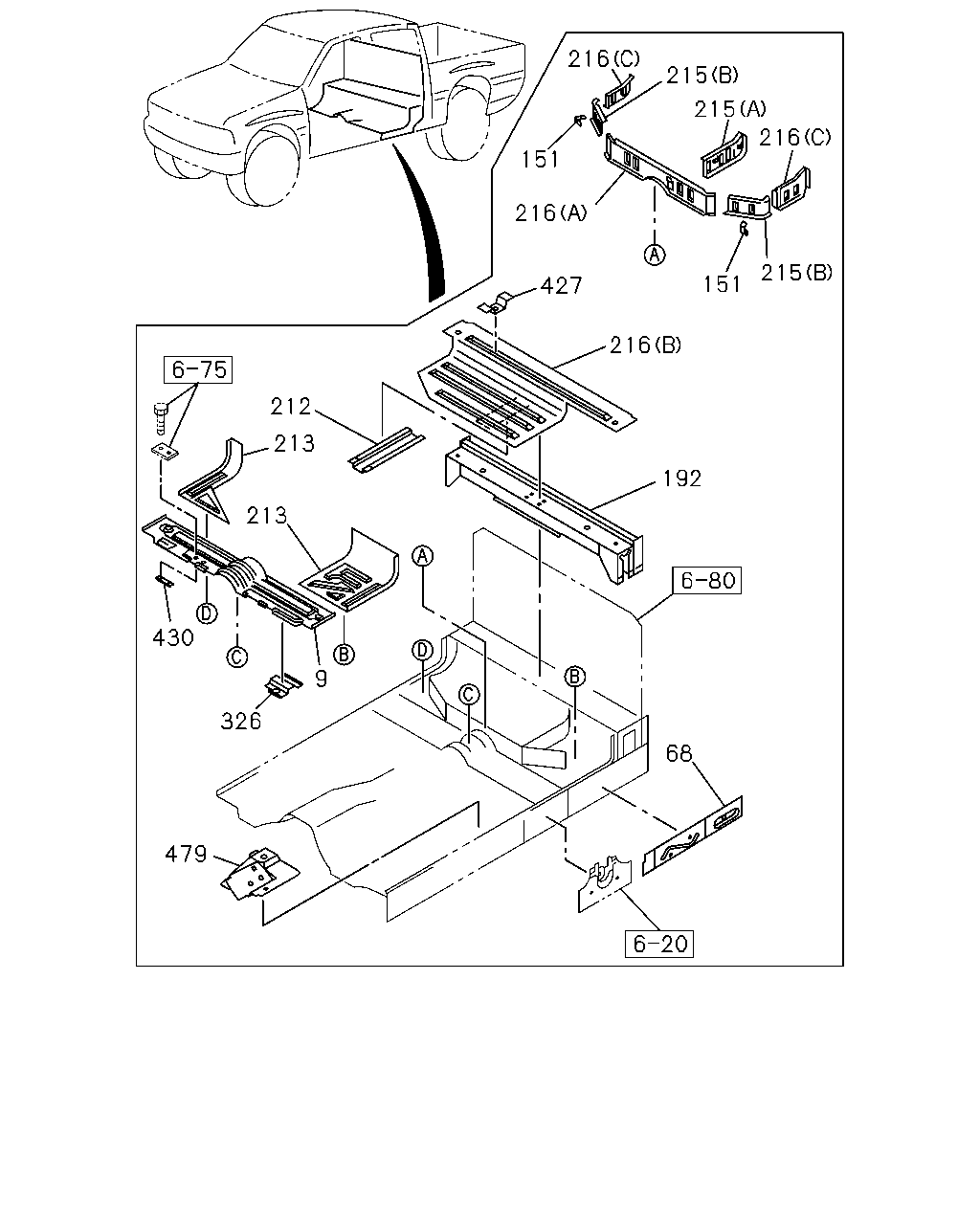

çizim 48085
216 215 215 216 151 216 215 151 427 216 212 213 192 213 430 9 326 68 479
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 PANEL; RR FLOOR,FRT 8-97286-937-0 01 1 0009- ● ●
68 PANEL; ROCKER INNER,CENTER
THA 		8-97911-656-0 02 1 0009- ● ●
68 PANEL; ROCKER INNER,CENTER 8-94454-358-1 01 1 0009- ● ●
68 PANEL; ROCKER INNER,CENTER 8-94454-357-1 01 1 0009- ● ●
151 BRACKET; SEAT CUSHION STOPPER 8-94454-355-0 02 1 0009- ● ●
192 MEMBER; RR FLOOR PANEL
THA 		8-97920-195-0 01 1 0009- ● ●
192 MEMBER; RR FLOOR PANEL 8-97216-704-0 01 1 0009- ● ●
212 PANEL; REINF,SEAT RISER UPR 8-94473-966-0 01 1 0009- ● ●
213 PANEL; RR FLOOR SIDE 8-97227-382-0 01 1 0009- ● ●
213 PANEL; RR FLOOR SIDE
THA 		8-94454-325-0 01 1 0009- ● ●
215 PANEL; SEAT RISER,CENTER
(A) 		8-97070-581-1 01 1 0009- ● ●
215 PANEL; SEAT RISER,CENTER
(B) 		8-97070-585-0 01 1 0009- ● ●
215 PANEL; SEAT RISER,CENTER
(B) 		8-97070-584-0 01 1 0009- ● ●
216 PANEL; SEAT RISER
(A) 		8-94454-332-0 01 1 0009- ● ●
216 PANEL; SEAT RISER
(B) 		8-97216-703-1 01 1 0009- ● ●
216 PANEL; SEAT RISER
(C) 		8-97257-872-0 01 1 0009-0107 ● ●
216 PANEL; SEAT RISER
THA 		8-97306-474-0 01 1 0108- ● ●
216 PANEL; SEAT RISER
(C) 		8-97257-870-0 01 1 0009-0107 ● ●
216 PANEL; SEAT RISER
THA 		8-97306-473-0 01 1 0108- ● ●
326 PATCH; RR FLOOR
THA 		8-97226-254-0 01 1 0009- ● ●
427 BRACKET; CABLE
THA 		8-97212-925-0 01 1 0009- ● ●
430 PATCH; DUMPER 8-97139-101-0 01 1 0009- ● ●
479 BRACKET; FLOOR,OPENER
THA 		8-97920-468-0 01 1 0009- ● ● ● ● ●

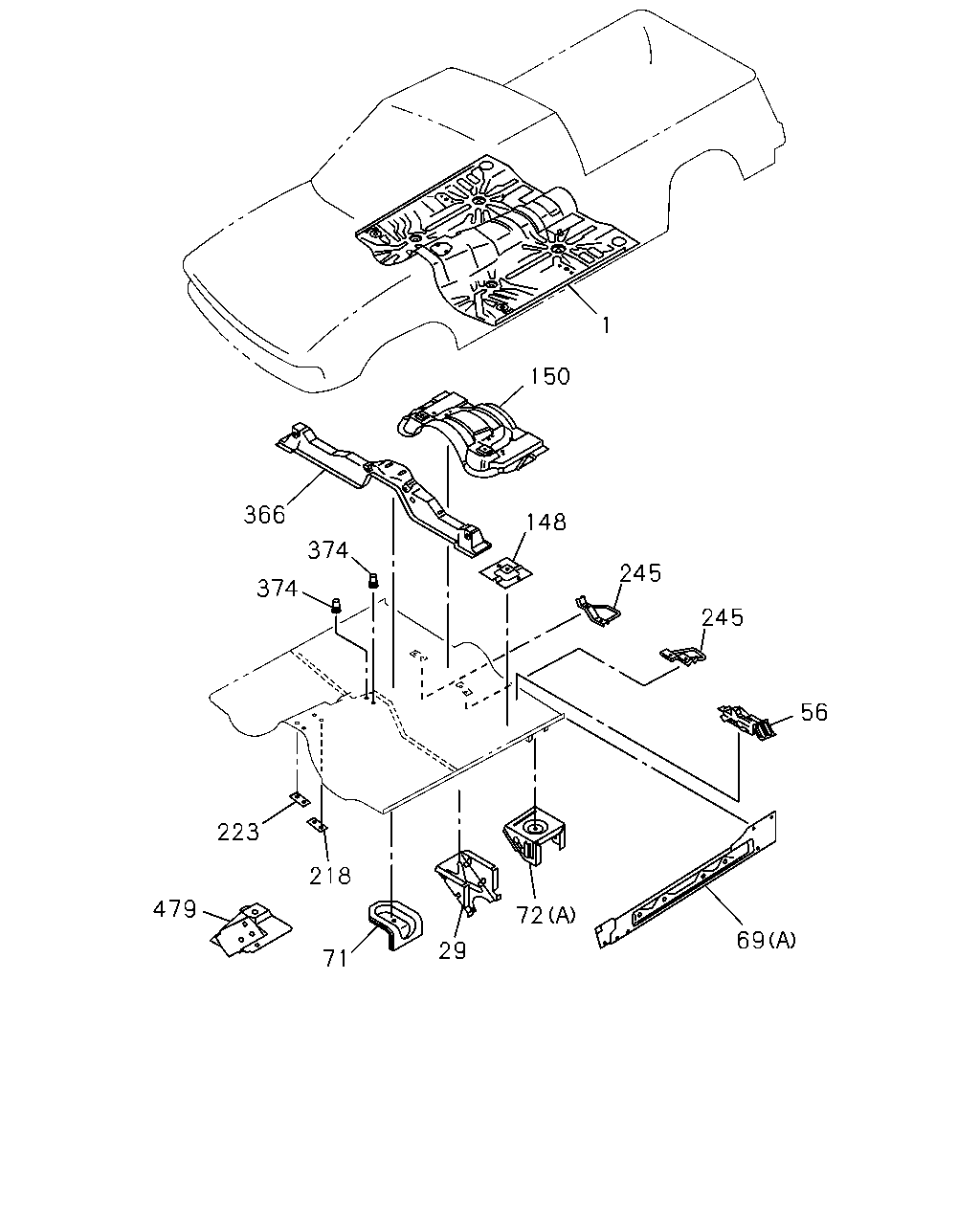

çizim 48232
1 150 366 148 374 245 374 245 56 223 218 479 72 69 29 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 PANEL; FLOOR
THA 		8-97920-798-0 01 1 0009- ● ● ● ● ● ● ●
1 PANEL; FLOOR
THA 		8-97920-799-0 01 1 0009- ●
29 GUSSET
THA 		8-97911-661-0 02 1 0009- ● ● ● ● ● ● ● ●
56 BRACKET; JACK
THA 		8-97911-620-0 01 1 0009- ●
69 PANEL; ROCKER INNER
(A) THA 		8-97911-651-1 01 1 0009- ● ● ● ● ● ● ● ●
69 PANEL; ROCKER INNER
(A) THA 		8-97911-649-1 01 1 0009- ● ● ● ● ● ● ● ●
69 PANEL; ROCKER INNER
(B) THA 		8-97919-981-0 01 1 0009- ● ●
69 PANEL; ROCKER INNER
(B) THA 		8-97919-980-0 01 1 0009- ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97911-629-1 01 1 0009- ● ● ● ● ● ● ● ●
71 BRACKET; CAB MTG,CENTER
THA 		8-97911-627-1 01 1 0009- ● ● ● ● ● ● ● ●
72 BRACKET; CAB MTG,RR
(B) THA 		8-97941-429-0 01 1 0009- ● ●
72 BRACKET; CAB MTG,RR
(B) THA 		8-97941-428-0 01 1 0009- ● ●
72 BRACKET; CAB MTG,RR
(A) THA 		8-97911-634-1 01 1 0009- ● ● ● ● ● ●
72 BRACKET; CAB MTG,RR
(A) THA 		8-97911-632-1 01 1 0009- ● ● ● ● ● ●
148 BRACKET; SEAT
THA 		8-97911-647-0 02 1 0009- ● ● ● ● ● ● ● ●
150 BRACKET; SEAT BELT,ANCHOR
THA 		8-97911-659-0 01 1 0009- ●
218 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 0009- ● ● ● ● ● ● ● ●
223 PATCH; CONSOLE BOX
THA 		8-97911-648-0 01 1 0009- ● ● ● ● ● ● ● ●
245 ROD; FRT SEAT BELT,ANCHOR
THA 		8-97910-958-1 01 1 0009- ●
245 ROD; FRT SEAT BELT,ANCHOR
THA 		8-97910-957-1 01 1 0009- ●
366 BAR ASM; FRT SEAT MTG
THA 		8-97940-954-1 01 1 0009- ● ● ● ● ● ● ● ●
374 NUT; FLOOR
M8 POP NUT 		8-94279-538-0 02 1 0009- ● ● ● ● ● ● ● ●
479 BRACKET; FLOOR,OPENER
THA 		8-97920-468-0 01 1 0009- ● ● ● ● ●

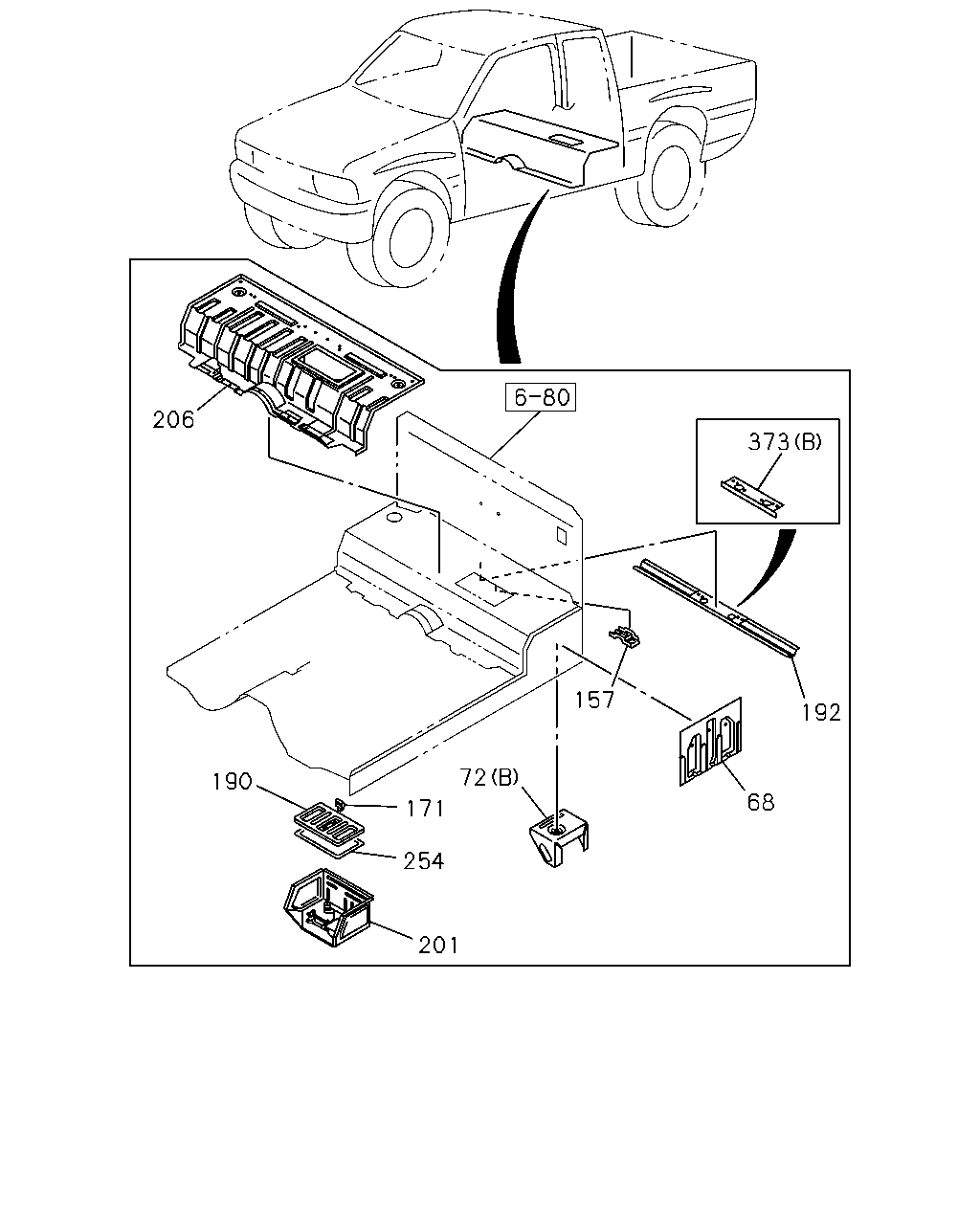

çizim 51906
206 373 157 192 72 190 68 171 254 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
68 PANEL; ROCKER INNER,CENTER
THA 		8-97911-656-0 02 1 0009- ● ●
68 PANEL; ROCKER INNER,CENTER 8-94454-358-1 01 1 0009- ● ●
68 PANEL; ROCKER INNER,CENTER 8-94454-357-1 01 1 0009- ● ●
72 BRACKET; CAB MTG,RR
(B) THA 		8-97941-429-0 01 1 0009- ● ●
72 BRACKET; CAB MTG,RR
(B) THA 		8-97941-428-0 01 1 0009- ● ●
72 BRACKET; CAB MTG,RR
(A) THA 		8-97911-634-1 01 1 0009- ● ● ● ● ● ●
72 BRACKET; CAB MTG,RR
(A) THA 		8-97911-632-1 01 1 0009- ● ● ● ● ● ●
157 BRACKET; TOOL BOX LID
THA 		8-97911-643-0 01 1 0009- ● ●
171 FASTENER; TOOL BOX LID 8-94328-345-0 03 1 0009- ● ●
190 LID; TOOL BOX
THA 		8-97911-623-0 01 1 0009- ● ●
192 MEMBER; RR FLOOR PANEL
THA 		8-97920-195-0 01 1 0009- ● ●
192 MEMBER; RR FLOOR PANEL 8-97216-704-0 01 1 0009- ● ●
201 PANEL ASM; TOOL BOX
THA 		8-97911-635-0 01 1 0009-0106 ● ●
201 PANEL ASM; TOOL BOX
THA 		8-97922-118-0 01 1 0107- ● ●
206 PANEL; FLOOR BOARD RR
THA 		8-97919-453-2 01 1 0009- ● ●
254 SEAL; TOOL BOX LID
THA 		8-97910-932-0 01 1 0009- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97112-251-2 01 1 0009- ● ● ● ● ● ● ●
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97941-418-0 01 1 0009- ● ●
