6-60 — ROOF PANEL (#43646) — 36 parça

çizim 9296

1 44 6 13 15

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	1	PANEL; ROOF THA	8-97911-698-1	01	1	0009-	●	●
	1	PANEL; ROOF THA	8-97911-697-1	01	1	0009-			●
	1	PANEL; ROOF	8-94471-173-0	01	1	0009-0011				●	●
	1	PANEL; ROOF	8-97303-937-0	01	1	0012-				●	●
	6	FRAME; ROOF FRT	8-94455-377-1	01	1	0009-	●	●	●	●	●	●	●	●
	13	PANEL; ROOF SUPPORT THA	8-97920-967-0	01	1	0009-	●	●		●	●
	15	BOLT; ROOF SUPPORT M6X14 FLANGE THA	8-94327-380-0	04	1	0009-	●	●
	15	BOLT; ROOF SUPPORT M6X16 W/LK&PL WASHER	9-03920-616-0	08	1	0009-0111				●	●
	15	BOLT; ROOF SUPPORT M6X14 FLANGE THA	8-94327-380-0	08	1	0112-				●	●
	44	FRAME ASM; ROOF PANEL RR THA	8-97911-750-0	01	1	0009-	●	●	●	●	●

çizim 11771

1 44 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	1	PANEL; ROOF THA	8-97911-698-1	01	1	0009-	●	●
	1	PANEL; ROOF THA	8-97911-697-1	01	1	0009-			●
	1	PANEL; ROOF	8-94471-173-0	01	1	0009-0011				●	●
	1	PANEL; ROOF	8-97303-937-0	01	1	0012-				●	●
	6	FRAME; ROOF FRT	8-94455-377-1	01	1	0009-	●	●	●	●	●	●	●	●
	44	FRAME ASM; ROOF PANEL RR THA	8-97911-750-0	01	1	0009-	●	●	●	●	●

çizim 48090

10 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	6	FRAME; ROOF FRT	8-94455-377-1	01	1	0009-	●	●	●	●	●	●	●	●
	10	FRAME; ROOF RR THA	8-97911-750-0	01	1	0009-							●

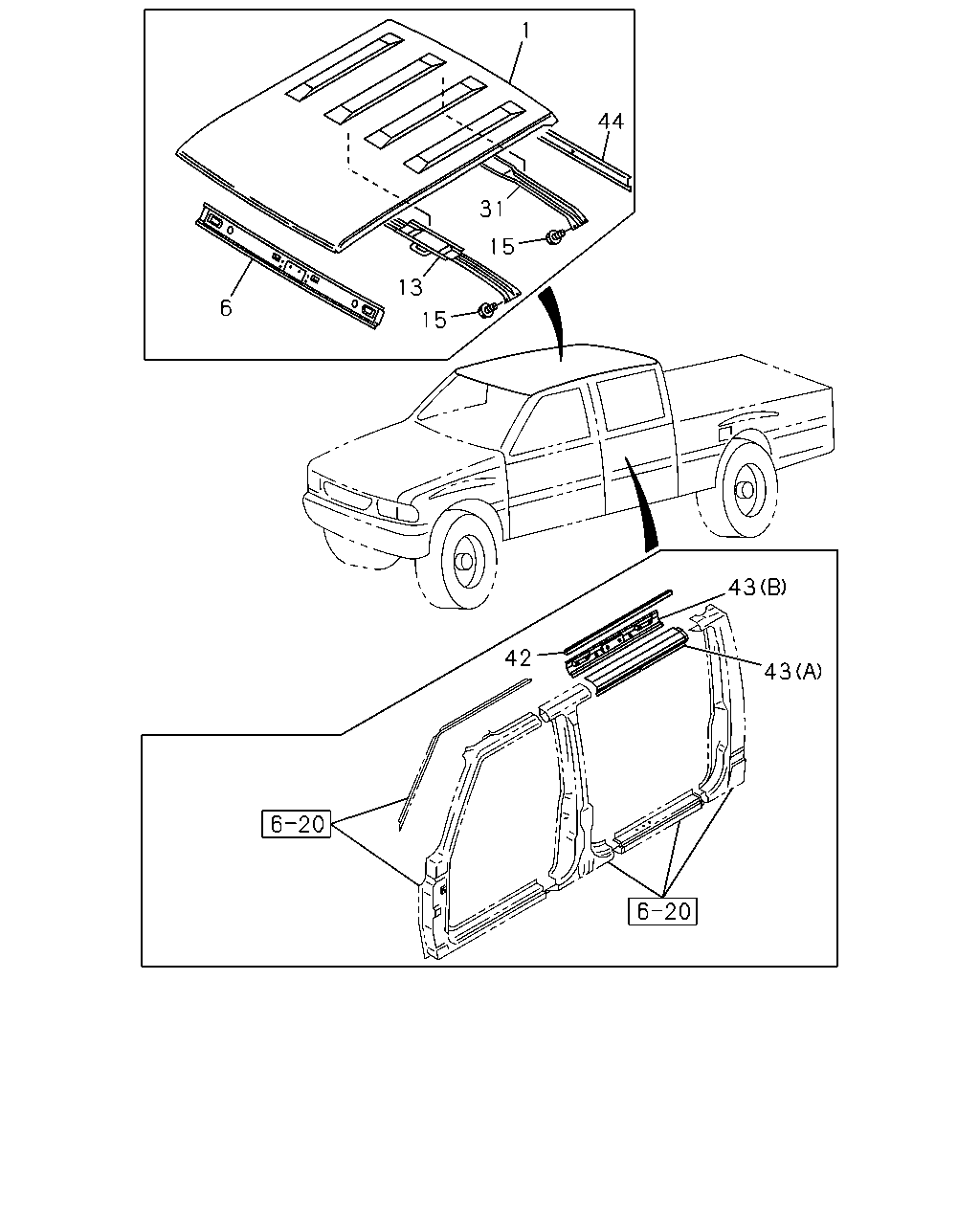

çizim 50755

1 44 31 15 13 15 6 43 42 43

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	1	PANEL; ROOF THA	8-97911-698-1	01	1	0009-	●	●
	1	PANEL; ROOF THA	8-97911-697-1	01	1	0009-			●
	1	PANEL; ROOF	8-94471-173-0	01	1	0009-0011				●	●
	1	PANEL; ROOF	8-97303-937-0	01	1	0012-				●	●
	6	FRAME; ROOF FRT	8-94455-377-1	01	1	0009-	●	●	●	●	●	●	●	●
	13	PANEL; ROOF SUPPORT THA	8-97920-967-0	01	1	0009-	●	●		●	●
	15	BOLT; ROOF SUPPORT M6X14 FLANGE THA	8-94327-380-0	04	1	0009-	●	●
	15	BOLT; ROOF SUPPORT M6X16 W/LK&PL WASHER	9-03920-616-0	08	1	0009-0111				●	●
	15	BOLT; ROOF SUPPORT M6X14 FLANGE THA	8-94327-380-0	08	1	0112-				●	●
	31	PANEL; ROOF SUPPORT,RR THA	8-97914-624-1	01	1	0009-				●	●
	42	RAIL; DRIP,ROOF RR THA	8-94454-397-0	01	1	0009-				●	●
	42	RAIL; DRIP,ROOF RR THA	8-94454-396-0	01	1	0009-				●	●
	43	CLOSING; ROOF RAIL,RR	8-97303-975-0	01	1	0012-				●	●
	43	CLOSING; ROOF RAIL,RR (B)	8-94454-398-0	02	1	0009-0011				●	●
	43	CLOSING; ROOF RAIL,RR (B)	8-94454-398-0	01	1	0012-				●	●
	43	CLOSING; ROOF RAIL,RR (A)	8-94454-389-0	01	1	0009-				●	●
	43	CLOSING; ROOF RAIL,RR (A)	8-94454-388-0	01	1	0009-				●	●
	44	FRAME ASM; ROOF PANEL RR THA	8-97911-750-0	01	1	0009-	●	●	●	●	●
