Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

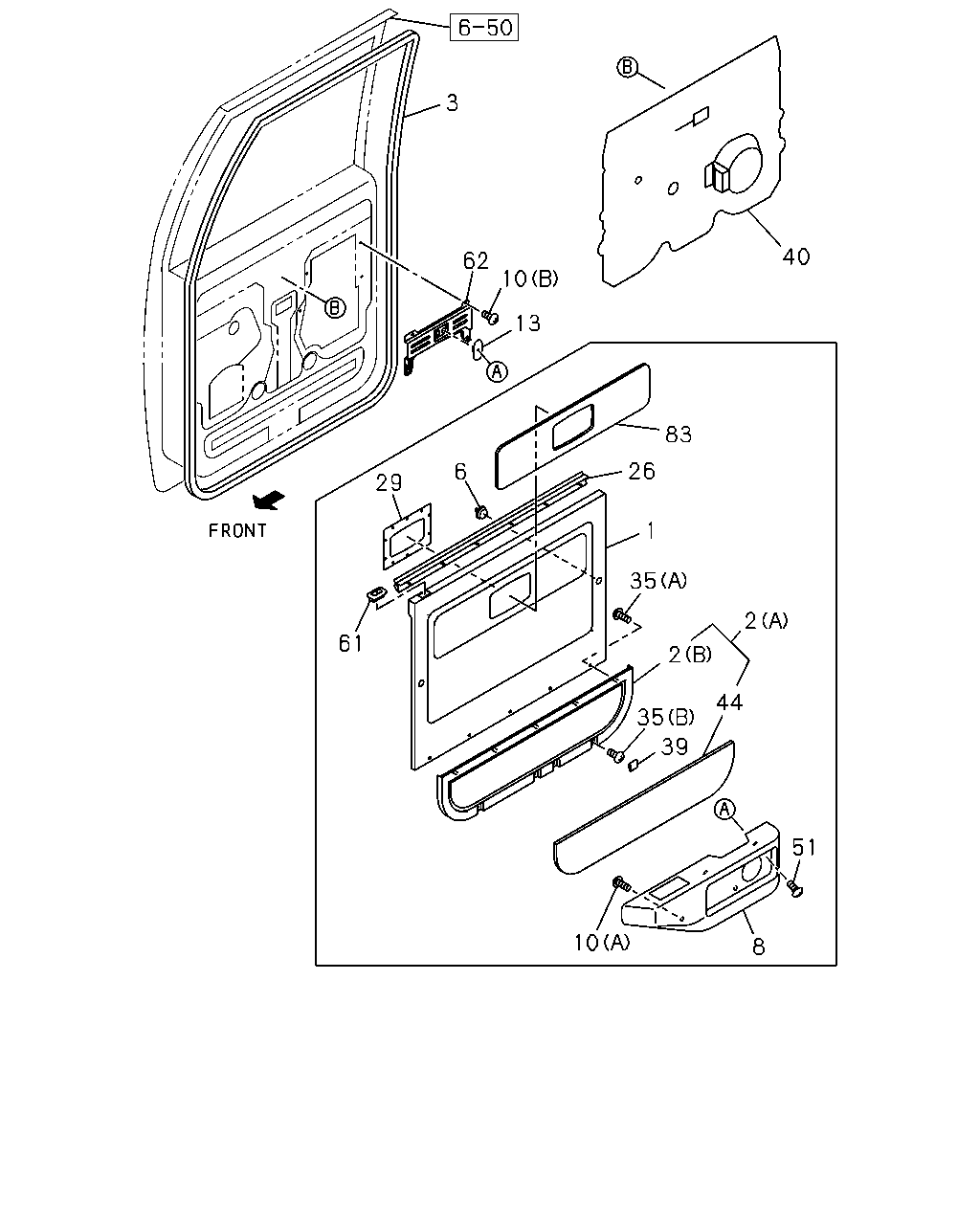

6-55 - REAR DOOR TRIM
▶
6-55 — REAR DOOR TRIM
(#43645) — 33 parça
Tümü
A - TFB5WF
B - TFS5WF
◀
[655A] NO.2 (3 parça)
[655A] NO.1 (30 parça)
▶
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
45
FINISHER; RR DOOR
ANTI WIND NOISE<7MD> GRAY
8-97293-032-0
02
1
0009-
●
●
45
FINISHER; RR DOOR
EXC. ANTI WIND NOISE<7MD> THA
8-97921-343-1
02
1
0009-0109
●
●
45
FINISHER; RR DOOR
EXC. ANTI WIND NOISE<7MD> THA
8-97922-135-0
02
1
0110-
●
●
3
40
62
10
13
83
26
6
29
1
35
2
61
2
44
35
39
51
10
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAD; TRIM,RR DOOR
GRAY
8-97155-653-3
01
1
0009-
●
●
1
PAD; TRIM,RR DOOR
GRAY
8-97155-652-3
01
1
0009-
●
●
2
PLATE; RR DOOR LWR
(A)
8-97297-009-0
02
1
0009-
●
2
PLATE; RR DOOR LWR
(B) GRAY THA
8-97154-026-2
02
1
0009-
●
●
3
WEATHERSTRIP; RR DOOR
8-94449-880-4
01
1
0009-
●
●
3
WEATHERSTRIP; RR DOOR
8-94449-879-4
01
1
0009-
●
●
6
CLIP; DOOR PAD
H=16 THA
8-94318-803-1
16
1
0009-
●
●
8
REST; ARM,RR DOOR
GRAY
8-97154-677-3
01
1
0009-
●
●
8
REST; ARM,RR DOOR
GRAY
8-97154-676-3
01
1
0009-
●
●
10
SCREW; ARM REST
(B) M5X12
8-94120-094-0
08
1
0009-
●
●
10
SCREW; ARM REST
(A) M4X14
8-94318-550-0
12
1
0009-
●
●
13
GROMMET; SCREW,ARM REST
SCREW GROMMET
8-06698-938-1
04
1
0009-
●
●
26
SEAL; WAIST,RR DOOR INNER
8-97160-986-1
02
1
0009-
●
●
29
REINFORCEMENT; DOOR PAD
8-94447-731-1
02
1
0009-
●
●
35
SCREW; TRIM PAD
(A) M4X8 THA
8-94363-204-0
10
1
0009-
●
●
35
SCREW; TRIM PAD
(B) M4X13 TAPPING THA
8-97104-883-0
06
1
0009-
●
●
39
COVER; DOOR TRIM
GRAY
8-97152-745-3
06
1
0009-
●
●
40
SHEET; WATER PROOF,RR DOOR
THA
8-97921-339-0
01
1
0009-
●
●
40
SHEET; WATER PROOF,RR DOOR
THA
8-97921-338-0
01
1
0009-
●
●
44
TRIM; DOOR,RR
8-97297-010-0
02
1
0009-
●
51
SCREW; ASSIST GRIP,RR DOOR TRIM
M6X30
8-94361-891-0
04
1
0009-
●
●
61
GUIDE; HOLE
GRAY THA
8-97152-748-3
02
1
0009-
●
●
62
BRACKET
8-97176-379-0
01
1
0009-
●
●
62
BRACKET
8-97176-378-0
01
1
0009-
●
●
83
TRIM; CENTER CLOTH
020 MODEL YEAR PACKAGE<8GN>
8-97390-936-0
02
1
0106-
●
83
TRIM; CENTER CLOTH
020 MODEL YEAR PACKAGE<8GN>
8-97390-937-0
02
1
0106-
●
83
TRIM; CENTER CLOTH
8-97297-008-0
02
1
0009-0105
●
83
TRIM; CENTER CLOTH
EXC. 020 MODEL YEAR PACKAGE<8GN>
8-97297-008-0
02
1
0106-
●
83
TRIM; CENTER CLOTH
8-97297-011-0
02
1
0009-0105
●
83
TRIM; CENTER CLOTH
EXC. 020 MODEL YEAR PACKAGE<8GN>
8-97297-011-0
02
1
0106-
●
