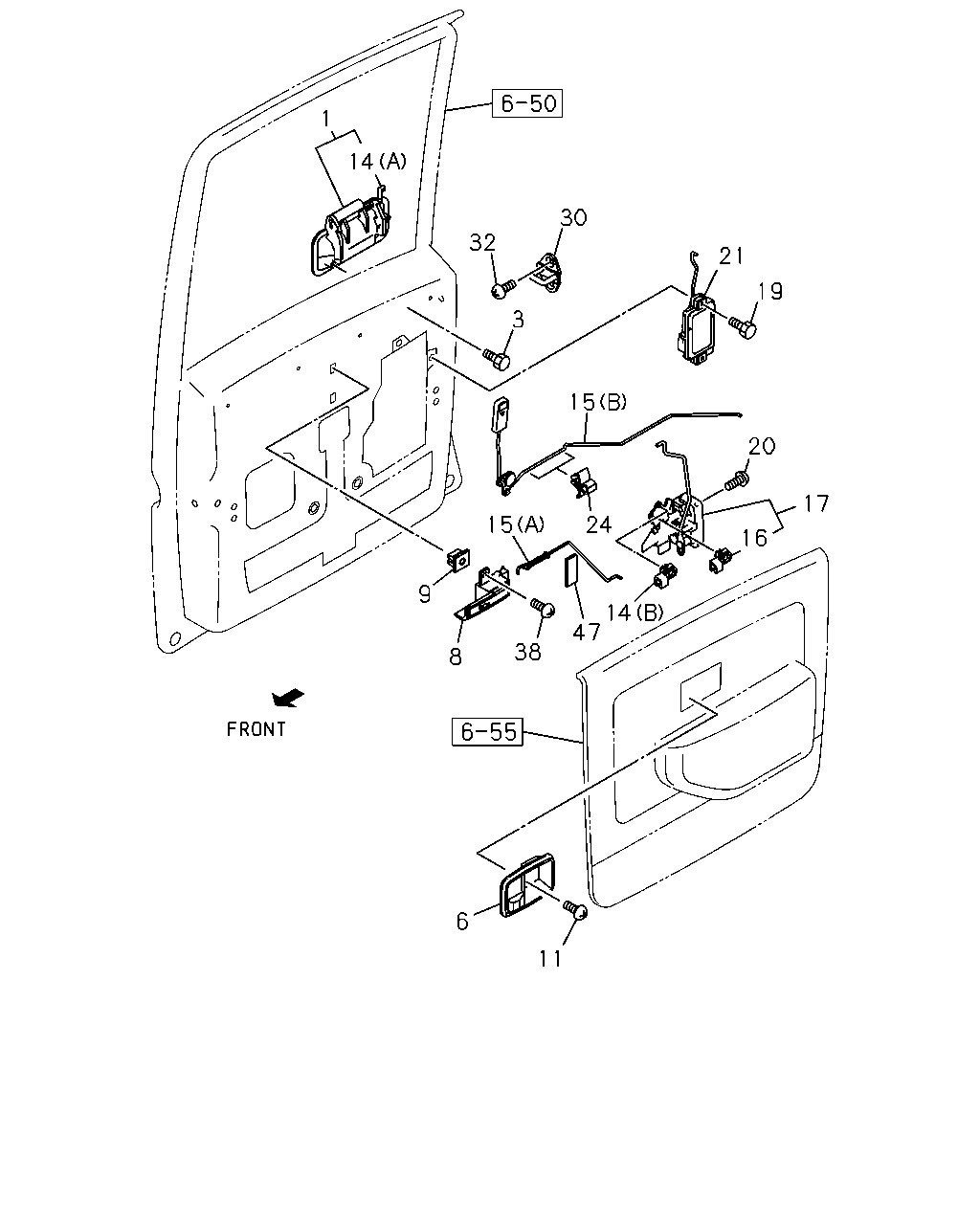

6-52 — REAR DOOR LOCK AND HANDLE (#43644) — 45 parça

1 14 30 32 21 19 3 15 20 17 15 24 16 9 14 47 38 8 6 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; OUTSIDE,RR DOOR SATIN GOLD THA	8-97921-874-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR SATIN GOLD THA	8-97921-875-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR QUARTZ SILVER THA	8-97921-876-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR QUARTZ SILVER THA	8-97921-877-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR CASCADE BLUE THA	8-97921-878-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR CASCADE BLUE THA	8-97921-879-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR FROSTY WHITE THA	8-97921-880-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR FROSTY WHITE THA	8-97921-881-0	01	1	0102-	●
1	HANDLE; OUTSIDE,RR DOOR	8-94449-862-1	01	1	0009-	●
1	HANDLE; OUTSIDE,RR DOOR	8-94449-861-1	01	1	0009-	●
1	HANDLE; OUTSIDE,RR DOOR	8-94474-033-3	01	1	0009-		●
1	HANDLE; OUTSIDE,RR DOOR	8-94474-032-3	01	1	0009-		●
3	BOLT; DOOR OUTSIDE HANDLE M6X8 THA	8-94155-893-0	04	1	0009-	●	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK THA	8-97916-629-0	01	1	0009-	●	●
6	BEZEL; INSIDE HANDLE,DOOR LOCK THA	8-97916-623-0	01	1	0009-	●	●
8	HANDLE; INSIDE,RR DOOR THA	8-97915-231-0	01	1	0009-	●	●
8	HANDLE; INSIDE,RR DOOR THA	8-97915-230-0	01	1	0009-	●	●
9	GROMMET; SCREW,INSIDE HANDLE THA	8-97910-931-0	04	1	0009-	●	●
11	SCREW; INSIDE HANDLE M4X10 TAPPING OVAL-HEAD	0-70680-410-0	02	1	0009-	●	●
14	HOLDER; DOOR LK ROD WHITE	8-97037-508-0	01	1	0102-	●
14	HOLDER; DOOR LK ROD YELLOW	8-97044-834-0	01	1	0102-	●
14	HOLDER; DOOR LK ROD (A) THA	8-97134-591-0	01	1	0009-	●
14	HOLDER; DOOR LK ROD (A) THA	8-97134-588-0	01	1	0009-	●
14	HOLDER; DOOR LK ROD (B) GREEN	8-94123-004-1	01	1	0009-	●	●
14	HOLDER; DOOR LK ROD (B) WHITE	8-94123-005-1	01	1	0009-	●	●
14	HOLDER; DOOR LK ROD (A)	8-97102-756-0	01	1	0009-		●
14	HOLDER; DOOR LK ROD (A)	8-97102-755-0	01	1	0009-		●
15	LINK; RR DOOR LK (B) GRAY	8-97154-669-0	01	1	0009-	●	●
15	LINK; RR DOOR LK (A)	8-97224-400-0	01	1	0009-	●	●
15	LINK; RR DOOR LK (B) GRAY	8-97154-668-0	01	1	0009-	●	●
15	LINK; RR DOOR LK (A)	8-97224-399-0	01	1	0009-	●	●
16	CLIP; DOOR LK LINK GREEN	8-94123-004-1	01	1	0009-	●	●
16	CLIP; DOOR LK LINK WHITE	8-94123-005-1	01	1	0009-	●	●
17	LOCK; DOOR,RR DOOR	8-97206-920-2	01	1	0009-	●	●
17	LOCK; DOOR,RR DOOR	8-97206-919-2	01	1	0009-	●	●
19	BOLT; RR DOOR LOCK M6X8 THA	8-94155-893-0	04	1	0009-	●	●
20	SCREW; DOOR LK M6X16 CK-HD	8-97113-761-0	06	1	0009-0009	●	●
20	SCREW; DOOR LK M6X16 OVAL-HD	8-94172-523-0	06	1	0010-	●	●
21	ACTUATOR; RR DOOR LOCK	8-97112-228-1	01	1	0009-	●	●
21	ACTUATOR; RR DOOR LOCK	8-97112-227-1	01	1	0009-	●	●
24	ANTIRATTLER; DOOR INSIDE HANDLE ID=3.8 WHITE	8-94217-699-0	04	1	0009-	●	●
30	STRIKER; RR DOOR THA	8-97915-292-0	02	1	0009-	●	●
32	SCREW; DOOR STRIKER M8X20	9-03097-820-0	04	1	0009-	●	●
38	SCREW; INSIDE LEVER,RR DOOR LK M6X16	9-09829-197-0	04	1	0009-	●	●
47	SEAL	8-97132-038-1	02	1	0009-	●	●
