◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#43643) — 18 parça

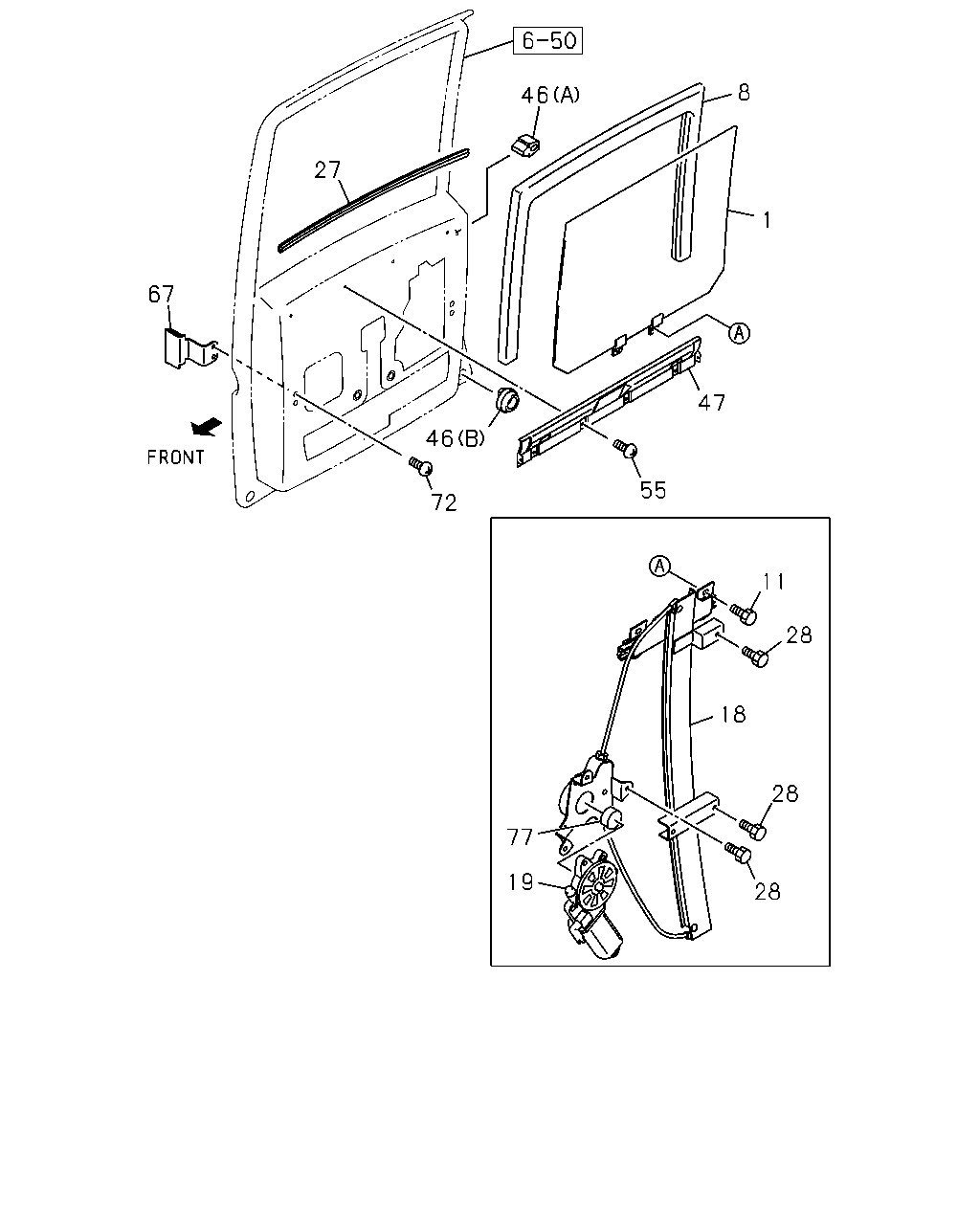

çizim 48817
8 46 27 1 67 47 46 55 72 11 28 18 28 77 19 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; RR DOOR
THA 		8-97921-353-0 01 1 0009- ● ●
1 GLASS; RR DOOR
THA 		8-97921-352-0 01 1 0009- ● ●
8 RUN; GLASS,RR DOOR 8-94449-882-3 01 1 0009- ● ●
8 RUN; GLASS,RR DOOR 8-94449-881-3 01 1 0009- ● ●
11 BOLT; GLASS
M6X8 THA 		8-94155-893-0 04 1 0009- ● ●
18 REGULATOR; WINDOW,RR DOOR 8-97165-893-2 01 1 0009- ● ●
18 REGULATOR; WINDOW,RR DOOR 8-97165-892-2 01 1 0009- ● ●
19 MOTOR; POWER WINDOW REG,RR DOOR 8-97165-895-0 01 1 0009- ● ●
19 MOTOR; POWER WINDOW REG,RR DOOR 8-97165-894-0 01 1 0009- ● ●
27 SEAL; WAIST,RR DOOR
THA 		8-97921-351-0 02 1 0009- ● ●
28 BOLT; WINDOW REG
M6X8 THA 		8-94155-893-0 12 1 0009- ● ●
46 BUFFER; RR DOOR
(A) 		8-03468-771-1 02 1 0009- ● ●
46 BUFFER; RR DOOR
(B) 		8-97014-688-0 02 1 0009- ● ●
47 GARNISH; RR DOOR 8-94454-743-1 02 1 0009- ● ●
55 SCREW; REG HANDLE
M5X12 		8-94120-094-0 12 1 0009- ● ●
67 STABILIZER; RR DOOR 8-97073-005-1 04 1 0009- ● ●
72 SCREW; STABILIZER
M6X14 		8-94113-240-1 08 1 0009- ● ●
77 DAMPER; WINDOW REGULATOR 1-74417-074-0 02 1 0009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
