6-47 — MUD GUARD AND INSULATOR (#43641) — 156 parça

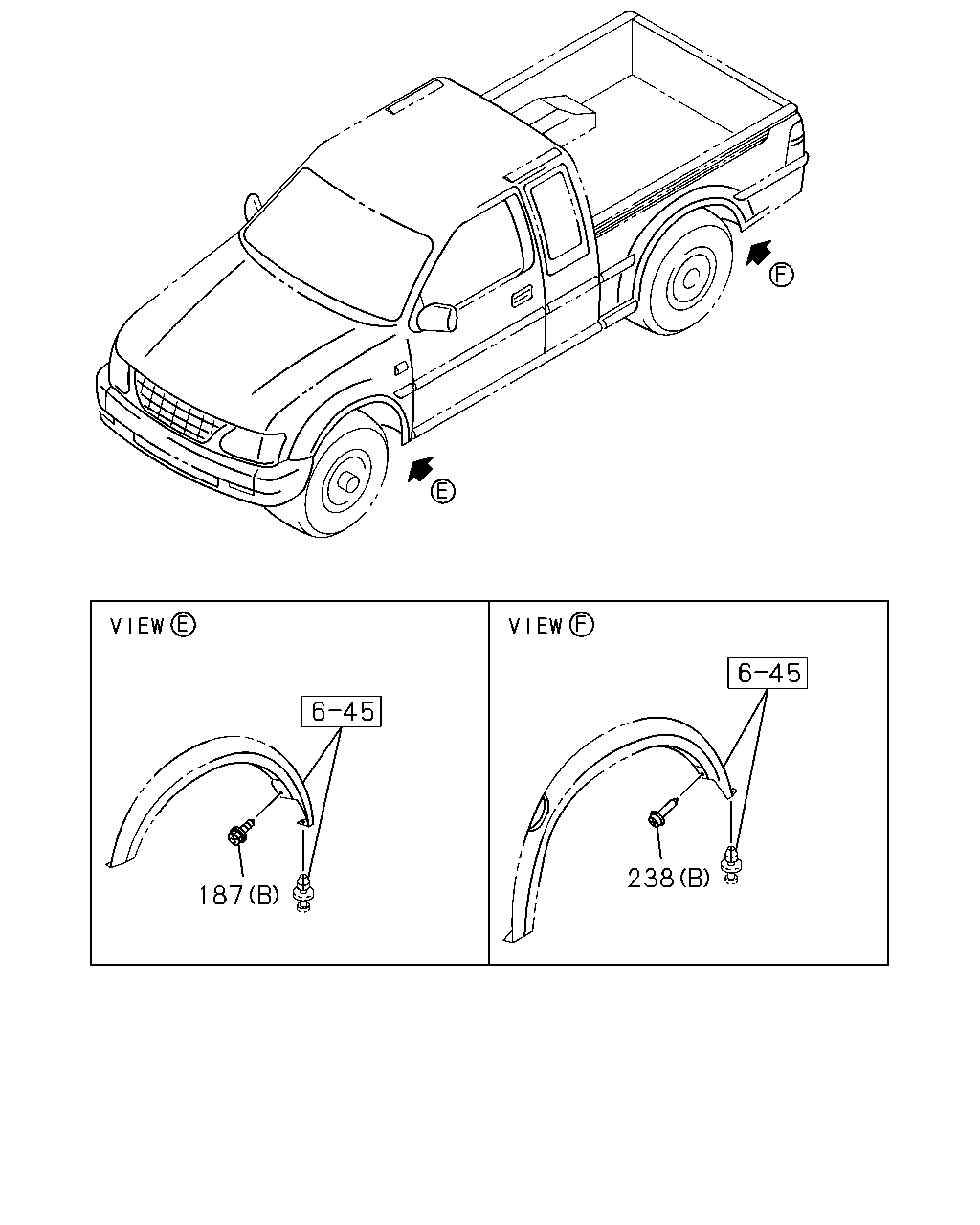

238 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
187	SCREW; FENDER COVER MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	0103-	●
187	SCREW; FENDER COVER MUD FLAP<VH4> (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0009-0102	●	●	●	●	●
187	SCREW; FENDER COVER (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0009-0102						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-		●	●	●	●
187	SCREW; FENDER COVER M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> EXC. SPECIAL PACKAGE VAR.2<7TB> M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-	●
187	SCREW; FENDER COVER SPECIAL PACKAGE VAR.2<7TB> (B) M6X23 W/PL WASHER TAPPING THA	8-97918-747-0	02	1	0009-	●
238	SCREW; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> M4 TAPPING	8-97113-403-1	02	1	0103-	●
238	SCREW; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> (A) M4 TAPPING	8-97113-403-1	04	1	0009-0102	●	●		●	●
238	SCREW; MUD GUARD (A) M4 TAPPING	8-97113-403-1	04	1	0009-0102						●	●	●
238	SCREW; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB> M4 TAPPING	8-97113-403-1	04	1	0103-		●
238	SCREW; MUD GUARD M4 TAPPING	8-97113-403-1	04	1	0103-						●	●	●
238	SCREW; MUD GUARD MUD FLAP<VH4> M4 TAPPING	8-97113-403-1	04	1	0103-				●	●
238	SCREW; MUD GUARD SPECIAL PACKAGE VAR.2<7TB> (B) THA	8-97918-748-0	02	1	0009-	●

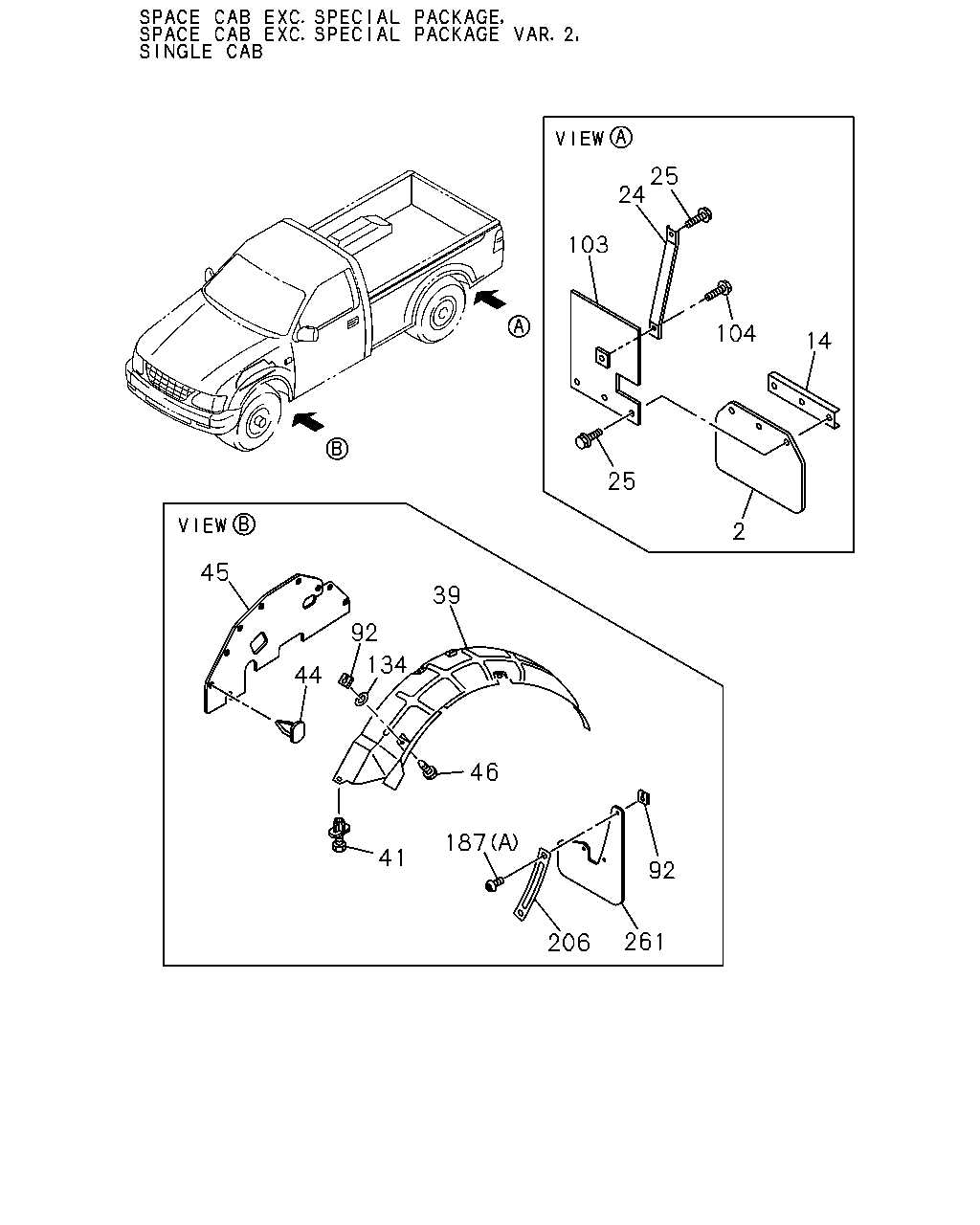

25 24 103 104 14 25 2 45 92 134 39 44 46 187 41 92 261 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	COVER; MUD,TIRE RR MUD FLAP<VH4> EXC. SPECIAL PACKAGE<7BB> THA	8-97910-293-1	02	1	0009-		●
2	COVER; MUD,TIRE RR MUD FLAP<VH4> THA	8-97910-293-1	02	1	0009-			●
2	COVER; MUD,TIRE RR MUD FLAP<VH4> EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-294-0	02	1	0009-	●
14	PLATE; RR MUD FLAP MUD FLAP<VH4> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97911-349-0	02	1	0009-	●	●	●
24	PLATE; MUD COVER MUD FLAP<VH4> THA	8-97911-348-0	01	1	0009-	●	●	●	●	●
24	PLATE; MUD COVER THA	8-97911-348-0	01	1	0009-						●	●	●
24	PLATE; MUD COVER MUD FLAP<VH4> THA	8-97911-347-0	01	1	0009-	●	●	●	●	●
24	PLATE; MUD COVER THA	8-97911-347-0	01	1	0009-						●	●	●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97913-896-0	04	1	0009-		●
25	BOLT; PLATE TO MUD COVER THA	8-97913-896-0	04	1	0009-							●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> THA	8-97913-896-0	04	1	0009-				●	●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-896-0	04	1	0009-	●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-474-0	12	1	0009-	●	●	●
39	LINER; FENDER NHK THA	8-97910-646-3	01	1	0009-	●	●	●	●	●	●	●	●
39	LINER; FENDER SPF THA	8-97910-648-3	01	1	0009-	●	●	●	●	●	●	●	●
39	LINER; FENDER NHK THA	8-97910-645-3	01	1	0009-	●	●	●	●	●	●	●	●
39	LINER; FENDER SPF THA	8-97910-647-3	01	1	0009-	●	●	●	●	●	●	●	●
41	RIVET; INNER LINER THA	8-97915-614-0	12	1	0009-	●	●	●	●	●		●
41	RIVET; INNER LINER THA	8-97915-614-0	18	1	0009-						●		●
44	CLIP; ANCHOR OD=22 L=10.7 THA	8-94215-211-0	14	1	0009-	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97911-350-1	01	1	0009-0011	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97921-783-0	01	1	0012-	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97911-351-0	01	1	0009-0011	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97921-784-0	01	1	0012-	●	●	●	●	●	●	●	●
46	SCREW; INNER LINER M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	0009-	●	●	●	●	●	●	●	●
92	NUT; MUD COVER THA	8-97918-102-0	10	1	0009-	●	●	●	●	●	●	●	●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE<7BB> SPC THA	8-97910-198-0	01	1	0009-		●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE VAR.2<7TB> SPC THA	8-97910-198-0	01	1	0009-	●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE<7BB> SMM THA	8-97916-683-0	01	1	0009-		●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE VAR.2<7TB> SMM THA	8-97916-683-0	01	1	0009-	●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE<7BB> SPC THA	8-97910-197-0	01	1	0009-		●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE VAR.2<7TB> SPC THA	8-97910-197-0	01	1	0009-	●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE<7BB> SMM THA	8-97916-682-0	01	1	0009-		●
103	BRACKET ASM; RR MUD FLAP EXC. SPECIAL PACKAGE VAR.2<7TB> SMM THA	8-97916-682-0	01	1	0009-	●
103	BRACKET ASM; RR MUD FLAP SPC THA	8-97912-478-0	01	1	0009-			●
103	BRACKET ASM; RR MUD FLAP SPC THA	8-97912-477-0	01	1	0009-			●
104	BOLT; BRKT MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97913-896-0	04	1	0009-		●
104	BOLT; BRKT THA	8-97913-896-0	04	1	0009-							●
104	BOLT; BRKT MUD FLAP<VH4> THA	8-97913-896-0	04	1	0009-				●	●
104	BOLT; BRKT MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-896-0	04	1	0009-	●
104	BOLT; BRKT MUD FLAP<VH4> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-474-0	04	1	0009-	●	●	●
134	WASHER; PL MUD FLAP<VH4> ID=8.4 OD=22	9-09164-708-0	06	1	0009-	●	●	●	●	●
134	WASHER; PL ID=8.4 OD=22	9-09164-708-0	06	1	0009-						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	0103-	●
187	SCREW; FENDER COVER MUD FLAP<VH4> (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0009-0102	●	●	●	●	●
187	SCREW; FENDER COVER (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0009-0102						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-		●	●	●	●
187	SCREW; FENDER COVER M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> EXC. SPECIAL PACKAGE VAR.2<7TB> M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-	●
187	SCREW; FENDER COVER SPECIAL PACKAGE VAR.2<7TB> (B) M6X23 W/PL WASHER TAPPING THA	8-97918-747-0	02	1	0009-	●
206	STAY; MUD COVER,FRT MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97916-347-0	02	1	0009-0009		●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-0009						●	●	●
206	STAY; MUD COVER,FRT MUD FLAP<VH4> THA	8-97916-347-0	02	1	0009-0009				●
206	STAY; MUD COVER,FRT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97916-347-0	02	1	0009-0009	●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-0009								●
206	STAY; MUD COVER,FRT MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97916-347-0	02	1	0009-		●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-				●	●	●	●	●
206	STAY; MUD COVER,FRT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97916-347-0	02	1	0009-	●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-								●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-199-2	01	1	0009-	●	●		●	●
261	RUBBER; FRT,MUD GUARD THA	8-97915-199-2	01	1	0009-						●	●	●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-198-1	01	1	0009-	●	●		●	●
261	RUBBER; FRT,MUD GUARD THA	8-97915-198-1	01	1	0009-						●	●	●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-291-1	02	1	0009-	●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> THA	8-97303-048-1	02	1	0107-	●				●
261	RUBBER; FRT,MUD GUARD THA	8-97303-048-1	02	1	0107-								●

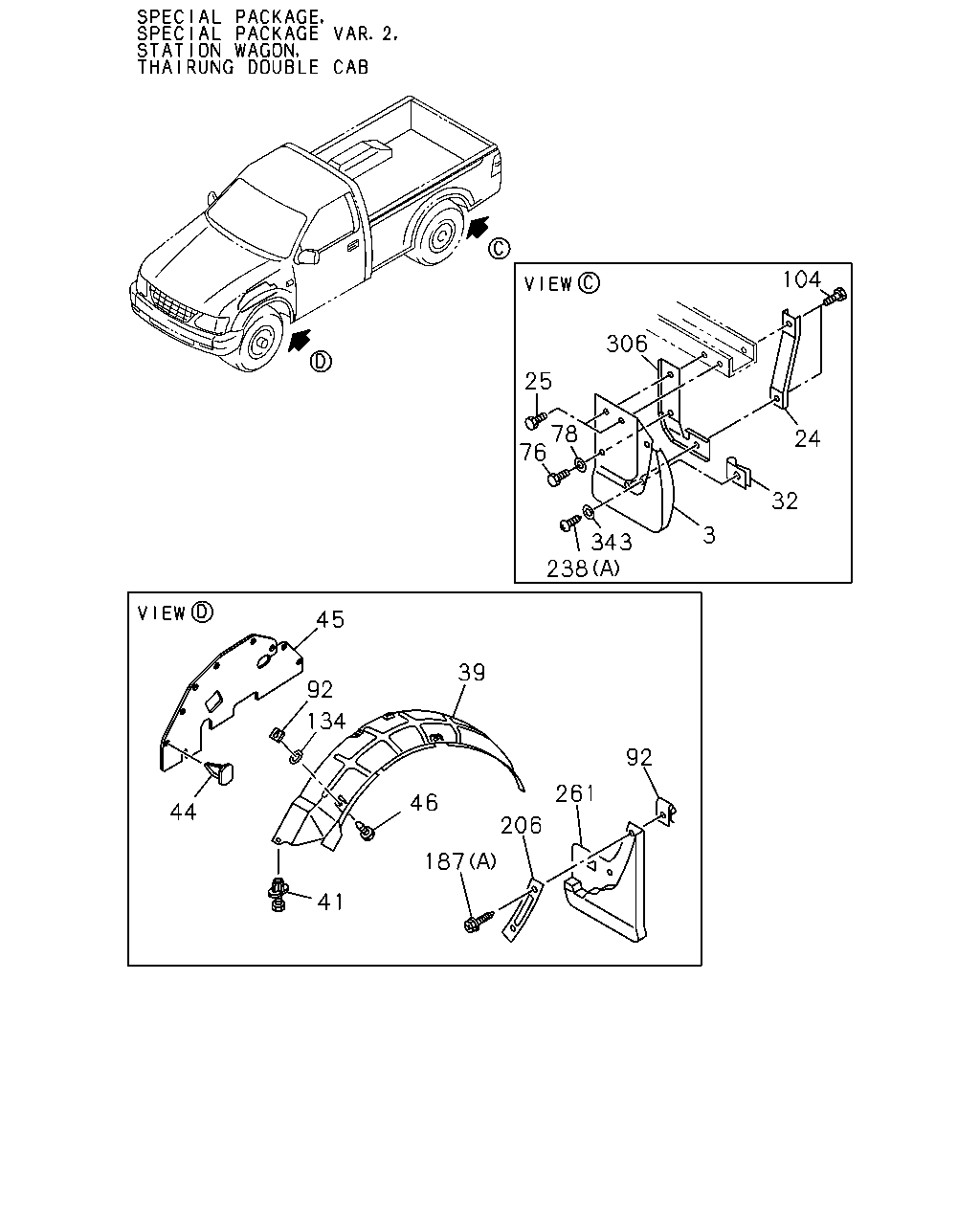

104 306 25 78 76 24 32 343 238 3 45 92 134 39 92 261 206 46 44 187 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	GUARD; MUD,RR MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-197-0	01	1	0009-	●	●		●	●
3	GUARD; MUD,RR THA	8-97915-197-0	01	1	0009-						●	●	●
3	GUARD; MUD,RR MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-196-0	01	1	0009-	●	●		●	●
3	GUARD; MUD,RR THA	8-97915-196-0	01	1	0009-						●	●	●
24	PLATE; MUD COVER MUD FLAP<VH4> THA	8-97911-348-0	01	1	0009-	●	●	●	●	●
24	PLATE; MUD COVER THA	8-97911-348-0	01	1	0009-						●	●	●
24	PLATE; MUD COVER MUD FLAP<VH4> THA	8-97911-347-0	01	1	0009-	●	●	●	●	●
24	PLATE; MUD COVER THA	8-97911-347-0	01	1	0009-						●	●	●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97913-896-0	04	1	0009-		●
25	BOLT; PLATE TO MUD COVER THA	8-97913-896-0	04	1	0009-							●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> THA	8-97913-896-0	04	1	0009-				●	●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-896-0	04	1	0009-	●
25	BOLT; PLATE TO MUD COVER MUD FLAP<VH4> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-474-0	12	1	0009-	●	●	●
32	NUT; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> M4 SPIRE	8-94473-926-1	04	1	0009-	●	●		●	●
32	NUT; MUD GUARD M4 SPIRE	8-94473-926-1	04	1	0009-						●	●	●
39	LINER; FENDER NHK THA	8-97910-646-3	01	1	0009-	●	●	●	●	●	●	●	●
39	LINER; FENDER SPF THA	8-97910-648-3	01	1	0009-	●	●	●	●	●	●	●	●
39	LINER; FENDER NHK THA	8-97910-645-3	01	1	0009-	●	●	●	●	●	●	●	●
39	LINER; FENDER SPF THA	8-97910-647-3	01	1	0009-	●	●	●	●	●	●	●	●
41	RIVET; INNER LINER THA	8-97915-614-0	12	1	0009-	●	●	●	●	●		●
41	RIVET; INNER LINER THA	8-97915-614-0	18	1	0009-						●		●
44	CLIP; ANCHOR OD=22 L=10.7 THA	8-94215-211-0	14	1	0009-	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97911-350-1	01	1	0009-0011	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97921-783-0	01	1	0012-	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97911-351-0	01	1	0009-0011	●	●	●	●	●	●	●	●
45	COVER; MUD,FENDER SKIRT THA	8-97921-784-0	01	1	0012-	●	●	●	●	●	●	●	●
46	SCREW; INNER LINER M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	0009-	●	●	●	●	●	●	●	●
76	BOLT; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-896-0	02	1	0009-	●	●		●	●
76	BOLT; MUD GUARD THA	8-97913-896-0	02	1	0009-						●	●	●
78	WASHER; PL,MUD GUARD SPECIAL PACKAGE VAR.2<7TB> THA	8-97919-353-0	02	1	0009-	●
92	NUT; MUD COVER THA	8-97918-102-0	10	1	0009-	●	●	●	●	●	●	●	●
104	BOLT; BRKT MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97913-896-0	04	1	0009-		●
104	BOLT; BRKT THA	8-97913-896-0	04	1	0009-							●
104	BOLT; BRKT MUD FLAP<VH4> THA	8-97913-896-0	04	1	0009-				●	●
104	BOLT; BRKT MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-896-0	04	1	0009-	●
104	BOLT; BRKT MUD FLAP<VH4> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-474-0	04	1	0009-	●	●	●
134	WASHER; PL MUD FLAP<VH4> ID=8.4 OD=22	9-09164-708-0	06	1	0009-	●	●	●	●	●
134	WASHER; PL ID=8.4 OD=22	9-09164-708-0	06	1	0009-						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> M6X20 W/PL WASHER TAPPING	8-94321-767-1	04	1	0103-	●
187	SCREW; FENDER COVER MUD FLAP<VH4> (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0009-0102	●	●	●	●	●
187	SCREW; FENDER COVER (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0009-0102						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-		●	●	●	●
187	SCREW; FENDER COVER M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-						●	●	●
187	SCREW; FENDER COVER MUD FLAP<VH4> EXC. SPECIAL PACKAGE VAR.2<7TB> M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	0103-	●
187	SCREW; FENDER COVER SPECIAL PACKAGE VAR.2<7TB> (B) M6X23 W/PL WASHER TAPPING THA	8-97918-747-0	02	1	0009-	●
206	STAY; MUD COVER,FRT MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97916-347-0	02	1	0009-0009		●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-0009						●	●	●
206	STAY; MUD COVER,FRT MUD FLAP<VH4> THA	8-97916-347-0	02	1	0009-0009				●
206	STAY; MUD COVER,FRT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97916-347-0	02	1	0009-0009	●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-0009								●
206	STAY; MUD COVER,FRT MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97916-347-0	02	1	0009-		●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-				●	●	●	●	●
206	STAY; MUD COVER,FRT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97916-347-0	02	1	0009-	●
206	STAY; MUD COVER,FRT THA	8-97916-347-0	02	1	0009-								●
238	SCREW; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> M4 TAPPING	8-97113-403-1	02	1	0103-	●
238	SCREW; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> (A) M4 TAPPING	8-97113-403-1	04	1	0009-0102	●	●		●	●
238	SCREW; MUD GUARD (A) M4 TAPPING	8-97113-403-1	04	1	0009-0102						●	●	●
238	SCREW; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB> M4 TAPPING	8-97113-403-1	04	1	0103-		●
238	SCREW; MUD GUARD M4 TAPPING	8-97113-403-1	04	1	0103-						●	●	●
238	SCREW; MUD GUARD MUD FLAP<VH4> M4 TAPPING	8-97113-403-1	04	1	0103-				●	●
238	SCREW; MUD GUARD SPECIAL PACKAGE VAR.2<7TB> (B) THA	8-97918-748-0	02	1	0009-	●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-199-2	01	1	0009-	●	●		●	●
261	RUBBER; FRT,MUD GUARD THA	8-97915-199-2	01	1	0009-						●	●	●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-198-1	01	1	0009-	●	●		●	●
261	RUBBER; FRT,MUD GUARD THA	8-97915-198-1	01	1	0009-						●	●	●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-291-1	02	1	0009-	●
261	RUBBER; FRT,MUD GUARD MUD FLAP<VH4> THA	8-97303-048-1	02	1	0107-	●				●
261	RUBBER; FRT,MUD GUARD THA	8-97303-048-1	02	1	0107-								●
306	BRACKET; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-166-0	01	1	0009-	●	●		●	●
306	BRACKET; MUD GUARD THA	8-97915-166-0	01	1	0009-						●	●	●
306	BRACKET; MUD GUARD MUD FLAP<VH4> SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-165-0	01	1	0009-	●	●		●	●
306	BRACKET; MUD GUARD THA	8-97915-165-0	01	1	0009-						●	●	●
343	SPACER; FRT PANEL MUD FLAP<VH4> SPECIAL PACKAGE<7BB> THA	8-97917-245-0	04	1	0009-		●
343	SPACER; FRT PANEL THA	8-97917-245-0	04	1	0009-							●
343	SPACER; FRT PANEL MUD FLAP<VH4> THA	8-97917-245-0	04	1	0009-				●	●
343	SPACER; FRT PANEL MUD FLAP<VH4> SPECIAL PACKAGE VAR.2<7TB> THA	8-97917-245-0	04	1	0009-	●
