0-60 — ENGINE ELECTRICAL CONTROL PARTS (#4364) — 713 parça

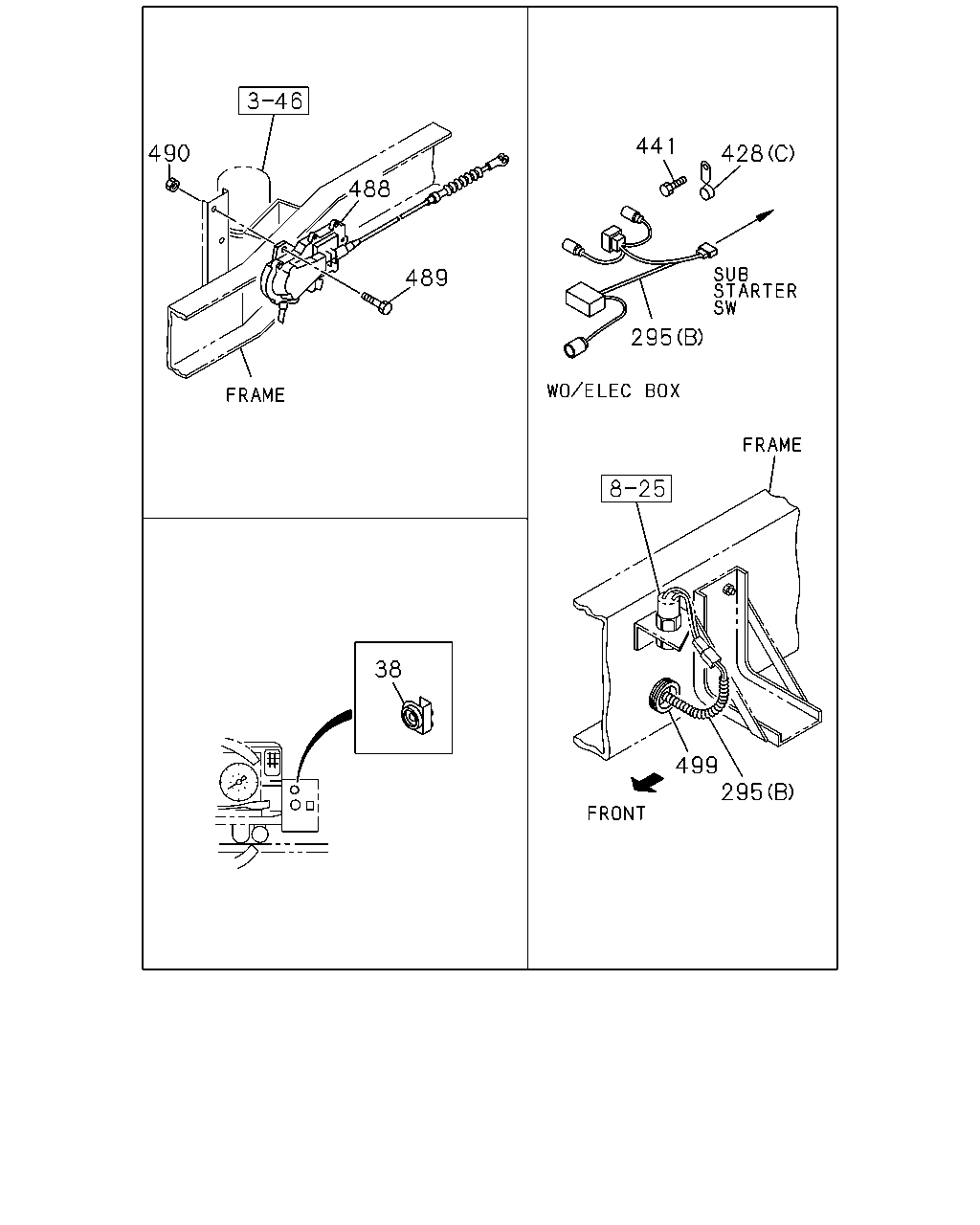

çizim 3741
441 490 428 488 489 295 38 499 295
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 RESISTOR; CONT,GLOW PLUG 1-81402-003-1 01 1 9101-9504 ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9505-9603 ●
38 RESISTOR; CONT,GLOW PLUG
EXC. THAILAND EQUIPMENT<PM9> 		1-81402-008-0 01 1 9604-0203 ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0204- ●
38 RESISTOR; CONT,GLOW PLUG
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> 		1-81402-008-0 01 1 9703-9709 ●
38 RESISTOR; CONT,GLOW PLUG
LEFT HAND DRIVE(LTR6FB) 		1-81402-008-0 01 1 9703-9709 ●
38 RESISTOR; CONT,GLOW PLUG
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> 		1-81402-008-0 01 1 9710- ● ●
38 RESISTOR; CONT,GLOW PLUG
LEFT HAND DRIVE(LTR6FB) 		1-81402-008-0 01 1 9710- ● ●
295 HARNESS; STARTER
(C) 		1-82640-130-0 01 1 9101-9504 ● ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9505-9702 ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9703-9709 ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-2 01 1 9710- ● ● ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9505-9702 ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9710- ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9703-9709 ● ●
428 CLIP; HARNESS
(A) ID=28 		1-09700-419-1 01 1 9101-9504 ● ● ●
428 CLIP; HARNESS
RIGHT HAND DRIVE(LTR5FB) (B) ID=27 L=32 		1-09700-712-1 02 1 9101-9504 ● ● ●
428 CLIP; HARNESS
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=27 L=32 		1-09700-712-1 02 1 9101-9504 ● ● ●
428 CLIP; HARNESS
RIGHT HAND DRIVE(LTR5FB) (B) ID=28 L=45 		1-09700-825-0 02 1 9101-9109 ● ● ●
428 CLIP; HARNESS
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=28 L=45 		1-09700-825-0 02 1 9101-9109 ● ● ●
428 CLIP; HARNESS
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (B) ID=28 L=45 		1-09700-825-1 02 1 9110-9504 ● ● ●
428 CLIP; HARNESS
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=28 L=45 		1-09700-825-1 02 1 9110-9504 ● ● ●
428 CLIP; HARNESS
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=27 L=32 		1-09700-712-1 01 1 9101-9504 ● ● ●
428 CLIP; HARNESS
(C) ID=25 L=54 		1-09700-392-0 01 1 9505-9702 ●
428 CLIP; HARNESS
(C) ID=25 L=54 		1-09700-392-0 01 1 9703-9709 ● ●
428 CLIP; HARNESS
(C) ID=25 L=54 		1-09700-392-0 01 1 9710- ● ● ●
428 CLIP; HARNESS
(C) ID=28 L=60 		1-09700-585-1 01 1 9811-0203 ● ● ●
428 CLIP; HARNESS
(C) ID=28 L=60 		1-09700-585-1 01 1 0204- ●
441 BOLT; HARNESS TO FRAME
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9505-9606 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0512 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 01 1 9703-9709 ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 01 1 9710- ● ● ●
488 STOPPER; ENG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=980 		1-82840-038-0 01 1 9101-9312 ● ● ●
488 STOPPER; ENG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=980 		1-82840-092-0 01 1 9401-9504 ● ● ●
488 STOPPER; ENG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=800 		1-82840-043-0 01 1 9101-9312 ● ● ●
488 STOPPER; ENG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=800 		1-82840-095-0 01 1 9401-9504 ● ● ●
488 STOPPER; ENG
L=600 		1-82840-136-0 01 1 9505-9702 ●
488 STOPPER; ENG
L=600 		1-82840-136-0 01 1 9703-9709 ● ●
488 STOPPER; ENG
L=600 		1-82840-136-2 01 1 9710- ● ● ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28080-825-0 02 1 9505-9606 ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9702 ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9703-9709 ● ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9710-0512 ● ● ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-208-0 02 1 9505-9606 ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9607-9702 ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9703-9709 ● ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9710-0602 ● ● ●
490 NUT; ENG STOP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
499 GROMMET
EXC. ENG ROOM SW BOX<TEK> ID=24 OD=30 T=17 		9-09956-092-1 01 1 9505-9702 ●
499 GROMMET
EXC. ENG ROOM SW BOX<TEK> ID=24 OD=30 T=17 		9-09956-092-1 01 1 9703-9709 ● ●
499 GROMMET
EXC. ENG ROOM SW BOX<TEK> ID=24 OD=30 T=17 		9-09956-092-1 01 1 9710- ● ● ●

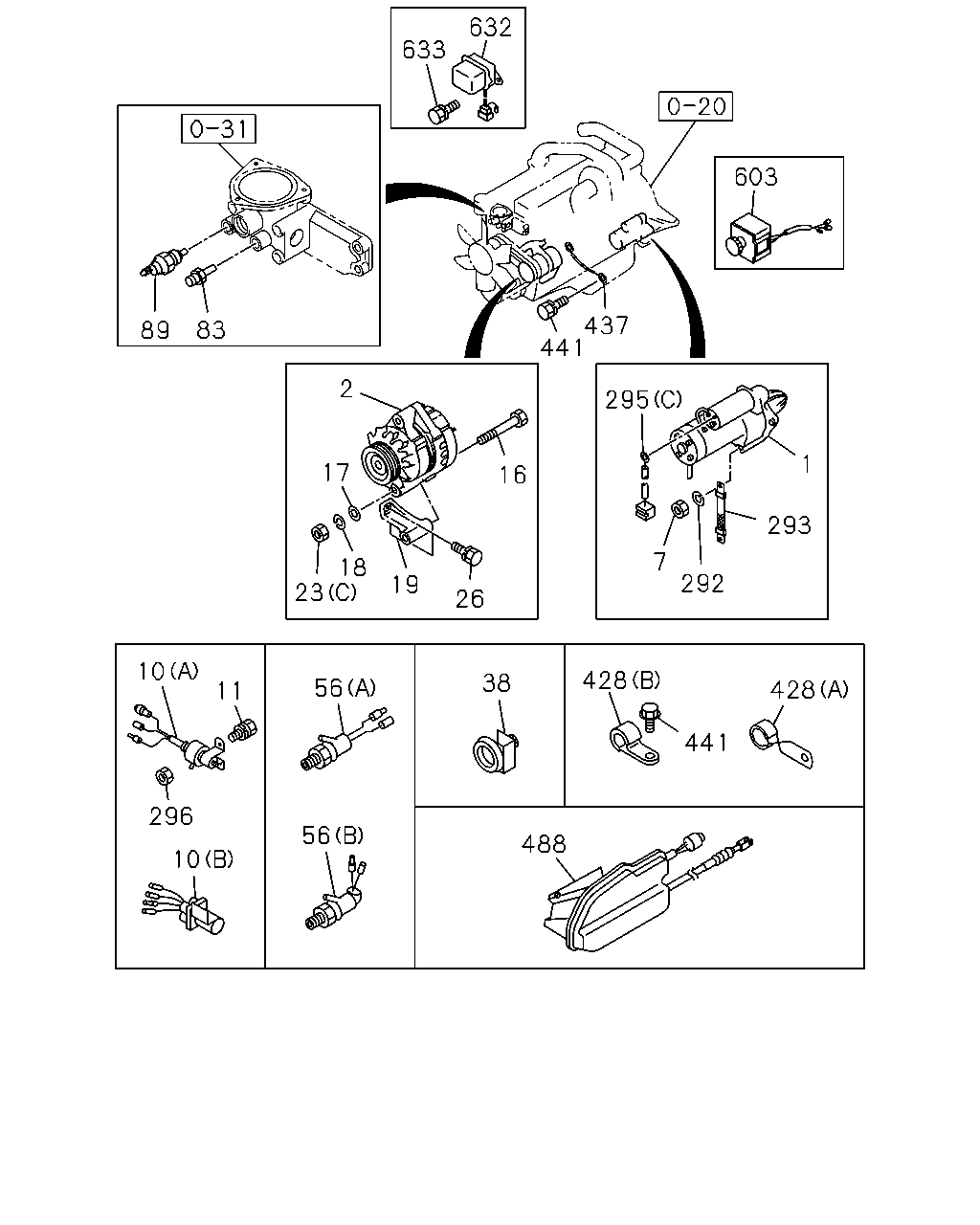

çizim 36751
632 633 603 437 441 83 89 2 295 1 17 16 293 7 18 23 292 19 26 10 428 38 56 428 11 441 296 56 488 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-264-1 01 1 9101-9504 ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9505-9510 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CAUTIONS SPANISH<YN1> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9505-9510 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENG OIL COOLER HEAVY DUTY<E1E> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM<YS9> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9511-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. ENG OIL COOLER HEAVY DUTY<E1E>,OVERHEAD COOLING SYSTEM<YS9> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9511-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9606-9702 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9606-9702 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9703-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9703-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9703-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9710-0204 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9710-0204 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9710-0204 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET SPECIAL -10%Q(T1K),OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET SPECIAL -10%Q(T1K),OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0309- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0309- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0309- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. OVERHEAD COOLING SYSTEM<YS9> 24V 5.5KW NIKKO 		8-94399-896-1 01 1 9505-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER NIKKO HEAVY DUTY TYPE(E8H) 24V 5.5KW NIKKO 		8-94399-896-3 01 1 9606- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-1 01 1 9601-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9609-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0203 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9505-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109-0203 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) 24V 4.5KW DENSO 		8-97602-167-1 01 1 0204- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> NIKKO 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9505-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9606-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9606-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-323-1 01 1 9709- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 24V 4.5KW NIKKO 		1-81100-323-1 01 1 9709- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR HITACHI 24V-25A 600W(SC1) 24V 25A HITACHI 		1-81200-032-1 01 1 9101-9504 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-337-2 01 1 9101-9504 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A NIKKO 		8-94394-796-1 01 1 9505- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		8-94399-157-1 01 1 9505-0203 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		8-94399-157-1 01 1 0204- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 9505-9807 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 9808-0203 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 0204-0306 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 0307- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-3 01 1 9505-9702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-4 01 1 9703-9709 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9703-9709 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-4 01 1 9710-9806 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9710-9806 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-4 01 1 9807-0203 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9807-0203 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-5 01 1 0204- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0204- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-417-3 01 1 9505- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-531-0 01 1 9904-9905 ●

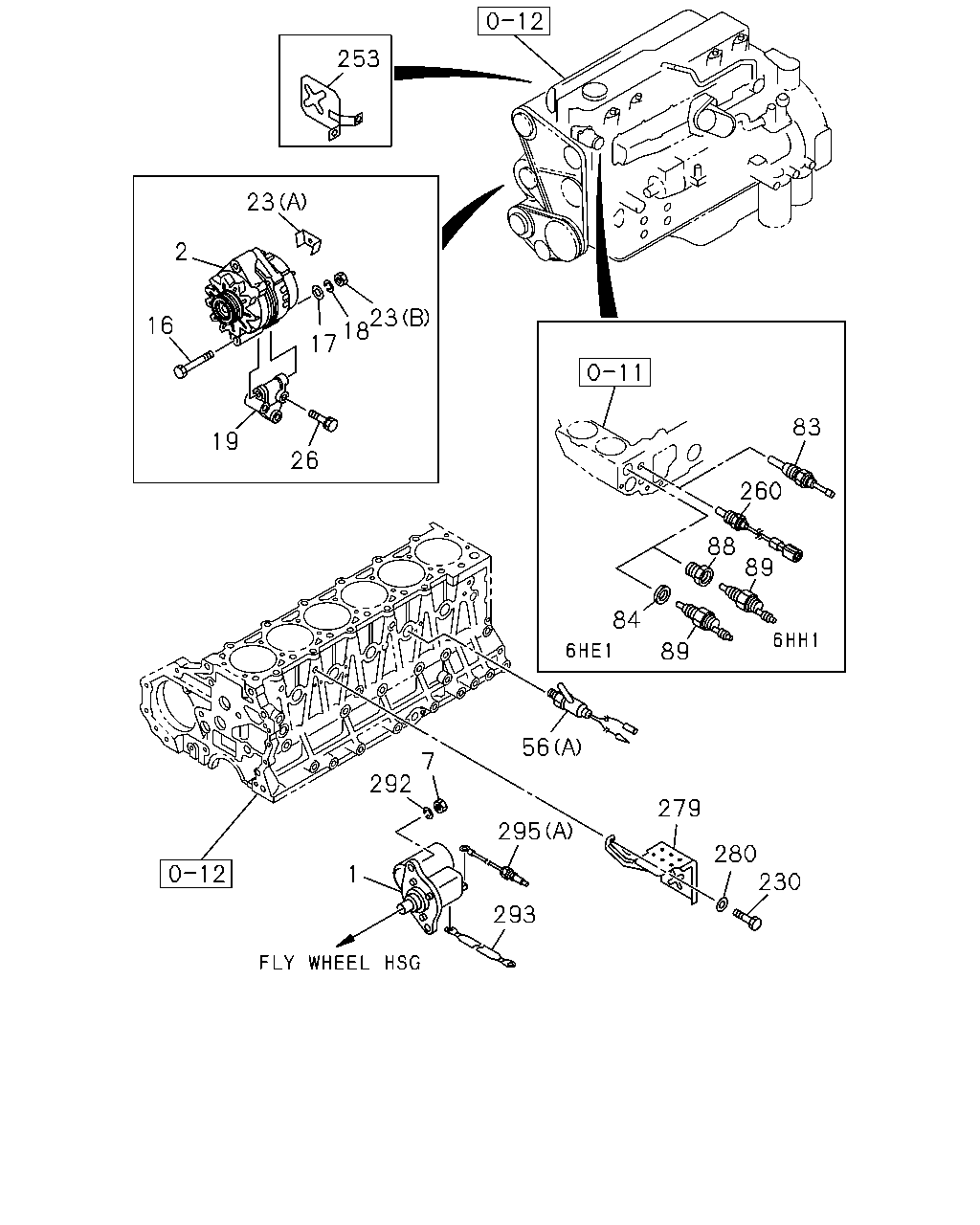

2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-576-2 01 1 9906-0009 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		1-81200-538-0 01 1 9905-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A MITSUBISHI 		1-81200-560-0 01 1 9905-9907 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		5-81200-180-3 01 1 9101-9504 ● ● ●
7 NUT; STARTER
M12 		9-99110-412-0 03 1 9101-9504 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9505-9702 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9703-9709 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9710-0512 ● ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ● ● ●

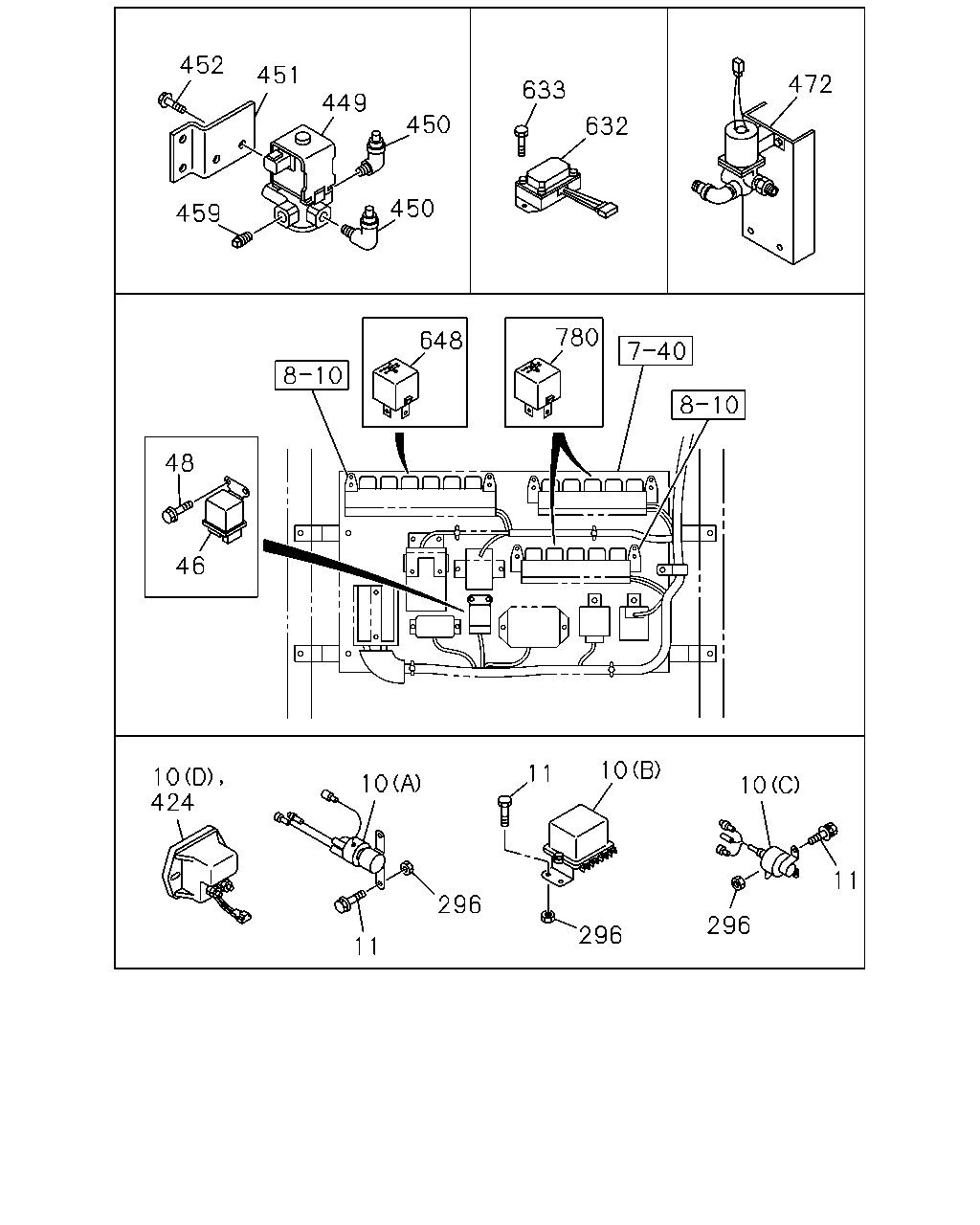

10 RELAY; STARTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-81171-047-0 01 1 9101-9504 ● ● ●
10 RELAY; STARTER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) NIKKO 		1-81171-015-1 01 1 9101-9504 ● ● ●
10 RELAY; STARTER
ENG ROOM SW BOX<TEK> (B) NIKKO 		1-81171-025-1 01 1 9505-0212 ●
10 RELAY; STARTER
ENG ROOM SW BOX<TEK> (D) 		1-81171-096-1 01 1 0301- ●
10 RELAY; STARTER
STARTER DENSO(RC6) EXC. ENG ROOM SW BOX<TEK> (A) DENSO 		1-81171-070-0 01 1 9505- ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (C) NIKKO 		1-81171-071-0 01 1 9505-9606 ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (C) NIKKO 		1-81171-075-1 01 1 9607- ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (A) HITACHI 		1-81171-087-0 01 1 9904-9907 ●
10 RELAY; STARTER
EXC. NIKKO<Y70> EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (A) HITACHI 		1-81171-087-0 01 1 9908-0203 ● ● ●
11 BOLT; RELAY STARTER
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ● ●
11 BOLT; RELAY STARTER
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ● ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X25 FLANGE 		0-28080-825-0 01 1 9505-9603 ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X25 FLANGE 		0-28080-625-0 04 1 9505-9510 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28080-620-0 04 1 9511-9606 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28680-620-0 04 1 9607-0312 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28680-620-0 02 1 0401-0512 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9101-9504 ● ● ●
16 BOLT; GEN
EXC. OVERHEAD COOLING SYSTEM<YS9> M14X135 		1-09000-133-1 01 1 9505-9605 ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9606-9702 ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9703-9802 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9703-9802 ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9803-9806 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9803-9806 ● ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9807-0203 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9807-0203 ●
16 BOLT; GEN
EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H) M14X135 		1-09000-133-1 01 1 0204-0204 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0204-0204 ● ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 0205- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0205- ● ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X157 		1-09000-071-1 01 1 9505-9806 ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X157 		1-09000-071-1 01 1 9807-0203 ● ●
16 BOLT; GEN
STARTER NIKKO HEAVY DUTY TYPE(E8H) M14X157 		1-09000-071-1 01 1 0204-0306 ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X157 		1-09000-071-1 01 1 0307- ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) M14X157 		1-09000-071-1 01 1 0307- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9101-9504 ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9505-9702 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9703-9709 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9710-0605 ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9101-9504 ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9505-9702 ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9703-9709 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9710-0603 ● ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ●
19 BRACKET; GEN 5-19711-031-2 01 1 9101-9504 ● ● ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9505-9702 ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9703-9709 ●
19 BRACKET; GEN 8-94396-297-0 01 1 9703-9709 ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9710-9806 ●
19 BRACKET; GEN 8-94396-297-0 01 1 9710-9806 ● ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9807-0112 ● ●
19 BRACKET; GEN 8-94396-297-0 01 1 9807-0112 ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-97602-318-0 01 1 0201- ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0201- ●
19 BRACKET; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> 		8-94399-351-0 01 1 9606-9806 ●
19 BRACKET; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> 		8-94399-351-0 01 1 9807- ●
19 BRACKET; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) 		8-94399-351-0 01 1 9807- ●
23 NUT; GEN
(C) 		1-19711-066-0 01 1 9101-9504 ● ● ●
23 NUT; GEN
OVERHEAD COOLING SYSTEM<YS9> (A) M14 W/BRKT 		1-19711-029-0 01 1 9505-9506 ●
23 NUT; GEN
EXC. OVERHEAD COOLING SYSTEM<YS9> (B) M14 		9-99110-414-0 01 1 9505-9506 ●
23 NUT; GEN
(B) M14 		9-99110-414-0 01 1 9507-9702 ●
23 NUT; GEN
(B) M14 		9-99110-414-0 01 1 9703-9709 ● ●
23 NUT; GEN
(B) M14 		9-99110-414-0 01 1 9710-0512 ● ● ●
23 NUT; GEN
(B) M14 		0-91110-514-0 01 1 0601- ● ● ●
26 BOLT; GEN BRKT
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9101-9504 ● ● ●
26 BOLT; GEN BRKT
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9101-9504 ● ● ●
26 BOLT; GEN BRKT
EXC. OVERHEAD COOLING SYSTEM<YS9> M10X80 FLANGE 		0-28181-080-0 02 1 9505-9605 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9606-9702 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9703-9709 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9703-9709 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9710-9806 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9710-9806 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9807-0203 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9807-0203 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 0204-0512 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0204-0512 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28151-080-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601- ● ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 9606-9806 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X45 FLANGE 		0-28181-045-0 01 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 0204-0306 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 0307-0512 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X45 FLANGE 		0-28181-045-0 01 1 0307-0512 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 9606-9806 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X107 FLANGE 		8-94399-488-1 02 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 0204-0306 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 0307- ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X107 FLANGE 		8-94399-488-1 02 1 0307- ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9505-9702 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9703-9709 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9703-9709 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9710-9806 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9710-9806 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9807-0203 ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9807-0203 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 0204-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0204-0512 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-003-1 01 1 9101-9504 ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9505-9603 ●
38 RESISTOR; CONT,GLOW PLUG
EXC. THAILAND EQUIPMENT<PM9> 		1-81402-008-0 01 1 9604-0203 ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0204- ●
38 RESISTOR; CONT,GLOW PLUG
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> 		1-81402-008-0 01 1 9703-9709 ●
38 RESISTOR; CONT,GLOW PLUG
LEFT HAND DRIVE(LTR6FB) 		1-81402-008-0 01 1 9703-9709 ●
38 RESISTOR; CONT,GLOW PLUG
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> 		1-81402-008-0 01 1 9710- ● ●
38 RESISTOR; CONT,GLOW PLUG
LEFT HAND DRIVE(LTR6FB) 		1-81402-008-0 01 1 9710- ● ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-091-2 01 1 9101-9503 ● ●
56 SWITCH; OIL PRESSURE WARNING
EXC. AUSTRALIA EQUIPMENT<RR3> (A) PT1/8 		1-82410-091-2 01 1 9101-9503 ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-0 01 1 9503-9504 ● ●
56 SWITCH; OIL PRESSURE WARNING
EXC. AUSTRALIA EQUIPMENT<RR3> (A) PT1/8 		1-82410-160-0 01 1 9503-9504 ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-0 01 1 9505-9702 ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-0 01 1 9703-9709 ● ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-1 01 1 9710- ● ● ●
56 SWITCH; OIL PRESSURE WARNING
AUSTRALIA EQUIPMENT<RR3> (B) PT1/8 		8-94178-003-1 01 1 9101-9504 ●
83 THERMOMETER UNIT 1-83161-019-1 01 1 9101-9504 ● ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9505- ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9101-9504 ● ● ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9505-9702 ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9703-9709 ● ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9710- ● ● ●
292 WASHER; LK,STARTER
ID=12.2 		9-09150-512-0 03 1 9101-9504 ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9505-9702 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9703-9709 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9710-0603 ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ● ● ●
293 CABLE; STARTER EARTH 9-82932-211-0 01 1 9101-9504 ● ● ●
293 CABLE; STARTER EARTH
STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=550 		1-82650-239-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) L=550 		1-82650-239-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> L=550 		1-82650-239-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
ENG OIL COOLER HEAVY DUTY<E1E> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, OVERHEADCOOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0005-0204 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. ENG OIL COOLER HEAVY DUTY<E1E>,OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0005-0204 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0205- ●
293 CABLE; STARTER EARTH
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET SPECIAL -10%Q(T1K),OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0205- ●
293 CABLE; STARTER EARTH
GENERATOR NIKKO 24V-60A 1.5KW(SC8) EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0205- ●
293 CABLE; STARTER EARTH
STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
STARTER NIKKO HEAVY DUTY TYPE(E8H) L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0005-0203 ●
293 CABLE; STARTER EARTH
EXC. ENG OIL COOLER HEAVY DUTY<E1E>,EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,EMISSION SYSTEMECE REQUIREMENTS<SFV>,OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0005-0203 ●
293 CABLE; STARTER EARTH
OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0204- ●
293 CABLE; STARTER EARTH
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0204- ●
293 CABLE; STARTER EARTH
L=530 		1-82650-310-0 01 1 9703-9705 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9706-9709 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9710-9904 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9905-9907 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-240-0 01 1 9905-9907 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9908- ● ●
293 CABLE; STARTER EARTH
EMISSION PARTS<TCA> L=350 		1-82650-240-0 02 1 9905-9907 ●
295 HARNESS; STARTER
(C) 		1-82640-130-0 01 1 9101-9504 ● ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9505-9702 ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9703-9709 ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-2 01 1 9710- ● ● ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9505-9702 ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9710- ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9703-9709 ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M8 		9-09110-408-0 04 1 9505-9510 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 		9-09110-406-0 04 1 9511-9606 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 04 1 9607-0312 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 02 1 0401-0602 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 		9-09110-408-0 01 1 9505-9603 ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 		9-09110-408-0 02 1 9604-9606 ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 04 1 9703-9709 ● ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 02 1 9703-9709 ● ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 04 1 9710- ● ● ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 02 1 9710- ● ● ●
428 CLIP; HARNESS
(A) ID=28 		1-09700-419-1 01 1 9101-9504 ● ● ●
428 CLIP; HARNESS
RIGHT HAND DRIVE(LTR5FB) (B) ID=27 L=32 		1-09700-712-1 02 1 9101-9504 ● ● ●
428 CLIP; HARNESS
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=27 L=32 		1-09700-712-1 02 1 9101-9504 ● ● ●
428 CLIP; HARNESS
RIGHT HAND DRIVE(LTR5FB) (B) ID=28 L=45 		1-09700-825-0 02 1 9101-9109 ● ● ●
428 CLIP; HARNESS
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=28 L=45 		1-09700-825-0 02 1 9101-9109 ● ● ●
428 CLIP; HARNESS
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> (B) ID=28 L=45 		1-09700-825-1 02 1 9110-9504 ● ● ●
428 CLIP; HARNESS
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=28 L=45 		1-09700-825-1 02 1 9110-9504 ● ● ●
428 CLIP; HARNESS
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=27 L=32 		1-09700-712-1 01 1 9101-9504 ● ● ●
428 CLIP; HARNESS
(C) ID=25 L=54 		1-09700-392-0 01 1 9505-9702 ●
428 CLIP; HARNESS
(C) ID=25 L=54 		1-09700-392-0 01 1 9703-9709 ● ●
428 CLIP; HARNESS
(C) ID=25 L=54 		1-09700-392-0 01 1 9710- ● ● ●
428 CLIP; HARNESS
(C) ID=28 L=60 		1-09700-585-1 01 1 9811-0203 ● ● ●
428 CLIP; HARNESS
(C) ID=28 L=60 		1-09700-585-1 01 1 0204- ●
437 CABLE; EARTH
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3> L=250 		9-82932-799-0 01 1 9101-9109 ● ● ●
437 CABLE; EARTH
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> L=250 		9-82932-799-0 01 1 9110-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
LEFT HAND DRIVE(LTR6FB) EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ● ●
441 BOLT; HARNESS TO FRAME
RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>,PROVISION OPTION EUROPE<VD1> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9504 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9505-9606 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 01 1 9607-0512 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 01 1 9703-9709 ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 01 1 9710- ● ● ●
488 STOPPER; ENG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=980 		1-82840-038-0 01 1 9101-9312 ● ● ●
488 STOPPER; ENG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=980 		1-82840-092-0 01 1 9401-9504 ● ● ●
488 STOPPER; ENG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=800 		1-82840-043-0 01 1 9101-9312 ● ● ●
488 STOPPER; ENG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=800 		1-82840-095-0 01 1 9401-9504 ● ● ●
488 STOPPER; ENG
L=600 		1-82840-136-0 01 1 9505-9702 ●
488 STOPPER; ENG
L=600 		1-82840-136-0 01 1 9703-9709 ● ●
488 STOPPER; ENG
L=600 		1-82840-136-2 01 1 9710- ● ● ●
603 SENSOR; TACHO
ENG OVERRUN BUZZER<SK4>,TACHOMETER<UD7> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-83127-024-1 01 1 9101-9504 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR DENSO 24V-40A 1KW(SC4) 		1-81251-026-0 01 1 9101-9504 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR HITACHI 24V-25A 600W(SC1) 		1-81251-007-2 01 1 9101-9504 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-60A 1.5KW(SC8) 		1-81251-043-0 01 1 9101-9105 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-60A 1.5KW(SC8) 		1-81251-048-0 01 1 9106-9504 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) NIKKO 		1-81251-042-2 01 1 9505- ●
633 BOLT; VOLTAGE REG
M6X14 W/LK WASHER 		9-01900-614-0 02 1 9101-9204 ● ● ●
633 BOLT; VOLTAGE REG
M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205-9504 ● ● ●
633 BOLT; VOLTAGE REG
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X16 FLANGE 		0-28080-816-0 02 1 9505-9908 ●
633 BOLT; VOLTAGE REG
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M6X16 FLANGE 		0-28680-616-0 02 1 9909-0512 ●
633 BOLT; VOLTAGE REG
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
çizim 36797
253 23 2 23 18 17 16 83 19 26 260 88 89 84 89 7 292 56 279 295 280 230 1 293
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-264-1 01 1 9101-9504 ● ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9505-9510 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. CAUTIONS SPANISH<YN1> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9505-9510 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENG OIL COOLER HEAVY DUTY<E1E> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM<YS9> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9511-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. ENG OIL COOLER HEAVY DUTY<E1E>,OVERHEAD COOLING SYSTEM<YS9> NIKKO 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9511-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9606-9702 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9606-9702 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9703-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9703-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-308-0 01 1 9703-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9709-9709 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9710-0204 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9710-0204 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 9710-0204 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET SPECIAL -10%Q(T1K),OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0205-0308 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET SPECIAL -10%Q(T1K),OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0309- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. OVERHEAD COOLING SYSTEM<YS9> 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0309- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-1 01 1 0309- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. OVERHEAD COOLING SYSTEM<YS9> 24V 5.5KW NIKKO 		8-94399-896-1 01 1 9505-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER NIKKO HEAVY DUTY TYPE(E8H) 24V 5.5KW NIKKO 		8-94399-896-3 01 1 9606- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-1 01 1 9601-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9609-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 9905-9907 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94394-151-2 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0203 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9505-9904 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9905-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-94399-159-4 01 1 9908-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 24V 4.5KW DENSO 		8-97602-167-1 01 1 0109-0203 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) 24V 4.5KW DENSO 		8-97602-167-1 01 1 0204- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> NIKKO 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9505-9605 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9606-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 24V 4.5KW NIKKO 		1-81100-307-0 01 1 9606-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-323-1 01 1 9709- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 24V 4.5KW NIKKO 		1-81100-323-1 01 1 9709- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR HITACHI 24V-25A 600W(SC1) 24V 25A HITACHI 		1-81200-032-1 01 1 9101-9504 ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-337-2 01 1 9101-9504 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A NIKKO 		8-94394-796-1 01 1 9505- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		8-94399-157-1 01 1 9505-0203 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. STARTER DENSO(RC6) GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		8-94399-157-1 01 1 0204- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 9505-9807 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 9808-0203 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 0204-0306 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A NIKKO 		8-94394-797-1 01 1 0307- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-3 01 1 9505-9702 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-4 01 1 9703-9709 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9703-9709 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-4 01 1 9710-9806 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9710-9806 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-4 01 1 9807-0203 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9807-0203 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A NIKKO 		1-81200-416-5 01 1 0204- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-5 01 1 0204- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A NIKKO 		1-81200-417-3 01 1 9505- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-531-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI 		1-81200-576-2 01 1 9906-0009 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 90A MITSUBISHI 		1-81200-538-0 01 1 9905-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-110A 3KW(PU1) 24V 110A MITSUBISHI 		1-81200-560-0 01 1 9905-9907 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR DENSO 24V-40A 1KW(SC4),GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-90A 2.5KW(SD2) 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-577-0 01 1 9906-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A DENSO 		5-81200-180-3 01 1 9101-9504 ● ● ●
7 NUT; STARTER
M12 		9-99110-412-0 03 1 9101-9504 ● ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9505-9702 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9703-9709 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9710-0512 ● ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ● ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9101-9504 ● ● ●
16 BOLT; GEN
EXC. OVERHEAD COOLING SYSTEM<YS9> M14X135 		1-09000-133-1 01 1 9505-9605 ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9606-9702 ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9703-9802 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9703-9802 ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9803-9806 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9803-9806 ● ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 9807-0203 ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9807-0203 ●
16 BOLT; GEN
EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H) M14X135 		1-09000-133-1 01 1 0204-0204 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0204-0204 ● ●
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X135 		1-09000-133-1 01 1 0205- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0205- ● ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X157 		1-09000-071-1 01 1 9505-9806 ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X157 		1-09000-071-1 01 1 9807-0203 ● ●
16 BOLT; GEN
STARTER NIKKO HEAVY DUTY TYPE(E8H) M14X157 		1-09000-071-1 01 1 0204-0306 ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M14X157 		1-09000-071-1 01 1 0307- ●
16 BOLT; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) M14X157 		1-09000-071-1 01 1 0307- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9101-9504 ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9505-9702 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9703-9709 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9710-0605 ● ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9101-9504 ● ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9505-9702 ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9703-9709 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9710-0603 ● ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ●
19 BRACKET; GEN 5-19711-031-2 01 1 9101-9504 ● ● ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9505-9702 ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9703-9709 ●
19 BRACKET; GEN 8-94396-297-0 01 1 9703-9709 ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9710-9806 ●
19 BRACKET; GEN 8-94396-297-0 01 1 9710-9806 ● ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-94396-297-0 01 1 9807-0112 ● ●
19 BRACKET; GEN 8-94396-297-0 01 1 9807-0112 ●
19 BRACKET; GEN
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		8-97602-318-0 01 1 0201- ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0201- ●
19 BRACKET; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> 		8-94399-351-0 01 1 9606-9806 ●
19 BRACKET; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> 		8-94399-351-0 01 1 9807- ●
19 BRACKET; GEN
GENERATOR NIKKO 24V-110A 3KW(PU1) 		8-94399-351-0 01 1 9807- ●
23 NUT; GEN
(C) 		1-19711-066-0 01 1 9101-9504 ● ● ●
23 NUT; GEN
OVERHEAD COOLING SYSTEM<YS9> (A) M14 W/BRKT 		1-19711-029-0 01 1 9505-9506 ●
23 NUT; GEN
EXC. OVERHEAD COOLING SYSTEM<YS9> (B) M14 		9-99110-414-0 01 1 9505-9506 ●
23 NUT; GEN
(B) M14 		9-99110-414-0 01 1 9507-9702 ●
23 NUT; GEN
(B) M14 		9-99110-414-0 01 1 9703-9709 ● ●
23 NUT; GEN
(B) M14 		9-99110-414-0 01 1 9710-0512 ● ● ●
23 NUT; GEN
(B) M14 		0-91110-514-0 01 1 0601- ● ● ●
26 BOLT; GEN BRKT
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9101-9504 ● ● ●
26 BOLT; GEN BRKT
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9101-9504 ● ● ●
26 BOLT; GEN BRKT
EXC. OVERHEAD COOLING SYSTEM<YS9> M10X80 FLANGE 		0-28181-080-0 02 1 9505-9605 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9606-9702 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9703-9709 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9703-9709 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9710-9806 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9710-9806 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 9807-0203 ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9807-0203 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28181-080-0 02 1 0204-0512 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 0204-0512 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X80 FLANGE 		0-28151-080-0 02 1 0601- ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601- ● ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 9606-9806 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X45 FLANGE 		0-28181-045-0 01 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 0204-0306 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28181-045-0 01 1 0307-0512 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X45 FLANGE 		0-28181-045-0 01 1 0307-0512 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 9606-9806 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X107 FLANGE 		8-94399-488-1 02 1 9807-0203 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 0204-0306 ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) COOLER COMPRESSOR USER<TGZ> M10X107 FLANGE 		8-94399-488-1 02 1 0307- ●
26 BOLT; GEN BRKT
GENERATOR NIKKO 24V-110A 3KW(PU1) M10X107 FLANGE 		8-94399-488-1 02 1 0307- ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9505-9702 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9703-9709 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9703-9709 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9710-9806 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9710-9806 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 9807-0203 ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 9807-0203 ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28181-040-0 01 1 0204-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 01 1 0204-0512 ● ●
26 BOLT; GEN BRKT
EXC. GENERATOR NIKKO 24V-110A 3KW(PU1), GENERATOR NIKKO 24V-90A 2.5KW(SD2) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-091-2 01 1 9101-9503 ● ●
56 SWITCH; OIL PRESSURE WARNING
EXC. AUSTRALIA EQUIPMENT<RR3> (A) PT1/8 		1-82410-091-2 01 1 9101-9503 ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-0 01 1 9503-9504 ● ●
56 SWITCH; OIL PRESSURE WARNING
EXC. AUSTRALIA EQUIPMENT<RR3> (A) PT1/8 		1-82410-160-0 01 1 9503-9504 ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-0 01 1 9505-9702 ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-0 01 1 9703-9709 ● ●
56 SWITCH; OIL PRESSURE WARNING
(A) PT1/8 		1-82410-160-1 01 1 9710- ● ● ●
56 SWITCH; OIL PRESSURE WARNING
AUSTRALIA EQUIPMENT<RR3> (B) PT1/8 		8-94178-003-1 01 1 9101-9504 ●
83 THERMOMETER UNIT 1-83161-019-1 01 1 9101-9504 ● ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9505- ●
84 GASKET; THERMO SW
ID=16.2 		1-09630-086-0 01 1 9703-9709 ●
84 GASKET; THERMO SW
ID=16.2 		1-09630-086-0 01 1 9710- ● ●
88 ADAPTER; SW 8-94396-396-1 01 1 9505- ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9101-9504 ● ● ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9505-9702 ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9703-9709 ● ●
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 9710- ● ● ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> M8X14 		0-20800-814-0 03 1 9505-9605 ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M8X14 		0-20800-814-0 03 1 9606-0203 ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK> M8X14 		0-20800-814-0 03 1 0204- ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> M8X14 		0-20800-814-0 03 1 0204- ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X28 FLANGE 		0-28080-828-0 02 1 9505-9512 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> M8X28 FLANGE 		0-28080-828-0 02 1 9601-9605 ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> M8X28 FLANGE 		0-28080-828-0 02 1 9606-0203 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M8X28 FLANGE 		0-28080-828-0 02 1 9606-0203 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M8X28 FLANGE 		0-28080-828-0 02 1 0204-0204 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M8X28 FLANGE 		0-28080-828-0 02 1 0205- ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-60A 1.5KW(SC8) M8X28 FLANGE 		0-28080-828-0 02 1 0205- ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X30 FLANGE 		0-28181-030-0 01 1 9505-9512 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> M10X30 FLANGE 		0-28181-030-0 01 1 9601-9605 ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> M10X30 FLANGE 		0-28181-030-0 01 1 9606-0203 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M10X30 FLANGE 		0-28181-030-0 01 1 9606-0203 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M10X30 FLANGE 		0-28181-030-0 01 1 0204-0204 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M10X30 FLANGE 		0-28181-030-0 01 1 0205-0512 ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-60A 1.5KW(SC8) M10X30 FLANGE 		0-28181-030-0 01 1 0205-0512 ●
230 BOLT; HEAT PROTECTOR
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
230 BOLT; HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-60A 1.5KW(SC8) M10X30 FLANGE 		0-28151-030-0 01 1 0601- ●
253 PROTECTOR; HEAT,GEN 8-94396-301-3 01 1 9505- ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9703-9709 ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 9710- ● ●
279 PROTECTOR; STARTER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-435-2 01 1 9505-9605 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6),ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-435-2 01 1 9606-9809 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-435-2 01 1 9606-9809 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-435-2 01 1 9606-9809 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-435-2 01 1 9810-0203 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-435-2 01 1 0204- ●
279 PROTECTOR; STARTER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-435-2 01 1 0204- ●
279 PROTECTOR; STARTER
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> 		8-94394-952-1 01 1 9505-9605 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> STARTER NIKKO HEAVY DUTY TYPE(E8H),STARTER DENSO(RC6) EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-952-1 01 1 9606-9809 ●
279 PROTECTOR; STARTER
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-952-1 01 1 9606-9809 ●
279 PROTECTOR; STARTER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94394-952-1 01 1 9810-0203 ●
279 PROTECTOR; STARTER
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-952-1 01 1 9810-0203 ●
279 PROTECTOR; STARTER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-952-1 01 1 0204-0204 ●
279 PROTECTOR; STARTER
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> 		8-94394-952-1 01 1 0205- ●
279 PROTECTOR; STARTER
EMISSION SYSTEM ECE REQUIREMENTS<SFV> GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-60A 1.5KW(SC8) 		8-94394-952-1 01 1 0205- ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ID=8.4 OD=18 		9-09160-608-0 03 1 9505-9605 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6),ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18 		9-09160-608-0 03 1 9606-9809 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18 		9-09160-608-0 03 1 9606-9809 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=8.4 OD=18 		9-09160-608-0 03 1 9606-9809 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> ID=8.4 OD=18 		9-09160-608-0 03 1 9810-0203 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18 		9-09160-608-0 03 1 0204-0605 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> ID=8.4 OD=18 		9-09160-608-0 03 1 0204-0605 ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ●
280 WASHER; PL,HEAT PROTECTOR
EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> ID=8.4 OD=18 		0-91610-608-0 03 1 0606- ●
292 WASHER; LK,STARTER
ID=12.2 		9-09150-512-0 03 1 9101-9504 ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9505-9702 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9703-9709 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9710-0603 ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ● ● ●
293 CABLE; STARTER EARTH 9-82932-211-0 01 1 9101-9504 ● ● ●
293 CABLE; STARTER EARTH
STARTER DENSO(RC6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=550 		1-82650-239-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) L=550 		1-82650-239-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> L=550 		1-82650-239-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
ENG OIL COOLER HEAVY DUTY<E1E> EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, OVERHEADCOOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0005-0204 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. ENG OIL COOLER HEAVY DUTY<E1E>,OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0005-0204 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0205- ●
293 CABLE; STARTER EARTH
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET SPECIAL -10%Q(T1K),OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0205- ●
293 CABLE; STARTER EARTH
GENERATOR NIKKO 24V-60A 1.5KW(SC8) EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM<YS9> L=550 		1-82650-239-0 01 1 0205- ●
293 CABLE; STARTER EARTH
STARTER DENSO(RC6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), STARTER DENSO(RC6) L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
EXC. STARTER NIKKO HEAVY DUTY TYPE(E8H), EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,STARTER DENSO(RC6),EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
STARTER NIKKO HEAVY DUTY TYPE(E8H) L=450 		1-82650-238-0 01 1 9505-0004 ●
293 CABLE; STARTER EARTH
OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0005-0203 ●
293 CABLE; STARTER EARTH
EXC. ENG OIL COOLER HEAVY DUTY<E1E>,EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,EMISSION SYSTEMECE REQUIREMENTS<SFV>,OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0005-0203 ●
293 CABLE; STARTER EARTH
OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0204- ●
293 CABLE; STARTER EARTH
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM<YS9> L=450 		1-82650-238-0 01 1 0204- ●
293 CABLE; STARTER EARTH
L=530 		1-82650-310-0 01 1 9703-9705 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9706-9709 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9710-9904 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9905-9907 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<THN> L=350 		1-82650-240-0 01 1 9905-9907 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 9908- ● ●
293 CABLE; STARTER EARTH
EMISSION PARTS<TCA> L=350 		1-82650-240-0 02 1 9905-9907 ●
295 HARNESS; STARTER
(C) 		1-82640-130-0 01 1 9101-9504 ● ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9505-9702 ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-1 01 1 9703-9709 ● ●
295 HARNESS; STARTER
(A) L=170 		1-82640-382-2 01 1 9710- ● ● ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9505-9702 ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9710- ●
295 HARNESS; STARTER
EXC. ENG ROOM SW BOX<TEK> (B) 		1-82639-084-1 01 1 9703-9709 ● ●
çizim 36864
452 451 472 633 449 450 632 450 459 780 648 48 46 10 11 10 424 10 10 11 296 296 296 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 RELAY; STARTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-81171-047-0 01 1 9101-9504 ● ● ●
10 RELAY; STARTER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) NIKKO 		1-81171-015-1 01 1 9101-9504 ● ● ●
10 RELAY; STARTER
ENG ROOM SW BOX<TEK> (B) NIKKO 		1-81171-025-1 01 1 9505-0212 ●
10 RELAY; STARTER
ENG ROOM SW BOX<TEK> (D) 		1-81171-096-1 01 1 0301- ●
10 RELAY; STARTER
STARTER DENSO(RC6) EXC. ENG ROOM SW BOX<TEK> (A) DENSO 		1-81171-070-0 01 1 9505- ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (C) NIKKO 		1-81171-071-0 01 1 9505-9606 ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (C) NIKKO 		1-81171-075-1 01 1 9607- ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (A) HITACHI 		1-81171-087-0 01 1 9904-9907 ●
10 RELAY; STARTER
EXC. NIKKO<Y70> EXC. STARTER DENSO(RC6),ENG ROOM SW BOX<TEK> (A) HITACHI 		1-81171-087-0 01 1 9908-0203 ● ● ●
11 BOLT; RELAY STARTER
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ● ●
11 BOLT; RELAY STARTER
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ● ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X25 FLANGE 		0-28080-825-0 01 1 9505-9603 ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606 ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512 ●
11 BOLT; RELAY STARTER
EXC. ENG ROOM SW BOX<TEK> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X25 FLANGE 		0-28080-625-0 04 1 9505-9510 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28080-620-0 04 1 9511-9606 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28680-620-0 04 1 9607-0312 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28680-620-0 02 1 0401-0512 ●
11 BOLT; RELAY STARTER
ENG ROOM SW BOX<TEK> M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9505-9606 ●
46 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT<PM9> 		8-94258-014-0 01 1 9607-0203 ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0204- ●
46 RELAY; GLOW PLUG
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> 		8-94258-014-0 01 1 9703-9709 ●
46 RELAY; GLOW PLUG
LEFT HAND DRIVE(LTR6FB) 		8-94258-014-0 01 1 9703-9709 ●
46 RELAY; GLOW PLUG
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> 		8-94258-014-0 01 1 9710- ● ●
46 RELAY; GLOW PLUG
LEFT HAND DRIVE(LTR6FB) 		8-94258-014-0 01 1 9710- ● ●
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28080-616-0 02 1 9505-9606 ●
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28680-616-0 02 1 9607-9607 ●
48 BOLT; GLOW PLUG RELAY
EXC. THAILAND EQUIPMENT<PM9> M6X16 FLANGE 		0-28680-616-0 02 1 9607-0203 ●
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28680-616-0 02 1 0204-0512 ●
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
48 BOLT; GLOW PLUG RELAY
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> M6X16 FLANGE 		0-28680-616-0 02 1 9703-9709 ●
48 BOLT; GLOW PLUG RELAY
LEFT HAND DRIVE(LTR6FB) M6X16 FLANGE 		0-28680-616-0 02 1 9703-9709 ●
48 BOLT; GLOW PLUG RELAY
RIGHT HAND DRIVE(LTR5FB) EXC. THAILAND EQUIPMENT<PM9> M6X16 FLANGE 		0-28680-616-0 02 1 9710- ● ●
48 BOLT; GLOW PLUG RELAY
LEFT HAND DRIVE(LTR6FB) M6X16 FLANGE 		0-28680-616-0 02 1 9710- ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M8 		9-09110-408-0 04 1 9505-9510 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 		9-09110-406-0 04 1 9511-9606 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 04 1 9607-0312 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 02 1 0401-0602 ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 		9-09110-408-0 01 1 9505-9603 ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 		9-09110-408-0 02 1 9604-9606 ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 04 1 9703-9709 ● ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 02 1 9703-9709 ● ●
296 NUT; RELAY,STARTER
ENG ROOM SW BOX<TEK> M6 FLANGE 		0-91150-106-0 04 1 9710- ● ● ●
296 NUT; RELAY,STARTER
EXC. ENG ROOM SW BOX<TEK> M8 FLANGE 		0-91150-108-0 02 1 9710- ● ● ●
424 RELAY; SAFETY,STARTER
ENG ROOM SW BOX<TEK> SAWAFUJI 		1-81171-082-0 01 1 9905-9907 ●
424 RELAY; SAFETY,STARTER
ENG ROOM SW BOX<TEK> EXC. NIKKO<Y70> SAWAFUJI 		1-81171-082-0 01 1 9908-0203 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-600-5 01 1 9710- ●
450 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9710-0306 ●
450 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0307- ●
451 BRACKET; MAG VLV,VSS 1-47478-025-0 01 1 9710- ●
452 BOLT; VSS MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9710-0512 ●
452 BOLT; VSS MAG VLV
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
459 PLUG
PT1/4 		9-99204-513-0 01 1 9710- ●
472 VALVE; MAG,IDLE UP
OVERHEAD COOLING SYSTEM<YS9> 		1-82563-404-0 01 1 9505- ●
632 REGULATOR; VOLTAGE
GENERATOR DENSO 24V-40A 1KW(SC4) 		1-81251-026-0 01 1 9101-9504 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR HITACHI 24V-25A 600W(SC1) 		1-81251-007-2 01 1 9101-9504 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-60A 1.5KW(SC8) 		1-81251-043-0 01 1 9101-9105 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-60A 1.5KW(SC8) 		1-81251-048-0 01 1 9106-9504 ● ● ●
632 REGULATOR; VOLTAGE
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) NIKKO 		1-81251-042-2 01 1 9505- ●
633 BOLT; VOLTAGE REG
M6X14 W/LK WASHER 		9-01900-614-0 02 1 9101-9204 ● ● ●
633 BOLT; VOLTAGE REG
M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205-9504 ● ● ●
633 BOLT; VOLTAGE REG
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X16 FLANGE 		0-28080-816-0 02 1 9505-9908 ●
633 BOLT; VOLTAGE REG
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M6X16 FLANGE 		0-28680-616-0 02 1 9909-0512 ●
633 BOLT; VOLTAGE REG
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR NIKKO 24V-90A 2.5KW(SD2) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
648 RELAY; ENG STOPPER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9505-9702 ●
648 RELAY; ENG STOPPER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9703-9709 ● ●
648 RELAY; ENG STOPPER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9710-0111 ● ● ●
648 RELAY; ENG STOPPER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ● ●
780 RELAY; IDLING UP
OVERHEAD COOLING SYSTEM<YS9> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9505-0111 ●
780 RELAY; IDLING UP
OVERHEAD COOLING SYSTEM<YS9> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
