Sayfa 6-43 - Isuzu EPC

6-43 — SIDE TRIM (#43639) — 41 parça

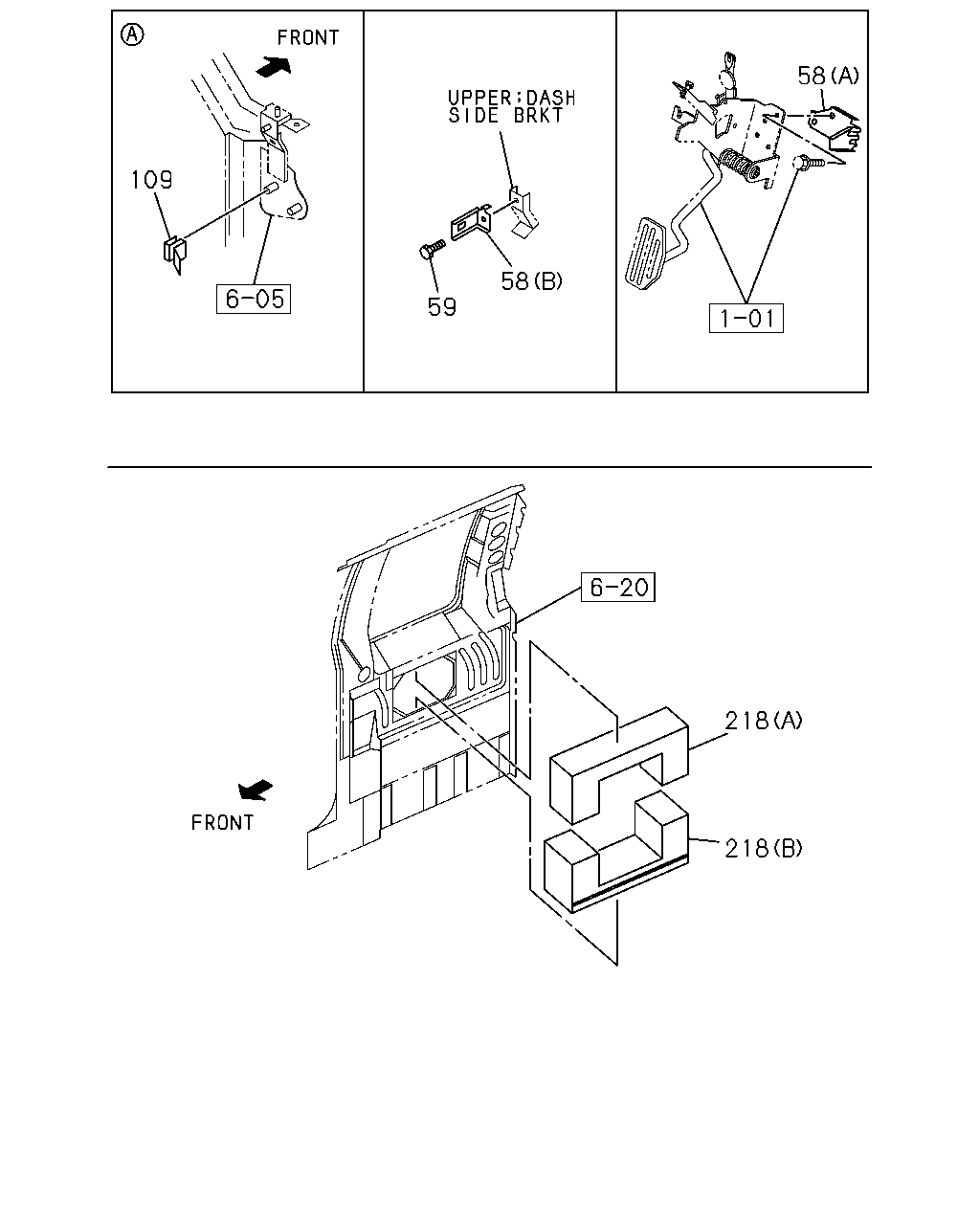

58 109 58 59 218 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
58	BRACKET (A) THA	8-97918-413-0	01	1	0009-	●	●	●	●	●	●	●	●
58	BRACKET EXC. COOLER WO/HEATER<YL1> (B) THA	8-97132-074-0	01	1	0009-	●	●	●	●	●	●	●	●
59	BOLT; DASH SIDE TRIM BRKT M6X16 THA	8-97916-315-0	01	1	0009-	●	●	●	●	●	●	●	●
109	CLIP; DOOR FINISHER	8-97175-995-0	01	1	0009-	●	●	●	●	●	●	●	●
218	SPACER; PANEL,RR QTR (A) UPPER THA	8-97919-437-0	02	1	0009-	●					●
218	SPACER; PANEL,RR QTR (B) LOWER THA	8-97919-765-0	02	1	0009-	●					●

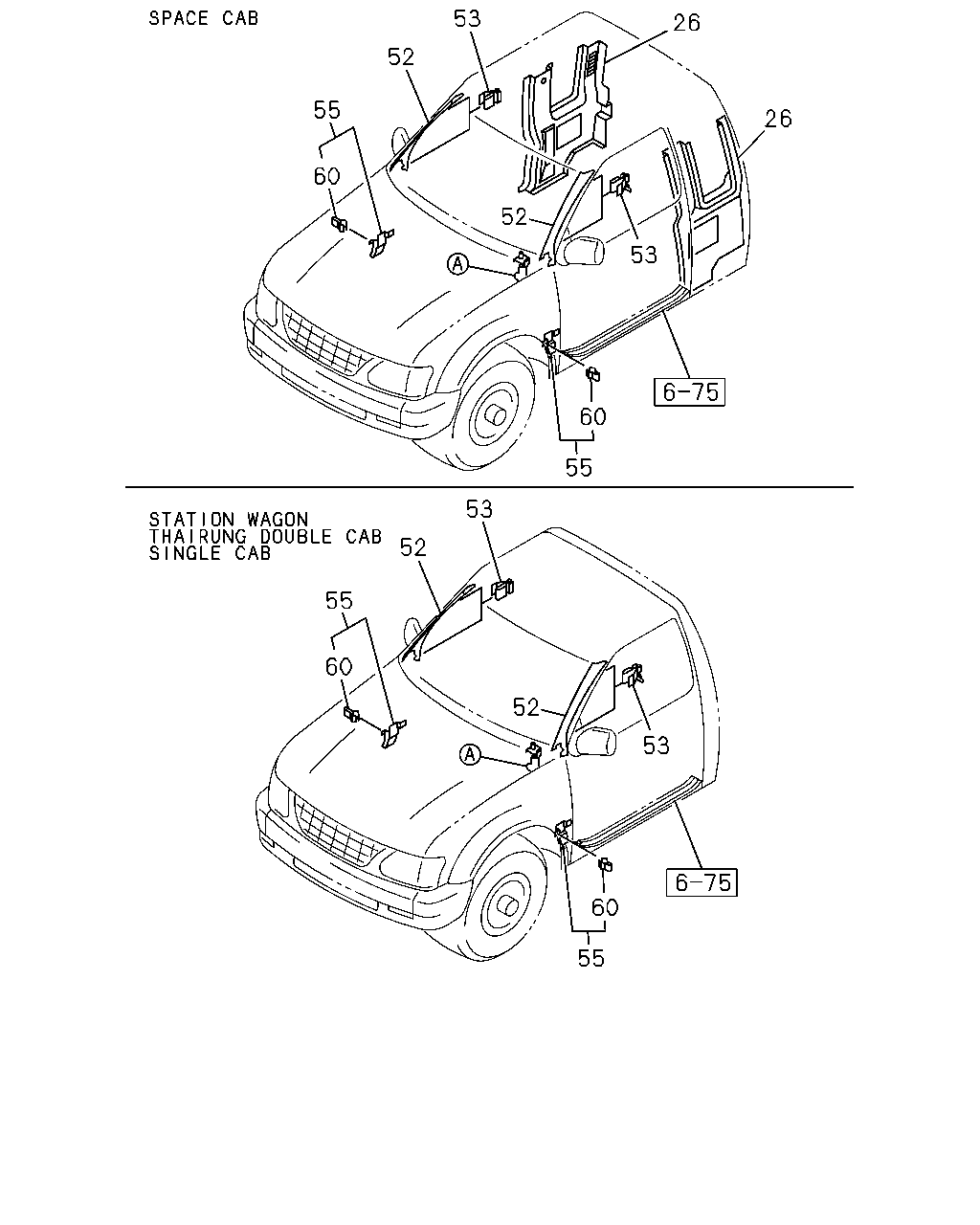

53 26 52 55 26 60 52 53 60 55 53 52 55 60 52 53 60 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
26	COVER; TRIM,RR COMPT SIDE RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. NOISE INSULATION PACK 2<7MW> SAS THA	8-97919-412-1	01	1	0009-	●
26	COVER; TRIM,RR COMPT SIDE SPEAKER & ANTENNA<8DW> SAS THA	8-97919-412-1	01	1	0009-						●
26	COVER; TRIM,RR COMPT SIDE RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. NOISE INSULATION PACK 2<7MW> NHK THA	8-97919-433-1	01	1	0009-	●
26	COVER; TRIM,RR COMPT SIDE SPEAKER & ANTENNA<8DW> NHK THA	8-97919-433-1	01	1	0009-						●
26	COVER; TRIM,RR COMPT SIDE RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. NOISE INSULATION PACK 2<7MW> SAS THA	8-97919-411-2	01	1	0009-	●
26	COVER; TRIM,RR COMPT SIDE SPEAKER & ANTENNA<8DW> SAS THA	8-97919-411-2	01	1	0009-						●
26	COVER; TRIM,RR COMPT SIDE RADIO W/CASSETTE 4 SPEAKERS<7SE> EXC. NOISE INSULATION PACK 2<7MW> NHK THA	8-97919-432-2	01	1	0009-	●
26	COVER; TRIM,RR COMPT SIDE SPEAKER & ANTENNA<8DW> NHK THA	8-97919-432-2	01	1	0009-						●
26	COVER; TRIM,RR COMPT SIDE NOISE INSULATION PACK 2<7MW> GRAY	8-97156-055-0	01	1	0009-	●					●
26	COVER; TRIM,RR COMPT SIDE NOISE INSULATION PACK 2<7MW> GRAY	8-97156-054-1	01	1	0009-	●					●
26	COVER; TRIM,RR COMPT SIDE EXC. NOISE INSULATION PACK 2<7MW>,SPEAKER & ANTENNA<8DW> SAS THA	8-97919-410-1	01	1	0009-						●
26	COVER; TRIM,RR COMPT SIDE EXC. NOISE INSULATION PACK 2<7MW>,SPEAKER & ANTENNA<8DW> NHK THA	8-97919-431-1	01	1	0009-						●
26	COVER; TRIM,RR COMPT SIDE EXC. NOISE INSULATION PACK 2<7MW>,SPEAKER & ANTENNA<8DW> SAS THA	8-97919-409-2	01	1	0009-						●
26	COVER; TRIM,RR COMPT SIDE EXC. NOISE INSULATION PACK 2<7MW>,SPEAKER & ANTENNA<8DW> NHK THA	8-97919-430-2	01	1	0009-						●
52	COVER; TRIM,FRT PILLAR THA	8-97910-014-1	01	1	0009-0108	●	●	●	●	●	●	●	●
52	COVER; TRIM,FRT PILLAR THA	8-97910-014-1	01	1	0109-	●	●	●	●		●	●
52	COVER; TRIM,FRT PILLAR THA	8-97910-013-1	01	1	0009-0108	●	●	●	●	●	●	●	●
52	COVER; TRIM,FRT PILLAR THA	8-97910-013-1	01	1	0109-	●	●	●	●		●	●
53	RETAINER; TRIM,FRT PILLAR	8-94117-873-3	04	1	0009-	●	●	●	●	●	●	●	●
55	PAD; TRIM,DASH SIDE THA	8-97916-631-0	01	1	0009-	●	●	●	●	●	●	●	●
55	PAD; TRIM,DASH SIDE THA	8-97916-630-0	01	1	0009-	●	●	●	●	●	●	●	●
60	CLIP; ANCHOR,TRIM PAD THA	8-97917-733-0	04	1	0009-	●	●	●	●	●	●	●	●

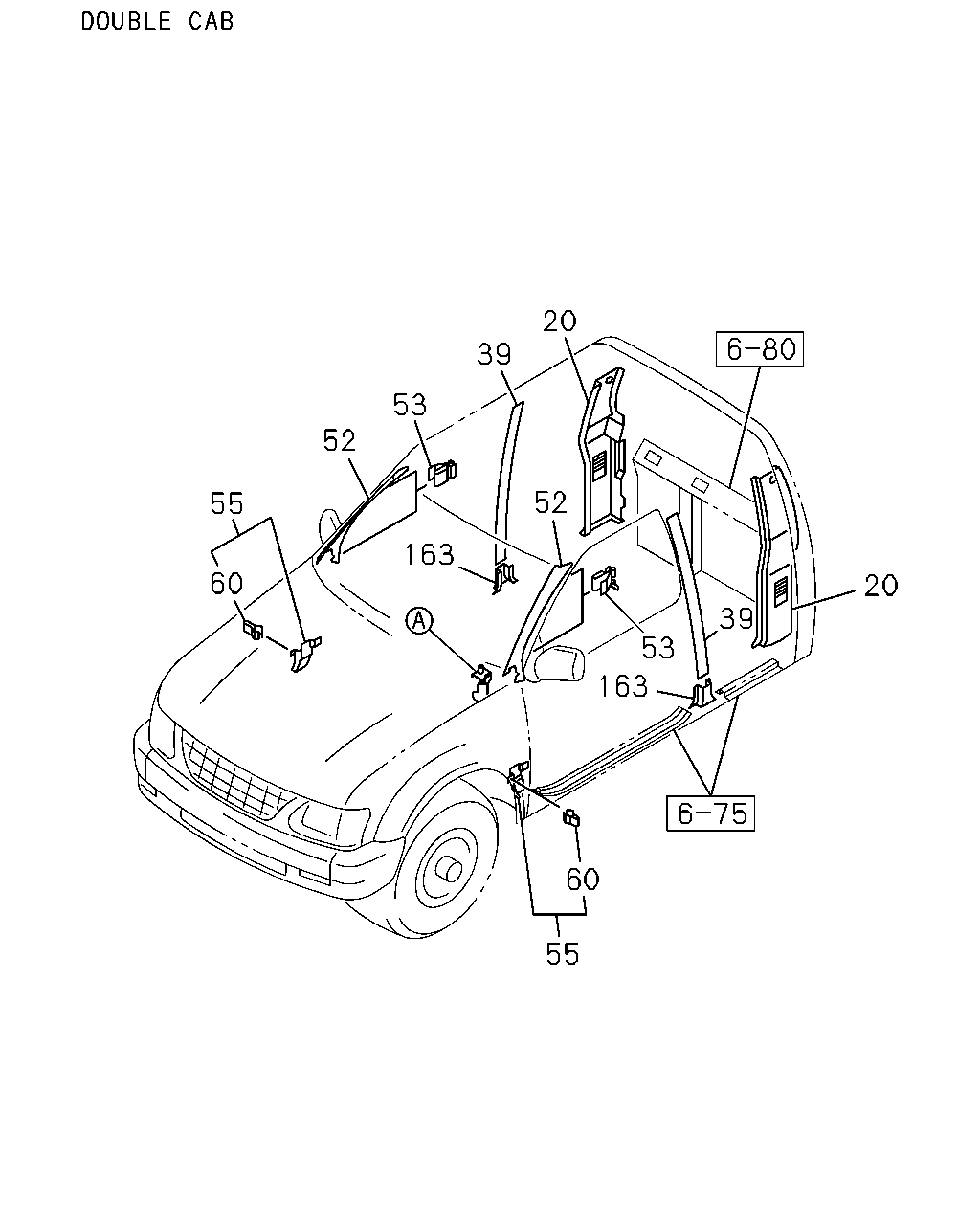

20 39 53 52 52 55 163 39 60 20 53 163 60 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
20	COVER; TRIM,RR PILLAR GRAY	8-97158-330-0	01	1	0009-					●			●
20	COVER; TRIM,RR PILLAR GRAY	8-97158-329-0	01	1	0009-					●			●
39	COVER; TRIM,CENTER PILLAR GRAY	8-97154-629-0	02	1	0009-					●			●
52	COVER; TRIM,FRT PILLAR THA	8-97910-014-1	01	1	0009-0108	●	●	●	●	●	●	●	●
52	COVER; TRIM,FRT PILLAR THA	8-97910-014-1	01	1	0109-	●	●	●	●		●	●
52	COVER; TRIM,FRT PILLAR THA	8-97910-013-1	01	1	0009-0108	●	●	●	●	●	●	●	●
52	COVER; TRIM,FRT PILLAR THA	8-97910-013-1	01	1	0109-	●	●	●	●		●	●
53	RETAINER; TRIM,FRT PILLAR	8-94117-873-3	04	1	0009-	●	●	●	●	●	●	●	●
55	PAD; TRIM,DASH SIDE THA	8-97916-631-0	01	1	0009-	●	●	●	●	●	●	●	●
55	PAD; TRIM,DASH SIDE THA	8-97916-630-0	01	1	0009-	●	●	●	●	●	●	●	●
60	CLIP; ANCHOR,TRIM PAD THA	8-97917-733-0	04	1	0009-	●	●	●	●	●	●	●	●
163	COVER; TRIM,CENTER PILLAR,LWR GRAY	8-97154-631-1	01	1	0009-					●			●
163	COVER; TRIM,CENTER PILLAR,LWR GRAY	8-97154-630-1	01	1	0009-					●			●
