6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP (#43638) — 14 parça

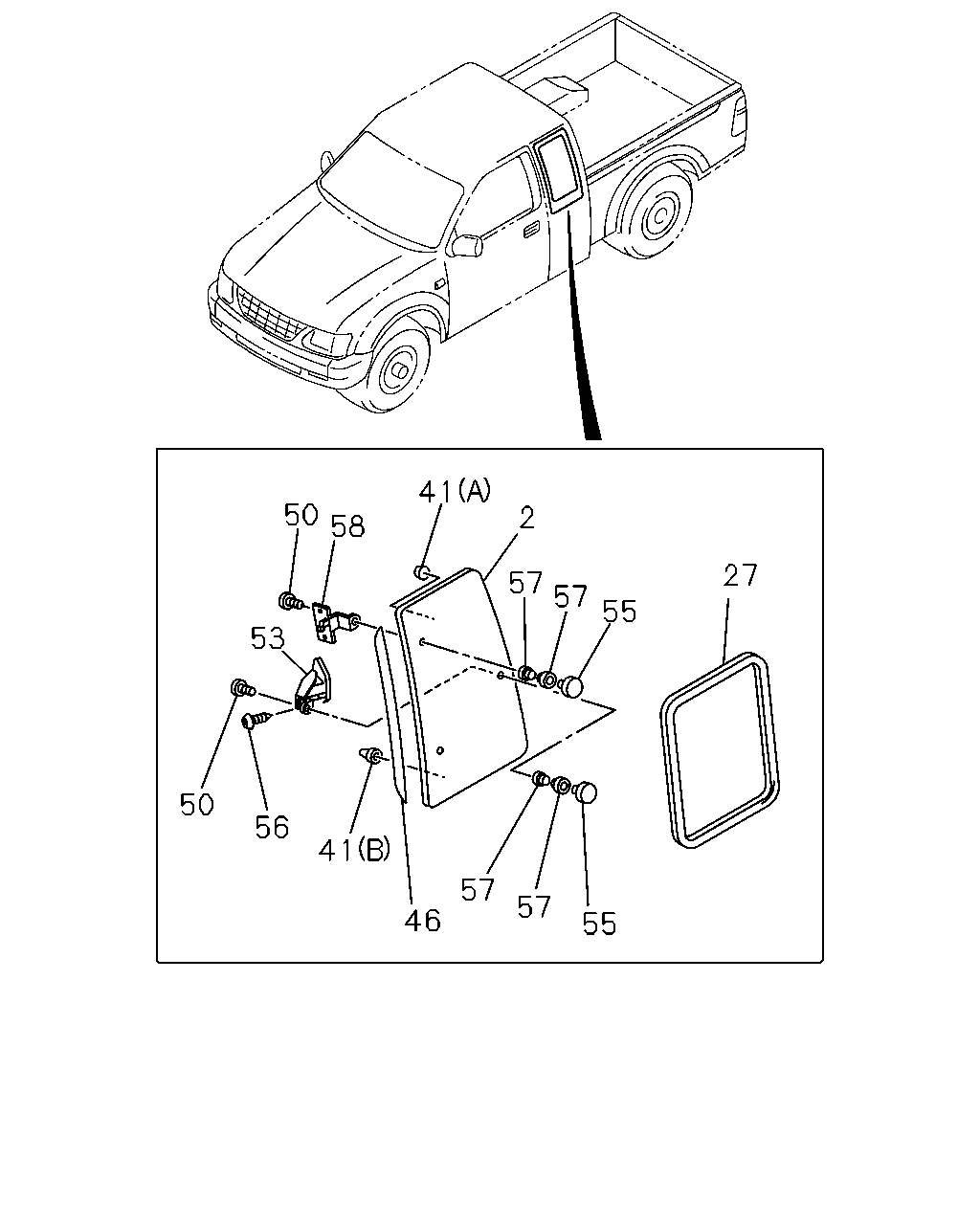

çizim 48034
41 50 58 2 27 57 57 55 53 50 56 41 57 46 57 55
BalonParca AdiParca NoAdetTipApplied Date A B
2 GLASS; RR QUARTER
SSGT THA 		8-97919-342-0 01 1 0009- ● ●
2 GLASS; RR QUARTER
TSG THA 		8-97941-289-0 01 1 0009- ● ●
2 GLASS; RR QUARTER
SSGT THA 		8-97919-341-0 01 1 0009- ● ●
2 GLASS; RR QUARTER
TSG THA 		8-97941-288-0 01 1 0009- ● ●
27 WEATHERSTRIP; RR QUARTER
THA 		8-97941-685-0 02 1 0009- ● ●
41 BUFFER; RR QUARTER GLASS
(A) 		8-94203-098-1 02 1 0009- ● ●
41 BUFFER; RR QUARTER GLASS
(B) THA 		8-97918-414-0 04 1 0009- ● ●
46 TAPE; RR QUARTER GLASS
THA 		8-97913-874-0 02 1 0009-0009 ● ●
50 SCREW; HINGE
M5X10 		9-03810-510-0 06 1 0009- ● ●
53 FASTENER; RR QUARTER 8-97061-616-0 02 1 0009- ● ●
55 NUT; SPECIAL,HINGE 8-94224-270-0 06 1 0009- ● ●
56 SCREW; BACKLIGHT GLASS
M5X16 TAPPING 		9-09829-323-1 14 1 0009- ● ●
57 GROMMET; HINGE
THA 		8-97918-415-0 10 1 0009- ● ●
58 HINGE; RR QUARTER WINDOW
THA 		8-97184-433-0 04 1 0009- ● ●
