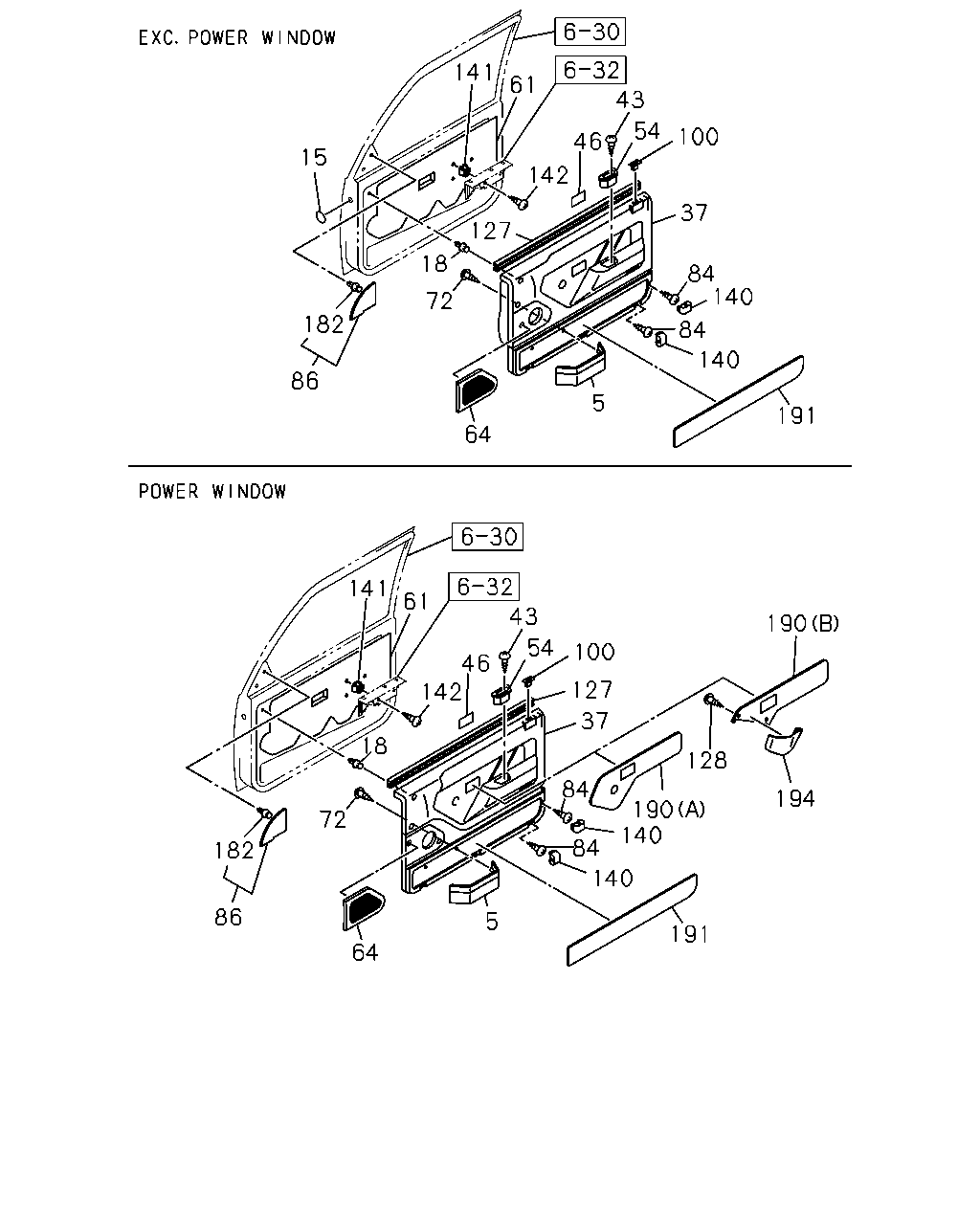

6-35 — FRONT DOOR TRIM (#43637) — 143 parça

141 43 54 61 46 142 100 15 37 127 18 84 140 84 140 72 182 86 5 191 64 141 43 54 61 190 46 142 100 127 37 190 140 18 128 84 194 72 84 140 182 86 5 191 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
5	POCKET; DOOR POWER WINDOW<A30> THA	8-97910-702-1	01	1	0102-	●
5	POCKET; DOOR POWER WINDOW<A30> THA	8-97910-702-1	01	1	0102-	●
5	POCKET; DOOR THA	8-97910-702-1	01	1	0102-		●
5	POCKET; DOOR THA	8-97910-702-1	01	1	0102-		●
5	POCKET; DOOR POWER WINDOW<A30> THA	8-97910-702-1	01	1	0009-0101	●
5	POCKET; DOOR POWER WINDOW<A30> THA	8-97910-702-1	01	1	0009-0101	●
5	POCKET; DOOR THA	8-97910-702-1	01	1	0009-0101		●	●
5	POCKET; DOOR THA	8-97910-702-1	01	1	0009-0101		●
5	POCKET; DOOR THA	8-97910-702-1	02	1	0009-				●	●	●
15	COVER; HOLE,DOOR TRIM EXC. POWER WINDOW<A30>,AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> OD=50 T=0.08 BLACK THA	8-94111-754-0	04	1	0009-0109	●						●	●
15	COVER; HOLE,DOOR TRIM OD=50 T=0.08 BLACK THA	8-94111-754-0	04	1	0009-0109				●	●	●
15	COVER; HOLE,DOOR TRIM EXC. POWER WINDOW<A30>,AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS<7ND> OD=45 BLACK	1-76798-017-0	04	1	0110-	●						●	●
15	COVER; HOLE,DOOR TRIM OD=45 BLACK	1-76798-017-0	04	1	0110-				●	●	●
18	CLIP; DOOR PAD POWER WINDOW<A30> D=7.9 THA	8-97913-471-0	15	1	0102-	●
18	CLIP; DOOR PAD POWER WINDOW<A30> D=7.9 THA	8-97913-471-0	15	1	0102-	●
18	CLIP; DOOR PAD D=7.9 THA	8-97913-471-0	15	1	0102-		●	●
18	CLIP; DOOR PAD D=7.9 THA	8-97913-471-0	15	1	0102-		●	●
18	CLIP; DOOR PAD SPECIAL PACKAGE VAR.2<7TB> D=7.9 THA	8-97913-471-0	15	1	0102-								●
18	CLIP; DOOR PAD SPECIAL PACKAGE VAR.2<7TB> D=7.9 THA	8-97913-471-0	15	1	0102-								●
18	CLIP; DOOR PAD POWER WINDOW<A30> D=7.9 THA	8-97913-471-0	15	1	0009-0101	●
18	CLIP; DOOR PAD POWER WINDOW<A30> D=7.9 THA	8-97913-471-0	15	1	0009-0101	●
18	CLIP; DOOR PAD D=7.9 THA	8-97913-471-0	15	1	0009-0101		●	●
18	CLIP; DOOR PAD D=7.9 THA	8-97913-471-0	15	1	0009-0101		●	●
18	CLIP; DOOR PAD SPECIAL PACKAGE VAR.2<7TB> D=7.9 THA	8-97913-471-0	15	1	0009-0101								●
18	CLIP; DOOR PAD SPECIAL PACKAGE VAR.2<7TB> D=7.9 THA	8-97913-471-0	15	1	0009-0101								●
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,SPECIAL PACKAGE VAR.2<7TB> D=7.9 THA	8-97913-471-0	30	1	0009-	●							●
18	CLIP; DOOR PAD D=7.9 THA	8-97913-471-0	30	1	0009-				●	●	●	●
37	TRIM; FULL FRT DOOR POWER WINDOW<A30> THA	8-97910-072-2	01	1	0102-	●
37	TRIM; FULL FRT DOOR POWER WINDOW<A30> THA	8-97910-073-2	01	1	0102-	●
37	TRIM; FULL FRT DOOR THA	8-97910-073-2	01	1	0102-		●
37	TRIM; FULL FRT DOOR THA	8-97913-435-0	01	1	0102-		●
37	TRIM; FULL FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97918-713-0	01	1	0102-								●
37	TRIM; FULL FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97918-714-0	01	1	0102-								●
37	TRIM; FULL FRT DOOR THA	8-97918-714-0	01	1	0102-			●
37	TRIM; FULL FRT DOOR THA	8-97921-379-0	01	1	0102-			●
37	TRIM; FULL FRT DOOR POWER WINDOW<A30> THA	8-97910-073-2	01	1	0009-0101	●
37	TRIM; FULL FRT DOOR THA	8-97910-073-2	01	1	0009-0101		●
37	TRIM; FULL FRT DOOR POWER WINDOW<A30> THA	8-97910-072-2	01	1	0009-0101	●
37	TRIM; FULL FRT DOOR EXC. POWER WINDOW<A30>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-071-2	01	1	0009-	●						●	●
37	TRIM; FULL FRT DOOR EXC. POWER WINDOW<A30>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-070-2	01	1	0009-	●						●	●
37	TRIM; FULL FRT DOOR THA	8-97918-716-0	01	1	0009-				●	●	●
37	TRIM; FULL FRT DOOR THA	8-97918-715-0	01	1	0009-				●	●	●
37	TRIM; FULL FRT DOOR THA	8-97913-435-0	01	1	0009-0101		●
37	TRIM; FULL FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97918-714-0	01	1	0009-0101								●
37	TRIM; FULL FRT DOOR THA	8-97918-714-0	01	1	0009-0101			●
37	TRIM; FULL FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97918-713-0	01	1	0009-0101								●
37	TRIM; FULL FRT DOOR THA	8-97921-379-0	01	1	0009-0101			●
43	SCREW; DOOR POCKET M6X14 SELF TAPPING	9-09629-040-0	04	1	0009-	●	●	●	●	●	●	●	●
46	CUSHION; TRIM PAD,FRT DOOR POWER WINDOW<A30> THA	8-97914-975-0	02	1	0102-	●
46	CUSHION; TRIM PAD,FRT DOOR POWER WINDOW<A30> THA	8-97914-975-0	02	1	0102-	●
46	CUSHION; TRIM PAD,FRT DOOR THA	8-97914-975-0	02	1	0102-		●	●
46	CUSHION; TRIM PAD,FRT DOOR THA	8-97914-975-0	02	1	0102-		●	●
46	CUSHION; TRIM PAD,FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97914-975-0	02	1	0102-								●
46	CUSHION; TRIM PAD,FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97914-975-0	02	1	0102-								●
46	CUSHION; TRIM PAD,FRT DOOR POWER WINDOW<A30> THA	8-97914-975-0	02	1	0009-0101	●
46	CUSHION; TRIM PAD,FRT DOOR POWER WINDOW<A30> THA	8-97914-975-0	02	1	0009-0101	●
46	CUSHION; TRIM PAD,FRT DOOR THA	8-97914-975-0	02	1	0009-0101		●	●
46	CUSHION; TRIM PAD,FRT DOOR THA	8-97914-975-0	02	1	0009-0101		●	●
46	CUSHION; TRIM PAD,FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97914-975-0	02	1	0009-0101								●
46	CUSHION; TRIM PAD,FRT DOOR SPECIAL PACKAGE VAR.2<7TB> THA	8-97914-975-0	02	1	0009-0101								●
46	CUSHION; TRIM PAD,FRT DOOR EXC. POWER WINDOW<A30>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97914-975-0	04	1	0009-	●							●
46	CUSHION; TRIM PAD,FRT DOOR THA	8-97914-975-0	04	1	0009-				●	●	●	●
54	BOX; FRT DOOR THA	8-97910-701-0	02	1	0009-	●			●	●	●	●	●
54	BOX; FRT DOOR GRAY THA	8-97154-666-3	02	1	0009-		●	●
61	SEAL; WATER,DOOR PAD POWER WINDOW<A30> THA	8-97911-012-1	02	1	0009-	●							●
61	SEAL; WATER,DOOR PAD THA	8-97911-012-1	02	1	0009-		●	●
61	SEAL; WATER,DOOR PAD EXC. POWER WINDOW<A30> THA	8-97911-011-0	02	1	0009-	●							●
61	SEAL; WATER,DOOR PAD THA	8-97911-011-0	02	1	0009-				●	●	●	●
64	GRILLE THA	8-97910-075-0	01	1	0009-	●	●	●	●	●	●	●	●
64	GRILLE THA	8-97910-074-0	01	1	0009-	●	●	●	●	●	●	●	●
72	SCREW; DOOR TRIM POWER WINDOW<A30> THA	8-97914-972-0	04	1	0102-	●
72	SCREW; DOOR TRIM POWER WINDOW<A30> THA	8-97914-972-0	04	1	0102-	●
72	SCREW; DOOR TRIM THA	8-97914-972-0	04	1	0102-		●
72	SCREW; DOOR TRIM THA	8-97914-972-0	04	1	0102-		●
72	SCREW; DOOR TRIM POWER WINDOW<A30> THA	8-97914-972-0	04	1	0009-0101	●
72	SCREW; DOOR TRIM POWER WINDOW<A30> THA	8-97914-972-0	04	1	0009-0101	●
72	SCREW; DOOR TRIM THA	8-97914-972-0	04	1	0009-0101		●	●
72	SCREW; DOOR TRIM THA	8-97914-972-0	04	1	0009-0101		●
72	SCREW; DOOR TRIM THA	8-97914-972-0	08	1	0009-				●	●	●
84	SCREW; BOX BRKT M4X13 TAPPING THA	8-97104-883-0	08	1	0009-	●	●	●	●	●	●	●	●
86	COVER ASM; DOOR POCKET THA	8-97910-930-1	01	1	0009-	●	●	●	●	●	●	●	●
86	COVER ASM; DOOR POCKET THA	8-97910-929-2	01	1	0009-	●	●	●	●	●	●	●	●
100	GUIDE; HOLE,DOOR LOCK KNOB POWER WINDOW<A30> THA	8-97910-703-0	01	1	0102-	●
100	GUIDE; HOLE,DOOR LOCK KNOB POWER WINDOW<A30> THA	8-97910-703-0	01	1	0102-	●
100	GUIDE; HOLE,DOOR LOCK KNOB THA	8-97910-703-0	01	1	0102-		●	●
100	GUIDE; HOLE,DOOR LOCK KNOB THA	8-97910-703-0	01	1	0102-		●	●
100	GUIDE; HOLE,DOOR LOCK KNOB SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-703-0	01	1	0102-								●
100	GUIDE; HOLE,DOOR LOCK KNOB SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-703-0	01	1	0102-								●
100	GUIDE; HOLE,DOOR LOCK KNOB POWER WINDOW<A30> THA	8-97910-703-0	01	1	0009-0101	●
100	GUIDE; HOLE,DOOR LOCK KNOB POWER WINDOW<A30> THA	8-97910-703-0	01	1	0009-0101	●
100	GUIDE; HOLE,DOOR LOCK KNOB THA	8-97910-703-0	01	1	0009-0101		●	●
100	GUIDE; HOLE,DOOR LOCK KNOB THA	8-97910-703-0	01	1	0009-0101		●	●
100	GUIDE; HOLE,DOOR LOCK KNOB SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-703-0	01	1	0009-0101								●
100	GUIDE; HOLE,DOOR LOCK KNOB SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-703-0	01	1	0009-0101								●
100	GUIDE; HOLE,DOOR LOCK KNOB EXC. POWER WINDOW<A30>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97910-703-0	02	1	0009-	●							●
100	GUIDE; HOLE,DOOR LOCK KNOB THA	8-97910-703-0	02	1	0009-				●	●	●	●
127	SEAL; DOOR INNER THA	8-97913-837-1	01	1	0009-0101	●	●	●	●	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A30> THA	8-97913-837-1	01	1	0009-0101								●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A30>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-837-1	01	1	0102-0102	●							●
127	SEAL; DOOR INNER THA	8-97913-837-1	01	1	0102-0102				●	●	●	●
127	SEAL; DOOR INNER THA	8-97913-837-1	01	1	0102-	●	●	●	●	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A30> THA	8-97913-837-1	01	1	0102-								●
127	SEAL; DOOR INNER THA	8-97913-836-1	01	1	0009-0101	●	●	●	●	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A30> THA	8-97913-836-1	01	1	0009-0101								●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A30>,SPECIAL PACKAGE VAR.2<7TB> THA	8-97913-836-1	01	1	0102-0102	●							●
127	SEAL; DOOR INNER THA	8-97913-836-1	01	1	0102-0102				●	●	●	●
127	SEAL; DOOR INNER THA	8-97913-836-1	01	1	0102-	●	●	●	●	●	●	●
127	SEAL; DOOR INNER EXC. POWER WINDOW<A30> THA	8-97913-836-1	01	1	0102-								●
128	SCREW; TAP THA	8-97915-603-0	08	1	0102-		●
128	SCREW; TAP THA	8-97915-603-0	08	1	0009-0101		●	●
140	COVER; LWR PLATE,DOOR GRAY	8-97152-745-3	08	1	0009-	●	●	●	●	●	●	●	●
141	GROMMET; SCREW,LWR COVER THA	8-97910-931-0	06	1	0009-	●	●	●	●	●	●	●	●
142	SCREW; LWR COVER,DOOR TRIM M6X16	9-09829-197-0	06	1	0009-	●	●	●	●	●	●	●	●
182	CLIP; COVER THA	8-97913-584-0	02	1	0009-	●	●	●	●	●	●	●	●
190	TRIM; CTR CLOTH POWER WINDOW<A30> THA	8-97921-888-0	01	1	0102-	●
190	TRIM; CTR CLOTH POWER WINDOW<A30> THA	8-97921-058-0	01	1	0102-	●
190	TRIM; CTR CLOTH THA	8-97921-058-0	01	1	0102-		●
190	TRIM; CTR CLOTH THA	8-97921-057-0	01	1	0102-		●
190	TRIM; CTR CLOTH SPECIAL PACKAGE VAR.2<7TB> THA	8-97921-889-0	01	1	0102-								●
190	TRIM; CTR CLOTH SPECIAL PACKAGE VAR.2<7TB> THA	8-97921-890-0	01	1	0102-								●
190	TRIM; CTR CLOTH THA	8-97921-890-0	01	1	0102-			●
190	TRIM; CTR CLOTH THA	8-97921-891-0	01	1	0102-			●
190	TRIM; CTR CLOTH POWER WINDOW<A30> (A) THA	8-97919-166-0	01	1	0009-0101	●
190	TRIM; CTR CLOTH (A) THA	8-97919-166-0	01	1	0009-0101		●
190	TRIM; CTR CLOTH POWER WINDOW<A30> (A) THA	8-97919-165-0	01	1	0009-0101	●
190	TRIM; CTR CLOTH (B) THA	8-97921-371-0	01	1	0009-0101		●
190	TRIM; CTR CLOTH SPECIAL PACKAGE VAR.2<7TB> (A) THA	8-97919-168-0	01	1	0009-0101								●
190	TRIM; CTR CLOTH (A) THA	8-97919-168-0	01	1	0009-0101			●
190	TRIM; CTR CLOTH SPECIAL PACKAGE VAR.2<7TB> (A) THA	8-97919-167-0	01	1	0009-0101								●
190	TRIM; CTR CLOTH (B) THA	8-97921-372-0	01	1	0009-0101			●
191	CARPET; FRT DOOR POWER WINDOW<A30> THA	8-97914-971-0	01	1	0009-0101	●
191	CARPET; FRT DOOR THA	8-97914-971-0	01	1	0009-0101		●		●	●	●
191	CARPET; FRT DOOR THA	8-97914-971-0	01	1	0102-0102				●	●	●
191	CARPET; FRT DOOR POWER WINDOW<A30> THA	8-97914-971-0	01	1	0102-	●
191	CARPET; FRT DOOR THA	8-97914-971-0	01	1	0102-		●		●	●	●
191	CARPET; FRT DOOR POWER WINDOW<A30> THA	8-97914-970-0	01	1	0009-0101	●
191	CARPET; FRT DOOR THA	8-97914-970-0	01	1	0009-0101		●	●	●	●	●
191	CARPET; FRT DOOR THA	8-97914-970-0	01	1	0102-0102				●	●	●
191	CARPET; FRT DOOR POWER WINDOW<A30> THA	8-97914-970-0	01	1	0102-	●
191	CARPET; FRT DOOR THA	8-97914-970-0	01	1	0102-		●		●	●	●
194	TRIM; SW BOX THA	8-97913-439-0	01	1	0102-		●
194	TRIM; SW BOX THA	8-97913-439-0	01	1	0009-0101		●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

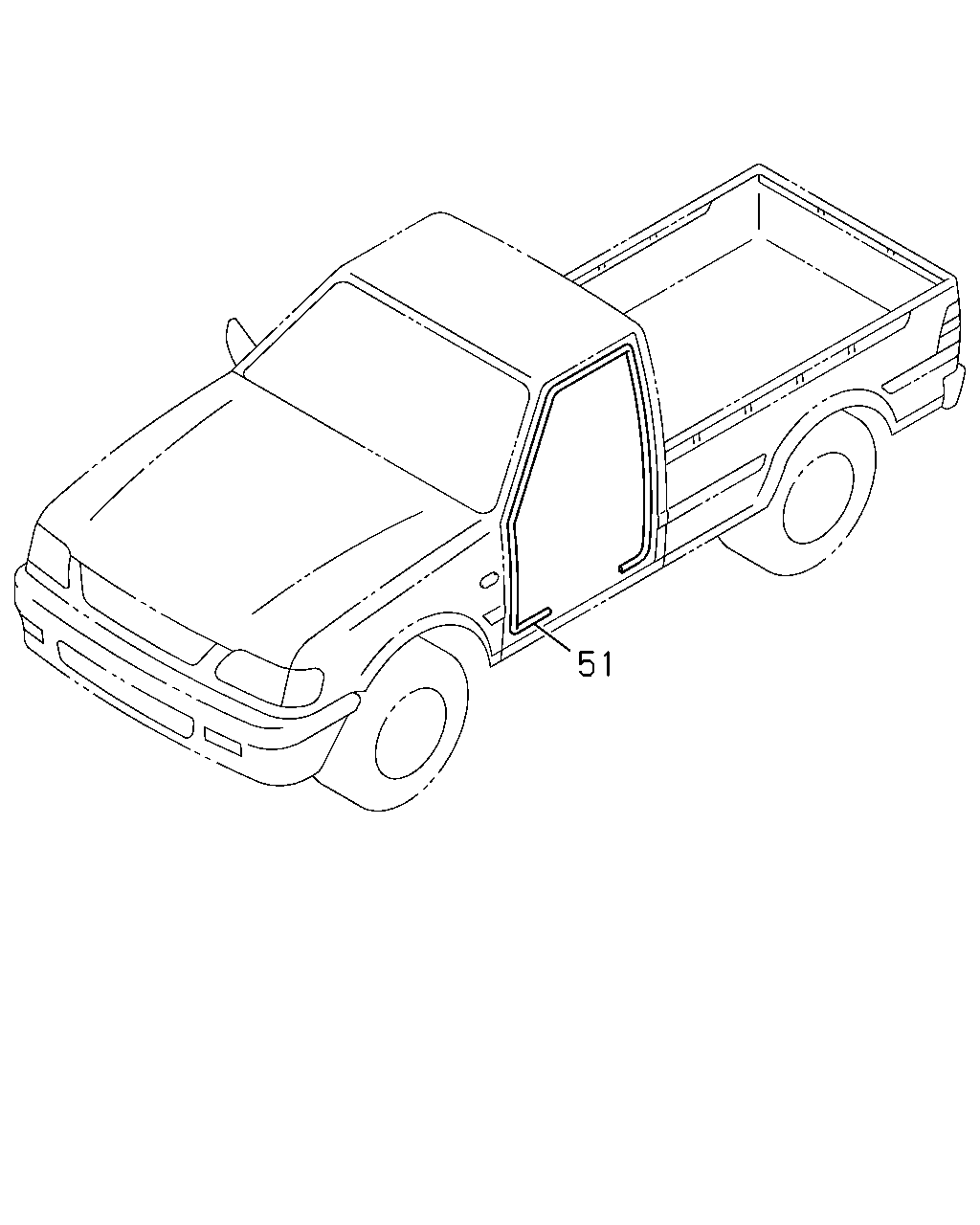

	51	WEATHERSTRIP; FRONT DOOR THA	8-97913-645-0	02	1	0009-	●	●	●	●	●	●	●	●
