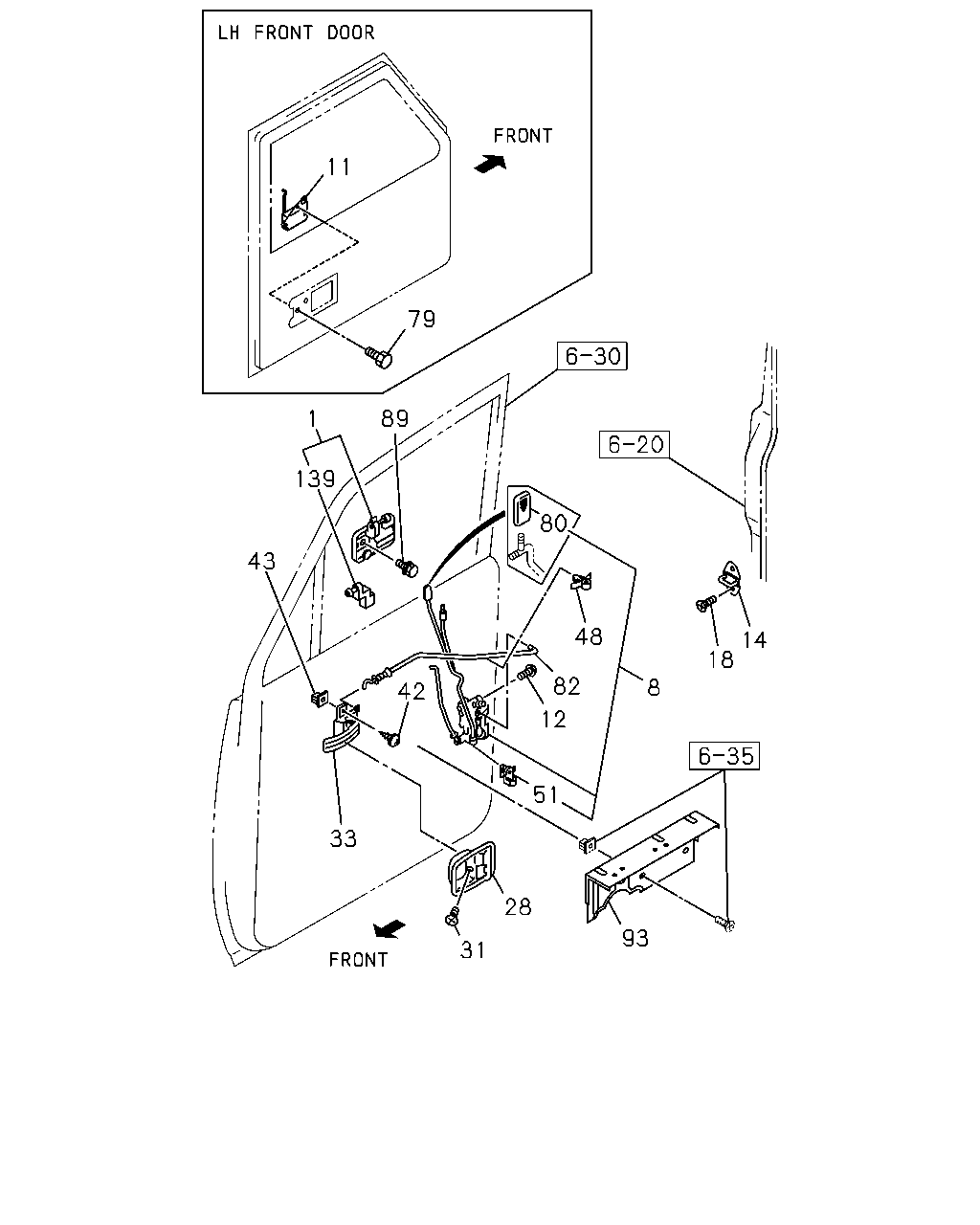

6-32 — FRONT DOOR LOCK AND HANDLE (#43636) — 73 parça

11 79 89 1 139 80 43 48 14 18 82 12 8 42 51 33 28 93 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> SATIN GOLD THA	8-97921-840-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR SATIN GOLD THA	8-97921-840-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> SATIN GOLD THA	8-97921-841-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR SATIN GOLD THA	8-97921-841-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> QUARTZ SILVER THA	8-97921-842-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR QUARTZ SILVER THA	8-97921-842-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> QUARTZ SILVER THA	8-97921-843-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR QUARTZ SILVER THA	8-97921-843-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> CASCADE BLUE THA	8-97921-844-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR CASCADE BLUE THA	8-97921-844-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> CASCADE BLUE THA	8-97921-845-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR CASCADE BLUE THA	8-97921-845-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> FROSTY WHITE THA	8-97921-846-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR FROSTY WHITE THA	8-97921-846-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE<7BB> FROSTY WHITE THA	8-97921-847-0	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR FROSTY WHITE THA	8-97921-847-0	01	1	0102-		●
1	HANDLE; OUTSIDE,FRT DOOR THA	8-97915-129-2	01	1	0009-0101	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-129-2	01	1	0009-0101							●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SPECIAL PACKAGE<7BB> THA	8-97915-129-4	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR THA	8-97915-129-4	01	1	0102-			●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-129-4	01	1	0102-							●
1	HANDLE; OUTSIDE,FRT DOOR THA	8-97915-128-2	01	1	0009-0101	●	●	●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-128-2	01	1	0009-0101							●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SPECIAL PACKAGE<7BB> THA	8-97915-128-4	01	1	0102-	●
1	HANDLE; OUTSIDE,FRT DOOR THA	8-97915-128-4	01	1	0102-			●	●	●	●
1	HANDLE; OUTSIDE,FRT DOOR EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97915-128-4	01	1	0102-							●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE VAR.2<7TB>	8-94474-031-3	01	1	0009-							●
1	HANDLE; OUTSIDE,FRT DOOR	8-94474-031-3	01	1	0009-								●
1	HANDLE; OUTSIDE,FRT DOOR SPECIAL PACKAGE VAR.2<7TB>	8-94474-030-3	01	1	0009-							●
1	HANDLE; OUTSIDE,FRT DOOR	8-94474-030-3	01	1	0009-								●
8	LOCK; DOOR,FRT DOOR THA	8-97910-926-0	01	1	0009-	●	●	●	●	●	●	●	●
8	LOCK; DOOR,FRT DOOR THA	8-97910-927-0	01	1	0009-	●	●	●	●	●	●	●	●
11	ACTUATOR; DOOR LK,FRT AUTO DOOR LOCK<AU4>	8-97141-949-0	01	1	0009-	●						●
11	ACTUATOR; DOOR LK,FRT	8-97141-949-0	01	1	0009-		●						●
12	SCREW; DOOR LK M6X16 OVAL-HD	8-94172-523-0	06	1	0009-	●	●	●	●	●	●	●	●
14	STRIKER; FRT DOOR THA	8-97915-292-0	02	1	0009-	●	●	●	●	●	●	●	●
18	SCREW; DOOR STRIKER M8X20	9-03097-820-0	04	1	0009-	●	●	●	●	●	●	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR THA	8-97916-629-0	01	1	0009-	●	●	●	●	●	●	●	●
28	BEZEL; INSIDE LEVER,FRT DOOR THA	8-97916-623-0	01	1	0009-	●	●	●	●	●	●	●	●
31	SCREW; BEZEL,INSIDE LEVER M4X10 TAPPING OVAL-HEAD	0-70680-410-0	02	1	0009-	●	●	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR THA	8-97915-231-0	01	1	0009-	●	●	●	●	●	●	●	●
33	LEVER ASM; INSIDE,FRT DOOR THA	8-97915-230-0	01	1	0009-	●	●	●	●	●	●	●	●
42	SCREW; TAPPING,INSIDE LEVER M6X16	9-09829-197-0	04	1	0009-	●	●	●	●	●	●	●	●
43	GROMMET; SCREW,INSIDE LEVER,DOOR THA	8-97910-931-0	04	1	0009-	●	●	●	●	●	●	●	●
48	ANTIRATTLER; DOOR LINK ID=3.8 WHITE	8-94217-699-0	02	1	0009-	●	●	●	●	●	●	●	●
51	SNAP; FRT DOOR LOCK CONT ROD	8-97041-585-0	03	1	0009-	●	●	●	●	●	●	●	●
51	SNAP; FRT DOOR LOCK CONT ROD	8-97041-586-0	03	1	0009-	●	●	●	●	●	●	●	●
79	BOLT; DOOR LK ACTUATOR AUTO DOOR LOCK<AU4> M6X8 THA	8-94155-893-0	02	1	0009-	●						●
79	BOLT; DOOR LK ACTUATOR M6X8 THA	8-94155-893-0	02	1	0009-		●						●
80	KNOB; DOOR LOCK THA	8-97913-280-0	02	1	0009-	●	●	●	●	●	●	●	●
82	LINK; DOOR INSIDE	8-97081-276-1	01	1	0009-	●	●	●	●	●	●	●	●
82	LINK; DOOR INSIDE	8-97081-275-1	01	1	0009-	●	●	●	●	●	●	●	●
89	BOLT; DOOR OUTSIDE HANDLE M6X8 THA	8-94155-893-0	04	1	0009-	●	●	●	●	●	●	●	●
93	BRACKET; BOX,DOOR THA	8-97911-009-0	01	1	0009-	●	●	●	●	●	●	●	●
93	BRACKET; BOX,DOOR THA	8-97911-008-0	01	1	0009-	●	●	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE SPECIAL PACKAGE<7BB> WHITE	8-97037-508-0	04	1	0102-	●
139	HOLDER; ROD,DOOR HANDLE WHITE	8-97037-508-0	04	1	0102-		●
139	HOLDER; ROD,DOOR HANDLE SPECIAL PACKAGE<7BB> YELLOW	8-97044-834-0	04	1	0102-	●
139	HOLDER; ROD,DOOR HANDLE YELLOW	8-97044-834-0	04	1	0102-		●
139	HOLDER; ROD,DOOR HANDLE WHITE	8-97037-508-0	01	1	0009-0101	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE EXC. SPECIAL PACKAGE VAR.2<7TB> WHITE	8-97037-508-0	01	1	0009-0101							●
139	HOLDER; ROD,DOOR HANDLE EXC. SPECIAL PACKAGE<7BB> WHITE	8-97037-508-0	01	1	0102-0109	●
139	HOLDER; ROD,DOOR HANDLE WHITE	8-97037-508-0	01	1	0102-0109			●	●	●	●
139	HOLDER; ROD,DOOR HANDLE EXC. SPECIAL PACKAGE VAR.2<7TB> WHITE	8-97037-508-0	01	1	0102-0109							●
139	HOLDER; ROD,DOOR HANDLE YELLOW	8-97044-834-0	01	1	0009-0101	●	●	●	●	●	●
139	HOLDER; ROD,DOOR HANDLE EXC. SPECIAL PACKAGE VAR.2<7TB> YELLOW	8-97044-834-0	01	1	0009-0101							●
139	HOLDER; ROD,DOOR HANDLE EXC. SPECIAL PACKAGE<7BB> YELLOW	8-97044-834-0	01	1	0102-0109	●
139	HOLDER; ROD,DOOR HANDLE YELLOW	8-97044-834-0	01	1	0102-0109			●	●	●	●
139	HOLDER; ROD,DOOR HANDLE EXC. SPECIAL PACKAGE VAR.2<7TB> YELLOW	8-97044-834-0	01	1	0102-0109							●
139	HOLDER; ROD,DOOR HANDLE SPECIAL PACKAGE VAR.2<7TB>	8-97102-756-0	01	1	0009-							●
139	HOLDER; ROD,DOOR HANDLE	8-97102-756-0	01	1	0009-								●
139	HOLDER; ROD,DOOR HANDLE SPECIAL PACKAGE VAR.2<7TB>	8-97102-755-0	01	1	0009-							●
139	HOLDER; ROD,DOOR HANDLE	8-97102-755-0	01	1	0009-								●
