◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#43635) — 53 parça
çizim 50040
7 1 78 19 27 27 187 26 21 25 25 28 36 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 GLASS; FRT DOOR
POWER WINDOW<A30> TSG THA 		8-97918-854-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
TSG THA 		8-97918-854-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> SSGT THA 		8-97919-808-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> TSG THA 		8-97918-853-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
TSG THA 		8-97918-853-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> SSGT THA 		8-97919-807-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> TSG THA 		8-97918-858-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
TSG THA 		8-97918-858-0 01 1 0009- ● ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> SSGT THA 		8-97919-810-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
SSGT THA 		8-97919-810-0 01 1 0009- ● ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> TSG THA 		8-97918-857-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
TSG THA 		8-97918-857-0 01 1 0009- ● ● ● ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> SSGT THA 		8-97919-809-0 01 1 0009- ● ●
1 GLASS; FRT DOOR
SSGT THA 		8-97919-809-0 01 1 0009- ● ● ● ●
7 GLASS RUN; FRT DOOR
THA 		8-97915-277-1 01 1 0009- ● ● ● ● ● ● ● ●
7 GLASS RUN; FRT DOOR
THA 		8-97915-276-1 01 1 0009- ● ● ● ● ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97095-532-2 01 1 0009- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-97095-532-2 01 1 0009- ● ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97095-531-2 01 1 0009- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-97095-531-2 01 1 0009- ● ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-882-1 01 1 0009- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-882-1 01 1 0009- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-881-1 01 1 0009- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-881-1 01 1 0009- ● ●
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X8 THA 		8-94155-893-0 14 1 0009- ● ●
25 BOLT; WINDOW REG
M6X8 THA 		8-94155-893-0 14 1 0009- ● ●
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X8 THA 		8-94155-893-0 08 1 0009- ● ●
25 BOLT; WINDOW REG
M6X8 THA 		8-94155-893-0 08 1 0009- ● ● ● ●
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE 		5-09440-004-0 06 1 0009- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		5-09440-004-0 06 1 0009- ● ● ● ●
27 BOLT; GLASS FIX
M6X8 THA 		8-94155-893-0 04 1 0009- ● ● ● ● ● ● ● ●
28 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94106-830-1 02 1 0009- ● ●
28 GASKET; DUST SEAL,WINDOW REG 8-94106-830-1 02 1 0009- ● ● ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94220-668-1 02 1 0009- ● ●
36 ESCUTCHEON; HANDLE,WINDOW REG 8-94220-668-1 02 1 0009- ● ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> THA 		8-97910-150-0 02 1 0009- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
THA 		8-97910-150-0 02 1 0009- ● ● ● ●
78 RAIL; FRT GUIDE
THA 		8-97918-420-1 01 1 0009- ● ● ● ● ● ● ● ●
78 RAIL; FRT GUIDE
THA 		8-97918-419-1 01 1 0009- ● ● ● ● ● ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-880-2 01 1 0009- ● ●
187 REGULATOR ASM; DOOR 8-97165-880-2 01 1 0009- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-879-2 01 1 0009- ● ●
187 REGULATOR ASM; DOOR 8-97165-879-2 01 1 0009- ● ●
269 PAD; DOOR SEAL 8-97300-431-0 02 1 0104- ● ● ● ● ● ●

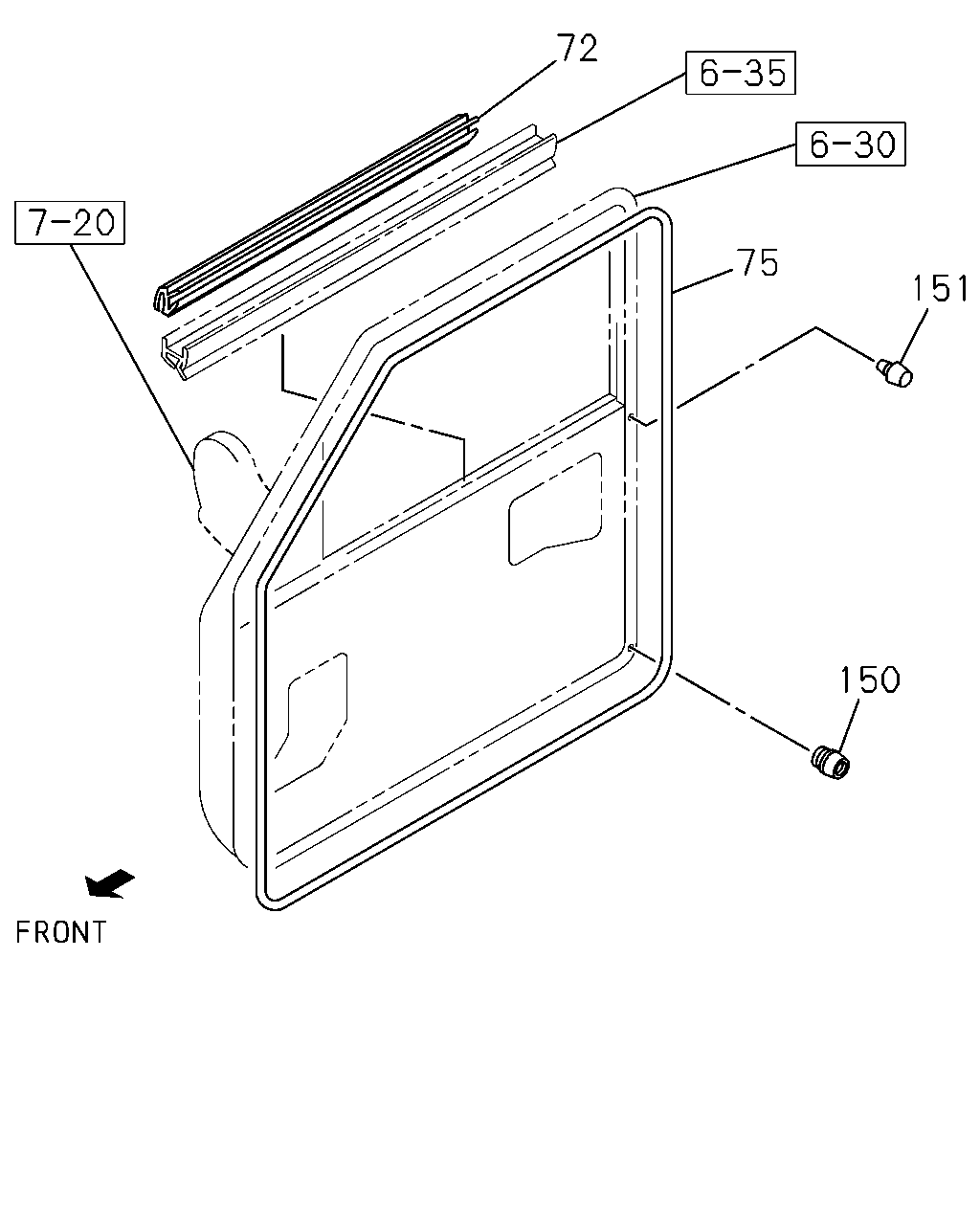

çizim 50084
72 75 151 150
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
72 SEAL; WAIST,FRT DOOR
THA 		8-97913-466-0 01 1 0009- ● ● ● ● ● ● ● ●
72 SEAL; WAIST,FRT DOOR
THA 		8-97913-465-0 01 1 0009- ● ● ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
NTR THA 		8-97910-419-2 01 1 0009- ● ● ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
IRC THA 		8-97920-931-1 01 1 0009- ● ● ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
NTR THA 		8-97910-418-2 01 1 0009- ● ● ● ● ● ● ● ●
75 WEATHERSTRIP; FRT DOOR
IRC THA 		8-97920-930-1 01 1 0009- ● ● ● ● ● ● ● ●
150 BUFFER; FRT DOOR 8-97014-688-0 02 1 0009- ● ● ● ● ● ● ● ●
151 BUFFER; DOOR UPR 8-03468-771-1 02 1 0009- ● ● ● ● ● ● ● ●
269 PAD; DOOR SEAL 8-97300-431-0 02 1 0104- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
