6-10 — ENGINE HOOD AND LOCK (#43631) — 21 parça

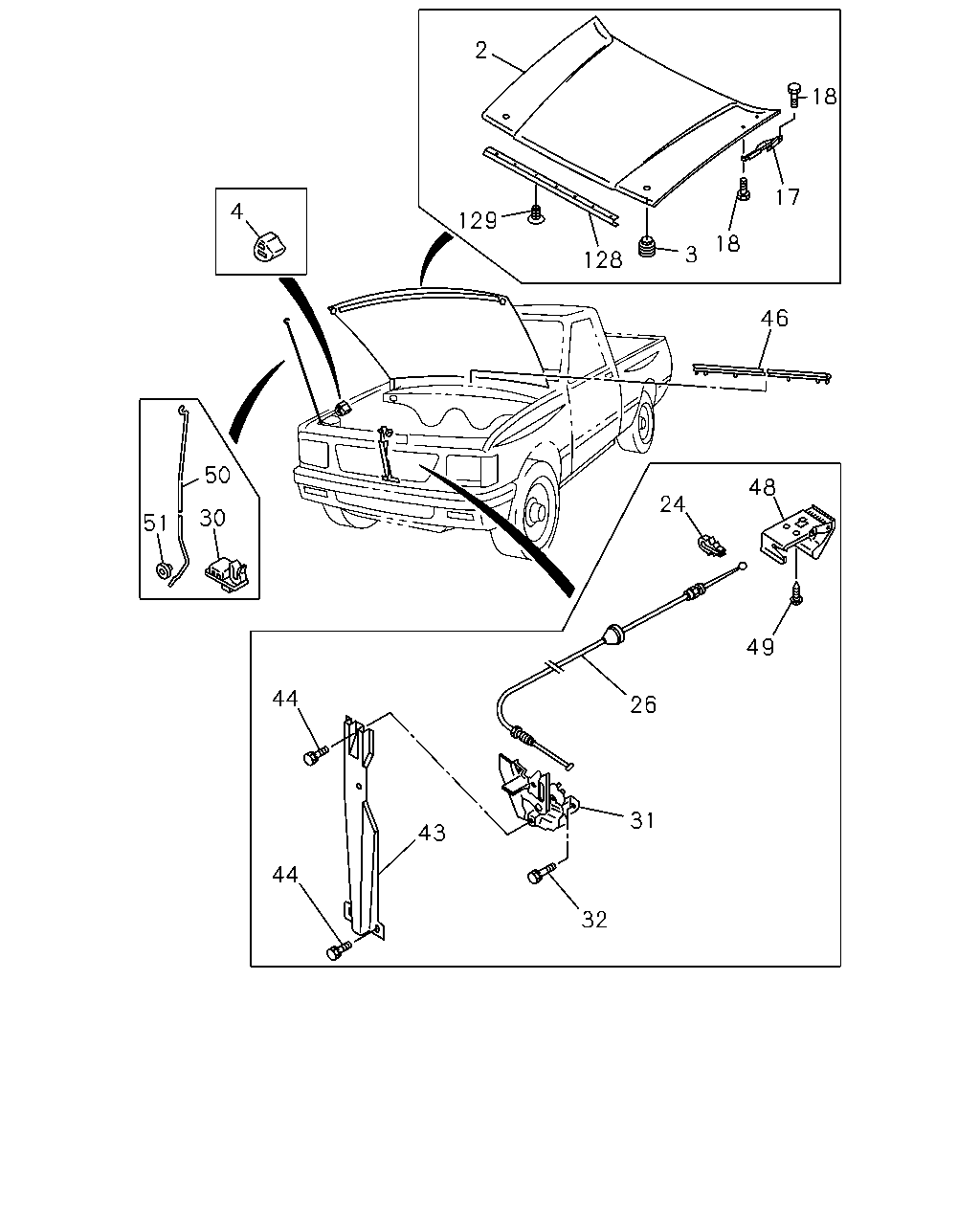

çizim 50838
2 18 17 4 129 18 3 128 46 50 48 24 30 51 49 44 26 31 43 44 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 PANEL; ENG HOOD
THA 		8-97917-895-0 01 1 0009- ● ● ● ● ● ● ● ●
3 BUFFER; ENG HOOD,FRT 8-94237-385-0 02 1 0009- ● ● ● ● ● ● ● ●
4 REST; SIDE
THA 		8-97916-677-0 02 1 0009- ● ● ● ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-97919-146-0 01 1 0009- ● ● ● ● ● ● ● ●
17 HINGE; ENG HOOD
THA 		8-97919-145-0 01 1 0009- ● ● ● ● ● ● ● ●
18 BOLT; HINGE
M8X16 THA 		8-97916-319-0 08 1 0009- ● ● ● ● ● ● ● ●
24 CLIP; CONT CABLE
ID=4.8 		8-94128-483-0 02 1 0009- ● ● ● ● ● ● ● ●
26 CABLE; ENG HOOD CONT
THA 		8-97910-695-0 01 1 0009- ● ● ● ● ● ● ● ●
30 CLIP; SUPPORT ROD,HOOD 8-97104-427-0 01 1 0009- ● ● ● ● ● ● ● ●
31 LOCK; ENG HOOD 8-97111-963-0 01 1 0009- ● ● ● ● ● ● ● ●
32 BOLT; HOOD LK
M6X18 		8-97071-681-0 02 1 0009- ● ● ● ● ● ● ● ●
43 STAY; ENG HOOD,FRT END
THA 		8-97918-411-0 01 1 0009- ● ● ● ● ● ● ● ●
44 BOLT; STAY,HOOD
M6X18 		8-97071-681-0 03 1 0009- ● ● ● ● ● ● ● ●
46 SEAL; ENG HOOD
COOLER WO/HEATER<YL1> THA 		8-97910-820-1 01 1 0009- ● ● ● ● ● ● ● ●
48 LEVER; ENG HOOD
THA 		8-97918-412-0 01 1 0009- ● ● ● ● ● ● ● ●
49 SCREW; LEVER,ENG HOOD OPENER
M5X10 		9-09829-185-0 02 1 0009- ● ● ● ● ● ● ● ●
50 ROD; SUPPORT,ENG HOOD
THA 		8-97910-944-2 01 1 0009- ● ● ● ● ● ● ● ●
51 GROMMET; SUPPORT ROD 8-94220-508-2 01 1 0009- ● ● ● ● ● ● ● ●
128 SEAL; PLATFORM
COOLER WO/HEATER<YL1> THA 		8-97139-188-0 01 1 0009- ● ● ● ● ●
128 SEAL; PLATFORM
THA 		8-97139-188-0 01 1 0009- ● ● ●
129 CLIP; ENG HOOD SEAL
COOLER WO/HEATER<YL1> THA 		8-97911-128-0 07 1 0009- ● ● ● ● ● ● ● ●
