◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#4363) — 449 parça

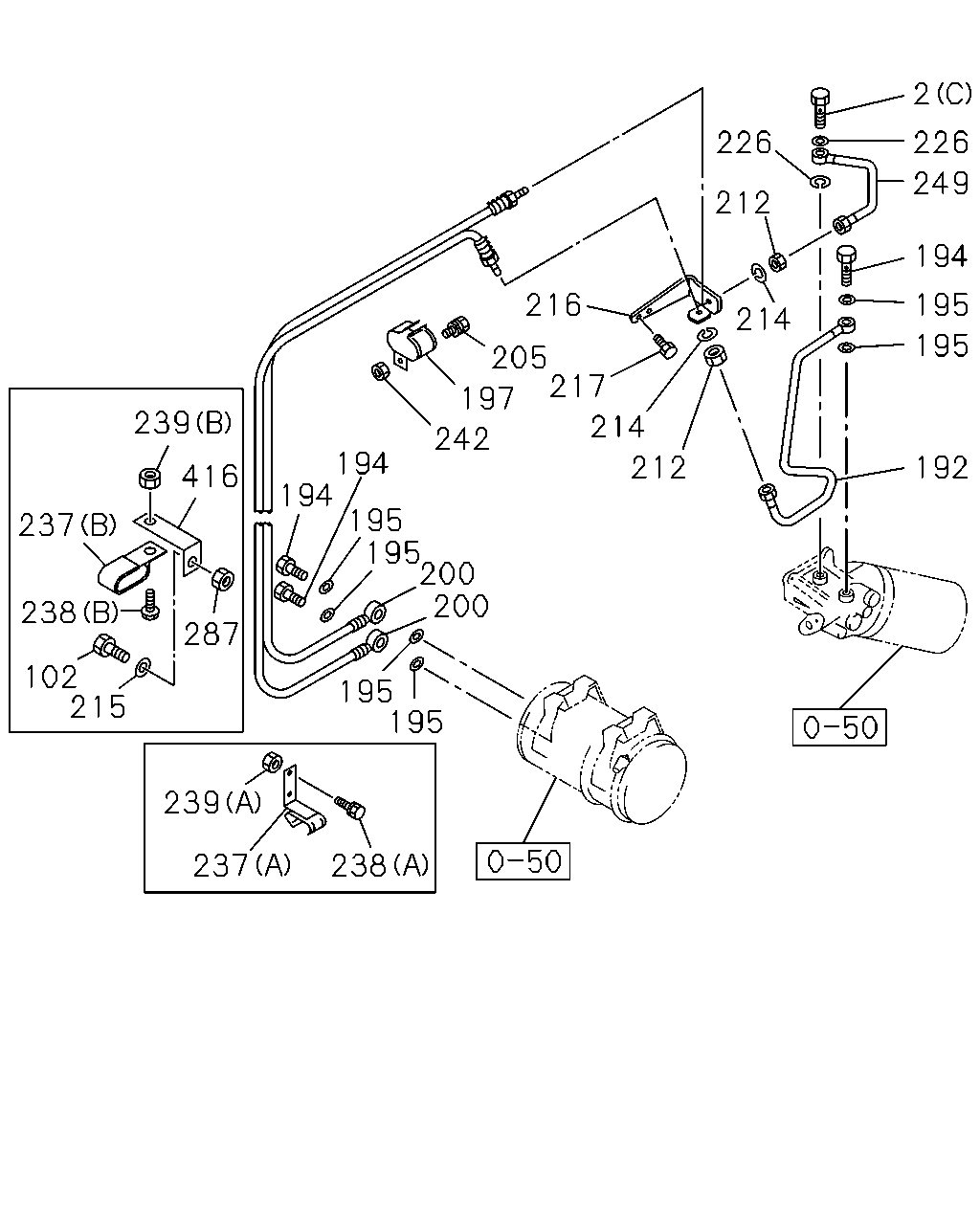

çizim 2946
2 226 226 249 212 194 216 195 214 195 205 217 197 239 214 242 194 194 212 192 416 195 195 200 200 237 238 287 102 215 195 195 239 237 238
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) M14X30 EYE-BOLT 		1-09675-146-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9505-9510 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9707-9805 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9505-9702 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9703-9709 ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9710-9805 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9710-9806 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9810-0805 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9807-0805 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9806- ● ● ●
102 BOLT; BRKT
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> M6X14 W/LK WASHER 		0-50040-614-0 01 1 9101-9307 ● ●
102 BOLT; BRKT
MT643 A/T ALLISON(PR7) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9101-9307 ●
102 BOLT; BRKT
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> M6X14 W/LK WASHER 		0-50040-614-0 01 1 9308-9504 ● ● ● ● ● ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13312-539-0 01 1 9101-9212 ● ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> 		1-13312-539-0 01 1 9101-9212 ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13313-298-0 01 1 9301-9307 ● ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> 		1-13313-298-0 01 1 9301-9307 ●
192 PIPE; OIL,ENG OUTLET
FLYWHEEL HSG SAE #2<E4C> PARTIAL OIL FILTER ELEMENT TYPE<KC1> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-298-0 01 1 9308-9504 ● ● ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13312-538-0 01 1 9101-9212 ● ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13312-538-0 01 1 9101-9212 ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13313-297-0 01 1 9301-9307 ● ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13313-297-0 01 1 9301-9307 ●
192 PIPE; OIL,ENG OUTLET
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13313-297-0 01 1 9308-9504 ● ● ●
192 PIPE; OIL,ENG OUTLET
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13311-588-2 01 1 9101-9212 ● ●
192 PIPE; OIL,ENG OUTLET
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13311-588-2 01 1 9101-9212 ●
192 PIPE; OIL,ENG OUTLET
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-296-0 01 1 9301-9307 ● ●
192 PIPE; OIL,ENG OUTLET
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-296-0 01 1 9301-9307 ●
192 PIPE; OIL,ENG OUTLET
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-296-0 01 1 9308-9504 ● ● ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> M14X30 EYE-BOLT 		1-09675-146-0 03 1 9101-9504 ● ● ●
195 GASKET; EYE BOLT,PARTIAL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=14.2 OD=19.2 		1-09630-085-0 06 1 9101-9504 ● ● ●
197 CLIP; RUBBER HOSE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-09709-140-0 01 1 9101-9307 ● ●
197 CLIP; RUBBER HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-09709-140-0 01 1 9101-9307 ●
197 CLIP; RUBBER HOSE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-09709-140-0 01 1 9308-9504 ● ● ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=700 		1-09364-517-0 02 1 9101-9307 ● ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=700 		1-09364-517-0 02 1 9101-9307 ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=700 		1-09364-517-0 01 1 9308-9504 ● ● ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=700 		1-09364-517-0 01 1 9308-9504 ● ● ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=610 		1-09364-518-0 01 1 9101-9307 ● ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=610 		1-09364-518-0 01 1 9101-9307 ●
200 HOSE; FLEX,PARTIAL FILTER,DELIVERY
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=610 		1-09364-518-0 01 1 9308-9504 ● ● ●
205 BOLT; CLIP
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X14 W/LK WASHER 		0-50040-614-0 01 1 9101-9307 ● ●
205 BOLT; CLIP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X14 W/LK WASHER 		0-50040-614-0 01 1 9101-9307 ●
205 BOLT; CLIP
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X14 W/LK WASHER 		0-50040-614-0 01 1 9308-9504 ● ● ●
212 NUT; FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> M16 		9-99111-416-0 02 1 9101-9504 ● ● ●
214 WASHER; LK,FLEX HOSE,PARTIAL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=16.2 		9-09150-516-0 02 1 9101-9312 ● ● ●
215 WASHER; PL
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=6.4 OD=14 		9-09160-606-0 01 1 9101-9307 ● ●
215 WASHER; PL
MT643 A/T ALLISON(PR7) ID=6.4 OD=14 		9-09160-606-0 01 1 9101-9307 ●
215 WASHER; PL
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=6.4 OD=14 		9-09160-606-0 01 1 9308-9504 ● ● ● ● ● ●
216 BRACKET; FLEX HOSE,PARTIAL OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47465-979-0 01 1 9101-9307 ● ●
216 BRACKET; FLEX HOSE,PARTIAL OIL FILTER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47465-979-0 01 1 9101-9307 ●
216 BRACKET; FLEX HOSE,PARTIAL OIL FILTER
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-47465-979-0 01 1 9308-9504 ● ● ●
217 BOLT; BRKT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X20 W/LK WASHER 		0-50051-020-0 02 1 9101-9307 ● ●
217 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X20 W/LK WASHER 		0-50051-020-0 02 1 9101-9307 ●
217 BOLT; BRKT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X20 W/LK WASHER 		0-50051-020-0 02 1 9308-9504 ● ● ●
226 GASKET; OIL PIPE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=14.2 OD=19.2 		1-09630-085-0 02 1 9101-9504 ● ● ●
237 CLIP; FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> ISUZU M/T<X9A> (A) 		1-09709-140-0 01 1 9101-9307 ● ●
237 CLIP; FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> (A) 		1-09709-140-0 01 1 9101-9307 ●
237 CLIP; FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> ISUZU M/T<X9A> (A) 		1-09709-140-0 01 1 9308-9504 ● ● ●
237 CLIP; FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		9-09917-356-0 01 1 9101-9307 ● ●
237 CLIP; FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) (B) 		9-09917-356-0 01 1 9101-9307 ●
237 CLIP; FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) 		9-09917-356-0 01 1 9308-9504 ● ● ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> ISUZU M/T<X9A> (A) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9101-9307 ● ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> (A) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9101-9307 ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> ISUZU M/T<X9A> (A) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9308-9504 ● ● ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) (B) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9307 ● ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) (B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9307 ●
238 BOLT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9308-9504 ● ● ●
239 NUT; CLIP,FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> ISUZU M/T<X9A> (A) M6 		9-09110-406-0 01 1 9101-9307 ● ●
239 NUT; CLIP,FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> (A) M6 		9-09110-406-0 01 1 9101-9307 ●
239 NUT; CLIP,FLEX HOSE,PARTIAL FILTER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> ISUZU M/T<X9A> (A) M6 		9-09110-406-0 01 1 9308-9504 ● ● ●
239 NUT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M8 		9-09110-408-0 01 1 9101-9307 ● ●
239 NUT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) (B) M8 		9-09110-408-0 01 1 9101-9307 ●
239 NUT; CLIP,FLEX HOSE,PARTIAL FILTER
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M8 		9-09110-408-0 01 1 9308-9504 ● ● ●
242 NUT; CLIP BRKT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6 		9-09110-406-0 01 1 9101-9307 ● ●
242 NUT; CLIP BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6 		9-09110-406-0 01 1 9101-9307 ●
242 NUT; CLIP BRKT
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6 		9-09110-406-0 01 1 9308-9504 ● ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13312-540-0 01 1 9101-9212 ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> 		1-13312-540-0 01 1 9101-9212 ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		1-13313-301-0 01 1 9301-9307 ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FLYWHEEL HSG SAE #2<E4C> 		1-13313-301-0 01 1 9301-9307 ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
FLYWHEEL HSG SAE #2<E4C> PARTIAL OIL FILTER ELEMENT TYPE<KC1> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-301-0 01 1 9308-9504 ● ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13312-326-1 01 1 9101-9212 ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13312-326-1 01 1 9101-9212 ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13313-300-0 01 1 9301-9307 ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13313-300-0 01 1 9301-9307 ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. FLYWHEEL HSG SAE #2<E4C> 		1-13313-300-0 01 1 9308-9504 ● ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13311-589-2 01 1 9101-9212 ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13311-589-2 01 1 9101-9212 ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-299-0 01 1 9301-9307 ● ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-299-0 01 1 9301-9307 ●
249 PIPE; OIL,PARTIAL FILTER TO FLEX HOSE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-13313-299-0 01 1 9308-9504 ● ● ●
287 NUT; BRKT
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> M6 		9-09110-406-0 01 1 9101-9307 ● ●
287 NUT; BRKT
MT643 A/T ALLISON(PR7) M6 		9-09110-406-0 01 1 9101-9307 ●
287 NUT; BRKT
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> M6 		9-09110-406-0 01 1 9308-9504 ● ● ● ● ● ●
416 BRACKET; CLIP FIX
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=55 		1-47475-304-0 01 1 9101-9307 ● ●
416 BRACKET; CLIP FIX
MT643 A/T ALLISON(PR7) L=55 		1-47475-304-0 01 1 9101-9307 ●
416 BRACKET; CLIP FIX
MT643 A/T ALLISON(PR7) PARTIAL OIL FILTER ELEMENT TYPE<KC1> L=55 		1-47475-304-0 01 1 9308-9504 ● ● ●

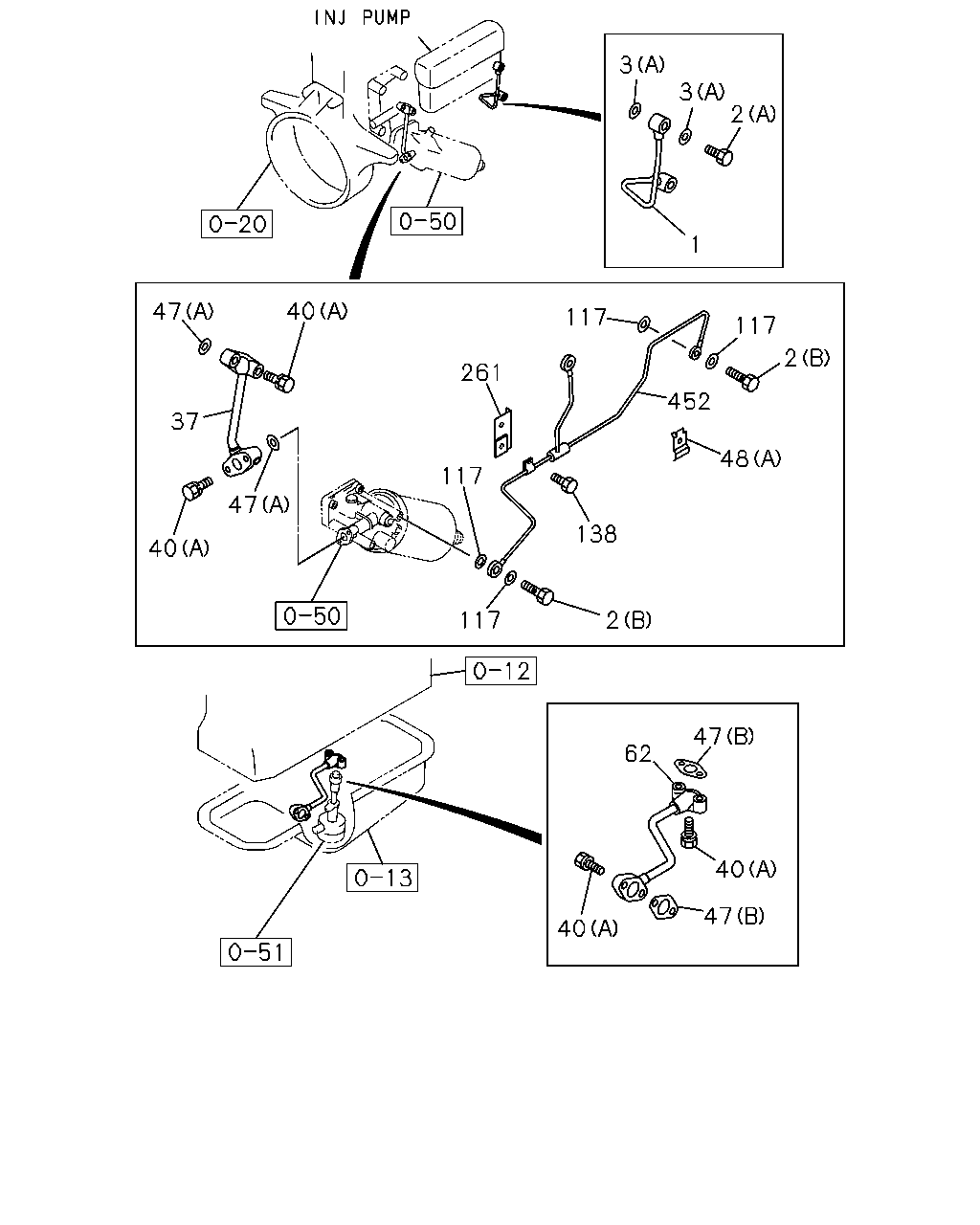

çizim 37077
3 3 2 1 40 47 117 117 2 261 452 37 117 48 47 138 40 117 2 47 62 40 47 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-765-0 01 1 9101-9504 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9505- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9703-9709 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) M14X30 EYE-BOLT 		1-09675-146-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9505-9510 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9707-9805 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9505-9702 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9703-9709 ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9710-9805 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9710-9806 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9810-0805 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9807-0805 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9806- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9101-9504 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9505-9702 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9703-9709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9710-1312 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
37 PIPE; OIL,FILTER TO COOLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		5-13311-119-0 01 1 9101-9504 ● ● ●
37 PIPE; OIL,FILTER TO COOLER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		5-13311-193-1 01 1 9101-9504 ● ● ●
40 BOLT; OIL PIPE
(A) M8X40 W/LK WASHER 		0-50040-840-0 08 1 9101-9504 ● ● ●
40 BOLT; OIL PIPE
(C) M8X32 W/LK WASHER 		0-50040-832-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(D) M10X35 W/LK WASHER 		0-50051-035-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28181-016-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28181-016-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9710- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		1-09623-462-0 02 1 9101-9504 ● ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=18 		9-09921-188-0 02 1 9101-9504 ● ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9703-9709 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9710- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9703-9709 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-1312 ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
48 CLIP; OIL PIPE
AIR COMPRESSOR HEAVY DUTY<E1Q> (A) 		1-09700-960-0 04 1 9101-9504 ● ●
48 CLIP; OIL PIPE
(B) 		5-09704-054-1 01 1 9101-9504 ●
48 CLIP; OIL PIPE
(C) 		8-94395-170-0 01 1 9703-9709 ●
48 CLIP; OIL PIPE
(C) 		8-94395-170-0 01 1 9710- ● ●
62 PIPE; OIL,PUMP TO C/BL 1-13311-532-2 01 1 9101-9504 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9101-9504 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9505-9702 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9703-9709 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9710- ● ● ●
138 BOLT; CLIP FIX
EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9101-9504 ● ● ●
261 BRACKET; CLIP,OIL PIPE
FLYWHEEL HSG SAE #2<E4C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-13345-134-0 01 1 9401-9504 ●
261 BRACKET; CLIP,OIL PIPE 8-94396-695-0 01 1 9505- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13312-962-0 01 1 9101-9106 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13313-090-0 01 1 9107-9504 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94395-595-1 01 1 9505-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-573-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13312-075-1 01 1 9101-9504 ● ●

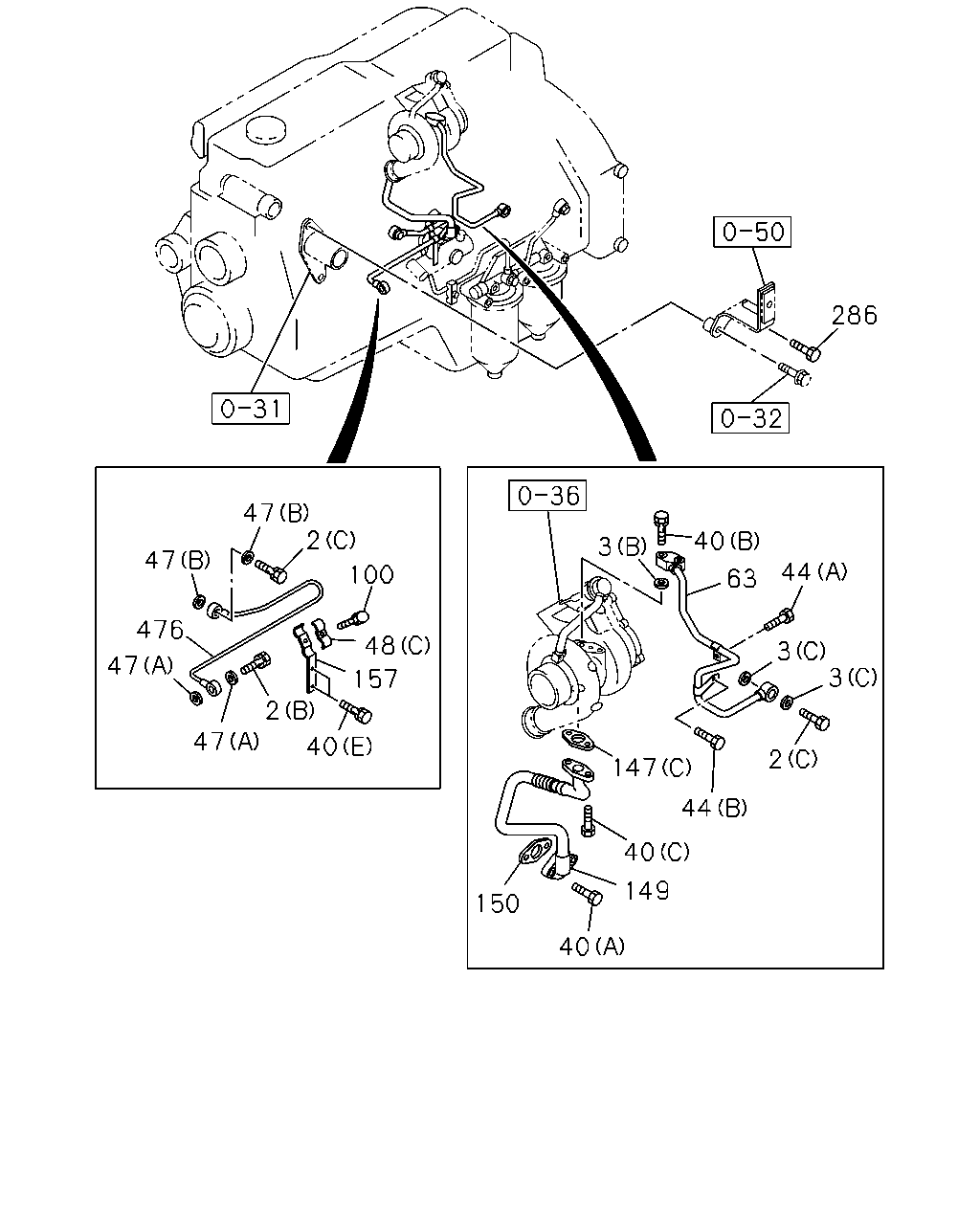

çizim 37079
40 63 48 147 44 3 3 2 147 149 40 150 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) M14X30 EYE-BOLT 		1-09675-146-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9505-9510 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9707-9805 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9505-9702 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9703-9709 ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9710-9805 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9710-9806 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9810-0805 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9807-0805 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9806- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9101-9504 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9505-9702 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9703-9709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9710-1312 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
40 BOLT; OIL PIPE
(A) M8X40 W/LK WASHER 		0-50040-840-0 08 1 9101-9504 ● ● ●
40 BOLT; OIL PIPE
(C) M8X32 W/LK WASHER 		0-50040-832-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(D) M10X35 W/LK WASHER 		0-50051-035-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28181-016-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28181-016-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9710- ● ●
44 BOLT; CLIP,OIL PIPE
(C) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9101-9504 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X22 FLANGE 		0-28080-622-0 01 1 9505- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9703-9709 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9710-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9703-9709 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
48 CLIP; OIL PIPE
AIR COMPRESSOR HEAVY DUTY<E1Q> (A) 		1-09700-960-0 04 1 9101-9504 ● ●
48 CLIP; OIL PIPE
(B) 		5-09704-054-1 01 1 9101-9504 ●
48 CLIP; OIL PIPE
(C) 		8-94395-170-0 01 1 9703-9709 ●
48 CLIP; OIL PIPE
(C) 		8-94395-170-0 01 1 9710- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13311-663-4 01 1 9101-9504 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94390-652-0 01 1 9703-9709 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94390-652-0 01 1 9710-9808 ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94392-976-0 01 1 9809-9811 ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97600-050-0 01 1 9812-0412 ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-98004-119-0 01 1 0501- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.3 		1-09623-481-0 01 1 9101-9504 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		1-09637-055-0 01 1 9101-9504 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-09637-058-1 01 1 9703-9709 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-09637-058-2 01 1 9710- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13311-933-1 01 1 9101-9504 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-653-0 01 1 9703-9703 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-191-0 01 1 9704-9709 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-191-0 01 1 9710-9809 ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-97600-051-0 01 1 9810- ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-057-0 01 1 9101-9504 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9703-9709 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9710- ● ●

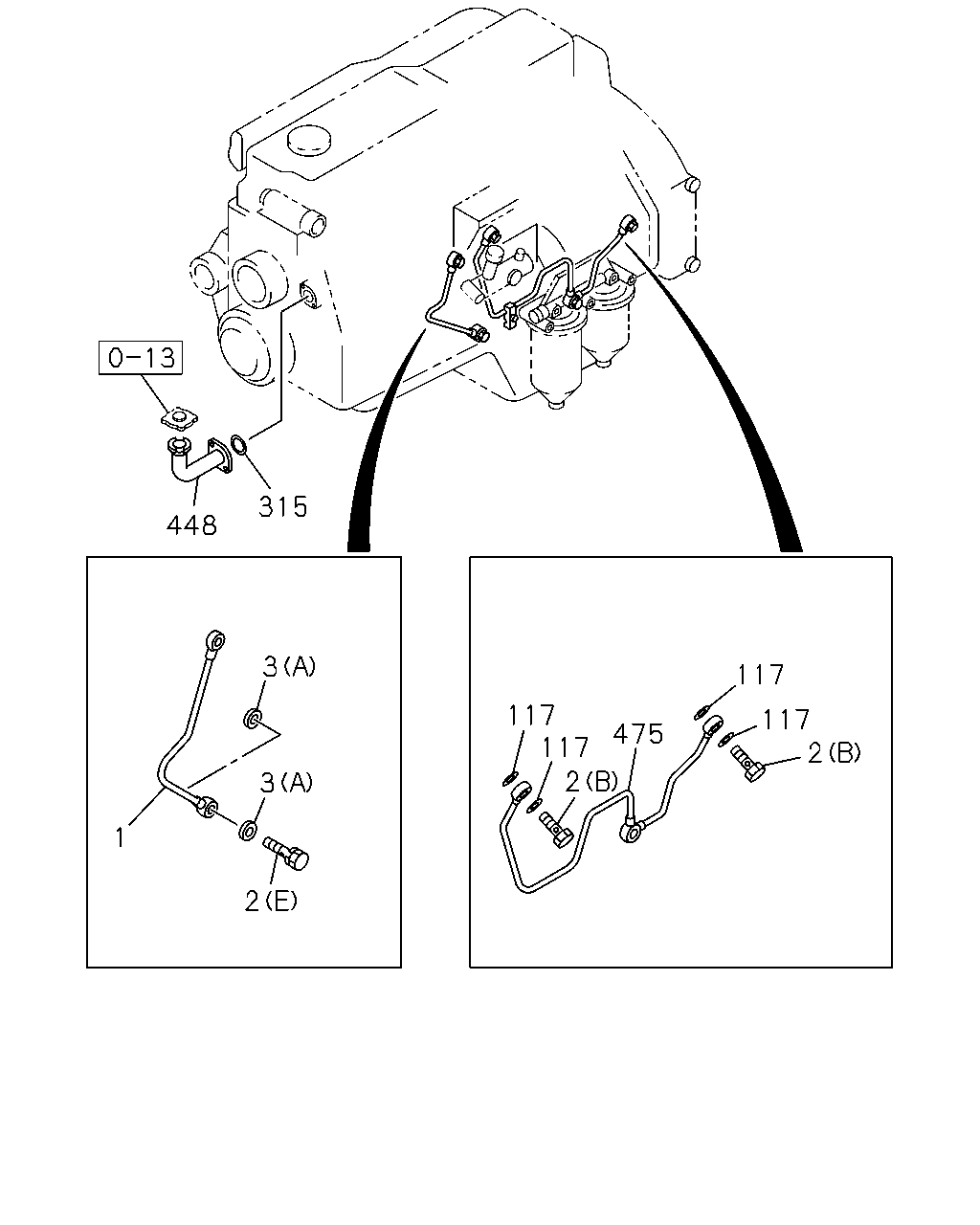

çizim 37081
315 448 3 117 117 117 2 117 2 475 3 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-765-0 01 1 9101-9504 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9505- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9703-9709 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) M14X30 EYE-BOLT 		1-09675-146-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9505-9510 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9707-9805 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9505-9702 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9703-9709 ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9710-9805 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9710-9806 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9810-0805 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9807-0805 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9806- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9101-9504 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9505-9702 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9703-9709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9710-1312 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9101-9504 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9505-9702 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9703-9709 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9710- ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09561-250-0 01 1 9505-9702 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09561-250-0 01 1 9703-9709 ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09561-250-0 01 1 9710-1308 ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98233-071-0 01 1 1309- ● ● ●
448 FILLER; OIL 8-94395-198-0 01 1 9505-9702 ●
448 FILLER; OIL 8-94395-198-0 01 1 9703-9709 ● ●
448 FILLER; OIL 8-94395-198-0 01 1 9710-1308 ● ● ●
448 FILLER; OIL 8-98232-736-0 01 1 1309- ● ● ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-94391-126-0 01 1 9703-9709 ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-94391-126-0 01 1 9710- ● ●

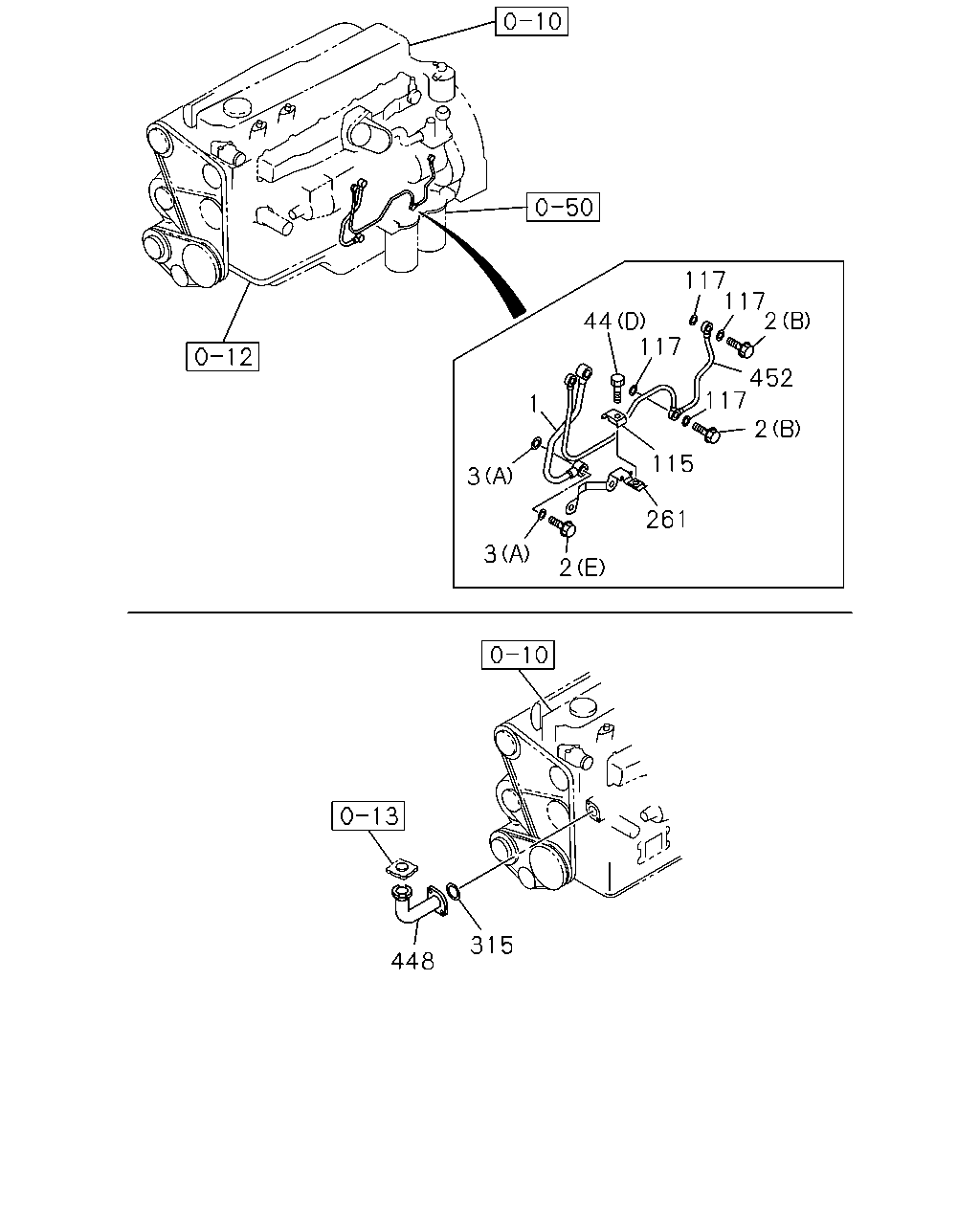

çizim 37094
117 117 2 44 117 452 117 2 1 115 3 261 3 2 315 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 PIPE; OIL,INJ PUMP TO C/BL 1-13311-765-0 01 1 9101-9504 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9505- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9703-9709 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) M14X30 EYE-BOLT 		1-09675-146-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9505-9510 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9707-9805 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9505-9702 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9703-9709 ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9710-9805 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9710-9806 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9810-0805 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9807-0805 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9806- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9101-9504 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9505-9702 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9703-9709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9710-1312 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
44 BOLT; CLIP,OIL PIPE
(C) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9101-9504 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X22 FLANGE 		0-28080-622-0 01 1 9505- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9703-9709 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9710-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9703-9709 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9505- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9101-9504 ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9505-9702 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9703-9709 ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9710- ● ● ●
261 BRACKET; CLIP,OIL PIPE
FLYWHEEL HSG SAE #2<E4C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		1-13345-134-0 01 1 9401-9504 ●
261 BRACKET; CLIP,OIL PIPE 8-94396-695-0 01 1 9505- ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09561-250-0 01 1 9505-9702 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09561-250-0 01 1 9703-9709 ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09561-250-0 01 1 9710-1308 ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98233-071-0 01 1 1309- ● ● ●
448 FILLER; OIL 8-94395-198-0 01 1 9505-9702 ●
448 FILLER; OIL 8-94395-198-0 01 1 9703-9709 ● ●
448 FILLER; OIL 8-94395-198-0 01 1 9710-1308 ● ● ●
448 FILLER; OIL 8-98232-736-0 01 1 1309- ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13312-962-0 01 1 9101-9106 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13313-090-0 01 1 9107-9504 ● ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94395-595-1 01 1 9505-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-573-0 01 1 9907- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-13312-075-1 01 1 9101-9504 ● ●
çizim 37096
286 47 2 40 3 47 44 100 63 476 48 3 3 47 157 2 47 40 2 147 44 40 149 150 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
PARTIAL OIL FILTER ELEMENT TYPE<KC1> (C) M14X30 EYE-BOLT 		1-09675-146-0 01 1 9101-9504 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X24 EYE-BOLT 		1-09675-081-0 01 1 9101-9504 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9505-9510 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9707-9805 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9505-9702 ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9703-9709 ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9710-9805 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9710-9806 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 02 1 9810-0805 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 03 1 9807-0805 ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		8-97372-238-0 03 1 0806- ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9703-9709 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 9710- ● ●
2 BOLT; EYE,OIL PIPE
(E) M12X27 FLANGE 		1-09675-085-0 01 1 9806- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9101-9504 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9505-9702 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9703-9709 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 9710-1312 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 02 1 1401- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 9710- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9703-9709 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-1312 ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
40 BOLT; OIL PIPE
(A) M8X40 W/LK WASHER 		0-50040-840-0 08 1 9101-9504 ● ● ●
40 BOLT; OIL PIPE
(C) M8X32 W/LK WASHER 		0-50040-832-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(D) M10X35 W/LK WASHER 		0-50051-035-0 02 1 9101-9504 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28050-830-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28181-016-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28181-016-0 02 1 9710-0512 ● ●
40 BOLT; OIL PIPE
(E) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9703-9709 ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 9710- ● ●
44 BOLT; CLIP,OIL PIPE
(C) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9101-9504 ●
44 BOLT; CLIP,OIL PIPE
(D) M6X22 FLANGE 		0-28080-622-0 01 1 9505- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9703-9709 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9710-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9703-9709 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9710-0512 ● ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		1-09623-462-0 02 1 9101-9504 ● ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=18 		9-09921-188-0 02 1 9101-9504 ● ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9703-9709 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9710- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9703-9709 ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9710-1312 ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
48 CLIP; OIL PIPE
AIR COMPRESSOR HEAVY DUTY<E1Q> (A) 		1-09700-960-0 04 1 9101-9504 ● ●
48 CLIP; OIL PIPE
(B) 		5-09704-054-1 01 1 9101-9504 ●
48 CLIP; OIL PIPE
(C) 		8-94395-170-0 01 1 9703-9709 ●
48 CLIP; OIL PIPE
(C) 		8-94395-170-0 01 1 9710- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13311-663-4 01 1 9101-9504 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94390-652-0 01 1 9703-9709 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94390-652-0 01 1 9710-9808 ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94392-976-0 01 1 9809-9811 ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97600-050-0 01 1 9812-0412 ● ●
63 PIPE; OIL,TURBOCHARGER FEED 8-98004-119-0 01 1 0501- ● ●
100 BOLT; CLIP
M6X16 FLANGE 		0-28080-616-0 01 1 9703-9709 ●
100 BOLT; CLIP
M6X16 FLANGE 		0-28080-616-0 01 1 9710-0512 ● ●
100 BOLT; CLIP
M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.3 		1-09623-481-0 01 1 9101-9504 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		1-09637-055-0 01 1 9101-9504 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-09637-058-1 01 1 9703-9709 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-09637-058-2 01 1 9710- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13311-933-1 01 1 9101-9504 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-653-0 01 1 9703-9703 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-191-0 01 1 9704-9709 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94390-191-0 01 1 9710-9809 ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-97600-051-0 01 1 9810- ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-057-0 01 1 9101-9504 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9703-9709 ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 9710- ● ●
157 BRACKET; OIL PIPE 8-94395-168-0 01 1 9703-9709 ●
157 BRACKET; OIL PIPE 8-94395-168-0 01 1 9710- ● ●
286 BOLT; BRKT,OIL COOLER
M8X70 FLANGE 		0-28080-870-0 01 1 9703-9705 ●
286 BOLT; BRKT,OIL COOLER
M8X65 FLANGE 		1-09044-072-1 01 1 9706-9709 ●
286 BOLT; BRKT,OIL COOLER
M8X65 FLANGE 		1-09044-072-1 01 1 9710- ● ●
476 PIPE; OIL,C/BL TO AIR CMPR 8-94394-940-1 01 1 9703-9709 ●
476 PIPE; OIL,C/BL TO AIR CMPR 8-94394-940-1 01 1 9710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
