◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#43629) — 41 parça

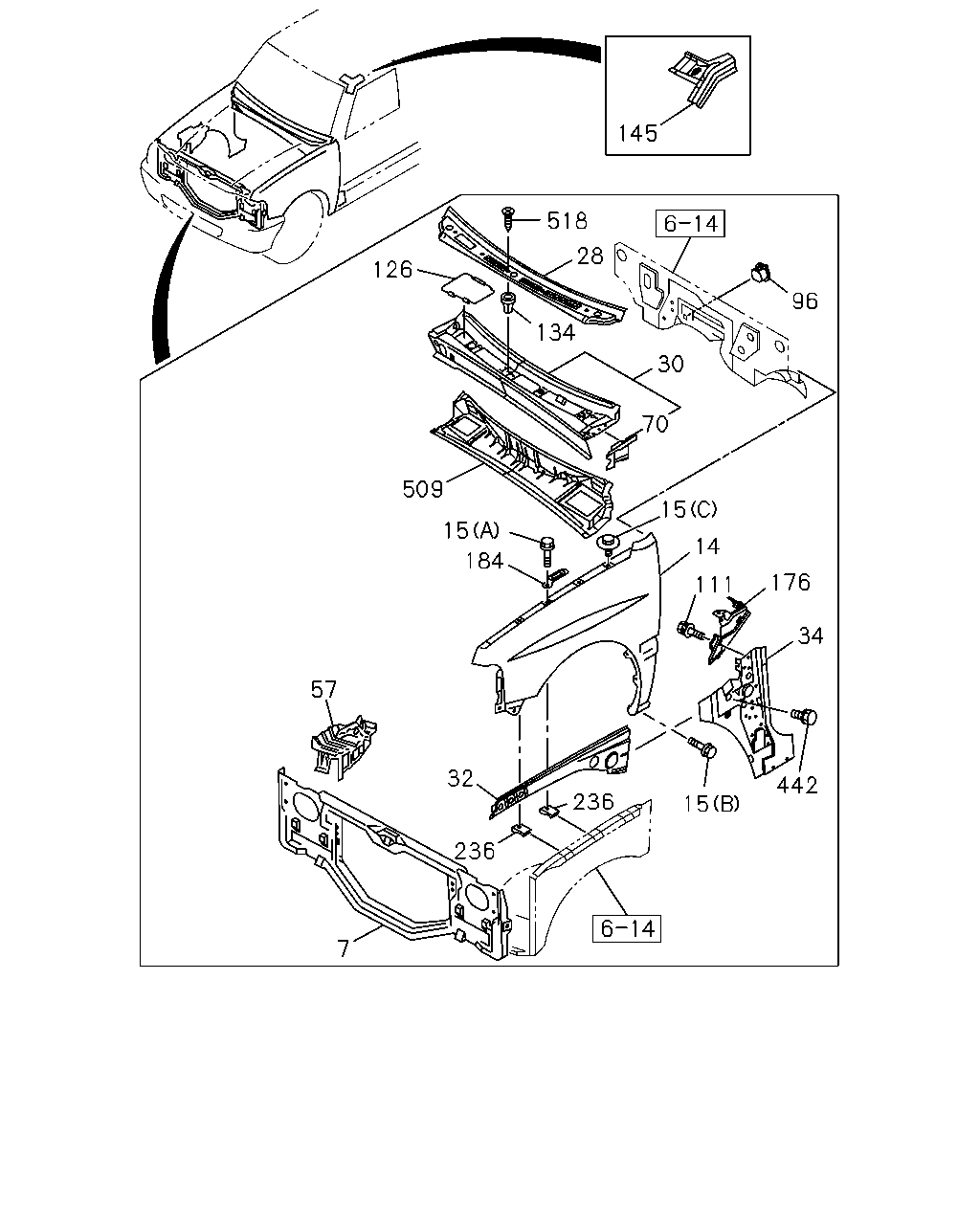

çizim 51279
145 518 28 126 96 134 30 70 509 15 15 184 14 176 111 34 57 32 442 236 15 236 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
7 PANEL; DEFLECTOR
THA 		8-97919-986-0 01 1 0009-0106 ● ● ● ● ● ● ● ●
7 PANEL; DEFLECTOR
THA 		8-97922-147-0 01 1 0107- ● ● ● ● ● ● ● ●
14 FENDER; FRT
THA 		8-97915-732-1 01 1 0009- ● ● ● ● ● ●
14 FENDER; FRT
EXC. ANTENNA<U73>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97915-732-1 01 1 0009- ●
14 FENDER; FRT
ANTENNA<U73> EXC. SPEAKER & ANTENNA<8DW> THA 		8-97915-732-1 01 1 0009- ●
14 FENDER; FRT
ANTENNA<U73> THA 		8-97915-732-1 01 1 0009- ●
14 FENDER; FRT
EXC. ANTENNA<U73> THA 		8-97915-733-1 01 1 0009- ● ● ● ● ● ●
14 FENDER; FRT
EXC. ANTENNA<U73>,SPECIAL PACKAGE VAR.2<7TB> THA 		8-97915-733-1 01 1 0009- ●
14 FENDER; FRT
ANTENNA<U73> THA 		8-97915-734-1 01 1 0009- ● ● ● ● ● ● ●
14 FENDER; FRT
ANTENNA<U73> EXC. SPEAKER & ANTENNA<8DW> THA 		8-97915-734-1 01 1 0009- ●
14 FENDER; FRT
SPECIAL PACKAGE VAR.2<7TB> SPEAKER & ANTENNA<8DW> THA 		8-97920-981-1 01 1 0009- ●
14 FENDER; FRT
SPECIAL PACKAGE VAR.2<7TB> SPEAKER & ANTENNA<8DW> THA 		8-97918-540-1 01 1 0009- ●
15 BOLT; FENDER
(C) THA 		8-97916-316-0 14 1 0010-0109 ● ● ● ● ● ● ● ●
15 BOLT; FENDER
THA 		8-97916-316-0 12 1 0110- ● ● ● ● ● ● ● ●
15 BOLT; FENDER
(C) M6X12 W/PL WASHER THA 		8-94232-078-0 14 1 0009-0009 ● ● ● ● ● ● ● ●
15 BOLT; FENDER
(A) M6X16 		0-28800-616-0 02 1 0009- ● ● ● ● ● ● ● ●
15 BOLT; FENDER
(B) M6X16 W/PL WASHER 		8-94199-279-1 02 1 0009- ● ● ● ● ● ● ● ●
15 BOLT; FENDER
M6X12 W/PL WASHER THA 		8-94232-078-0 12 1 0111- ● ● ● ● ● ● ● ●
28 COVER; DASH COWL
THA 		8-97915-390-0 01 1 0009- ● ● ● ● ● ● ● ●
30 PANEL; COWL UPR
THA 		8-97913-857-0 01 1 0009- ● ● ● ● ● ● ● ●
32 REINFORCEMENT; COWL SIDE,ENG ROOM 8-97078-329-2 01 1 0009- ● ● ● ● ● ● ● ●
32 REINFORCEMENT; COWL SIDE,ENG ROOM 8-97078-328-2 01 1 0009- ● ● ● ● ● ● ● ●
34 PANEL; DASH SIDE
THA 		8-97225-950-0 01 1 0009- ● ● ● ● ● ●
34 PANEL; DASH SIDE
THA 		8-97225-949-0 01 1 0009- ● ● ● ● ● ●
57 TRAY; BATTERY 8-97084-957-3 01 1 0009- ● ● ● ● ● ● ● ●
70 PANEL ASM; COWL SIDE
THA 		8-94435-660-4 01 1 0009- ● ● ● ● ● ● ● ●
70 PANEL ASM; COWL SIDE
THA 		8-94435-659-4 01 1 0009- ● ● ● ● ● ● ● ●
96 PLUG; DUMMY HOLE,COWL PANEL 8-97806-829-0 01 1 0009- ● ● ● ● ● ● ●
111 BOLT; INST SUPPORT BAR
M8X16 W/LK&PL WASHER 		8-94310-730-0 08 1 0009- ● ● ● ● ● ● ● ●
126 COVER; COWL HOLE
VENTILATION RAM AIR<6TN> 		8-97104-480-0 01 1 0009- ● ● ● ● ●
134 GROMMET; SCREW,COVER TO BODY
D=7.9X7.9 L=20 M5 THA 		8-97918-103-0 05 1 0009- ● ● ● ● ● ● ● ●
145 GUSSET; FRT PILLAR,UPR 8-94455-358-3 01 1 0009- ● ● ● ● ● ●
145 GUSSET; FRT PILLAR,UPR 8-94455-357-3 01 1 0009- ● ● ● ● ● ●
176 BRACKET; INST SUPPORT BAR
THA 		8-97910-924-1 01 1 0009- ● ● ● ● ● ● ● ●
176 BRACKET; INST SUPPORT BAR
THA 		8-97910-923-1 01 1 0009- ● ● ● ● ● ● ● ●
184 CLIP; REST,FENDER 8-94443-017-1 02 1 0009- ● ● ● ● ● ● ● ●
236 NUT; CLIP FENDER
THA 		8-97920-193-0 10 1 0009-0109 ● ● ● ● ● ● ● ●
236 NUT; CLIP FENDER
THA 		8-97920-193-0 08 1 0110- ● ● ● ● ● ● ● ●
442 BOLT; SEAL,DASH SIDE
M6X16 		8-97012-496-0 01 1 0009- ● ● ● ● ● ● ● ●
509 PANEL; DASH
THA 		8-97919-337-0 01 1 0009- ● ● ● ● ● ● ● ●
518 SCREW; BRKT,COWL COVER
M5X19 		8-97142-720-1 05 1 0009- ● ● ● ● ● ● ● ●
