◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#43628) — 38 parça

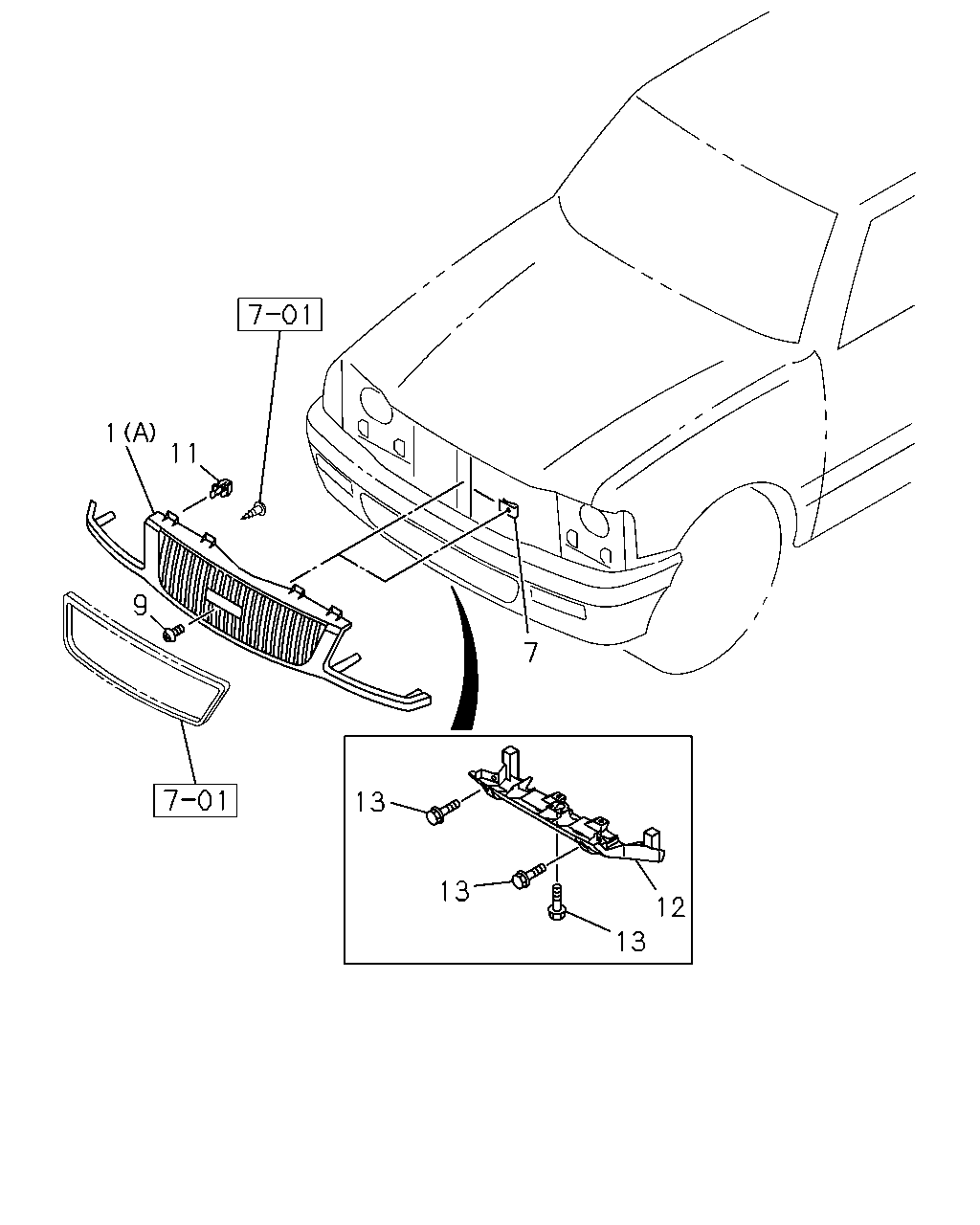

çizim 11426
1 11 9 7 13 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB> (A) THA 		8-97940-738-2 01 1 0009-0101 ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB> THA 		8-97940-738-2 01 1 0102- ●
1 GRILLE; RAD
SPECIAL PACKAGE VAR 2<7SB> THA 		8-97940-738-2 01 1 0102- ●
1 GRILLE; RAD
POWER STEERING<N40> THA 		8-97940-738-2 01 1 0102- ●
1 GRILLE; RAD
SPECIAL PACKAGE<7BB> (A) THA 		8-97940-738-2 01 1 0009- ●
1 GRILLE; RAD
(A) THA 		8-97940-738-2 01 1 0009- ●
1 GRILLE; RAD
(A) THA 		8-97940-738-2 01 1 0009- ● ● ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, SPECIAL PACKAGE VAR.2<7TB> (C) THA 		8-97940-038-0 01 1 0009-0101 ● ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. POWER STEERING<N40> THA 		8-97940-038-0 01 1 0102-0105 ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, SPECIAL PACKAGE VAR.2<7TB> THA 		8-97940-038-0 01 1 0102-0105 ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. POWER STEERING<N40>,BODY COLOR KEYED RAD GRILLE<TL1> THA 		8-97940-038-0 01 1 0106- ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, SPECIAL PACKAGE VAR.2<7TB> THA 		8-97940-038-0 01 1 0106- ●
7 NUT; SPIRE,RAD GRILLE
M5 SPIRE 		8-94146-492-1 01 1 0009- ● ● ● ● ● ●
7 NUT; SPIRE,RAD GRILLE
EXC. SPECIAL PACKAGE VAR.2<7TB> M5 SPIRE 		8-94146-492-1 01 1 0009- ●
9 SCREW; RAD GRILLE
M5X16 		8-94380-268-0 01 1 0009- ● ● ● ● ● ● ● ●
11 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 AR 1 0009- ● ● ● ● ● ● ● ●
12 PLATE; SKID,RAD 8-97223-858-1 01 1 0009- ● ● ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 03 1 0009- ● ● ●

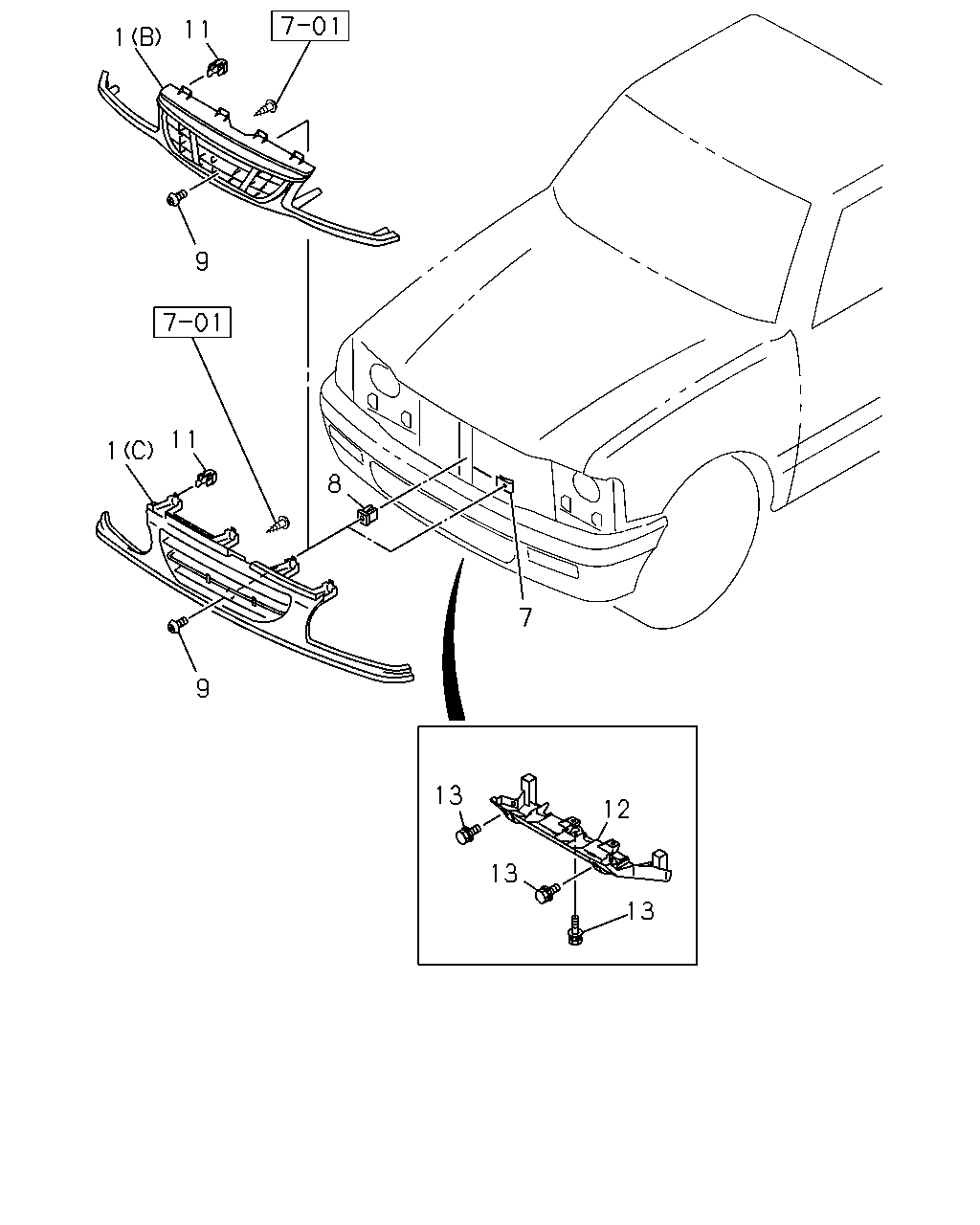

çizim 48776
11 1 9 11 1 8 7 9 13 12 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB> (A) THA 		8-97940-738-2 01 1 0009-0101 ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. SPECIAL PACKAGE<7BB> THA 		8-97940-738-2 01 1 0102- ●
1 GRILLE; RAD
SPECIAL PACKAGE VAR 2<7SB> THA 		8-97940-738-2 01 1 0102- ●
1 GRILLE; RAD
POWER STEERING<N40> THA 		8-97940-738-2 01 1 0102- ●
1 GRILLE; RAD
SPECIAL PACKAGE<7BB> (A) THA 		8-97940-738-2 01 1 0009- ●
1 GRILLE; RAD
(A) THA 		8-97940-738-2 01 1 0009- ●
1 GRILLE; RAD
(A) THA 		8-97940-738-2 01 1 0009- ● ● ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, SPECIAL PACKAGE VAR.2<7TB> (C) THA 		8-97940-038-0 01 1 0009-0101 ● ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. POWER STEERING<N40> THA 		8-97940-038-0 01 1 0102-0105 ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, SPECIAL PACKAGE VAR.2<7TB> THA 		8-97940-038-0 01 1 0102-0105 ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. POWER STEERING<N40>,BODY COLOR KEYED RAD GRILLE<TL1> THA 		8-97940-038-0 01 1 0106- ●
1 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> EXC. BODY COLOR KEYED RAD GRILLE<TL1>, SPECIAL PACKAGE VAR.2<7TB> THA 		8-97940-038-0 01 1 0106- ●
7 NUT; SPIRE,RAD GRILLE
M5 SPIRE 		8-94146-492-1 01 1 0009- ● ● ● ● ● ●
7 NUT; SPIRE,RAD GRILLE
EXC. SPECIAL PACKAGE VAR.2<7TB> M5 SPIRE 		8-94146-492-1 01 1 0009- ●
8 GROMMET; SCREW,RAD GRILLE
SPECIAL PACKAGE VAR.2<7TB> D=7X7 L=7.5 THA 		8-94291-927-0 01 1 0009- ●
8 GROMMET; SCREW,RAD GRILLE
D=7X7 L=7.5 THA 		8-94291-927-0 01 1 0009- ●
9 SCREW; RAD GRILLE
M5X16 		8-94380-268-0 01 1 0009- ● ● ● ● ● ● ● ●
11 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 AR 1 0009- ● ● ● ● ● ● ● ●
12 PLATE; SKID,RAD 8-97223-858-1 01 1 0009- ● ● ●
13 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER THA 		8-97104-788-1 03 1 0009- ● ● ●
