6-01 — FRONT BUMPER (#43627) — 132 parça

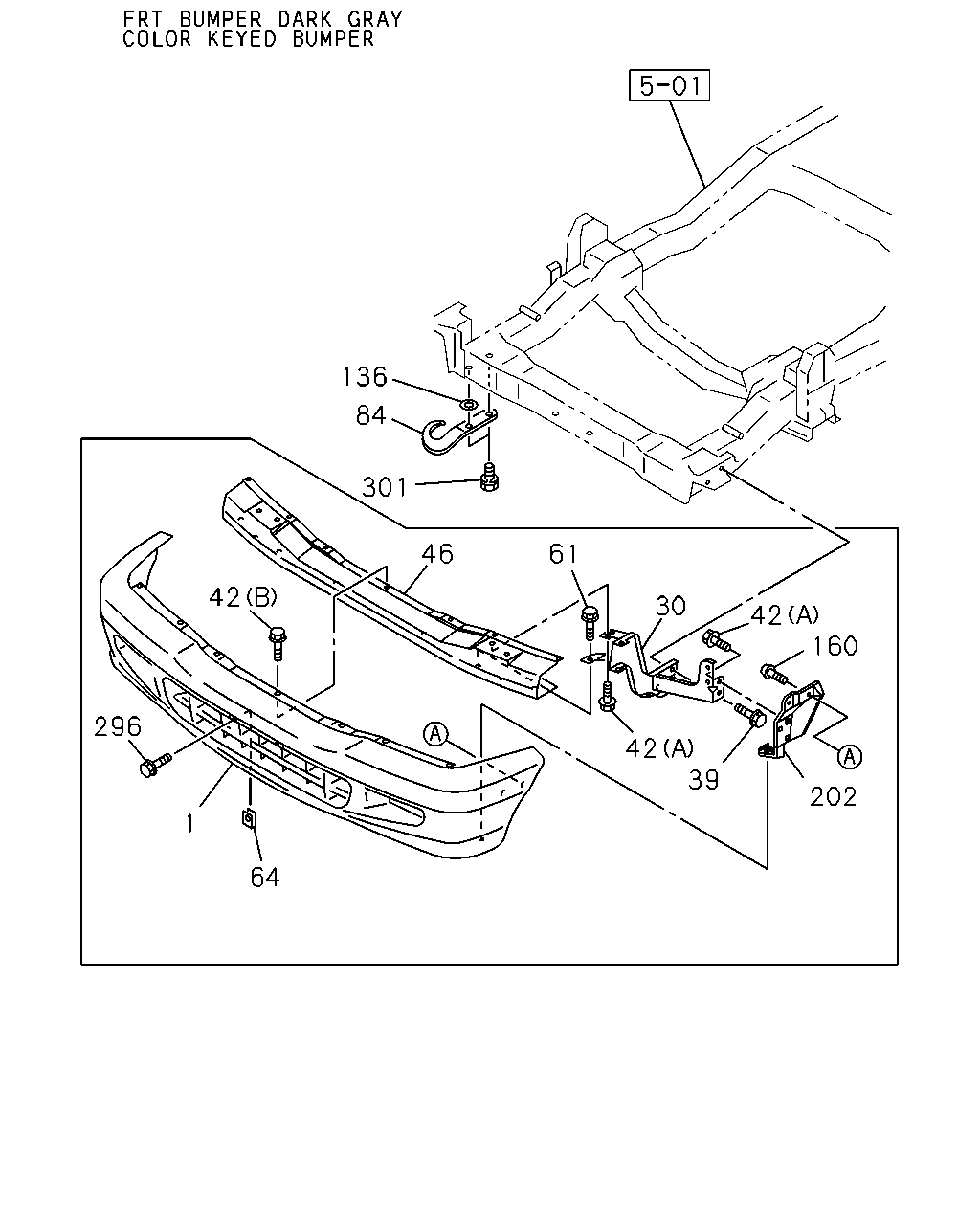

çizim 46828
136 84 301 46 61 42 30 42 160 296 42 39 202 1 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<S4H> FOG LAMP<T96> PRIMER THA 		8-97920-250-1 01 1 0009- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<S4H> PRIMER THA 		8-97920-250-1 01 1 0009- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER THA 		8-97920-251-1 01 1 0009- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER<S4H> PRIMER THA 		8-97920-251-1 01 1 0009- ●
1 BUMPER ASM; FRT
PRIMER THA 		8-97920-251-1 01 1 0009- ●
1 BUMPER ASM; FRT
FRT BUMPER DARK GRAY<EQ9> THA 		8-97940-740-3 01 1 0009-0105 ● ●
1 BUMPER ASM; FRT
THA 		8-97940-740-3 01 1 0009-0105 ● ● ●
1 BUMPER ASM; FRT
FRT BUMPER DARK GRAY<EQ9> THA 		8-97940-740-3 01 1 0106- ● ● ●
1 BUMPER ASM; FRT
THA 		8-97940-740-3 01 1 0106- ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-785-1 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-785-1 01 1 0009-0105 ● ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-785-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-785-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-784-1 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-784-1 01 1 0009-0105 ● ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-784-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-784-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-392-0 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97911-392-0 01 1 0009-0105 ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-392-0 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-391-0 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97911-391-0 01 1 0009-0105 ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-391-0 01 1 0106- ● ● ● ●
39 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 0009- ● ● ● ● ● ● ● ●
42 BOLT; BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> (A) M8X14 FLANGE THA 		0-28080-814-0 12 1 0009-0105 ● ● ●
42 BOLT; BUMPER
(A) M8X14 FLANGE THA 		0-28080-814-0 12 1 0009-0105 ● ● ● ●
42 BOLT; BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M8X14 FLANGE THA 		0-28080-814-0 12 1 0106- ● ● ● ●
42 BOLT; BUMPER
M8X14 FLANGE THA 		0-28080-814-0 12 1 0106- ● ● ● ●
42 BOLT; BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> (B) M6X16 FLANGE 		8-97804-671-1 11 1 0009-0105 ● ● ●
42 BOLT; BUMPER
(B) M6X16 FLANGE 		8-97804-671-1 11 1 0009-0105 ● ● ● ●
42 BOLT; BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M6X16 FLANGE 		8-97804-671-1 11 1 0106- ● ● ● ●
42 BOLT; BUMPER
M6X16 FLANGE 		8-97804-671-1 11 1 0106- ● ● ● ●
46 REINFORCEMENT; BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-777-3 01 1 0009-0105 ● ● ●
46 REINFORCEMENT; BUMPER
THA 		8-97940-777-3 01 1 0009-0105 ● ● ● ●
46 REINFORCEMENT; BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-777-3 01 1 0106- ● ● ● ●
46 REINFORCEMENT; BUMPER
THA 		8-97940-777-3 01 1 0106- ● ● ● ●
61 BOLT; BACK BAR
M8X20 BLACK-HEAD THA 		8-97916-320-0 04 1 0009- ● ● ● ● ● ● ● ●
61 BOLT; BACK BAR
M8X20 DACRO-COATING THA 		8-97916-321-0 04 1 0009- ● ● ● ● ● ● ● ●
64 NUT; CLIP
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94342-576-1 02 1 0009-0105 ● ● ●
64 NUT; CLIP 8-94342-576-1 02 1 0009-0105 ● ● ● ●
64 NUT; CLIP
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94342-576-1 02 1 0106- ● ● ● ●
64 NUT; CLIP 8-94342-576-1 02 1 0106- ● ● ● ●
64 NUT; CLIP
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94471-330-2 15 1 0009-0105 ● ● ●
64 NUT; CLIP 8-94471-330-2 15 1 0009-0105 ●
64 NUT; CLIP
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94471-330-2 15 1 0106- ● ● ● ●
84 HOOK
THA 		8-97911-057-0 01 1 0009-0012 ● ● ●
84 HOOK
THA 		8-97912-568-0 01 1 0101- ● ● ●
136 WASHER; PL,HOOK
ID=12.5 		1-09503-021-0 01 1 0009- ● ● ●
160 SCREW
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M5X16 		8-94380-268-0 04 1 0009-0105 ● ● ●
160 SCREW
M5X16 		8-94380-268-0 04 1 0009-0105 ● ● ● ●
160 SCREW
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M5X16 		8-94380-268-0 04 1 0106- ● ● ● ●
160 SCREW
M5X16 		8-94380-268-0 04 1 0106- ● ● ● ●
202 BRACKET; BUMPER SIDE
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-772-2 01 1 0009-0105 ● ● ●
202 BRACKET; BUMPER SIDE
THA 		8-97940-772-2 01 1 0009-0105 ● ● ● ●
202 BRACKET; BUMPER SIDE
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-772-2 01 1 0106- ● ● ● ●
202 BRACKET; BUMPER SIDE
THA 		8-97940-772-2 01 1 0106- ● ● ● ●
202 BRACKET; BUMPER SIDE
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-771-2 01 1 0009-0105 ● ● ●
202 BRACKET; BUMPER SIDE
THA 		8-97940-771-2 01 1 0009-0105 ● ● ● ●
202 BRACKET; BUMPER SIDE
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-771-2 01 1 0106- ● ● ● ●
202 BRACKET; BUMPER SIDE
THA 		8-97940-771-2 01 1 0106- ● ● ● ●
296 BOLT; LICENSE PLATE,FRT
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M6X16 FLANGE 		0-28080-616-0 02 1 0009-0105 ● ● ●
296 BOLT; LICENSE PLATE,FRT
M6X16 FLANGE 		0-28080-616-0 02 1 0009-0105 ● ● ● ●
296 BOLT; LICENSE PLATE,FRT
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M6X16 FLANGE 		0-28080-616-0 02 1 0106- ● ● ● ●
296 BOLT; LICENSE PLATE,FRT
M6X16 FLANGE 		0-28080-616-0 02 1 0106- ● ● ● ●
301 BOLT; HOOK TO FRAME
M10X45 W/LK WASHER 		0-50041-045-0 02 1 0009- ● ● ●

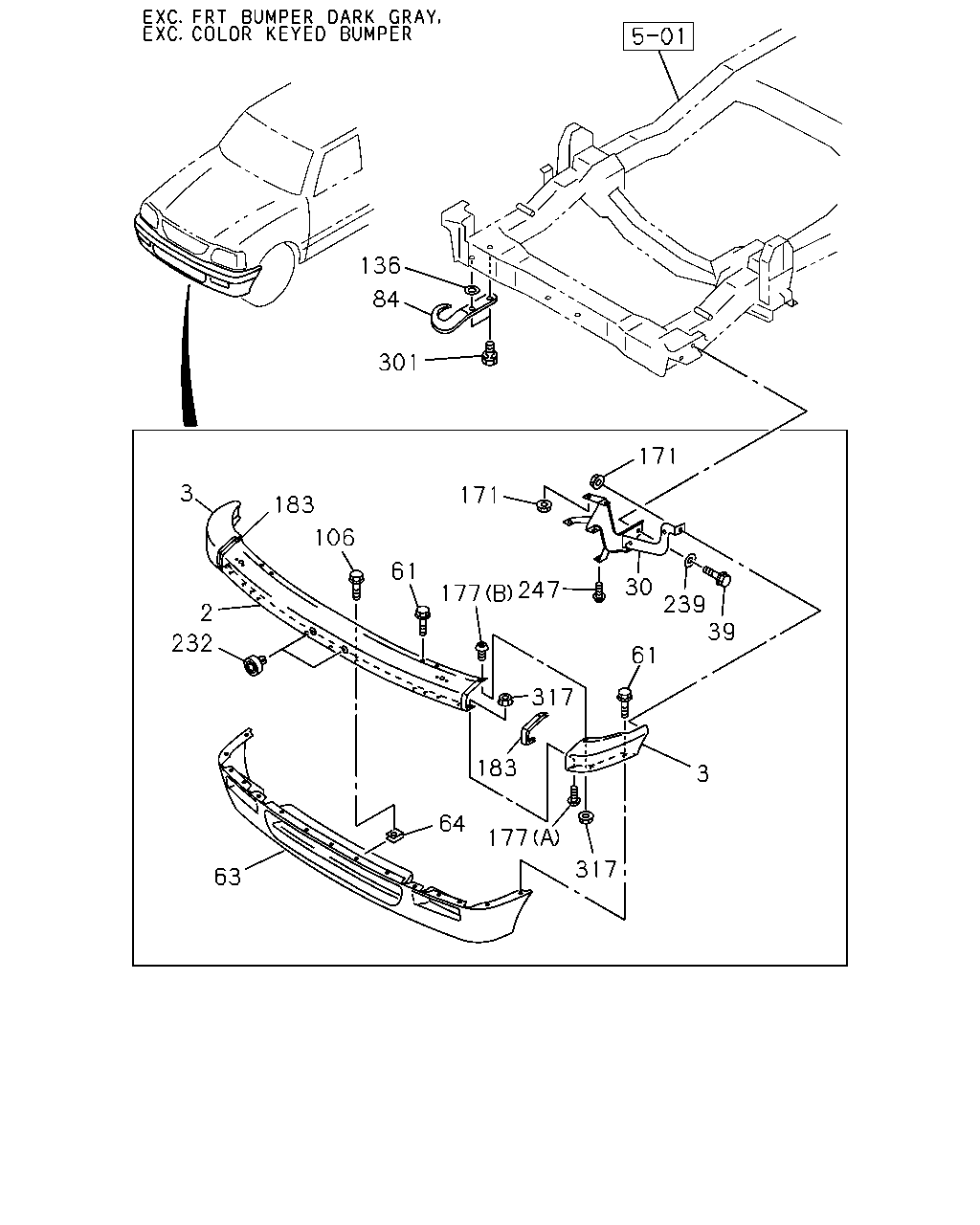

çizim 50203
136 84 301 171 3 171 183 106 61 30 239 39 177 247 2 232 61 317 183 3 64 177 317 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 BUMPER; FRT,CENTER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-967-0 01 1 0009-0105 ● ● ●
2 BUMPER; FRT,CENTER
THA 		8-97911-967-0 01 1 0009-0105 ●
2 BUMPER; FRT,CENTER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-967-0 01 1 0106- ● ● ● ●
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-968-0 01 1 0009-0105 ● ● ●
3 BUMPER; FRT,SIDE
THA 		8-97911-968-0 01 1 0009-0105 ●
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-968-0 01 1 0106- ● ● ● ●
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-969-0 01 1 0009-0105 ● ● ●
3 BUMPER; FRT,SIDE
THA 		8-97911-969-0 01 1 0009-0105 ●
3 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-969-0 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-785-1 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-785-1 01 1 0009-0105 ● ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-785-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-785-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-784-1 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-784-1 01 1 0009-0105 ● ● ● ●
30 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97940-784-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97940-784-1 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-392-0 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97911-392-0 01 1 0009-0105 ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-392-0 01 1 0106- ● ● ● ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-391-0 01 1 0009-0105 ● ● ●
30 BRACKET; FRT BUMPER
THA 		8-97911-391-0 01 1 0009-0105 ●
30 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-391-0 01 1 0106- ● ● ● ●
39 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 0009- ● ● ● ● ● ● ● ●
61 BOLT; BACK BAR
M8X20 BLACK-HEAD THA 		8-97916-320-0 04 1 0009- ● ● ● ● ● ● ● ●
61 BOLT; BACK BAR
M8X20 DACRO-COATING THA 		8-97916-321-0 04 1 0009- ● ● ● ● ● ● ● ●
63 AIR DAM; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-97110-314-0 01 1 0009-0105 ● ● ●
63 AIR DAM; FRT BUMPER 8-97110-314-0 01 1 0009-0105 ●
63 AIR DAM; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-97110-314-0 01 1 0106- ● ● ● ●
64 NUT; CLIP
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94342-576-1 02 1 0009-0105 ● ● ●
64 NUT; CLIP 8-94342-576-1 02 1 0009-0105 ● ● ● ●
64 NUT; CLIP
FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94342-576-1 02 1 0106- ● ● ● ●
64 NUT; CLIP 8-94342-576-1 02 1 0106- ● ● ● ●
64 NUT; CLIP
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94471-330-2 15 1 0009-0105 ● ● ●
64 NUT; CLIP 8-94471-330-2 15 1 0009-0105 ●
64 NUT; CLIP
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-94471-330-2 15 1 0106- ● ● ● ●
84 HOOK
THA 		8-97911-057-0 01 1 0009-0012 ● ● ●
84 HOOK
THA 		8-97912-568-0 01 1 0101- ● ● ●
106 BOLT; AIR DAM
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 0009-0105 ● ● ●
106 BOLT; AIR DAM
M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 0009-0105 ●
106 BOLT; AIR DAM
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 0106- ● ● ● ●
136 WASHER; PL,HOOK
ID=12.5 		1-09503-021-0 01 1 0009- ● ● ●
171 NUT; BACK BAR
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M8 W/LK WASHER 		8-94327-073-0 10 1 0009-0105 ● ● ●
171 NUT; BACK BAR
M8 W/LK WASHER 		8-94327-073-0 10 1 0009-0105 ●
171 NUT; BACK BAR
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M8 W/LK WASHER 		8-94327-073-0 10 1 0106- ● ● ● ●
177 BOLT
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> (B) M8X20 BLACK-HEAD THA 		8-97916-320-0 02 1 0009-0105 ● ● ●
177 BOLT
(B) M8X20 BLACK-HEAD THA 		8-97916-320-0 02 1 0009-0105 ●
177 BOLT
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M8X20 BLACK-HEAD THA 		8-97916-320-0 02 1 0106- ● ● ● ●
177 BOLT
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> (A) M8X20 DACRO-COATING THA 		8-97916-321-0 02 1 0009-0105 ● ● ●
177 BOLT
(A) M8X20 DACRO-COATING THA 		8-97916-321-0 02 1 0009-0105 ●
177 BOLT
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M8X20 DACRO-COATING THA 		8-97916-321-0 02 1 0106- ● ● ● ●
183 FINISHER; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-395-1 02 1 0009-0105 ● ● ●
183 FINISHER; FRT BUMPER
THA 		8-97911-395-1 02 1 0009-0105 ●
183 FINISHER; FRT BUMPER
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97911-395-1 02 1 0106- ● ● ● ●
232 NUT; EXPANSION,LICENSE PLATE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M6 EXPANSION NUT THA 		8-94215-358-1 02 1 0009-0105 ● ● ●
232 NUT; EXPANSION,LICENSE PLATE
M6 EXPANSION NUT THA 		8-94215-358-1 02 1 0009-0105 ●
232 NUT; EXPANSION,LICENSE PLATE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M6 EXPANSION NUT THA 		8-94215-358-1 02 1 0106- ● ● ● ●
239 WASHER; PL,BRKT
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97912-117-0 04 1 0009-0105 ● ● ●
239 WASHER; PL,BRKT
THA 		8-97912-117-0 04 1 0009-0105 ●
239 WASHER; PL,BRKT
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> THA 		8-97912-117-0 04 1 0106- ● ● ● ●
247 SCREW; BUMPER TO AIR DAM
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-97032-653-0 02 1 0009-0105 ● ● ●
247 SCREW; BUMPER TO AIR DAM 8-97032-653-0 02 1 0009-0105 ●
247 SCREW; BUMPER TO AIR DAM
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> 		8-97032-653-0 02 1 0106- ● ● ● ●
301 BOLT; HOOK TO FRAME
M10X45 W/LK WASHER 		0-50041-045-0 02 1 0009- ● ● ●
317 NUT; CENTER TO SIDE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M8 W/LK WASHER 		8-94327-073-0 04 1 0009-0105 ● ● ●
317 NUT; CENTER TO SIDE
M8 W/LK WASHER 		8-94327-073-0 04 1 0009-0105 ●
317 NUT; CENTER TO SIDE
EXC. FRT BUMPER DARK GRAY<EQ9>,COLOR KEYED BUMPER<S4H> M8 W/LK WASHER 		8-94327-073-0 04 1 0106- ● ● ● ●
