Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-40 - ENGINE ROOM INSULATOR
▶

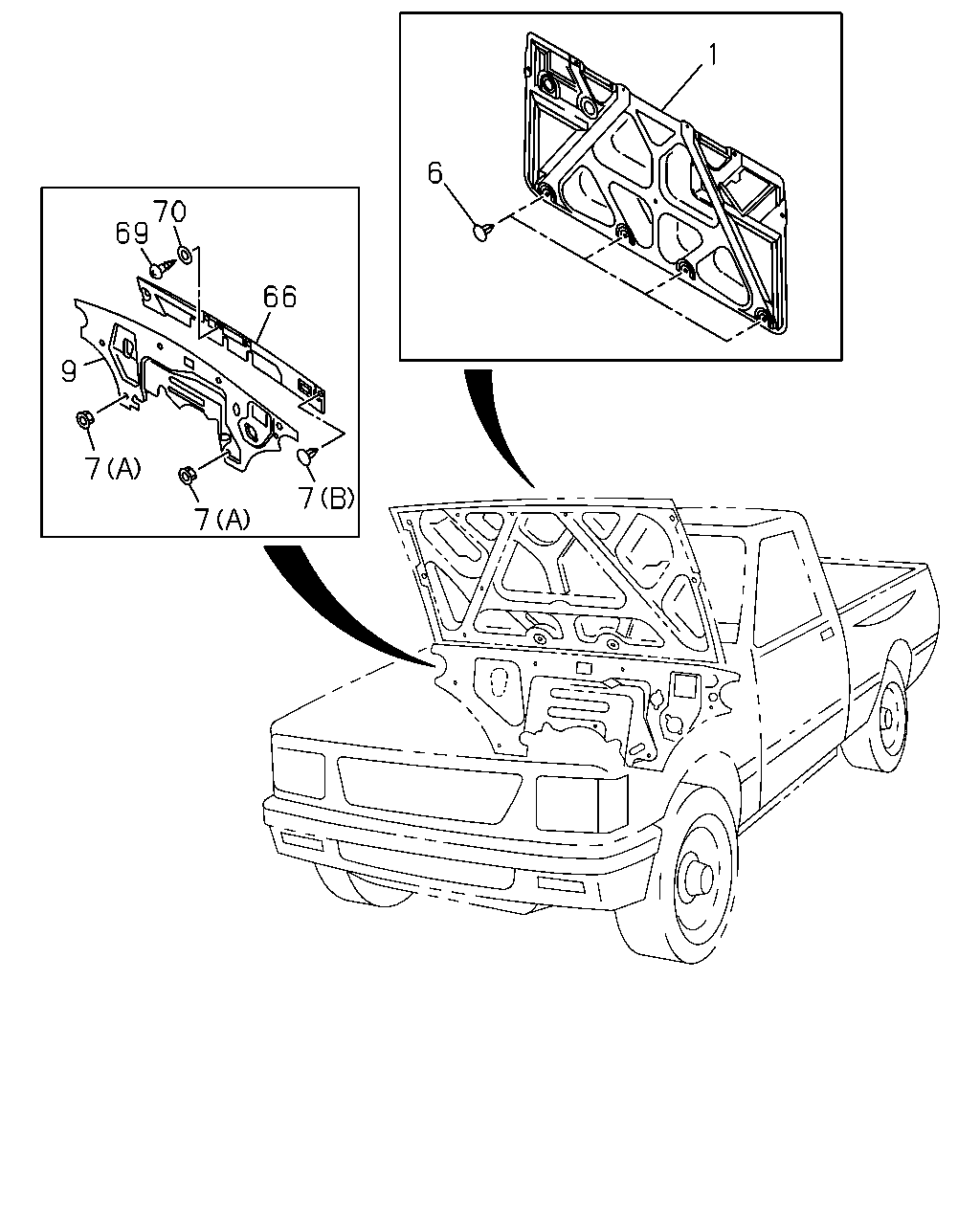

5-40 — ENGINE ROOM INSULATOR
(#43625) — 17 parça
Tümü
A - TFB5CF
B - TFB5PF
C - TFB5QF
D - TFB5SF
E - TFB5WF
F - TFS5CF
G - TFS5PF
H - TFS5WF
1
6
70
69
66
9
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
INSULATION; ENG HOOD
SKI THA
8-97915-271-1
01
1
0009-
●
●
●
●
●
●
●
●
1
INSULATION; ENG HOOD
4JA1 ENG<RLE> SAS THA
8-97920-747-0
01
1
0009-
●
1
INSULATION; ENG HOOD
SAS THA
8-97920-747-0
01
1
0009-
●
●
6
CLIP; ENG HOOD INSULATION
THA
8-97910-920-0
13
1
0009-
●
●
●
●
●
●
●
●
7
CLIP; INSULATION
(B) THA
8-97910-920-0
02
1
0009-
●
●
●
●
●
●
●
●
7
CLIP; INSULATION
(A) THA
8-97910-918-0
07
1
0009-
●
●
●
●
●
7
CLIP; INSULATION
(A) THA
8-97910-918-0
01
1
0009-
●
●
●
7
CLIP; INSULATION
(A) THA
8-97910-918-0
06
1
0009-
●
●
●
9
INSULATION; DASH ENG ROOM
SKI THA
8-97910-919-1
01
1
0009-
●
●
●
●
●
●
●
●
9
INSULATION; DASH ENG ROOM
SAS THA
8-97920-748-0
01
1
0009-0010
●
●
●
●
●
●
●
●
9
INSULATION; DASH ENG ROOM
SAS THA
8-97920-748-1
01
1
0011-0012
●
●
●
●
●
●
●
9
INSULATION; DASH ENG ROOM
SAS THA
8-97920-748-1
01
1
0101-
●
●
●
●
●
●
●
●
66
INSULATION; COWL UPR
THA
8-97919-521-3
01
1
0009-
●
●
●
●
●
●
●
●
69
SCREW; INSULATION
4JH1 ENG<RJX> THA
8-97910-318-0
01
1
0009-
●
69
SCREW; INSULATION
THA
8-97910-318-0
01
1
0009-
●
●
●
●
●
70
WASHER; INSULATION
4JH1 ENG<RJX> THA
8-97917-245-0
01
1
0009-
●
70
WASHER; INSULATION
THA
8-97917-245-0
01
1
0009-
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
