Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
5 - Frame, Cab Mounting
▶

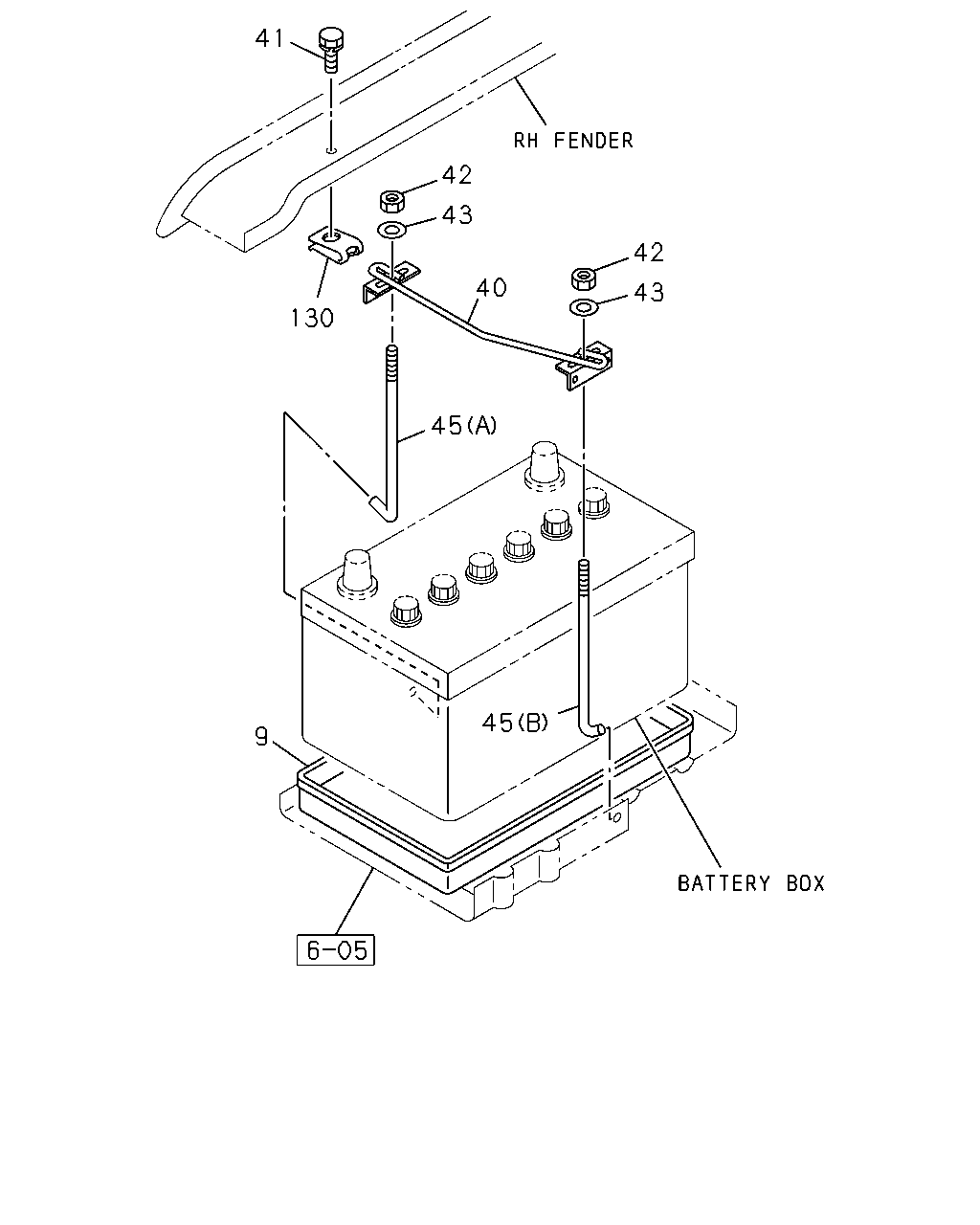

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#43623) — 16 parça
Tümü
A - TFB5CF
B - TFB5PF
C - TFB5QF
D - TFB5SF
E - TFB5WF
F - TFS5CF
G - TFS5PF
H - TFS5WF
41
42
43
42
40
43
130
45
45
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
9
SEAT; BATTERY
THA
8-97911-362-0
01
1
0009-
●
●
●
●
●
●
●
●
40
CLAMP; BATTERY
THA
8-97917-991-2
01
1
0009-
●
●
●
●
●
●
●
●
41
BOLT; CLAMP,BATTERY
M8X18
8-94478-122-0
01
1
0009-
●
●
●
●
●
●
●
●
42
NUT; CLAMP
TAI THA
8-97913-567-0
01
1
0009-
●
●
●
●
●
●
●
●
42
NUT; CLAMP
TAI THA
8-97913-567-0
01
1
0009-
●
●
●
●
●
●
●
●
42
NUT; CLAMP
SPC THA
8-97914-356-0
01
1
0009-
●
●
●
●
●
●
●
●
42
NUT; CLAMP
SPC THA
8-97914-356-0
01
1
0009-
●
●
●
●
●
●
●
●
43
WASHER; PL,CLAMP
TAI THA
8-97913-565-0
01
1
0009-
●
●
●
●
●
●
●
●
43
WASHER; PL,CLAMP
TAI THA
8-97913-565-0
01
1
0009-
●
●
●
●
●
●
●
●
43
WASHER; PL,CLAMP
SPC THA
8-97914-357-0
01
1
0009-
●
●
●
●
●
●
●
●
43
WASHER; PL,CLAMP
SPC THA
8-97914-357-0
01
1
0009-
●
●
●
●
●
●
●
●
45
ROD; TENSION,BATTERY
(A) SPC L=180 THA
8-97914-352-1
01
1
0009-
●
●
●
●
●
●
●
●
45
ROD; TENSION,BATTERY
(B) TAI L=204 THA
8-97914-353-0
01
1
0009-
●
●
●
●
●
●
●
●
45
ROD; TENSION,BATTERY
(A) TAI L=180 THA
8-97914-354-0
01
1
0009-
●
●
●
●
●
●
●
●
45
ROD; TENSION,BATTERY
(B) SPC L=204 THA
8-97914-355-1
01
1
0009-
●
●
●
●
●
●
●
●
130
NUT; SPIRE
THA
8-97920-193-0
01
1
0009-0011
●
●
●
●
●
●
●
●
