◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#43622) — 111 parça

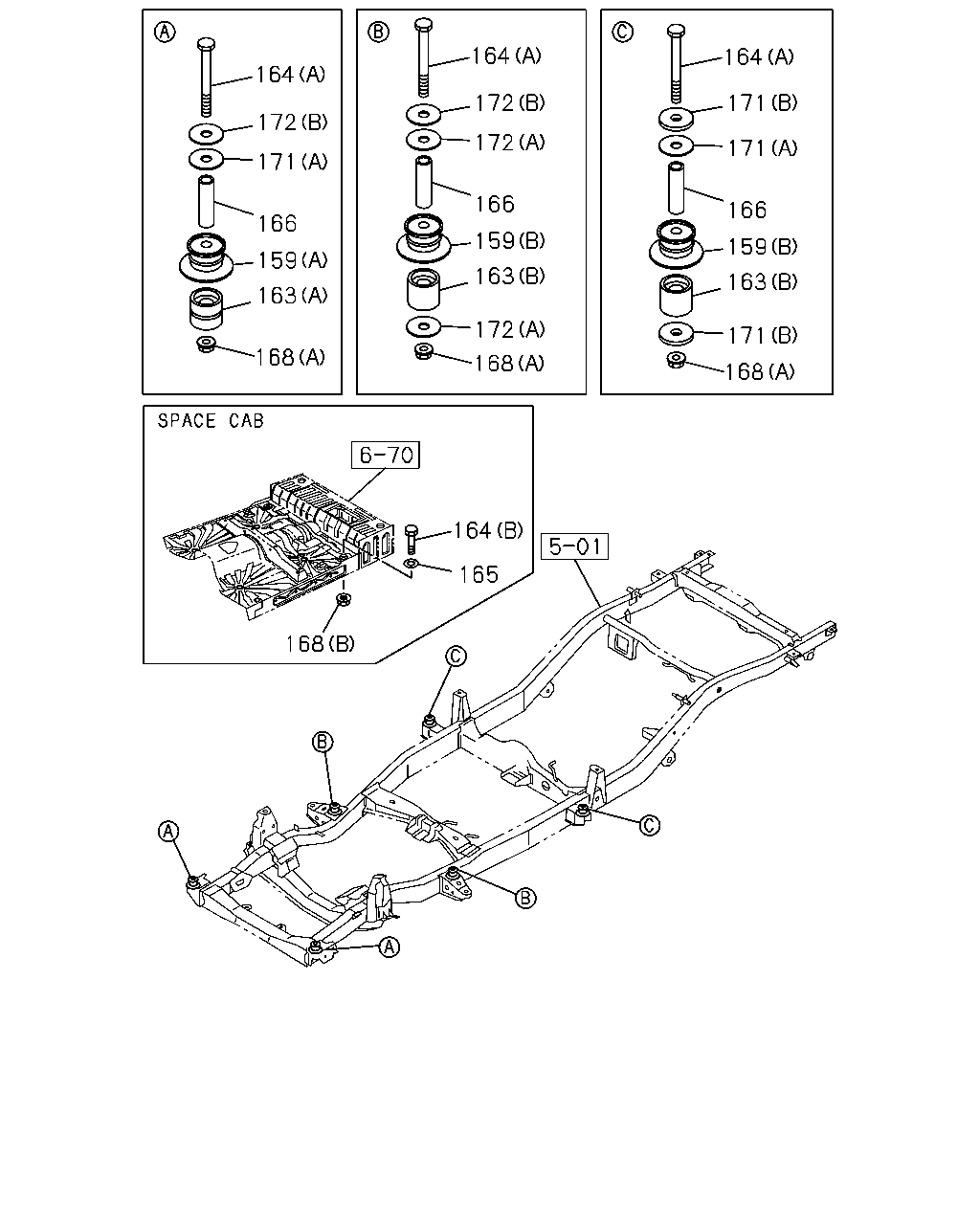

çizim 46871
164 164 164 172 171 172 172 171 171 166 166 166 159 159 159 163 163 163 172 171 168 168 168 164 165 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
159 RUBBER; CUSHION,CAB MTG
(B) NO.3 MTG THA 		8-97942-469-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-97911-026-0 04 1 0009-0011 ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG THA 		8-97942-468-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97913-469-0 02 1 0009-0011 ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97913-469-0 02 1 0009-0011 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97942-467-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97942-467-0 02 1 0012- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) THA 		8-97942-471-0 02 1 0012- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA 		8-97911-027-0 04 1 0009-0011 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA 		8-97942-468-0 02 1 0012-0012 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA 		8-97913-470-0 02 1 0009-0011 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA 		8-97942-470-0 04 1 0012-0012 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
THA 		8-97942-470-0 06 1 0101- ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-97035-572-1 02 1 0009-0105 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97134-968-0 06 1 0009- ● ● ● ● ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(B) M12X25 		0-20801-225-0 02 1 0009- ● ●
165 WASHER; PL,CAB MTG
ID=12.5 OD=26 		9-09160-612-0 02 1 0009- ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 06 1 0009- ● ● ● ● ● ● ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 02 1 0009- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M10 FLANGE 		0-91150-210-0 06 1 0009- ● ● ● ● ● ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-112-0 02 1 0009- ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 04 1 0009-0101 ● ● ● ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ●
171 WASHER; BODY MTG RUBBER
(B) ID=11 OD=48 T=6.0 THA 		8-97918-424-0 04 1 0009- ● ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0011 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0011 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0012-0101 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0012-0101 ● ● ●
171 WASHER; BODY MTG RUBBER
(C) ID=11 OD=32 T=6.0 THA 		8-97918-425-0 02 1 0009- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=32 T=6.0 THA 		8-97918-425-0 04 1 0009- ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 04 1 0009-0101 ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ●
172 WASHER; BODY MTG RUBBER
(C) ID=11 OD=48 T=6.0 THA 		8-97918-424-0 02 1 0009- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0101 ● ●

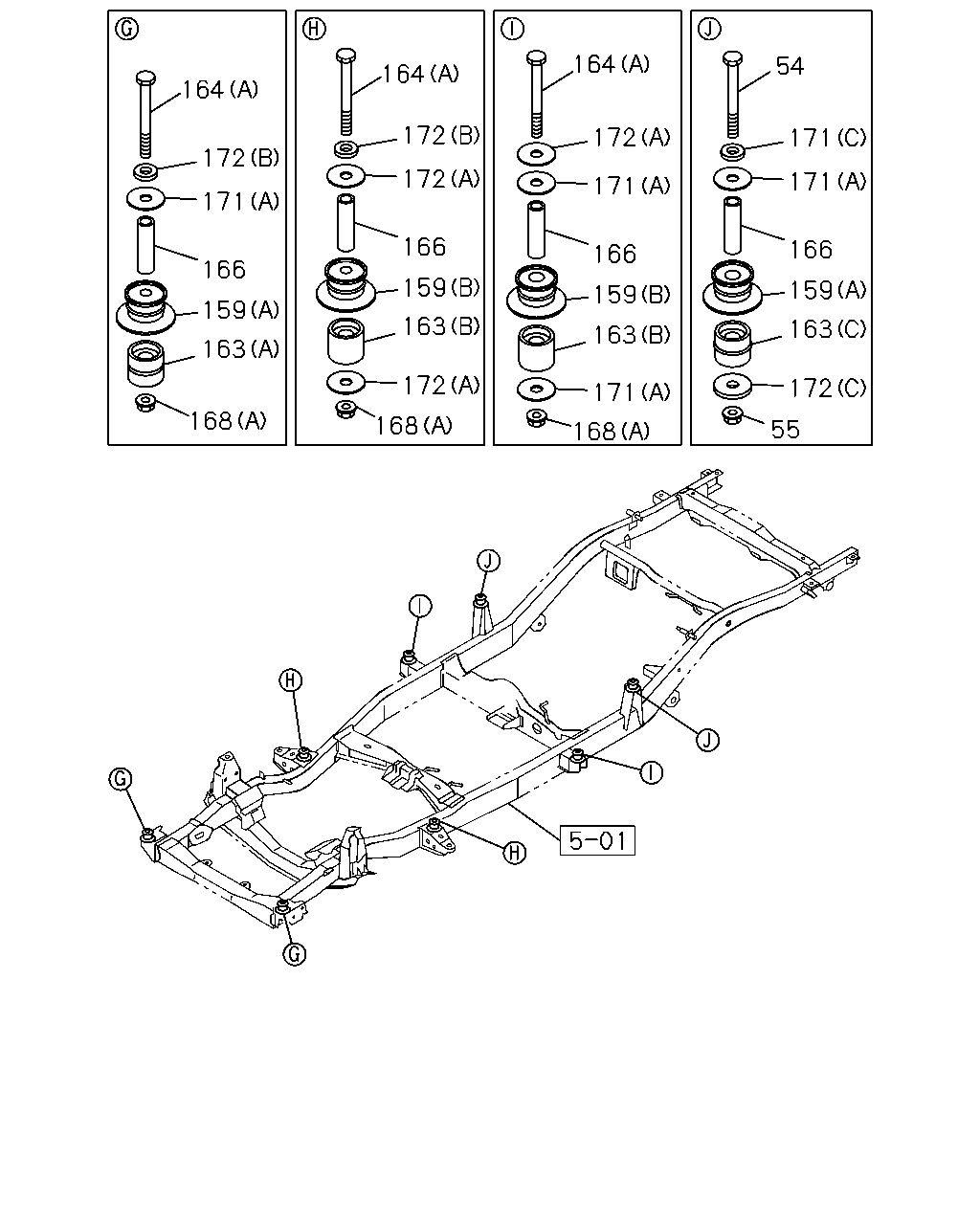

çizim 48454
164 54 164 164 172 172 171 172 172 171 171 171 166 166 166 166 159 159 159 159 163 163 163 163 172 172 171 168 168 55 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
54 BOLT; RUBBER
M10X120 		8-97134-968-0 02 1 0009- ● ●
55 NUT; RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0009- ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.3 MTG THA 		8-97942-469-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-97911-026-0 04 1 0009-0011 ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG THA 		8-97942-468-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97913-469-0 02 1 0009-0011 ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97913-469-0 02 1 0009-0011 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97942-467-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97942-467-0 02 1 0012- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) THA 		8-97942-471-0 02 1 0012- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA 		8-97911-027-0 04 1 0009-0011 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA 		8-97942-468-0 02 1 0012-0012 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA 		8-97913-470-0 02 1 0009-0011 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA 		8-97942-470-0 04 1 0012-0012 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
THA 		8-97942-470-0 06 1 0101- ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-97035-572-1 02 1 0009-0105 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97134-968-0 06 1 0009- ● ● ● ● ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(B) M12X25 		0-20801-225-0 02 1 0009- ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 06 1 0009- ● ● ● ● ● ● ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 02 1 0009- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M10 FLANGE 		0-91150-210-0 06 1 0009- ● ● ● ● ● ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-112-0 02 1 0009- ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 04 1 0009-0101 ● ● ● ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ●
171 WASHER; BODY MTG RUBBER
(B) ID=11 OD=48 T=6.0 THA 		8-97918-424-0 04 1 0009- ● ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0011 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0011 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0012-0101 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0012-0101 ● ● ●
171 WASHER; BODY MTG RUBBER
(C) ID=11 OD=32 T=6.0 THA 		8-97918-425-0 02 1 0009- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=32 T=6.0 THA 		8-97918-425-0 04 1 0009- ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 04 1 0009-0101 ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ●
172 WASHER; BODY MTG RUBBER
(C) ID=11 OD=48 T=6.0 THA 		8-97918-424-0 02 1 0009- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0101 ● ●

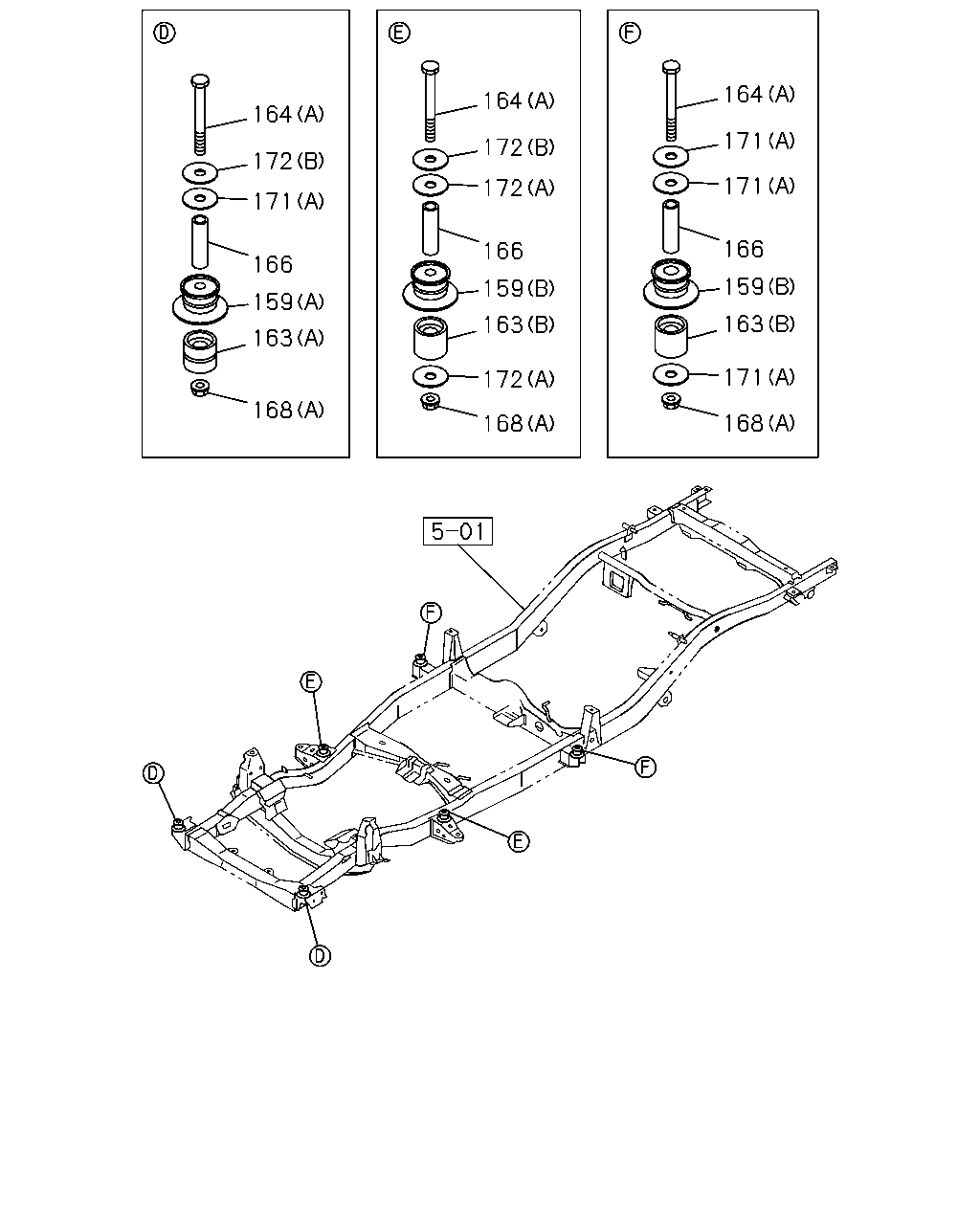

çizim 50243
164 164 164 171 172 172 171 172 171 166 166 166 159 159 159 163 163 163 171 172 168 168 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
159 RUBBER; CUSHION,CAB MTG
(B) NO.3 MTG THA 		8-97942-469-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) THA 		8-97911-026-0 04 1 0009-0011 ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(B) NO.2 MTG THA 		8-97942-468-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97913-469-0 02 1 0009-0011 ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97913-469-0 02 1 0009-0011 ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97942-467-0 02 1 0012- ● ● ● ● ● ● ● ●
159 RUBBER; CUSHION,CAB MTG
(A) THA 		8-97942-467-0 02 1 0012- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) THA 		8-97942-471-0 02 1 0012- ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA 		8-97911-027-0 04 1 0009-0011 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA 		8-97942-468-0 02 1 0012-0012 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(A) THA 		8-97913-470-0 02 1 0009-0011 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(B) THA 		8-97942-470-0 04 1 0012-0012 ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
THA 		8-97942-470-0 06 1 0101- ● ● ● ● ● ● ● ●
163 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-97035-572-1 02 1 0009-0105 ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(A) M10X120 		8-97134-968-0 06 1 0009- ● ● ● ● ● ● ● ●
164 BOLT; CUSHION RUBBER,CAB MTG
(B) M12X25 		0-20801-225-0 02 1 0009- ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 06 1 0009- ● ● ● ● ● ● ● ●
166 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 02 1 0009- ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(A) M10 FLANGE 		0-91150-210-0 06 1 0009- ● ● ● ● ● ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
(B) M12 FLANGE 		0-91150-112-0 02 1 0009- ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 04 1 0009-0101 ● ● ● ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ●
171 WASHER; BODY MTG RUBBER
(B) ID=11 OD=48 T=6.0 THA 		8-97918-424-0 04 1 0009- ● ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0011 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0011 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0012-0101 ● ● ● ● ●
171 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0012-0101 ● ● ●
171 WASHER; BODY MTG RUBBER
(C) ID=11 OD=32 T=6.0 THA 		8-97918-425-0 02 1 0009- ● ●
172 WASHER; BODY MTG RUBBER
(B) ID=11 OD=32 T=6.0 THA 		8-97918-425-0 04 1 0009- ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 04 1 0009-0101 ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ● ● ● ● ● ● ●
172 WASHER; BODY MTG RUBBER
ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0102- ● ●
172 WASHER; BODY MTG RUBBER
(C) ID=11 OD=48 T=6.0 THA 		8-97918-424-0 02 1 0009- ● ●
172 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=29 THA 		8-97918-426-0 02 1 0009-0101 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
