5-01 — FRAME AND OTHER PARTS (#43621) — 133 parça

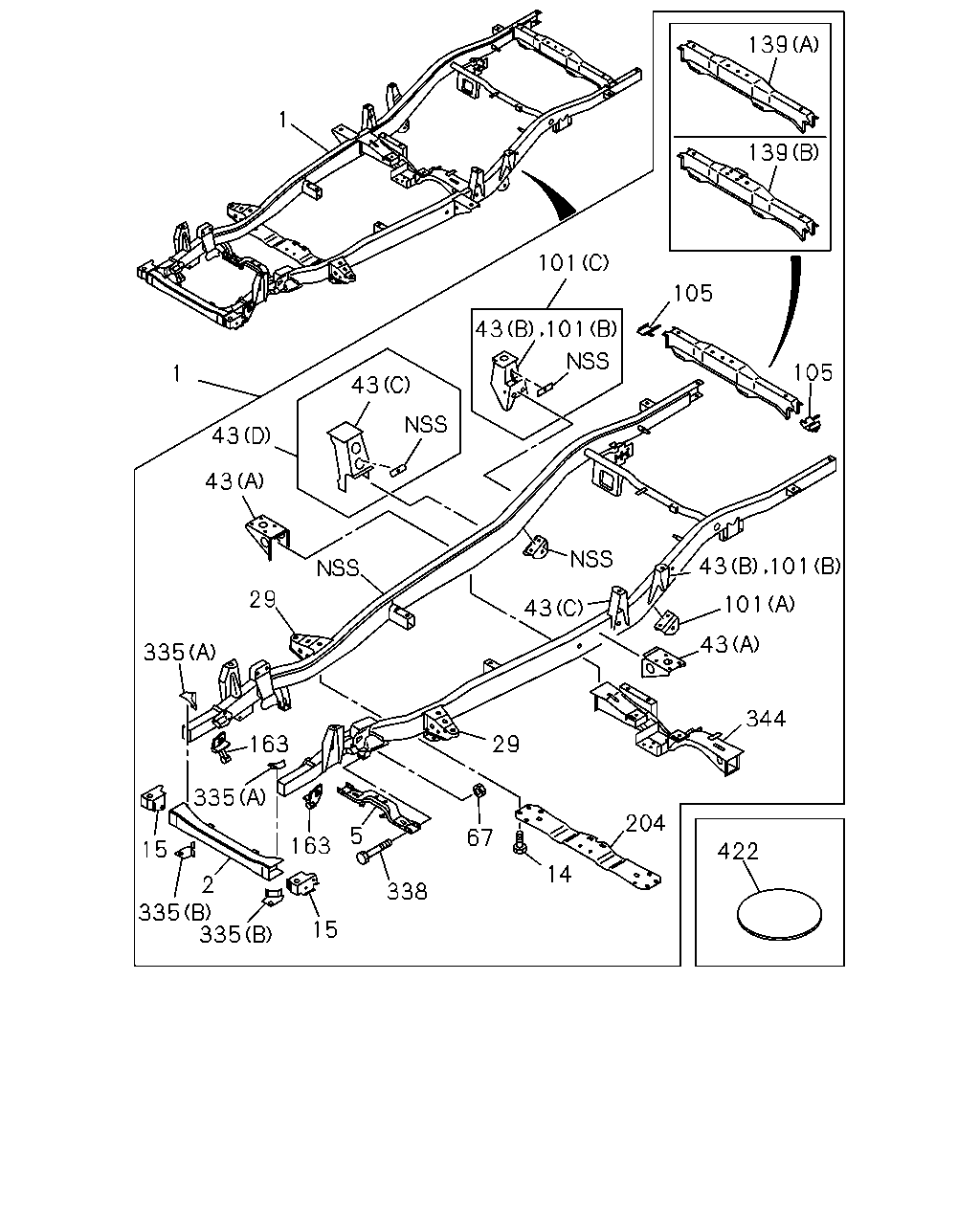

139 1 139 101 105 43 101 105 1 43 43 43 43 101 29 101 43 43 335 344 163 29 335 163 14 204 5 67 15 422 2 335 335 338 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	FRAME ASM 4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA	8-97919-364-3	01	1	0009-	●
1	FRAME ASM 4JH1 ENG<RJX> A/T AISIN<RMD> THA	8-97920-812-0	01	1	0009-	●
1	FRAME ASM 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97921-162-1	01	1	0009-	●
1	FRAME ASM A/T AISIN<RMD> THA	8-97920-813-0	01	1	0009-		●
1	FRAME ASM M/T MUA 5 SPEED<RMN> THA	8-97921-159-1	01	1	0009-		●
1	FRAME ASM THA	8-97919-361-2	01	1	0009-			●
1	FRAME ASM THA	8-97919-363-2	01	1	0009-				●
1	FRAME ASM A/T AISIN<RMD> THA	8-97921-239-0	01	1	0009-					●
1	FRAME ASM M/T MUA 5 SPEED<RMN> THA	8-97921-319-1	01	1	0009-					●
1	FRAME ASM THA	8-97921-161-1	01	1	0009-						●
1	FRAME ASM THA	8-97921-160-1	01	1	0009-							●
1	FRAME ASM THA	8-97921-320-1	01	1	0009-								●
2	MEMBER; CROSS,1ST THA	8-97910-437-0	01	1	0009-	●	●	●	●	●
2	MEMBER; CROSS,1ST THA	8-97910-438-0	01	1	0009-						●	●	●
5	MEMBER; CROSS,SUSPENSION	8-97144-943-0	01	1	0009-						●	●	●
14	BOLT; TRANS MTG MBR,FRAME 4JH1 ENG<RJX> A/T AISIN<RMD> M12X25 THA	8-97166-861-0	08	1	0009-	●	●			●
14	BOLT; TRANS MTG MBR,FRAME M12X25 THA	8-97166-861-0	08	1	0009-						●	●	●
15	BRACKET; BODY MTG,FRT THA	8-97910-451-0	01	1	0009-	●	●	●	●	●	●	●	●
15	BRACKET; BODY MTG,FRT THA	8-97910-450-1	01	1	0009-	●	●	●	●	●	●	●	●
29	BRACKET; CAB MTG THA	8-97915-043-0	01	1	0009-	●	●	●	●	●
29	BRACKET; CAB MTG THA	8-97915-042-0	01	1	0009-	●	●	●	●	●
29	BRACKET; CAB MTG THA	8-97915-538-0	01	1	0009-						●	●	●
29	BRACKET; CAB MTG THA	8-97915-545-0	01	1	0009-						●	●	●
43	BRACKET; CAB MTG,RR (C) THA	8-97910-455-0	01	1	0009-	●					●
43	BRACKET; CAB MTG,RR (C) THA	8-97910-454-1	01	1	0009-	●					●
43	BRACKET; CAB MTG,RR (D) THA	8-97919-722-1	01	1	0009-	●					●
43	BRACKET; CAB MTG,RR (B) THA	8-97910-038-0	02	1	0009-		●					●
43	BRACKET; CAB MTG,RR (A) THA	8-97919-379-0	02	1	0009-		●					●
43	BRACKET; CAB MTG,RR (A) THA	8-97910-453-0	02	1	0009-			●
43	BRACKET; CAB MTG,RR (B) THA	8-97911-442-0	01	1	0009-			●
43	BRACKET; CAB MTG,RR (B) THA	8-97911-441-0	01	1	0009-			●
43	BRACKET; CAB MTG,RR (A) THA	8-97910-452-0	02	1	0009-				●
67	NUT; C/MBR M10 FLANGE THA	8-94383-595-0	04	1	0009-						●	●	●
101	BRACKET; RR SPR,FRT (A) THA	8-97910-479-0	01	1	0009-	●	●	●	●	●
101	BRACKET; RR SPR,FRT (B) THA	8-97917-472-0	01	1	0009-0108	●			●		●
101	BRACKET; RR SPR,FRT THA	8-97917-472-0	02	1	0109-	●			●		●
101	BRACKET; RR SPR,FRT (B) THA	8-97917-471-0	01	1	0009-0108	●			●		●
101	BRACKET; RR SPR,FRT (C) THA	8-97919-723-1	01	1	0009-	●			●		●
101	BRACKET; RR SPR,FRT (A) THA	8-97910-480-1	01	1	0009-						●	●	●
105	BRACKET; RR SPR,RR THA	8-97910-325-1	01	1	0009-		●
105	BRACKET; RR SPR,RR THA	8-97910-492-0	01	1	0009-	●		●	●	●
105	BRACKET; RR SPR,RR THA	8-97910-490-0	01	1	0009-	●		●	●	●
105	BRACKET; RR SPR,RR THA	8-97910-326-1	01	1	0009-		●
105	BRACKET; RR SPR,RR THA	8-97910-493-0	01	1	0009-						●		●
105	BRACKET; RR SPR,RR THA	8-97910-491-0	01	1	0009-						●		●
139	MEMBER; CROSS,6TH (A) THA	8-97910-449-1	01	1	0009-	●	●	●	●	●	●	●	●
139	MEMBER; CROSS,6TH (B) THA	8-97912-695-1	01	1	0009-		●					●
163	BRACKET; LINK ARM THA	8-97915-494-0	01	1	0009-						●	●	●
163	BRACKET; LINK ARM THA	8-97915-493-0	01	1	0009-						●	●	●
204	MEMBER; CROSS,TRANS MTG 4JH1 ENG<RJX> A/T AISIN<RMD> THA	8-97911-072-0	01	1	0009-	●
204	MEMBER; CROSS,TRANS MTG A/T AISIN<RMD> THA	8-97911-072-0	01	1	0009-		●			●
204	MEMBER; CROSS,TRANS MTG THA	8-97921-384-0	01	1	0009-						●	●	●
335	PATCH; 1ST C/MBR (A) UPPER THA	8-97915-540-0	01	1	0009-						●	●	●
335	PATCH; 1ST C/MBR (B) LOWER THA	8-97915-542-0	01	1	0009-						●	●	●
335	PATCH; 1ST C/MBR (A) UPPER THA	8-97915-539-0	01	1	0009-						●	●	●
335	PATCH; 1ST C/MBR (B) LOWER THA	8-97915-541-0	01	1	0009-						●	●	●
338	BOLT; C/MBR,SUSPENSION M10X83 FLANGE	8-97805-841-0	04	1	0009-						●	●	●
344	MEMBER; CROSS,4TH THA	8-97910-445-2	01	1	0009-	●					●
344	MEMBER; CROSS,4TH THA	8-97910-039-1	01	1	0009-0108		●	●
344	MEMBER; CROSS,4TH THA	8-97922-153-0	01	1	0109-		●	●
344	MEMBER; CROSS,4TH THA	8-97910-894-0	01	1	0009-				●
344	MEMBER; CROSS,4TH THA	8-97921-322-0	01	1	0009-					●			●
344	MEMBER; CROSS,4TH THA	8-97919-424-1	01	1	0009-							●
422	SEAL; HOLE M/T MUA 5 SPEED<RMN> D=50 THA	8-97911-059-0	22	1	0111-		●
422	SEAL; HOLE D=50 THA	8-97911-059-0	22	1	0111-			●				●
422	SEAL; HOLE D=50 THA	8-97911-059-0	19	1	0111-						●		●
422	SEAL; HOLE D=50 THA	8-97911-059-0	21	1	0009-0110	●	●	●	●	●
422	SEAL; HOLE D=50 THA	8-97911-059-0	21	1	0111-	●				●
422	SEAL; HOLE D=50 THA	8-97911-059-0	20	1	0009-0110						●	●	●
422	SEAL; HOLE A/T AISIN<RMD> D=50 THA	8-97911-059-0	20	1	0111-		●
422	SEAL; HOLE D=50 THA	8-97911-059-0	20	1	0111-				●

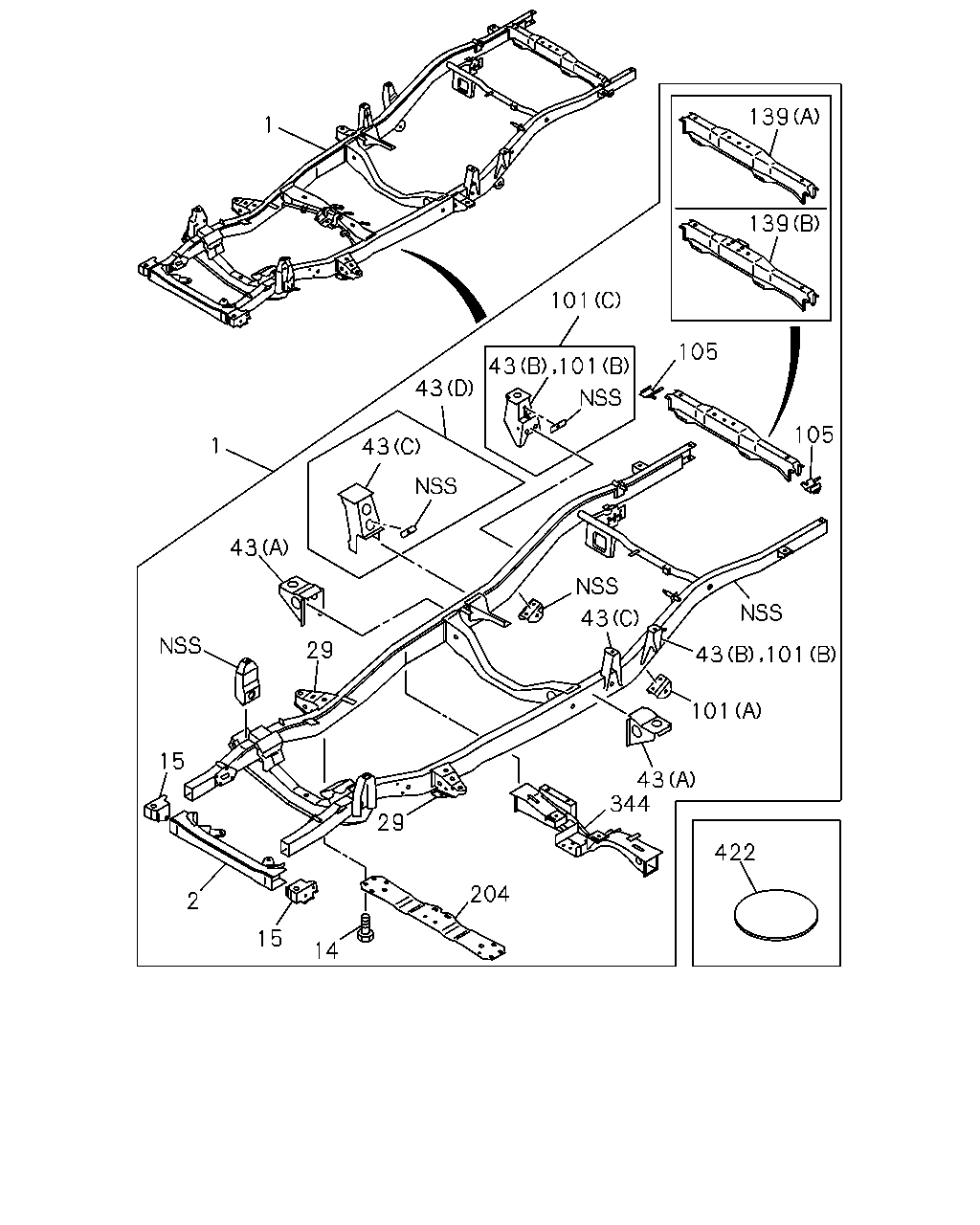

139 1 139 101 105 43 101 43 105 1 43 43 43 29 43 101 101 15 43 344 29 422 204 2 15 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	FRAME ASM 4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA	8-97919-364-3	01	1	0009-	●
1	FRAME ASM 4JH1 ENG<RJX> A/T AISIN<RMD> THA	8-97920-812-0	01	1	0009-	●
1	FRAME ASM 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA	8-97921-162-1	01	1	0009-	●
1	FRAME ASM A/T AISIN<RMD> THA	8-97920-813-0	01	1	0009-		●
1	FRAME ASM M/T MUA 5 SPEED<RMN> THA	8-97921-159-1	01	1	0009-		●
1	FRAME ASM THA	8-97919-361-2	01	1	0009-			●
1	FRAME ASM THA	8-97919-363-2	01	1	0009-				●
1	FRAME ASM A/T AISIN<RMD> THA	8-97921-239-0	01	1	0009-					●
1	FRAME ASM M/T MUA 5 SPEED<RMN> THA	8-97921-319-1	01	1	0009-					●
1	FRAME ASM THA	8-97921-161-1	01	1	0009-						●
1	FRAME ASM THA	8-97921-160-1	01	1	0009-							●
1	FRAME ASM THA	8-97921-320-1	01	1	0009-								●
2	MEMBER; CROSS,1ST THA	8-97910-437-0	01	1	0009-	●	●	●	●	●
2	MEMBER; CROSS,1ST THA	8-97910-438-0	01	1	0009-						●	●	●
14	BOLT; TRANS MTG MBR,FRAME 4JH1 ENG<RJX> A/T AISIN<RMD> M12X25 THA	8-97166-861-0	08	1	0009-	●	●			●
14	BOLT; TRANS MTG MBR,FRAME M12X25 THA	8-97166-861-0	08	1	0009-						●	●	●
15	BRACKET; BODY MTG,FRT THA	8-97910-451-0	01	1	0009-	●	●	●	●	●	●	●	●
15	BRACKET; BODY MTG,FRT THA	8-97910-450-1	01	1	0009-	●	●	●	●	●	●	●	●
29	BRACKET; CAB MTG THA	8-97915-043-0	01	1	0009-	●	●	●	●	●
29	BRACKET; CAB MTG THA	8-97915-042-0	01	1	0009-	●	●	●	●	●
29	BRACKET; CAB MTG THA	8-97915-538-0	01	1	0009-						●	●	●
29	BRACKET; CAB MTG THA	8-97915-545-0	01	1	0009-						●	●	●
43	BRACKET; CAB MTG,RR (C) THA	8-97910-455-0	01	1	0009-	●					●
43	BRACKET; CAB MTG,RR (C) THA	8-97910-454-1	01	1	0009-	●					●
43	BRACKET; CAB MTG,RR (D) THA	8-97919-722-1	01	1	0009-	●					●
43	BRACKET; CAB MTG,RR (B) THA	8-97910-038-0	02	1	0009-		●					●
43	BRACKET; CAB MTG,RR (A) THA	8-97919-379-0	02	1	0009-		●					●
43	BRACKET; CAB MTG,RR (A) THA	8-97910-453-0	02	1	0009-			●
43	BRACKET; CAB MTG,RR (B) THA	8-97911-442-0	01	1	0009-			●
43	BRACKET; CAB MTG,RR (B) THA	8-97911-441-0	01	1	0009-			●
43	BRACKET; CAB MTG,RR (A) THA	8-97910-452-0	02	1	0009-				●
101	BRACKET; RR SPR,FRT (A) THA	8-97910-479-0	01	1	0009-	●	●	●	●	●
101	BRACKET; RR SPR,FRT (B) THA	8-97917-472-0	01	1	0009-0108	●			●		●
101	BRACKET; RR SPR,FRT THA	8-97917-472-0	02	1	0109-	●			●		●
101	BRACKET; RR SPR,FRT (B) THA	8-97917-471-0	01	1	0009-0108	●			●		●
101	BRACKET; RR SPR,FRT (C) THA	8-97919-723-1	01	1	0009-	●			●		●
101	BRACKET; RR SPR,FRT (A) THA	8-97910-480-1	01	1	0009-						●	●	●
105	BRACKET; RR SPR,RR THA	8-97910-325-1	01	1	0009-		●
105	BRACKET; RR SPR,RR THA	8-97910-492-0	01	1	0009-	●		●	●	●
105	BRACKET; RR SPR,RR THA	8-97910-490-0	01	1	0009-	●		●	●	●
105	BRACKET; RR SPR,RR THA	8-97910-326-1	01	1	0009-		●
105	BRACKET; RR SPR,RR THA	8-97910-493-0	01	1	0009-						●		●
105	BRACKET; RR SPR,RR THA	8-97910-491-0	01	1	0009-						●		●
139	MEMBER; CROSS,6TH (A) THA	8-97910-449-1	01	1	0009-	●	●	●	●	●	●	●	●
139	MEMBER; CROSS,6TH (B) THA	8-97912-695-1	01	1	0009-		●					●
204	MEMBER; CROSS,TRANS MTG 4JH1 ENG<RJX> A/T AISIN<RMD> THA	8-97911-072-0	01	1	0009-	●
204	MEMBER; CROSS,TRANS MTG A/T AISIN<RMD> THA	8-97911-072-0	01	1	0009-		●			●
204	MEMBER; CROSS,TRANS MTG THA	8-97921-384-0	01	1	0009-						●	●	●
344	MEMBER; CROSS,4TH THA	8-97910-445-2	01	1	0009-	●					●
344	MEMBER; CROSS,4TH THA	8-97910-039-1	01	1	0009-0108		●	●
344	MEMBER; CROSS,4TH THA	8-97922-153-0	01	1	0109-		●	●
344	MEMBER; CROSS,4TH THA	8-97910-894-0	01	1	0009-				●
344	MEMBER; CROSS,4TH THA	8-97921-322-0	01	1	0009-					●			●
344	MEMBER; CROSS,4TH THA	8-97919-424-1	01	1	0009-							●
422	SEAL; HOLE M/T MUA 5 SPEED<RMN> D=50 THA	8-97911-059-0	22	1	0111-		●
422	SEAL; HOLE D=50 THA	8-97911-059-0	22	1	0111-			●				●
422	SEAL; HOLE D=50 THA	8-97911-059-0	19	1	0111-						●		●
422	SEAL; HOLE D=50 THA	8-97911-059-0	21	1	0009-0110	●	●	●	●	●
422	SEAL; HOLE D=50 THA	8-97911-059-0	21	1	0111-	●				●
422	SEAL; HOLE D=50 THA	8-97911-059-0	20	1	0009-0110						●	●	●
422	SEAL; HOLE A/T AISIN<RMD> D=50 THA	8-97911-059-0	20	1	0111-		●
422	SEAL; HOLE D=50 THA	8-97911-059-0	20	1	0111-				●
