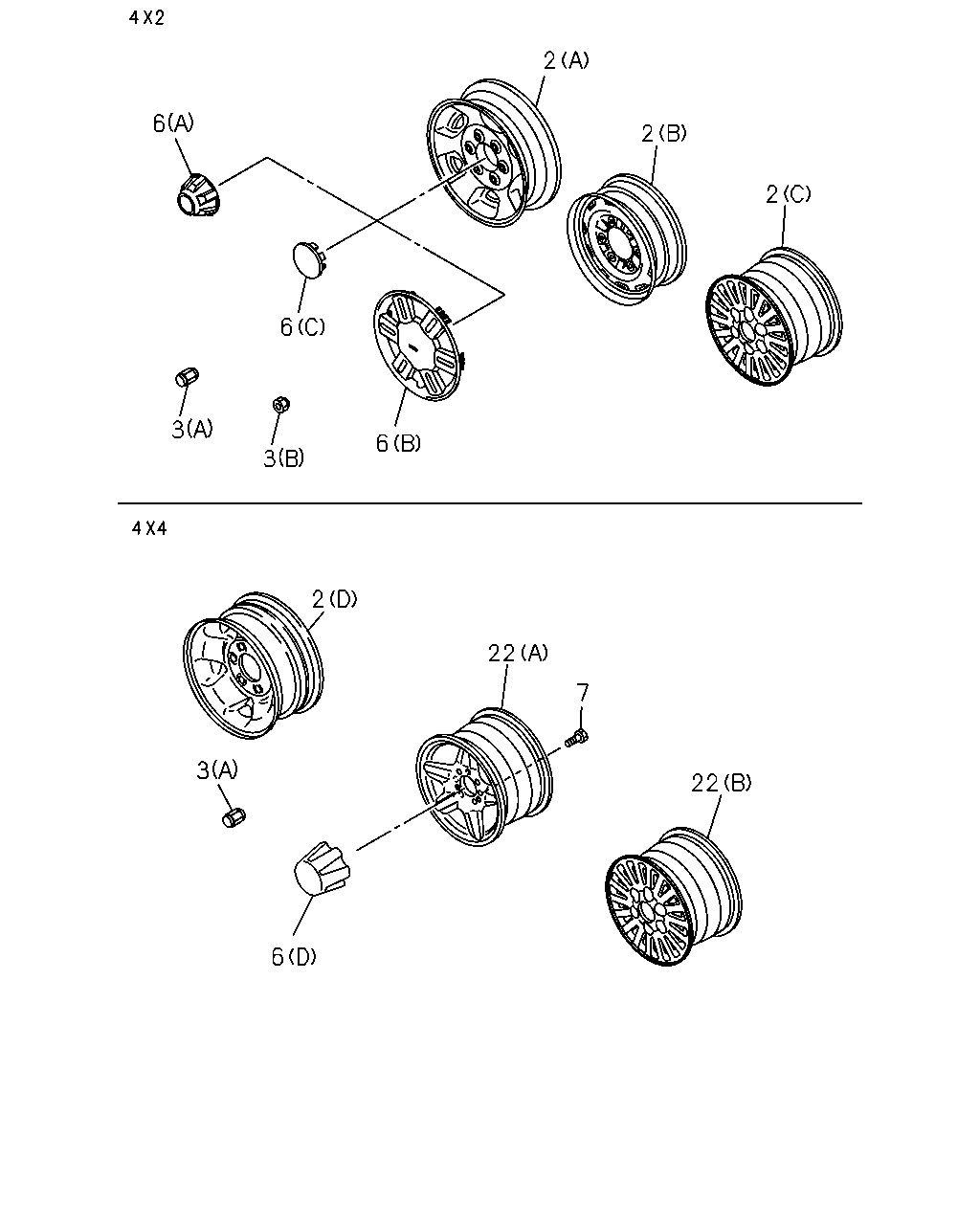

4-80 — ROAD WHEEL (#43620) — 39 parça

2 6 2 2 6 3 6 3 2 22 7 3 22 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	WHEEL; DISC FRT&RR 215R15-105S 6JJX15 ALUMI<BTA> THA	8-97941-199-0	01	1	0009-0104	●	●	●
2	WHEEL; DISC FRT&RR 215R15-105S 6JJX15 ALUMI<BTA> THA	8-97922-012-0	01	1	0105-	●	●	●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> SPECIAL PACKAGE VAR 2<7SB> (B) KAP OFFSET=30 THA	8-97915-722-0	05	1	0009-0011	●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> SPECIAL PACKAGE VAR 2<7SB> (B) KAP OFFSET=30 THA	8-97915-722-0	01	1	0012-	●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> (B) KAP OFFSET=30 THA	8-97915-722-0	01	1	0012-				●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> (B) KAP OFFSET=30 THA	8-97915-721-0	05	1	0009-	●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> (B) KAP OFFSET=30 THA	8-97915-721-0	05	1	0009-					●
2	WHEEL; DISC FRT&RR 205R14-8PR 5.5JJX14 ALUMI<BPX> (B) SPARE WHEEL KAP OFFSET=20 THA	8-97911-340-1	01	1	0009-	●
2	WHEEL; DISC FRT&RR 205R14-8PR 5.5JJX14 ALUMI<BPX> (C) SLCL OFFSET=20 THA	8-97918-897-1	04	1	0009-	●
2	WHEEL; DISC FRT&RR 215R15 105S 6JJX15 STYLED<AWB> (A) 14X5J OFFSET=30 PLATINUM SILVER THA	8-97188-404-0	05	1	0009-	●	●
2	WHEEL; DISC (A) 14X5J OFFSET=30 PLATINUM SILVER THA	8-97188-404-0	05	1	0009-			●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> (B) KAP OFFSET=30 THA	8-97915-722-0	05	1	0009-				●
2	WHEEL; DISC FRT&RR 215R15-6 5.5KX15 STYLED WHL<9RF> (D) 15X5J OFFSET=30 PLATINUM SILVER THA	8-97061-823-1	05	1	0009-						●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> SPECIAL PACKAGE VAR 2<7SB> (B) KAP OFFSET=30 THA	8-97915-722-0	04	1	0012-	●
2	WHEEL; DISC FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> (B) KAP OFFSET=30 THA	8-97915-722-0	04	1	0012-				●
3	NUT; WHEEL,FRT AXLE FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> SPECIAL PACKAGE VAR 2<7SB> (B) THA	8-97910-333-0	24	1	0009-	●
3	NUT; WHEEL,FRT AXLE FRT&RR 195R14-8PR 5JJX14 STEEL<BPY> (B) THA	8-97910-333-0	24	1	0009-				●
3	NUT; WHEEL,FRT AXLE EXC. SPECIAL PACKAGE VAR 2<7SB> (A) M12 H=30.5 THA	8-97911-311-0	24	1	0009-	●
3	NUT; WHEEL,FRT AXLE (A) M12 H=30.5 THA	8-97911-311-0	24	1	0009-		●	●		●	●	●	●
6	CAP; WHEEL FRT&RR 215R15-105S 6JJX15 ALUMI<BTA> THA	8-97920-988-0	04	1	0009-	●	●
6	CAP; WHEEL FRT&RR 205R14-8PR 5.5JJX14 ALUMI<BPX> (C) THA	8-97917-916-0	04	1	0009-	●
6	CAP; WHEEL HUB CAP WHEEL BLACK<PA5> EXC. SPECIAL PACKAGE<7BB>,SPECIAL PACKAGE VAR 2<7SB> (A) WO/HOLE THA	8-97910-997-0	04	1	0009-	●
6	CAP; WHEEL (A) WO/HOLE THA	8-97910-997-0	04	1	0009-					●
6	CAP; WHEEL SPECIAL PACKAGE VAR 2<7SB> (B) THA	8-97914-899-2	04	1	0009-	●
6	CAP; WHEEL (B) THA	8-97914-899-2	04	1	0009-				●
6	CAP; WHEEL FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> EXC. FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> (D) THA	8-97917-917-0	04	1	0009-						●
6	CAP; WHEEL FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> (D) THA	8-97917-917-0	04	1	0009-						●
6	CAP; WHEEL (D) THA	8-97917-917-0	04	1	0009-							●	●
7	SCREW; HUB CAP FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> EXC. FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> THA	8-97918-488-0	12	1	0009-0106						●
7	SCREW; HUB CAP FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> THA	8-97918-488-0	12	1	0009-0106						●
7	SCREW; HUB CAP THA	8-97918-488-0	12	1	0009-0106							●	●
7	SCREW; HUB CAP FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> EXC. FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> THA	8-97921-830-0	12	1	0107-						●
7	SCREW; HUB CAP FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> THA	8-97921-830-0	12	1	0107-						●
7	SCREW; HUB CAP THA	8-97921-830-0	12	1	0107-							●	●
22	WHEEL; DISC,AL FRT&RR 215R15-105S 6JJX15 ALUMI<BTA> THA	8-97919-960-3	04	1	0009-	●	●	●
22	WHEEL; DISC,AL FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> SLC1 THA	8-97919-001-0	05	1	0009-						●
22	WHEEL; DISC,AL FRT&RR 205R14-8PR 5.5JJX14 ALUMI<BPX> (B) EKT THA	8-97917-920-0	04	1	0009-	●
22	WHEEL; DISC,AL FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> (A) THA	8-97921-219-1	05	1	0009-						●
22	WHEEL; DISC,AL (A) THA	8-97921-219-1	05	1	0009-							●	●
