Sayfa 4-65 - Isuzu EPC

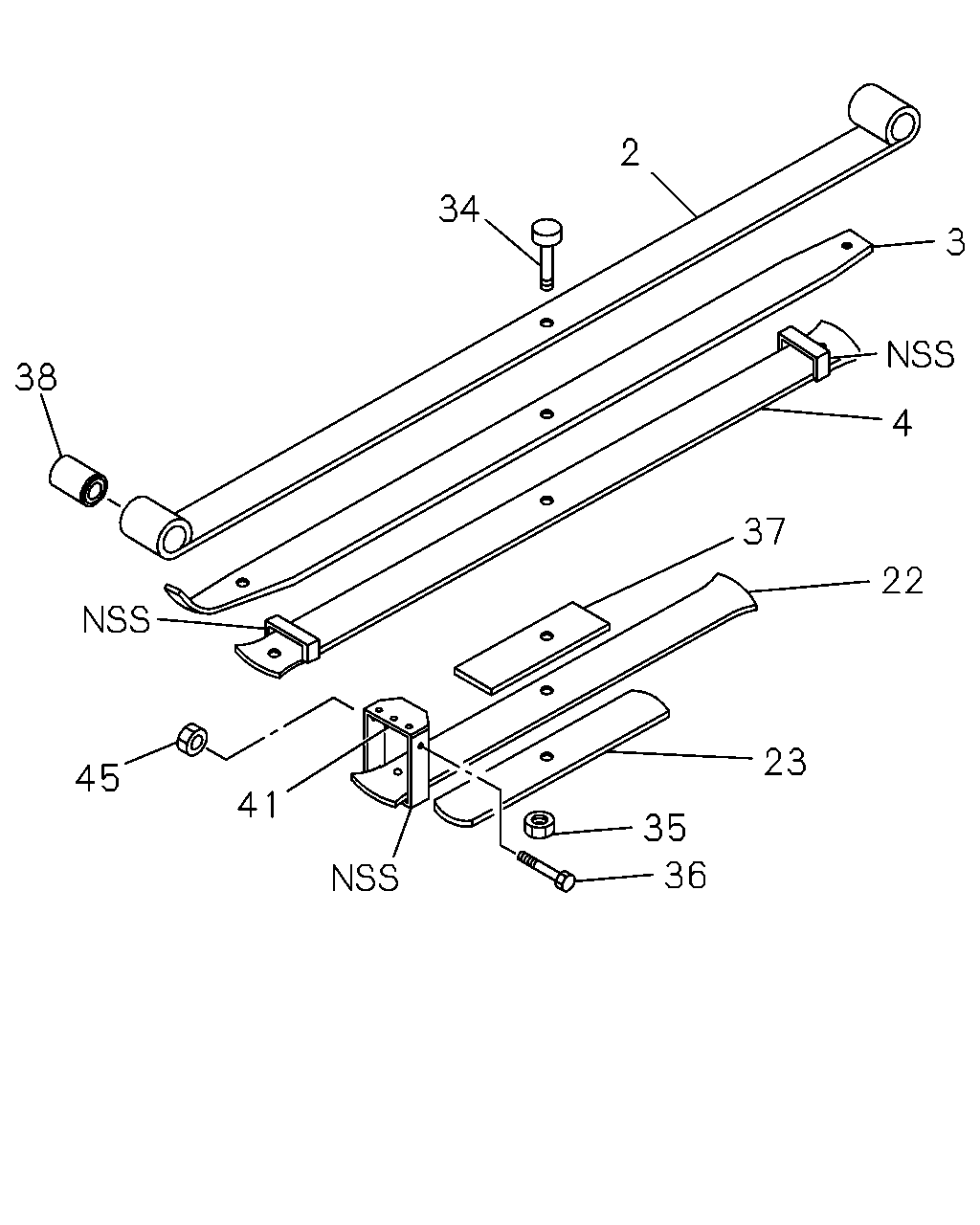

4-65 — REAR LEAF SPRING (#43619) — 481 parça

2 34 3 4 38 40 5 22 23 45 41 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-420-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97061-967-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97061-971-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-708-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-368-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-402-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-418-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-483-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-975-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-489-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-421-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-578-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-598-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-709-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-369-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-403-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-419-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-976-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-490-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-579-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-599-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97173-714-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-710-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-370-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-404-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-420-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-823-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97914-637-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-491-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-580-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-600-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-711-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-371-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-492-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97173-713-0	8-97024-423-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-581-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-601-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-712-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97917-930-1	8-97912-333-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-372-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-405-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-421-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-825-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-493-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-209-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-213-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-713-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-373-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-406-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-422-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-494-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=46, THA ASM PART: D = 8-97173-713-0	8-94468-048-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=65, THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94482-175-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97913-376-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-407-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-425-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, J = 8-97917-930-1	8-97913-974-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2	8-97914-385-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, J = 8-97917-930-1	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR ASM PART: K = 8-97919-127-1	9-09111-008-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-390-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-411-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-430-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: J = 8-97917-930-1	8-97913-996-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94171-274-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97913-380-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94406-909-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94479-181-0	06	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94479-181-0	03	1	-
40	LINER; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0	8-97913-392-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97911-110-3	8-97913-414-0	02	1	-
40	LINER; LEAF SPR,RR (C), THA ASM PART: J = 8-97917-930-1	8-97914-662-0	01	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: F = 8-97910-177-3	8-97921-315-0	04	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: J = 8-97917-930-1	8-97921-315-0	03	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97921-315-0	06	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97911-110-3	8-97921-316-0	02	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94368-490-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: J = 8-97917-930-1	8-97912-242-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-384-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: H = 8-97911-110-3	8-97913-409-1	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: I = 8-97911-111-2	8-97913-427-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97914-325-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: F = 8-97910-177-3	8-97914-325-0	02	1	-

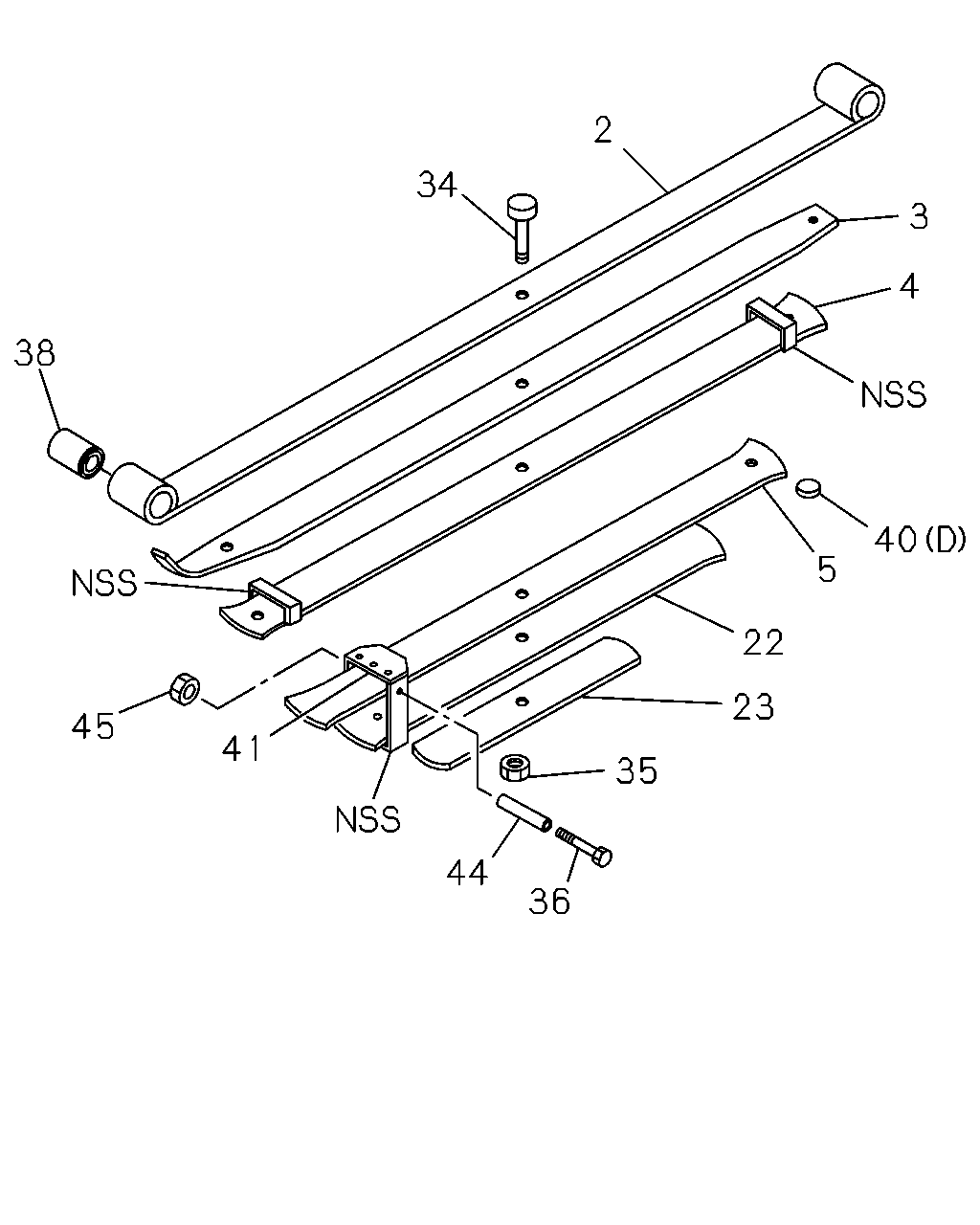

2 34 3 4 38 40 5 22 23 45 41 35 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-420-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97061-967-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97061-971-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-708-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-368-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-402-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-418-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-483-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-975-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-489-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-421-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-578-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-598-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-709-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-369-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-403-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-419-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-976-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-490-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-579-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-599-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97173-714-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-710-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-370-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-404-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-420-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-823-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97914-637-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-491-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-580-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-600-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-711-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-371-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-492-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97173-713-0	8-97024-423-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-581-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-601-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-712-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97917-930-1	8-97912-333-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-372-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-405-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-421-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-825-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-493-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-209-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-213-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-713-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-373-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-406-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-422-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-494-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=46, THA ASM PART: D = 8-97173-713-0	8-94468-048-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=65, THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94482-175-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97913-376-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-407-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-425-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, J = 8-97917-930-1	8-97913-974-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2	8-97914-385-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, J = 8-97917-930-1	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR ASM PART: K = 8-97919-127-1	9-09111-008-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-390-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-411-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-430-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: J = 8-97917-930-1	8-97913-996-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94171-274-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97913-380-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94406-909-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94479-181-0	06	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94479-181-0	03	1	-
40	LINER; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0	8-97913-392-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97911-110-3	8-97913-414-0	02	1	-
40	LINER; LEAF SPR,RR (C), THA ASM PART: J = 8-97917-930-1	8-97914-662-0	01	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: F = 8-97910-177-3	8-97921-315-0	04	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: J = 8-97917-930-1	8-97921-315-0	03	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97921-315-0	06	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97911-110-3	8-97921-316-0	02	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94368-490-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: J = 8-97917-930-1	8-97912-242-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-384-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: H = 8-97911-110-3	8-97913-409-1	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: I = 8-97911-111-2	8-97913-427-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3	8-97913-397-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-412-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-431-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97914-325-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: F = 8-97910-177-3	8-97914-325-0	02	1	-

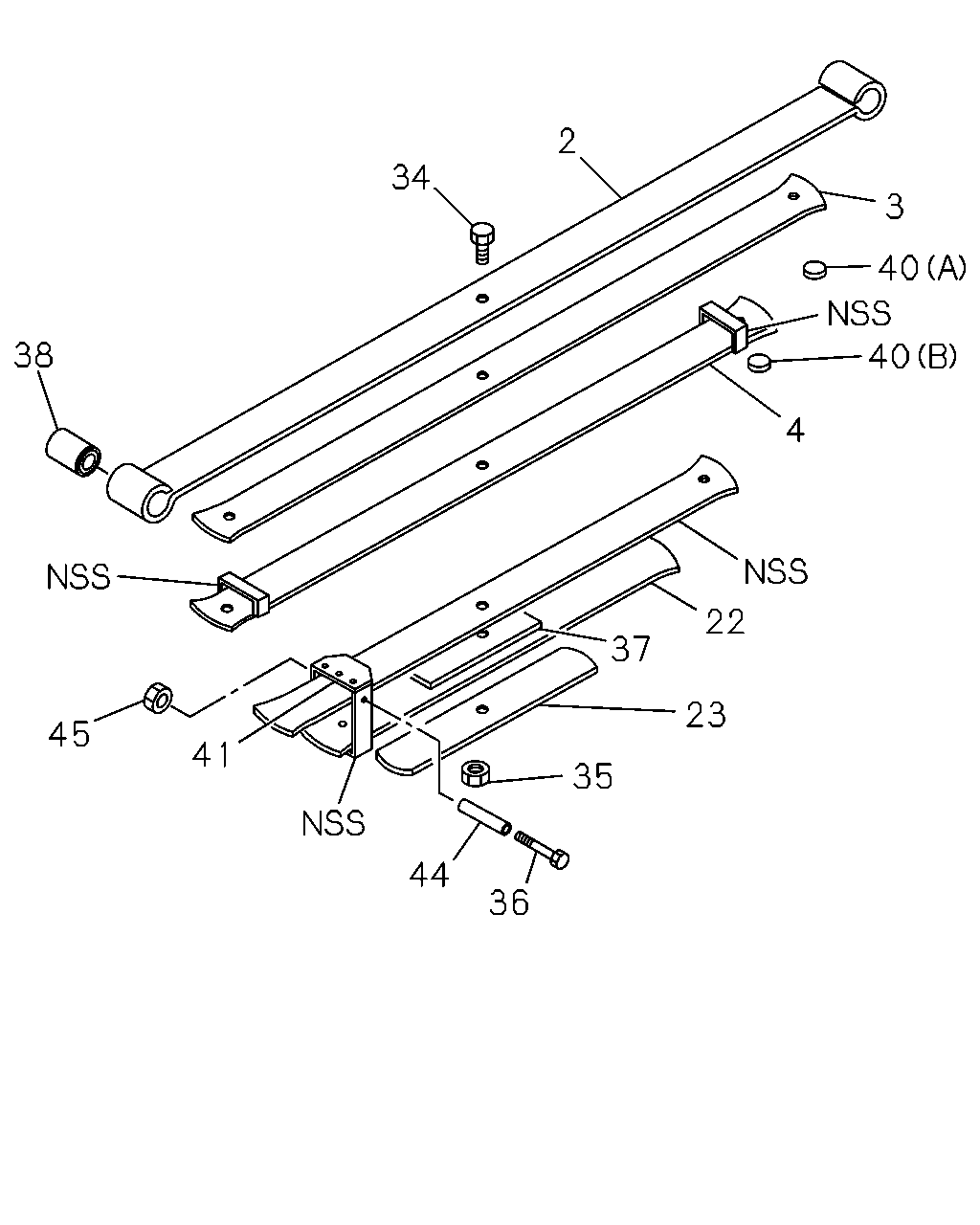

2 34 3 38 4 37 22 23 45 41 35 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-420-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97061-967-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97061-971-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-708-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-368-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-402-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-418-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-483-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-975-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-489-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-421-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-578-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-598-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-709-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-369-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-403-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-419-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-976-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-490-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-579-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-599-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97173-714-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-710-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-370-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-404-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-420-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-823-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97914-637-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-491-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97173-713-0	8-97024-423-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-581-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-601-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-712-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97917-930-1	8-97912-333-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-372-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-405-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-421-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-825-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-493-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-209-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-213-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-713-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-373-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-406-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-422-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-494-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=46, THA ASM PART: D = 8-97173-713-0	8-94468-048-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=65, THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94482-175-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97913-376-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-407-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-425-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, J = 8-97917-930-1	8-97913-974-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2	8-97914-385-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, J = 8-97917-930-1	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR ASM PART: K = 8-97919-127-1	9-09111-008-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-390-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-411-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-430-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: J = 8-97917-930-1	8-97913-996-1	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-415-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-432-0	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94171-274-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97913-380-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94368-490-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: J = 8-97917-930-1	8-97912-242-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-384-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: H = 8-97911-110-3	8-97913-409-1	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: I = 8-97911-111-2	8-97913-427-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97914-325-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: F = 8-97910-177-3	8-97914-325-0	02	1	-

2 40 34 3 40 38 4 40 41 22 40 61 35 36 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-420-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97061-967-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97061-971-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-708-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-368-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-402-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-418-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-483-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-975-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-489-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-421-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-578-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-598-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-709-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-369-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-403-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-419-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-976-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-490-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-579-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-599-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97173-714-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-710-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-370-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-404-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-420-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-823-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97914-637-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-491-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97173-713-0	8-97024-423-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-581-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-601-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-712-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97917-930-1	8-97912-333-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-372-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-405-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-421-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-825-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-493-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=46, THA ASM PART: D = 8-97173-713-0	8-94468-048-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=65, THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94482-175-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97913-376-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-407-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-425-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, J = 8-97917-930-1	8-97913-974-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2	8-97914-385-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, J = 8-97917-930-1	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR ASM PART: K = 8-97919-127-1	9-09111-008-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-390-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-411-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-430-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: J = 8-97917-930-1	8-97913-996-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94171-274-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97913-380-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94406-909-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94479-181-0	06	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94479-181-0	03	1	-
40	LINER; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0	8-97913-392-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97911-110-3	8-97913-414-0	02	1	-
40	LINER; LEAF SPR,RR (C), THA ASM PART: J = 8-97917-930-1	8-97914-662-0	01	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: F = 8-97910-177-3	8-97921-315-0	04	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: J = 8-97917-930-1	8-97921-315-0	03	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97921-315-0	06	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97911-110-3	8-97921-316-0	02	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94368-490-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: J = 8-97917-930-1	8-97912-242-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-384-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: H = 8-97911-110-3	8-97913-409-1	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: I = 8-97911-111-2	8-97913-427-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97914-325-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: F = 8-97910-177-3	8-97914-325-0	02	1	-
61	PLATE; CLAMP THA ASM PART: D = 8-97173-713-0	8-94406-913-0	03	1	-
61	PLATE; CLAMP THA ASM PART: J = 8-97917-930-1	8-97914-661-0	03	1	-

2 34 3 40 40 38 4 22 37 23 45 41 35 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-420-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97061-967-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97061-971-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-708-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-368-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-402-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-418-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-483-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-975-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-489-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-421-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-578-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-598-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-709-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-369-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-403-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-419-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-976-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-490-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-579-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-599-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97173-714-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-710-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-370-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-404-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-420-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-823-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97914-637-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-491-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97173-713-0	8-97024-423-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-581-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-601-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-712-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97917-930-1	8-97912-333-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-372-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-405-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-421-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-825-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-493-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-209-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-213-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-713-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-373-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-406-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-422-1	01	1	-
23	SPRING; LEAF,NO 2,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-494-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=46, THA ASM PART: D = 8-97173-713-0	8-94468-048-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=65, THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94482-175-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97913-376-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-407-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-425-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, J = 8-97917-930-1	8-97913-974-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2	8-97914-385-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, J = 8-97917-930-1	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR ASM PART: K = 8-97919-127-1	9-09111-008-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-390-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-411-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-430-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: J = 8-97917-930-1	8-97913-996-1	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-415-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-432-0	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94171-274-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97913-380-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94406-909-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94479-181-0	06	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94479-181-0	03	1	-
40	LINER; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0	8-97913-392-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97911-110-3	8-97913-414-0	02	1	-
40	LINER; LEAF SPR,RR (C), THA ASM PART: J = 8-97917-930-1	8-97914-662-0	01	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: F = 8-97910-177-3	8-97921-315-0	04	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: J = 8-97917-930-1	8-97921-315-0	03	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97921-315-0	06	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97911-110-3	8-97921-316-0	02	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94368-490-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: J = 8-97917-930-1	8-97912-242-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-384-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: H = 8-97911-110-3	8-97913-409-1	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: I = 8-97911-111-2	8-97913-427-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3	8-97913-397-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-412-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-431-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97914-325-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: F = 8-97910-177-3	8-97914-325-0	02	1	-

2 34 3 40 38 4 22 35 45 41 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-420-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97061-967-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97061-971-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-708-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-368-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-402-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-418-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-483-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-975-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-489-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97024-421-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-578-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-598-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-709-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-369-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-403-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-419-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-976-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97913-997-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-490-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: A = 8-97062-577-0	8-97062-579-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: B = 8-97062-597-0	8-97062-599-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: D = 8-97173-713-0	8-97173-714-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: E = 8-97219-622-0	8-97222-710-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: G = 8-97911-109-3	8-97913-370-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-404-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-420-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-823-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: J = 8-97917-930-1	8-97914-637-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN THA ASM PART: K = 8-97919-127-1	8-97919-491-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: D = 8-97173-713-0	8-97024-423-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: A = 8-97062-577-0	8-97062-581-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: B = 8-97062-597-0	8-97062-601-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: E = 8-97219-622-0	8-97222-712-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: J = 8-97917-930-1	8-97912-333-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: G = 8-97911-109-3	8-97913-372-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: H = 8-97911-110-3	8-97913-405-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: I = 8-97911-111-2	8-97913-421-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3	8-97913-825-1	01	1	-
22	SPRING; LEAF,NO 1,RR SUB THA ASM PART: K = 8-97919-127-1	8-97919-493-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=46, THA ASM PART: D = 8-97173-713-0	8-94468-048-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=65, THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94482-175-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97913-376-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-407-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-425-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, J = 8-97917-930-1	8-97913-974-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2	8-97914-385-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, J = 8-97917-930-1	9-09110-008-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR ASM PART: K = 8-97919-127-1	9-09111-008-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94468-262-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-390-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: H = 8-97911-110-3	8-97913-411-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: I = 8-97911-111-2	8-97913-430-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR THA ASM PART: J = 8-97917-930-1	8-97913-996-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94171-274-1	01	1	-
38	BUSHING; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97913-380-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94406-909-0	01	1	-
40	LINER; LEAF SPR,RR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, E = 8-97219-622-0	8-94479-181-0	06	1	-
40	LINER; LEAF SPR,RR THA ASM PART: D = 8-97173-713-0	8-94479-181-0	03	1	-
40	LINER; LEAF SPR,RR THA ASM PART: C = 8-97166-067-0	8-97913-392-0	04	1	-
40	LINER; LEAF SPR,RR (B), THA ASM PART: H = 8-97911-110-3	8-97913-414-0	02	1	-
40	LINER; LEAF SPR,RR (C), THA ASM PART: J = 8-97917-930-1	8-97914-662-0	01	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: F = 8-97910-177-3	8-97921-315-0	04	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: J = 8-97917-930-1	8-97921-315-0	03	1	-
40	LINER; LEAF SPR,RR (D), THA ASM PART: G = 8-97911-109-3, K = 8-97919-127-1	8-97921-315-0	06	1	-
40	LINER; LEAF SPR,RR (A), THA ASM PART: H = 8-97911-110-3	8-97921-316-0	02	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: A = 8-97062-577-0, B = 8-97062-597-0, D = 8-97173-713-0, E = 8-97219-622-0	8-94368-490-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: J = 8-97917-930-1	8-97912-242-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3, K = 8-97919-127-1	8-97913-384-0	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: H = 8-97911-110-3	8-97913-409-1	01	1	-
41	CLIP SUB ASM; RR SPR THA ASM PART: I = 8-97911-111-2	8-97913-427-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, F = 8-97910-177-3, G = 8-97911-109-3	8-97913-397-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: H = 8-97911-110-3	8-97913-412-0	01	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN THA ASM PART: I = 8-97911-111-2	8-97913-431-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: C = 8-97166-067-0, G = 8-97911-109-3, H = 8-97911-110-3, I = 8-97911-111-2, J = 8-97917-930-1, K = 8-97919-127-1	8-97914-325-0	01	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN THA ASM PART: F = 8-97910-177-3	8-97914-325-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
