◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#43618) — 30 parça

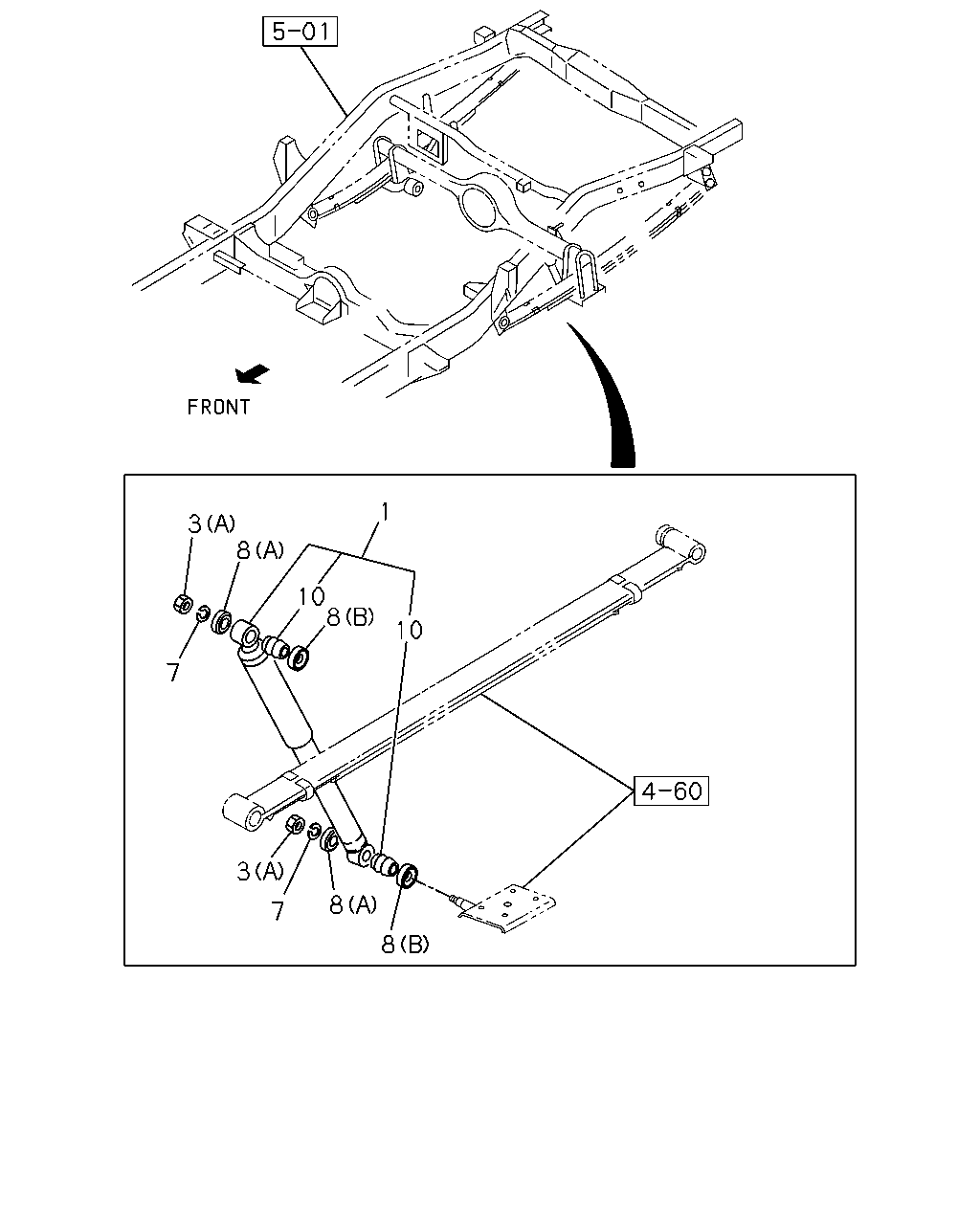

çizim 47923
1 3 8 10 8 10 7 3 8 7 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 ABSORBER ASM; SHOCK,RR
KYB THA 		8-97911-301-1 02 1 0009- ● ● ● ●
1 ABSORBER ASM; SHOCK,RR
TOKICO THA 		8-97918-328-0 02 1 0009- ● ● ● ●
1 ABSORBER ASM; SHOCK,RR
TOKICO 		8-94454-920-2 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-128-0 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97919-128-0 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97911-300-1 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97913-741-1 02 1 0009- ●
3 NUT; S/ABS
(A) M12 		9-99111-412-0 04 1 0009- ● ● ● ● ● ● ● ●
3 NUT; S/ABS
(B) M10 THA 		8-97913-685-0 02 1 0009- ●
7 WASHER; LK,S/ABS
ID=12.2 		9-09150-512-0 04 1 0009- ● ● ● ● ● ● ● ●
8 WASHER; S/ABS
(B) ID=16.5 THA 		8-94445-688-0 04 1 0009- ● ● ● ● ● ● ● ●
8 WASHER; S/ABS
(A) ID=12.5 		9-51679-022-0 04 1 0009- ● ● ● ● ● ● ● ●
8 WASHER; S/ABS
(C) THA 		8-97913-312-0 04 1 0009- ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97913-746-0 04 1 0009- ● ● ● ●
10 BUSHING; RUBBER,S/ABS
THA 		8-97913-746-0 04 1 0009- ● ●
10 BUSHING; RUBBER,S/ABS
TOKICO THA 		8-94224-694-0 02 1 0009- ●
çizim 49671
3 8 5 5 8 1 3 7 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 ABSORBER ASM; SHOCK,RR
KYB THA 		8-97911-301-1 02 1 0009- ● ● ● ●
1 ABSORBER ASM; SHOCK,RR
TOKICO THA 		8-97918-328-0 02 1 0009- ● ● ● ●
1 ABSORBER ASM; SHOCK,RR
TOKICO 		8-94454-920-2 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-128-0 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97919-128-0 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97911-300-1 02 1 0009- ●
1 ABSORBER ASM; SHOCK,RR
THA 		8-97913-741-1 02 1 0009- ●
3 NUT; S/ABS
(A) M12 		9-99111-412-0 04 1 0009- ● ● ● ● ● ● ● ●
3 NUT; S/ABS
(B) M10 THA 		8-97913-685-0 02 1 0009- ●
5 BUSHING; RUBBER,S/ABS,UPR
THA 		8-97913-678-0 04 1 0009- ●
7 WASHER; LK,S/ABS
ID=12.2 		9-09150-512-0 04 1 0009- ● ● ● ● ● ● ● ●
8 WASHER; S/ABS
(B) ID=16.5 THA 		8-94445-688-0 04 1 0009- ● ● ● ● ● ● ● ●
8 WASHER; S/ABS
(A) ID=12.5 		9-51679-022-0 04 1 0009- ● ● ● ● ● ● ● ●
8 WASHER; S/ABS
(C) THA 		8-97913-312-0 04 1 0009- ●
