4-60 — REAR SUSPENSION (#43617) — 27 parça

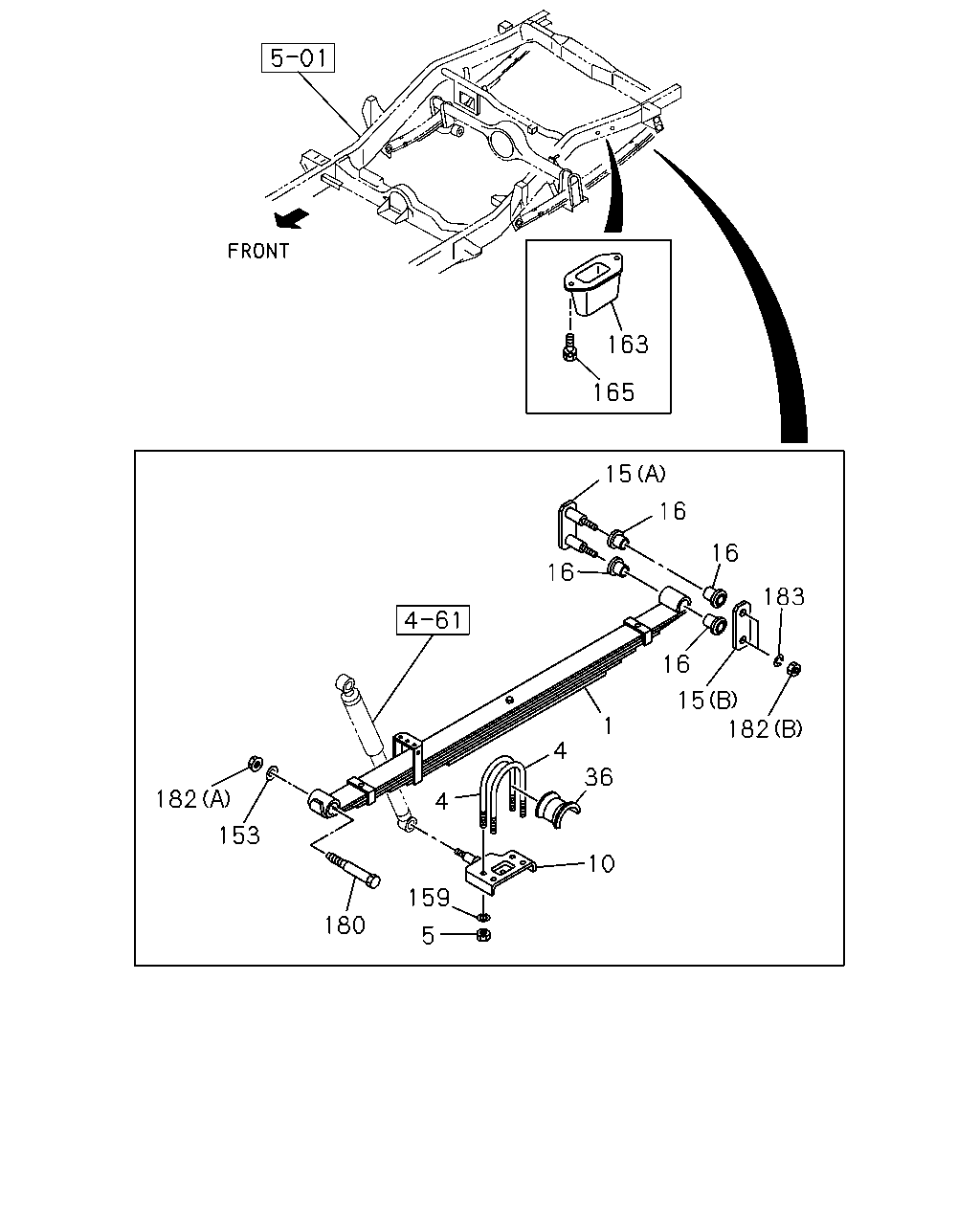

çizim 50086
163 165 15 16 16 16 183 16 15 182 1 4 36 182 153 4 159 10 180 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97911-110-3 02 1 0009- ● ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97910-177-3 02 1 0009- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97911-111-2 02 1 0009- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-127-1 02 1 0009- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97919-127-1 02 1 0009- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97911-109-3 02 1 0009- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		8-97917-930-1 02 1 0009- ●
4 U-BOLT; RR SPR
ATC THA 		8-97910-341-0 04 1 0009- ● ● ● ●
4 U-BOLT; RR SPR
MAP THA 		8-97912-770-0 04 1 0009- ● ● ● ●
4 U-BOLT; RR SPR
THA 		8-97910-474-0 04 1 0009- ● ●
4 U-BOLT; RR SPR
THA 		8-97911-116-0 04 1 0009- ● ●
5 NUT; U-BOLT,RR SPR
M14 THA 		9-99110-514-0 08 1 0009- ● ● ● ● ● ● ● ●
10 CLAMP; LWR,RR SPR
THA 		8-97915-816-0 02 1 0009- ● ● ● ● ● ● ●
10 CLAMP; LWR,RR SPR 8-94473-188-0 02 1 0009- ●
15 SHACKLE; RR SPR
(A) THA 		8-97911-114-0 02 1 0009- ● ● ● ● ● ● ● ●
15 SHACKLE; RR SPR
(B) THA 		8-97911-115-0 02 1 0009- ● ● ● ● ● ● ● ●
16 BUSHING; SHACKLE,RR SPR
THA 		8-97911-113-0 08 1 0009- ● ● ● ● ● ● ● ●
36 SEAT; HELPER RUBBER,RR SPR
THA 		8-97918-427-0 02 1 0009- ● ● ● ● ● ● ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 THA 		8-94476-635-0 02 1 0009- ● ● ● ● ● ● ● ●
159 WASHER; LK,RR SPR
ID=14.2 		9-09150-614-0 08 1 0009- ● ● ● ● ● ● ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97911-118-0 02 1 0009- ● ● ● ● ●
163 RUBBER; HELPER,RR SPR
THA 		8-97911-117-0 02 1 0009- ● ● ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER 		0-50041-020-0 04 1 0009- ● ● ● ● ● ● ● ●
180 PIN; RR SPR
M14X106 THA 		8-97911-112-0 02 1 0009- ● ● ● ● ● ● ● ●
182 NUT; PIN,RR SPR
(A) M14 		8-94232-849-0 02 1 0009- ● ● ● ● ● ● ● ●
182 NUT; PIN,RR SPR
(B) M14 		9-99110-414-0 04 1 0009- ● ● ● ● ● ● ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-614-0 04 1 0009- ● ● ● ● ● ● ● ●
