4-50 — FRONT SUSPENSION (#43616) — 169 parça

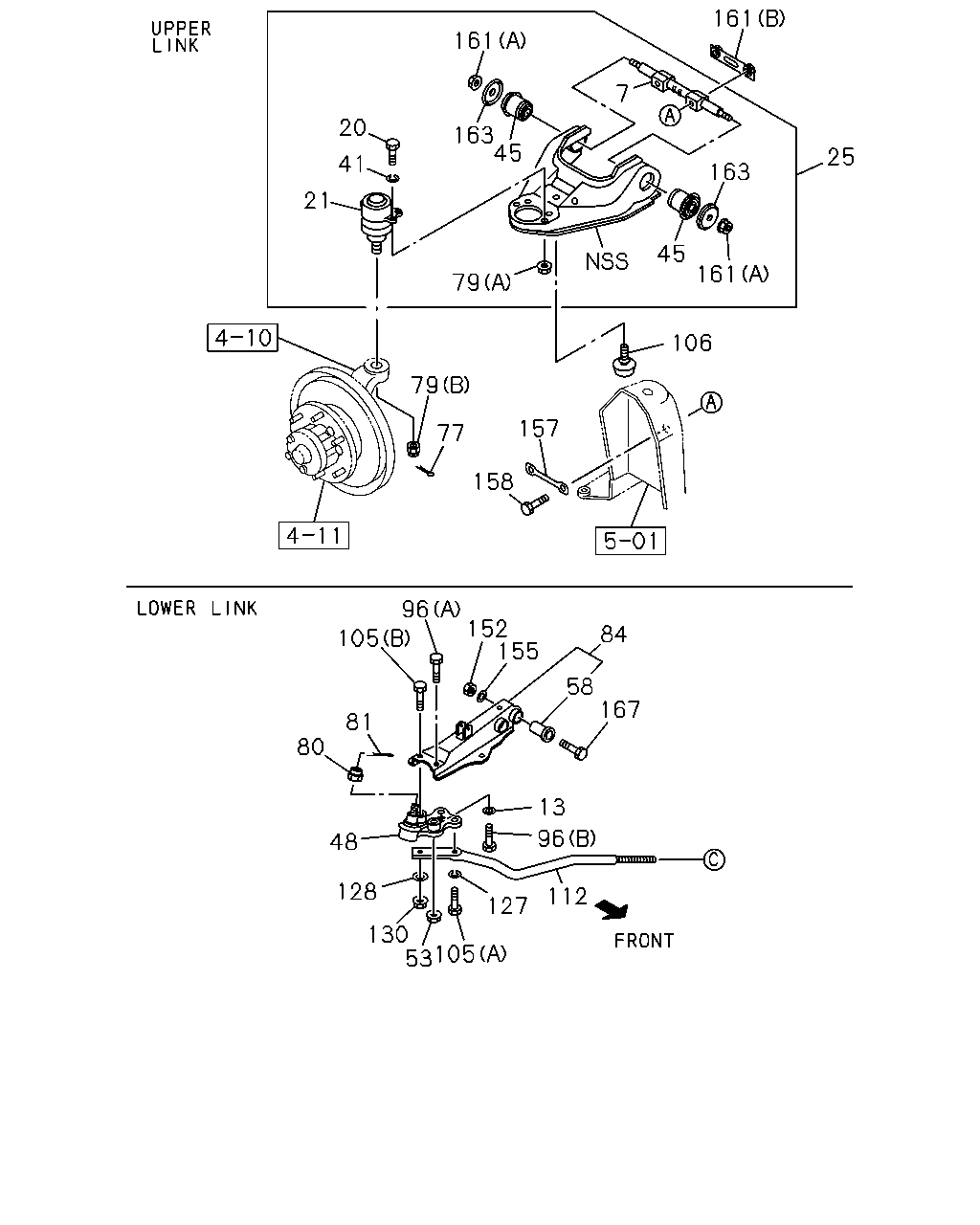

161 161 7 20 163 45 25 41 163 21 45 161 79 106 79 157 77 158 96 152 105 155 84 58 167 81 80 13 96 48 128 112 127 130 53 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	PIN; FULCRUM,UPR LINK THA	8-97940-624-1	02	1	0009-	●	●	●	●	●
7	PIN; FULCRUM,UPR LINK	8-94173-352-3	02	1	0009-						●	●	●
13	WASHER; LK,LWR LINK ID=10.2	9-09150-610-0	02	1	0009-	●	●	●	●	●
20	BOLT; UPR LINK END TO UPR LINK	8-94478-727-0	08	1	0009-	●	●	●	●	●	●	●	●
21	JOINT ASM; BALL,UPR CONT ARM THA	8-97940-625-0	02	1	0009-	●	●	●	●	●
21	JOINT ASM; BALL,UPR CONT ARM	8-94459-453-4	02	1	0009-						●	●	●
25	ARM; UPR CONT THA	8-97940-623-2	01	1	0009-	●	●	●	●	●
25	ARM; UPR CONT THA	8-97940-622-2	01	1	0009-	●	●	●	●	●
25	ARM; UPR CONT	8-94322-754-4	01	1	0009-						●	●	●
25	ARM; UPR CONT	8-94322-753-4	01	1	0009-						●	●	●
41	WASHER; LK,UPR LINK END TO UPR LINK ID=8.2	9-09150-808-0	08	1	0009-	●	●	●	●	●	●	●	●
45	BUSHING; UPR LINK,FRT	8-94408-840-3	04	1	0009-	●	●	●	●	●	●	●	●
48	JOINT ASM; BALL,LWR CONT ARM THA	8-97940-612-0	02	1	0009-	●	●	●	●	●
48	JOINT ASM; BALL,LWR CONT ARM THA	8-94459-465-2	02	1	0009-						●	●	●
53	NUT; LWR LINK M10 FLANGE	8-94242-425-0	02	1	0009-	●	●	●	●	●
53	NUT; LWR LINK M12 FLANGE	0-91150-212-0	08	1	0009-						●	●	●
58	BUSHING; LWR LINK ID=16	8-94316-903-0	02	1	0009-	●	●	●	●	●
58	BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	0009-						●	●	●
58	BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2 THA	8-97018-166-1	02	1	0009-						●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	9-08113-028-0	02	1	0009-0204	●	●	●	●	●	●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=25	9-08113-025-0	02	1	0205-	●	●	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (A) M8 FLANGE THA	5-09440-010-0	08	1	0009-	●	●	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M14 SLOTTED THA	8-94124-556-0	02	1	0009-	●	●	●	●	●	●	●	●
80	NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	0009-	●	●	●	●	●	●	●	●
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=3.7 L=30	9-08114-030-0	02	1	0009-	●	●	●	●	●	●	●	●
84	ARM; LWR CONT THA	8-97940-611-0	01	1	0009-	●	●	●	●	●
84	ARM; LWR CONT THA	8-97940-610-0	01	1	0009-	●	●	●	●	●
84	ARM; LWR CONT THA	8-94367-913-0	01	1	0009-						●	●	●
84	ARM; LWR CONT THA	8-94367-912-0	01	1	0009-						●	●	●
96	BOLT; LWR LINK (A) M10X50	9-01066-050-0	02	1	0009-	●	●	●	●	●
96	BOLT; LWR LINK (B) M10X20	9-02061-020-0	02	1	0009-	●	●	●	●	●
96	BOLT; LWR LINK M12X35	9-92061-235-0	08	1	0009-						●	●	●
105	BOLT; STRUT BAR TO LWR LINK (A) M10X35 THA	8-97916-475-0	02	1	0009-	●	●	●	●	●
105	BOLT; STRUT BAR TO LWR LINK (B) M10X65	9-01066-065-0	02	1	0009-	●	●	●	●	●
105	BOLT; STRUT BAR TO LWR LINK M10X25 W/LK WASHER	0-50041-025-0	04	1	0009-						●	●	●
106	RUBBER; REBOUND,STRUT THA	8-97911-087-0	02	1	0009-	●	●	●	●	●
106	RUBBER; REBOUND,STRUT THA	8-97911-086-0	02	1	0009-						●	●	●
112	BAR; STRUT	8-94473-192-4	01	1	0009-	●	●	●	●	●
112	BAR; STRUT	8-94473-191-4	01	1	0009-	●	●	●	●	●
127	WASHER; LK,STRUT BAR TO LWR LINK ID=10.2	9-09150-610-0	02	1	0009-	●	●	●	●	●
128	WASHER; PL,STRUT ID=10.5 OD=26	9-09164-710-0	02	1	0009-	●	●	●	●	●
130	NUT; STRUT BAR TO LWR LINK M10 FLANGE	8-94242-425-0	02	1	0009-	●	●	●	●	●
152	NUT; LWR LINK TO FRT C/MBR M14 THA	9-99110-514-0	02	1	0009-	●	●	●	●	●
152	NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	0009-						●	●	●
152	NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	0009-						●	●	●
155	WASHER; LK,UPR LINK TO FRT C/MBR ID=14.2	9-09150-514-0	02	1	0009-	●	●	●	●	●
157	PLATE; UPR LINK TO FRAME	8-94407-719-1	02	1	0009-	●	●	●	●	●	●	●	●
158	BOLT; UPR LINK TO FRAME M14X65 THA	8-97916-678-0	04	1	0009-	●	●	●	●	●	●	●	●
161	NUT ASM; UPR LINK TO FRAME (A) M14 FLANGE	8-94137-483-0	04	1	0009-	●	●	●	●	●	●	●	●
161	NUT ASM; UPR LINK TO FRAME (B) M14	8-94478-731-0	02	1	0009-	●	●	●	●	●	●	●	●
163	PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	0009-	●	●	●	●	●	●	●	●
167	BOLT; LWR LINK TO FRT C/MBR M14X90	0-10806-490-0	02	1	0009-	●	●	●	●	●

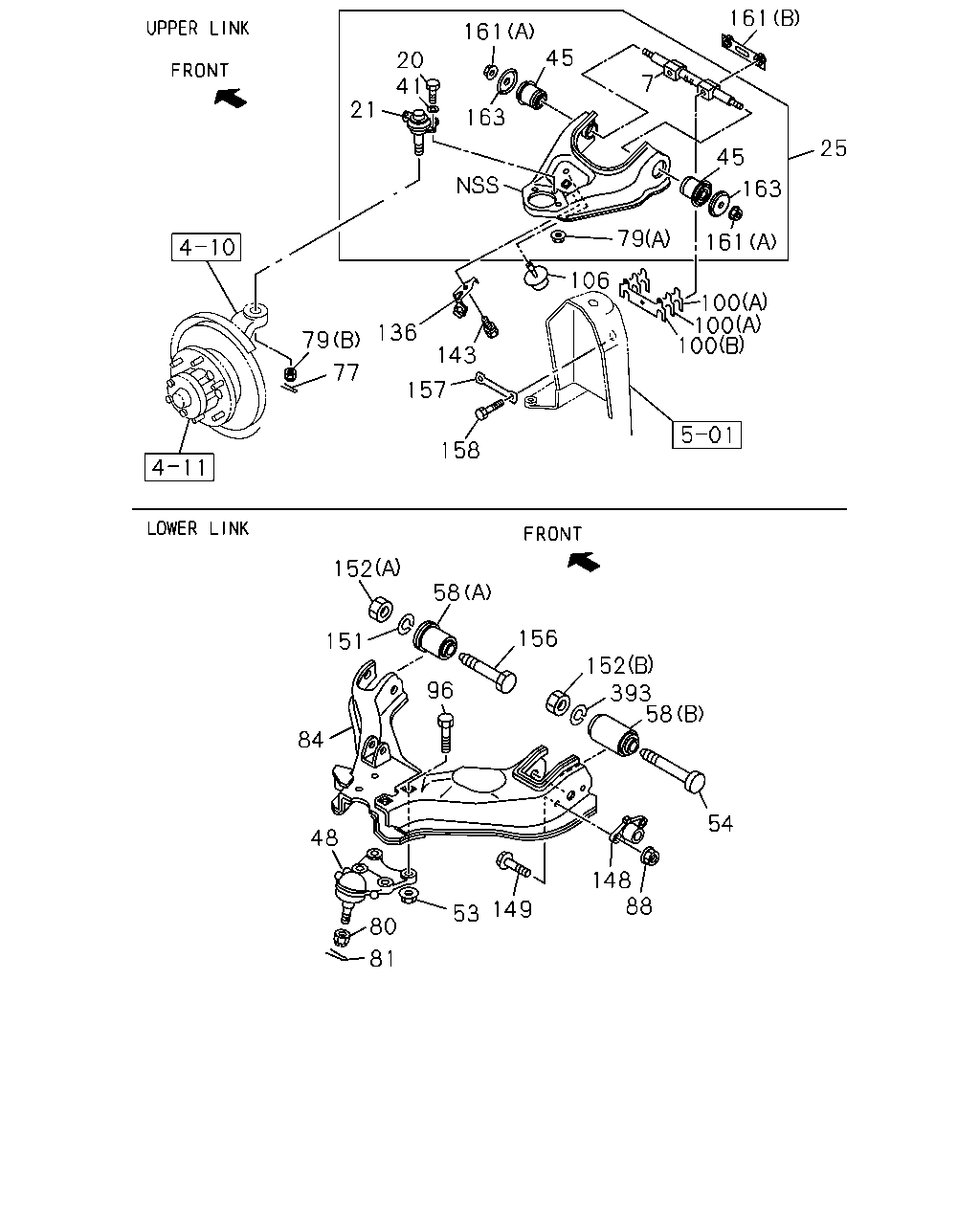

161 161 45 20 41 7 45 163 161 21 163 25 79 106 100 100 100 136 79 77 143 157 158 152 58 156 151 152 393 58 96 84 54 48 148 88 53 149 80 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	PIN; FULCRUM,UPR LINK THA	8-97940-624-1	02	1	0009-	●	●	●	●	●
7	PIN; FULCRUM,UPR LINK	8-94173-352-3	02	1	0009-						●	●	●
20	BOLT; UPR LINK END TO UPR LINK	8-94478-727-0	08	1	0009-	●	●	●	●	●	●	●	●
21	JOINT ASM; BALL,UPR CONT ARM THA	8-97940-625-0	02	1	0009-	●	●	●	●	●
21	JOINT ASM; BALL,UPR CONT ARM	8-94459-453-4	02	1	0009-						●	●	●
25	ARM; UPR CONT THA	8-97940-623-2	01	1	0009-	●	●	●	●	●
25	ARM; UPR CONT THA	8-97940-622-2	01	1	0009-	●	●	●	●	●
25	ARM; UPR CONT	8-94322-754-4	01	1	0009-						●	●	●
25	ARM; UPR CONT	8-94322-753-4	01	1	0009-						●	●	●
41	WASHER; LK,UPR LINK END TO UPR LINK ID=8.2	9-09150-808-0	08	1	0009-	●	●	●	●	●	●	●	●
45	BUSHING; UPR LINK,FRT	8-94408-840-3	04	1	0009-	●	●	●	●	●	●	●	●
48	JOINT ASM; BALL,LWR CONT ARM THA	8-97940-612-0	02	1	0009-	●	●	●	●	●
48	JOINT ASM; BALL,LWR CONT ARM THA	8-94459-465-2	02	1	0009-						●	●	●
53	NUT; LWR LINK M10 FLANGE	8-94242-425-0	02	1	0009-	●	●	●	●	●
53	NUT; LWR LINK M12 FLANGE	0-91150-212-0	08	1	0009-						●	●	●
54	PIN; FULCRUM,LWR LINK	8-94437-212-1	02	1	0009-						●	●	●
58	BUSHING; LWR LINK ID=16	8-94316-903-0	02	1	0009-	●	●	●	●	●
58	BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	0009-						●	●	●
58	BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2 THA	8-97018-166-1	02	1	0009-						●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	9-08113-028-0	02	1	0009-0204	●	●	●	●	●	●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=25	9-08113-025-0	02	1	0205-	●	●	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (A) M8 FLANGE THA	5-09440-010-0	08	1	0009-	●	●	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M14 SLOTTED THA	8-94124-556-0	02	1	0009-	●	●	●	●	●	●	●	●
80	NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	0009-	●	●	●	●	●	●	●	●
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=3.7 L=30	9-08114-030-0	02	1	0009-	●	●	●	●	●	●	●	●
84	ARM; LWR CONT THA	8-97940-611-0	01	1	0009-	●	●	●	●	●
84	ARM; LWR CONT THA	8-97940-610-0	01	1	0009-	●	●	●	●	●
84	ARM; LWR CONT THA	8-94367-913-0	01	1	0009-						●	●	●
84	ARM; LWR CONT THA	8-94367-912-0	01	1	0009-						●	●	●
88	NUT; LWR LINK M12 FLANGE	0-91150-212-0	04	1	0009-						●	●	●
96	BOLT; LWR LINK (A) M10X50	9-01066-050-0	02	1	0009-	●	●	●	●	●
96	BOLT; LWR LINK (B) M10X20	9-02061-020-0	02	1	0009-	●	●	●	●	●
96	BOLT; LWR LINK M12X35	9-92061-235-0	08	1	0009-						●	●	●
100	SHIM; UPR LINK TO FRAME (A) T=0.40	8-94227-053-1	AR	1	0009-						●	●	●
100	SHIM; UPR LINK TO FRAME (A) T=1.60	8-94227-054-2	AR	1	0009-						●	●	●
100	SHIM; UPR LINK TO FRAME (A) T=3.20	8-94241-885-3	AR	1	0009-						●	●	●
100	SHIM; UPR LINK TO FRAME (B) T=1.60	8-94408-859-2	AR	1	0009-						●	●	●
100	SHIM; UPR LINK TO FRAME (B) T=3.20	8-94408-860-2	AR	1	0009-						●	●	●
106	RUBBER; REBOUND,STRUT THA	8-97911-087-0	02	1	0009-	●	●	●	●	●
106	RUBBER; REBOUND,STRUT THA	8-97911-086-0	02	1	0009-						●	●	●
136	BRACKET; FLEX HOSE,FRT BRAKE	8-94455-514-1	01	1	0009-						●	●	●
136	BRACKET; FLEX HOSE,FRT BRAKE	8-94455-513-1	01	1	0009-						●	●	●
143	BOLT; BRKT,FLEX HOSE,FRT BRAKE M8X18 W/LK WASHER	0-50040-818-0	02	1	0009-						●	●	●
148	ARM; LWR LINK	8-94435-413-0	02	1	0009-						●	●	●
149	BOLT; ARM TO LWR CONT ARM M12X37 FLANGE	8-94382-104-1	04	1	0009-						●	●	●
151	WASHER; LK,LWR LINK TO FRT C/MBR ID=16.2	9-09150-616-0	02	1	0009-						●	●	●
152	NUT; LWR LINK TO FRT C/MBR M14 THA	9-99110-514-0	02	1	0009-	●	●	●	●	●
152	NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	0009-						●	●	●
152	NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	0009-						●	●	●
156	PIN; FULCRUM,FRT SUSPENSION M16X91	8-94173-359-1	02	1	0009-						●	●	●
157	PLATE; UPR LINK TO FRAME	8-94407-719-1	02	1	0009-	●	●	●	●	●	●	●	●
158	BOLT; UPR LINK TO FRAME M14X65 THA	8-97916-678-0	04	1	0009-	●	●	●	●	●	●	●	●
161	NUT ASM; UPR LINK TO FRAME (A) M14 FLANGE	8-94137-483-0	04	1	0009-	●	●	●	●	●	●	●	●
161	NUT ASM; UPR LINK TO FRAME (B) M14	8-94478-731-0	02	1	0009-	●	●	●	●	●	●	●	●
163	PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	0009-	●	●	●	●	●	●	●	●
393	WASHER; PL ID=19 OD=36	9-09164-618-0	02	1	0009-						●	●	●

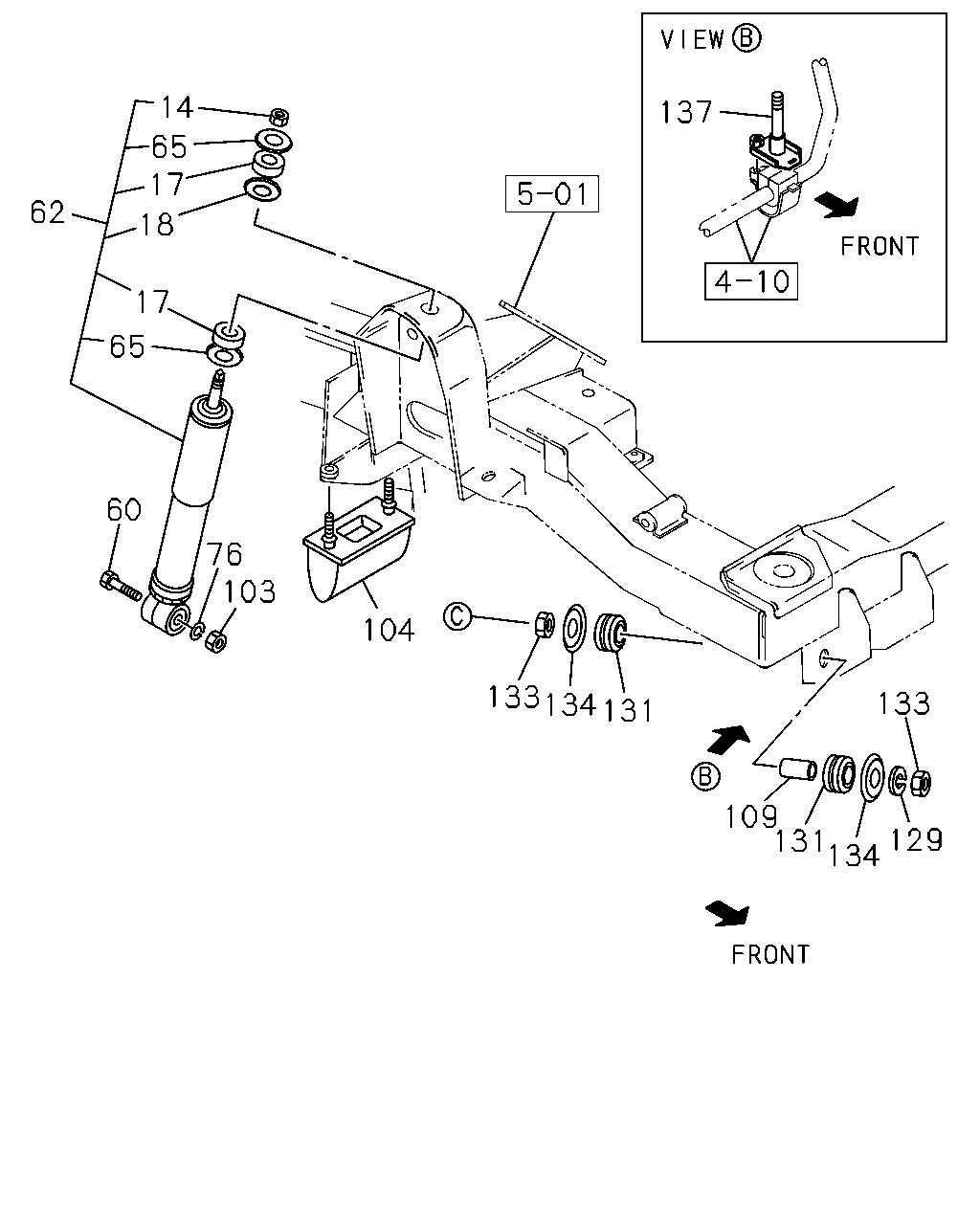

14 65 17 18 137 62 17 65 60 76 103 104 133 134 131 133 109 131 129 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	NUT; S/ABS,UPR TOKICO M10 THA	8-97913-685-0	02	1	0009-	●	●	●	●	●
14	NUT; S/ABS,UPR KAYABA THA	8-97913-313-0	02	1	0009-	●	●	●	●	●	●	●	●
17	BUSHING; RUBBER,S/ABS TOKICO THA	8-97913-678-0	04	1	0009-	●	●	●	●	●
17	BUSHING; RUBBER,S/ABS KAYABA THA	8-97913-310-0	04	1	0009-	●	●	●	●	●	●	●	●
18	WASHER; CENTERING,S/ABS TOKICO THA	8-97913-681-0	02	1	0009-	●	●	●	●	●
18	WASHER; CENTERING,S/ABS KAYABA THA	8-97913-311-0	02	1	0009-	●	●	●	●	●	●	●	●
60	BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	0009-	●	●	●	●	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT KYB THA	8-97911-097-1	02	1	0009-	●	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT TOKICO THA	8-97918-327-0	02	1	0009-	●	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT SPECIAL PACKAGE VAR.2<7TB> KYB THA	8-97919-126-0	02	1	0009-						●
62	ABSORBER ASM; SHOCK,FRT KYB THA	8-97919-126-0	02	1	0009-								●
62	ABSORBER ASM; SHOCK,FRT EXC. SPECIAL PACKAGE VAR.2<7TB> KYB THA	8-97911-096-1	02	1	0009-						●
62	ABSORBER ASM; SHOCK,FRT KYB THA	8-97911-096-1	02	1	0009-							●
65	WASHER; S/ABS THA	8-97913-312-0	08	1	0009-	●	●	●	●	●
65	WASHER; S/ABS THA	8-97913-312-0	04	1	0009-						●	●	●
76	WASHER; LK,S/ABS TO LWR LINK ID=12.2	9-09150-512-0	02	1	0009-	●	●	●	●	●	●	●	●
103	NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	0009-	●	●	●	●	●	●	●	●
104	RUBBER; BUMPER,STRUT THA	8-97911-085-1	02	1	0009-	●	●	●	●	●
104	RUBBER; BUMPER,STRUT SPECIAL PACKAGE VAR.2<7TB> THA	8-97919-123-1	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97919-123-1	01	1	0009-								●
104	RUBBER; BUMPER,STRUT SPECIAL PACKAGE VAR.2<7TB> THA	8-97919-122-1	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97919-122-1	01	1	0009-								●
104	RUBBER; BUMPER,STRUT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97911-084-0	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97911-084-0	01	1	0009-							●
104	RUBBER; BUMPER,STRUT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97911-083-0	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97911-083-0	01	1	0009-							●
109	TUBE; DIST,STRUT BAR THA	8-97915-528-0	02	1	0009-	●	●	●	●	●
129	WASHER; LK,STRUT BAR ID=16.2	9-09150-616-0	02	1	0009-	●	●	●	●	●
131	RUBBER; CUSHION,STRUT BAR THA	8-97911-088-0	04	1	0009-	●	●	●	●	●
133	NUT; STRUT BAR M16	9-99110-516-0	04	1	0009-	●	●	●	●	●
134	WASHER; STRUT BAR THA	8-97915-529-0	04	1	0009-	●	●	●	●	●
137	BRACKET; STAB BAR TO FRAME	8-94143-209-0	02	1	0009-	●	●	●	●	●

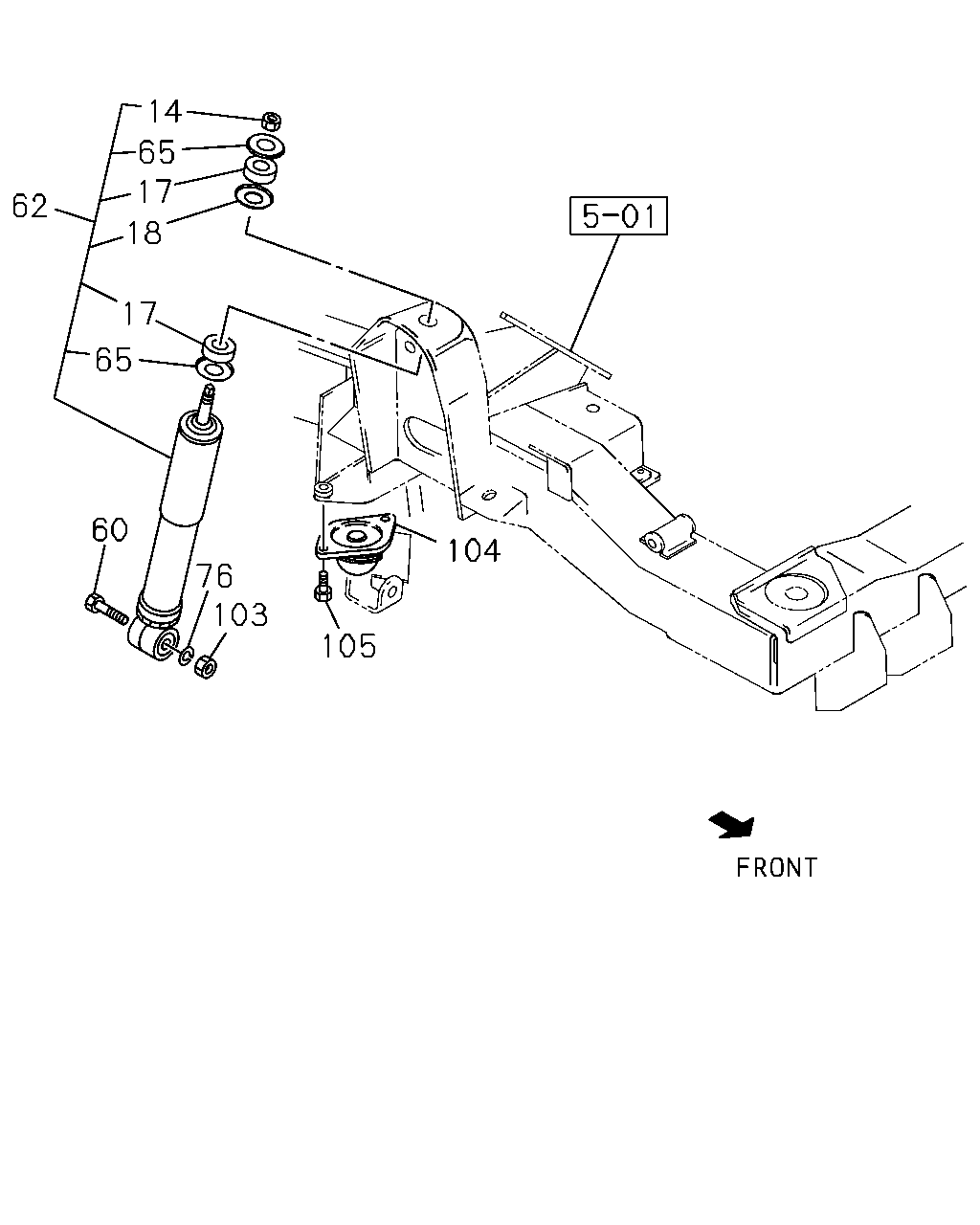

14 65 17 18 62 17 65 104 60 76 103 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	NUT; S/ABS,UPR TOKICO M10 THA	8-97913-685-0	02	1	0009-	●	●	●	●	●
14	NUT; S/ABS,UPR KAYABA THA	8-97913-313-0	02	1	0009-	●	●	●	●	●	●	●	●
17	BUSHING; RUBBER,S/ABS TOKICO THA	8-97913-678-0	04	1	0009-	●	●	●	●	●
17	BUSHING; RUBBER,S/ABS KAYABA THA	8-97913-310-0	04	1	0009-	●	●	●	●	●	●	●	●
18	WASHER; CENTERING,S/ABS TOKICO THA	8-97913-681-0	02	1	0009-	●	●	●	●	●
18	WASHER; CENTERING,S/ABS KAYABA THA	8-97913-311-0	02	1	0009-	●	●	●	●	●	●	●	●
60	BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	0009-	●	●	●	●	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT KYB THA	8-97911-097-1	02	1	0009-	●	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT TOKICO THA	8-97918-327-0	02	1	0009-	●	●	●	●	●
62	ABSORBER ASM; SHOCK,FRT SPECIAL PACKAGE VAR.2<7TB> KYB THA	8-97919-126-0	02	1	0009-						●
62	ABSORBER ASM; SHOCK,FRT KYB THA	8-97919-126-0	02	1	0009-								●
62	ABSORBER ASM; SHOCK,FRT EXC. SPECIAL PACKAGE VAR.2<7TB> KYB THA	8-97911-096-1	02	1	0009-						●
62	ABSORBER ASM; SHOCK,FRT KYB THA	8-97911-096-1	02	1	0009-							●
65	WASHER; S/ABS THA	8-97913-312-0	08	1	0009-	●	●	●	●	●
65	WASHER; S/ABS THA	8-97913-312-0	04	1	0009-						●	●	●
76	WASHER; LK,S/ABS TO LWR LINK ID=12.2	9-09150-512-0	02	1	0009-	●	●	●	●	●	●	●	●
103	NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	0009-	●	●	●	●	●	●	●	●
104	RUBBER; BUMPER,STRUT THA	8-97911-085-1	02	1	0009-	●	●	●	●	●
104	RUBBER; BUMPER,STRUT SPECIAL PACKAGE VAR.2<7TB> THA	8-97919-123-1	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97919-123-1	01	1	0009-								●
104	RUBBER; BUMPER,STRUT SPECIAL PACKAGE VAR.2<7TB> THA	8-97919-122-1	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97919-122-1	01	1	0009-								●
104	RUBBER; BUMPER,STRUT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97911-084-0	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97911-084-0	01	1	0009-							●
104	RUBBER; BUMPER,STRUT EXC. SPECIAL PACKAGE VAR.2<7TB> THA	8-97911-083-0	01	1	0009-						●
104	RUBBER; BUMPER,STRUT THA	8-97911-083-0	01	1	0009-							●
105	BOLT; STRUT BAR TO LWR LINK (A) M10X35 THA	8-97916-475-0	02	1	0009-	●	●	●	●	●
105	BOLT; STRUT BAR TO LWR LINK (B) M10X65	9-01066-065-0	02	1	0009-	●	●	●	●	●
105	BOLT; STRUT BAR TO LWR LINK M10X25 W/LK WASHER	0-50041-025-0	04	1	0009-						●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
