4-42 — POWER STEERING OIL PUMP (#43615) — 15 parça

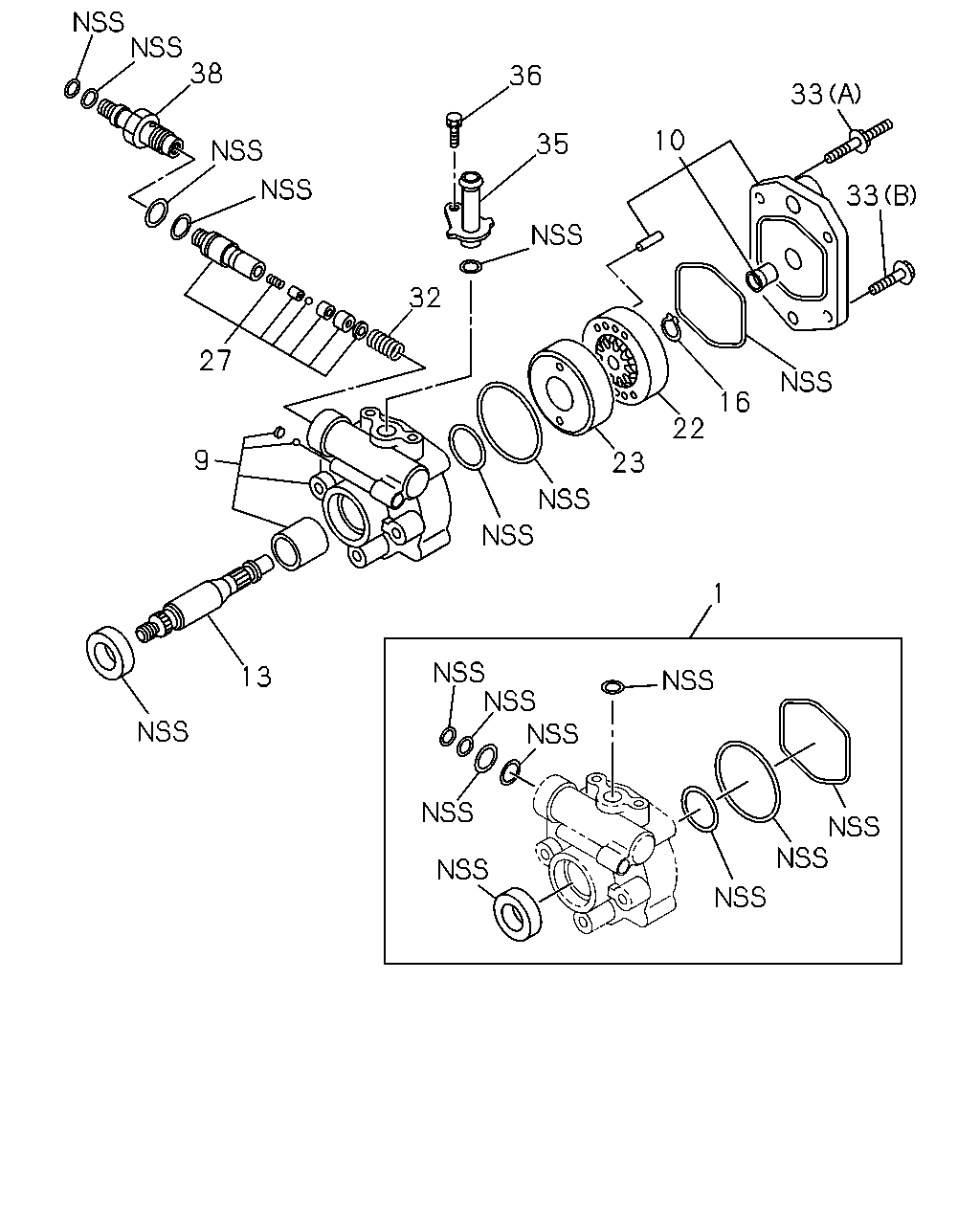

çizim 48195
38 36 33 10 35 33 32 27 16 22 9 23 1 13
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-735-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-721-0 01 1 -
10 BODY ASM; RR,OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-730-0 01 1 -
13 SHAFT KIT; RET
THA ASM PART: A = 8-97940-172-3 		8-97184-723-0 01 1 -
13 SHAFT KIT; RET
THA ASM PART: B = 8-97942-188-0 		8-97306-614-0 01 1 -
16 RING; RET,OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-94411-358-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-729-0 01 1 -
23 PLATE; SIDE,OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-728-0 01 1 -
27 VALVE ASM; OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-731-0 01 1 -
32 SPRING; OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-766-0 01 1 -
33 BOLT; COVER
(B) ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-761-0 03 1 -
33 BOLT; COVER
(A) ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-762-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-733-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-763-0 01 1 -
38 CONNECTOR; OIL PUMP
THA ASM PART: A = 8-97940-172-3, B = 8-97942-188-0 		8-97184-732-0 01 1 -
