4-40 — STEERING UNIT (#43614) — 37 parça

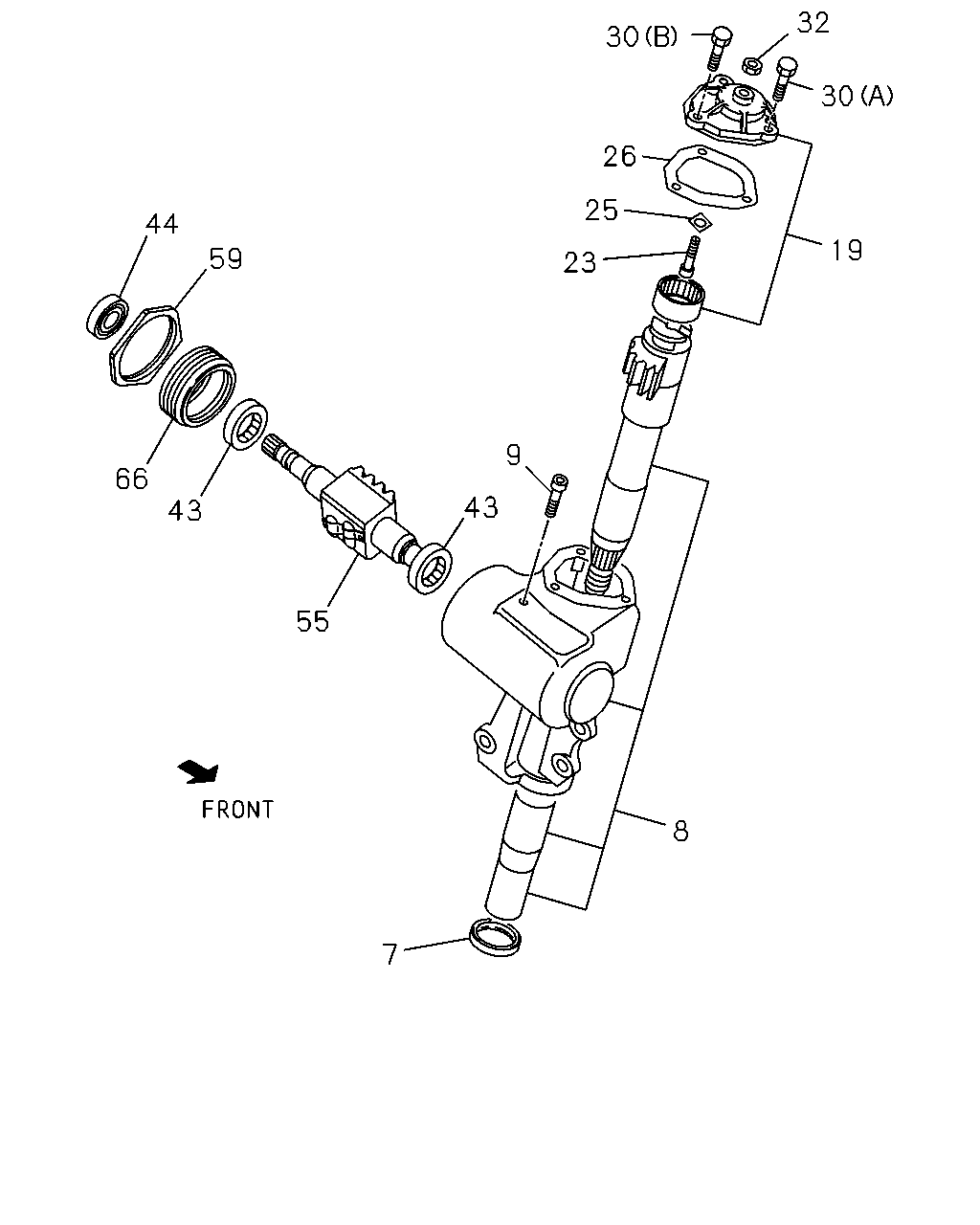

çizim 50863
32 30 30 26 25 44 19 59 23 9 66 43 43 55 8 7
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-046-0 01 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-041-0 01 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-582-0 02 1 -
9 PLUG; FILLER,STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-127-1 01 1 -
19 COVER; SIDE STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-043-0 01 1 -
19 COVER; SIDE STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-580-0 02 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-049-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535, T=2.00 ASM PART: A = 8-97940-039-2 		8-97940-117-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565, T=1.95 ASM PART: A = 8-97940-039-2 		8-97940-118-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595, T=2.05 ASM PART: A = 8-97940-039-2 		8-97940-119-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625, T=2.10 ASM PART: A = 8-97940-039-2 		8-97940-120-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655, T=2.15 ASM PART: A = 8-97940-039-2 		8-97940-121-0 01 1 -
26 GASKET; COVER,STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-047-0 01 1 -
30 BOLT; COVER STRG UNIT
(A), THA ASM PART: A = 8-97940-039-2 		8-97940-122-0 02 1 -
30 BOLT; COVER STRG UNIT
(B), THA ASM PART: A = 8-97940-039-2 		8-97940-123-0 01 1 -
30 BOLT; COVER STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-589-0 16 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-125-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-590-0 02 1 -
43 BEARING; WORM SHAFT,STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-124-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-045-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-040-0 01 1 -
59 NUT; COVER STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-126-0 01 1 -
66 COVER; REAR STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-044-0 01 1 -

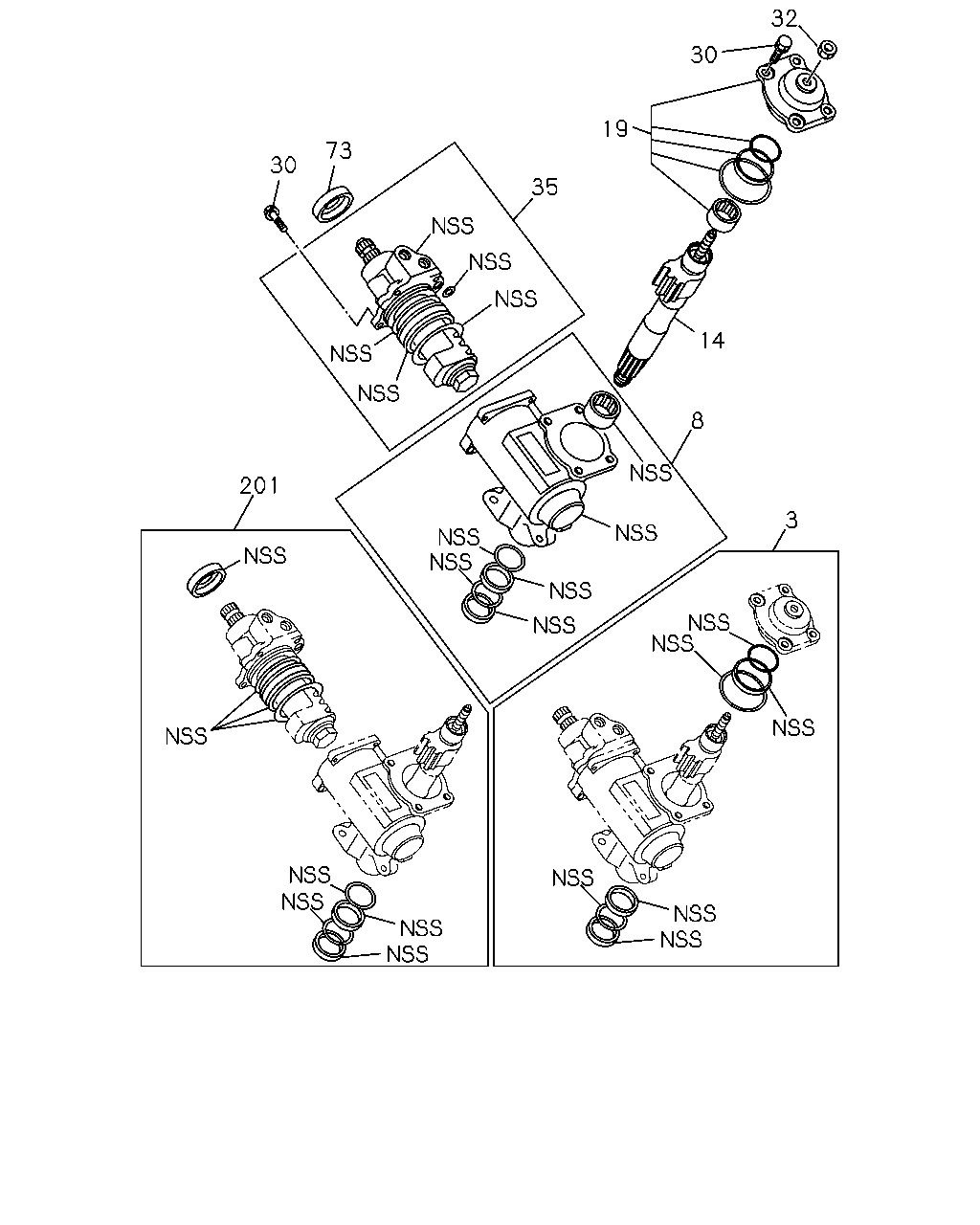

çizim 51243
32 30 19 73 30 35 14 8 201 3
BalonParca AdiParca NoAdetTipApplied Date
3 SEAL KIT; SECTOR SHAFT
THA ASM PART: B = 8-97940-178-4 		8-97940-577-0 02 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-041-0 01 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-582-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-585-0 02 1 -
19 COVER; SIDE STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-043-0 01 1 -
19 COVER; SIDE STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-580-0 02 1 -
30 BOLT; COVER STRG UNIT
(A), THA ASM PART: A = 8-97940-039-2 		8-97940-122-0 02 1 -
30 BOLT; COVER STRG UNIT
(B), THA ASM PART: A = 8-97940-039-2 		8-97940-123-0 01 1 -
30 BOLT; COVER STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-589-0 16 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: A = 8-97940-039-2 		8-97940-125-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-590-0 02 1 -
35 HOUSING & SCREW ASM; STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-97940-584-0 02 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: B = 8-97940-178-4 		8-94116-495-0 02 1 -
201 SEAL KIT; INPUT SHAFT
THA ASM PART: B = 8-97940-178-4 		8-97940-576-0 02 1 -
