4-36 — POWER STEERING CONTROL; ENGINE SIDE (#43613) — 40 parça

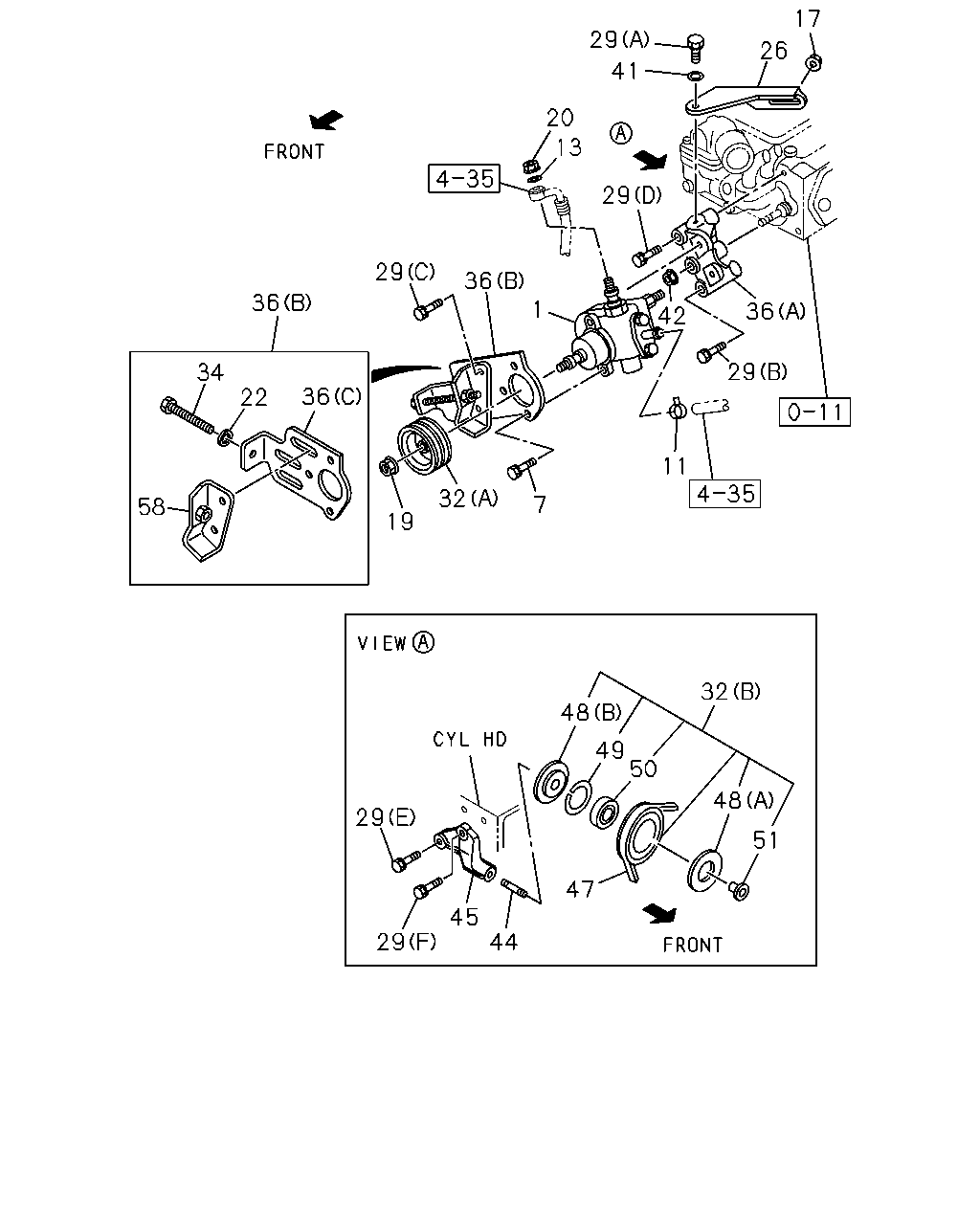

çizim 48204
17 26 29 41 20 13 29 42 29 36 1 36 36 29 34 22 36 11 32 7 58 19 32 48 49 50 48 29 51 47 45 29 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97940-172-3 01 1 0009-0011 ● ● ● ● ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> THA 		8-97942-188-0 01 1 0012- ● ● ● ● ● ● ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING<N40> M10X28 W/LK WASHER THA 		8-97200-583-0 03 1 0009- ● ● ● ● ● ● ● ●
11 CLIP; FLEX HOSE
POWER STEERING<N40> ID=21 THA 		8-94242-034-0 01 1 0009- ● ● ● ● ● ● ● ●
13 WASHER; LK,FLEX HOSE,P/S
POWER STEERING<N40> ID=12.2 		9-09150-512-0 01 1 0009- ● ● ● ● ● ● ● ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE 		0-91150-208-0 01 1 0009- ● ● ● ● ● ● ● ●
19 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> M12 		8-94139-015-0 01 1 0009-0104 ● ● ● ● ● ● ● ●
20 NUT; HOSE TO PUMP
POWER STEERING<N40> M12 		9-99111-412-0 01 1 0009- ● ● ● ● ● ● ● ●
22 WASHER; LK,OIL PUMP,P/S
POWER STEERING<N40> ID=10.2 THA 		9-09150-510-0 01 1 0009- ● ● ● ● ● ● ● ●
22 WASHER; LK,OIL PUMP,P/S
POWER STEERING<N40> ID=10.2 THA 		9-09150-510-0 01 1 0009-0012 ● ● ● ● ● ● ● ●
26 BRACKET; P/S PUMP,RR
POWER STEERING<N40> THA 		8-97941-415-0 01 1 0009- ● ● ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 0009- ● ● ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 0009- ● ● ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X28 W/LK WASHER 		0-50041-028-0 02 1 0009- ● ● ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0009- ● ● ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (E) M8X30 W/LK WASHER 		0-50040-830-0 01 1 0009- ● ● ● ● ● ● ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (F) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0009- ● ● ● ● ● ● ● ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (A) THA 		8-97940-179-1 01 1 0009-0011 ● ● ● ● ● ● ● ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> THA 		8-97942-187-0 01 1 0012- ● ● ● ● ● ● ● ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (B) 		8-97112-740-0 01 1 0009- ● ● ● ● ● ● ● ●
34 BOLT; ADJ PLATE
POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 0105- ● ● ● ● ● ● ● ●
34 BOLT; ADJ PLATE
POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 0009-0012 ● ● ● ● ● ● ● ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> THA 		8-97942-483-0 01 1 0105- ● ● ● ● ● ● ● ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (C) THA 		8-97941-330-0 01 1 0009-0012 ● ● ● ● ● ● ● ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (B) THA 		8-97941-331-0 01 1 0009-0012 ● ● ● ● ● ● ● ●
36 BRACKET; PLATE,P/S PUMP
POWER STEERING<N40> (A) THA 		8-97941-414-0 01 1 0009- ● ● ● ● ● ● ● ●
41 WASHER; PL,BRKT
POWER STEERING<N40> ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0009- ● ● ● ● ● ● ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M8 FLANGE 		0-91150-208-0 01 1 0009- ● ● ● ● ● ● ● ●
44 STUD; IDLER PULLEY
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> M10X25 L=40 		9-04411-025-0 01 1 0009- ● ● ● ● ● ● ● ●
45 BRACKET; IDLE PULLEY,P/S
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> 		8-94449-652-0 01 1 0009- ● ● ● ● ● ● ● ●
47 BELT; P/S PUMP
4JH1 ENG<RJX> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> L=1451 MITSUBOSHI THA 		1-13671-301-0 01 1 0009- ● ● ● ● ● ●
47 BELT; P/S PUMP
4JA1 ENG<RLE> POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> L=1399 		5-13671-111-0 01 1 0009- ● ● ●
48 COVER; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (B) 		8-97092-819-0 01 1 0009- ● ● ● ● ● ● ● ●
48 COVER; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> (A) 		9-13669-603-0 01 1 0009- ● ● ● ● ● ● ● ●
49 RING; SNAP,IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> 		8-94175-036-0 01 1 0009- ● ● ● ● ● ● ● ●
50 BEARING; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> 		8-94251-052-0 01 1 0009- ● ● ● ● ● ● ● ●
51 NUT; IDLER
POWER STEERING<N40> EXC. COOLER WO/HEATER<YL1> 		8-97092-813-0 01 1 0009- ● ● ● ● ● ● ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
POWER STEERING<N40> THA 		8-97941-329-0 01 1 0105- ● ● ● ● ● ● ● ●
58 SLIDER; BELT ADJ,P/S OIL PUMP
POWER STEERING<N40> THA 		8-97941-329-0 01 1 0009-0012 ● ● ● ● ● ● ● ●
66 BOLT; PULLEY
POWER STEERING<N40> M8X12 FLANGE 		0-28080-812-0 03 1 0105- ● ● ● ● ● ● ● ●
