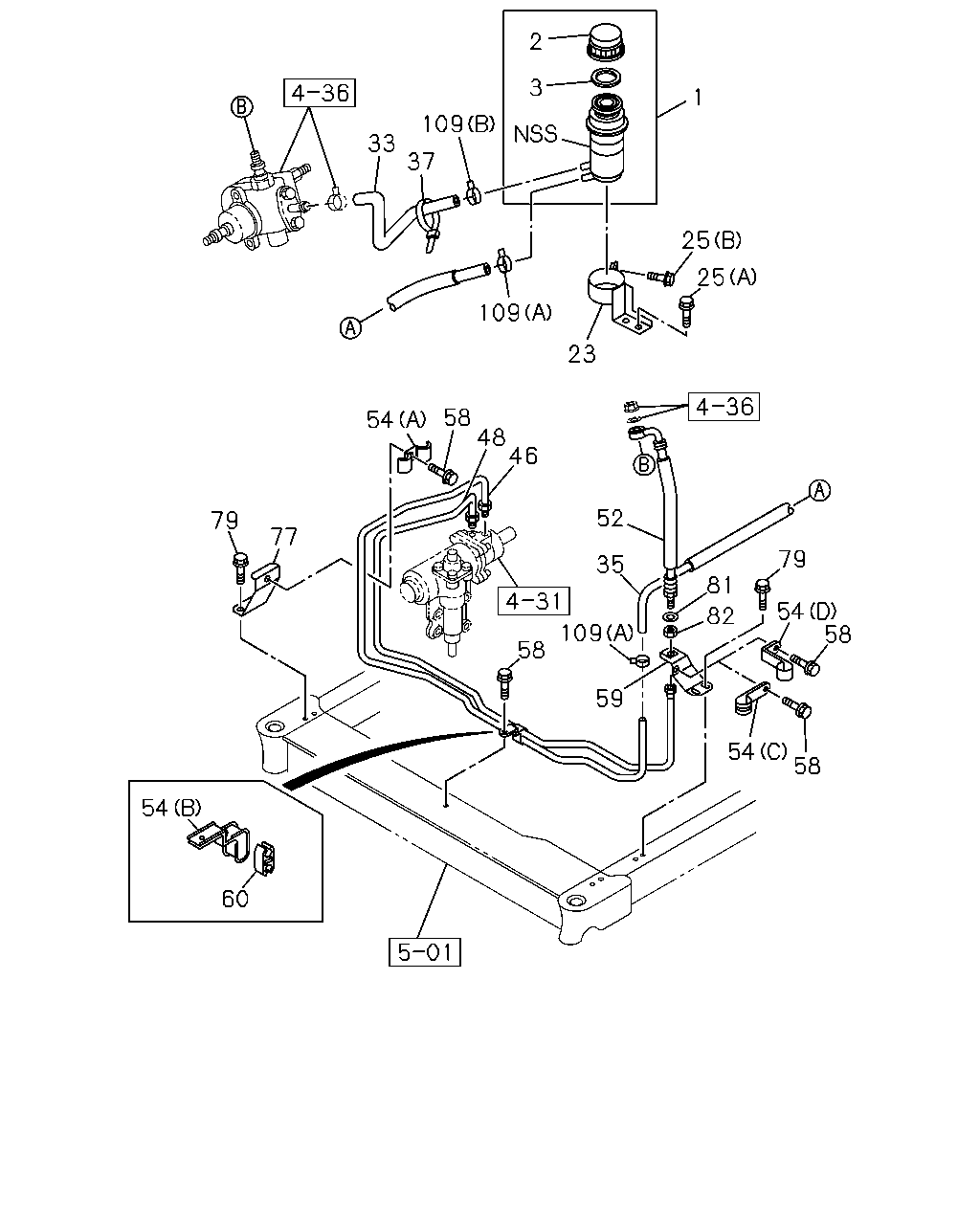

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#43612) — 41 parça

2 3 1 109 33 37 25 25 109 23 58 48 46 54 52 79 77 79 35 81 82 109 54 58 58 59 54 58 54 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97115-869-2	01	1	0009-	●	●	●	●	●	●	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94481-841-2	01	1	0009-	●	●	●	●	●	●	●	●
3	GASKET; OIL TANK,P/S POWER STEERING<N40>	8-94363-359-1	01	1	0009-	●	●	●	●	●	●	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40> THA	8-97919-970-1	01	1	0009-	●	●	●	●	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M6X16 FLANGE	0-28480-616-0	01	1	0009-	●	●	●	●	●	●	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M8X16 FLANGE	0-28480-816-0	02	1	0009-	●	●	●	●	●	●	●	●
33	HOSE; RUBBER,POWER STRG POWER STEERING<N40> THA	8-97940-545-0	01	1	0009-	●	●	●	●	●	●	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> THA	8-97940-546-1	01	1	0009-	●	●	●	●	●	●	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> L=170	5-09707-054-0	01	1	0009-	●	●	●	●	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG<RLE> POWER STEERING<N40> THA	8-97915-568-1	01	1	0009-0103	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> THA	8-97915-568-1	01	1	0009-0103			●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG<RLE> POWER STEERING<N40> THA	8-97922-010-1	01	1	0104-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> THA	8-97922-010-1	01	1	0104-			●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG<RJX> POWER STEERING<N40> THA	8-97920-775-3	01	1	0009-0103	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> THA	8-97920-775-3	01	1	0009-0103		●			●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG<RJX> POWER STEERING<N40> THA	8-97922-011-1	01	1	0104-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> THA	8-97922-011-1	01	1	0104-		●			●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> THA	8-97915-562-3	01	1	0009-0103	●	●	●	●	●	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> THA	8-97922-009-0	01	1	0104-	●	●	●	●	●	●	●	●
52	HOSE; FLEX,P/S CONT VLV 4JA1 ENG<RLE> POWER STEERING<N40> THA	8-97940-216-0	01	1	0009-	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40> THA	8-97940-216-0	01	1	0009-			●	●
52	HOSE; FLEX,P/S CONT VLV 4JH1 ENG<RJX> POWER STEERING<N40> THA	8-97941-889-0	01	1	0009-	●
52	HOSE; FLEX,P/S CONT VLV POWER STEERING<N40> THA	8-97941-889-0	01	1	0009-		●			●	●	●	●
54	CLIP; OIL PIPE 4JA1 ENG<RLE> POWER STEERING<N40> (C) ID=11 L=45	8-94296-897-1	01	1	0009-	●
54	CLIP; OIL PIPE POWER STEERING<N40> (C) ID=11 L=45	8-94296-897-1	01	1	0009-			●	●
54	CLIP; OIL PIPE 4JH1 ENG<RJX> POWER STEERING<N40> (D) ID=11 H=34 L=27	1-09701-023-0	01	1	0009-	●
54	CLIP; OIL PIPE POWER STEERING<N40> (D) ID=11 H=34 L=27	1-09701-023-0	01	1	0009-		●			●	●	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (A)	8-94222-795-1	01	1	0009-	●	●	●	●	●	●	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> (B) THA	8-97919-236-0	01	1	0009-	●	●	●	●	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	01	1	0009-	●	●	●	●	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	02	1	0009-	●	●	●	●	●	●	●	●
58	BOLT; CLIP POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	03	1	0009-	●	●	●	●	●	●	●	●
59	BRACKET; CLIP,OIL PIPE POWER STEERING<N40>	8-97087-533-1	01	1	0009-	●	●	●	●	●	●	●	●
60	CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-	●	●	●	●	●	●	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-97120-707-0	01	1	0009-0105	●	●	●	●	●	●	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-97120-705-0	01	1	0106-	●	●	●	●	●	●	●	●
79	BOLT; BRKT POWER STEERING<N40> M6X16 FLANGE	0-28480-616-0	03	1	0009-	●	●	●	●	●	●	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●	●	●	●	●	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	9-99111-416-0	01	1	0009-	●	●	●	●	●	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=16 THA	8-94238-568-0	02	1	0009-	●	●	●	●	●	●	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=21 THA	8-94242-034-0	01	1	0009-	●	●	●	●	●	●	●	●
