4-33 — STEERING LINKAGE (#43611) — 100 parça

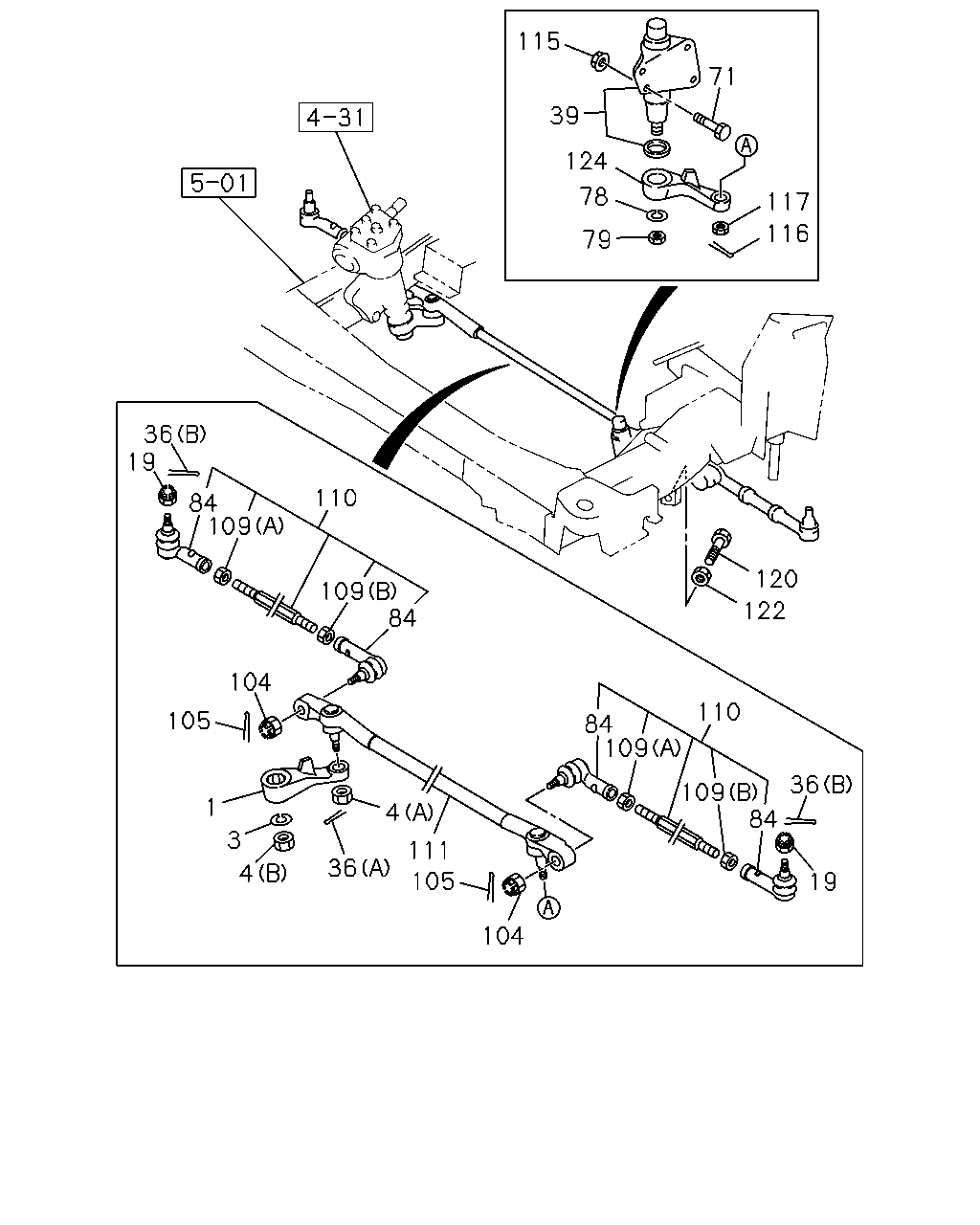

çizim 12269
115 71 39 124 78 117 116 79 36 19 110 84 109 120 122 109 84 104 110 105 84 109 36 109 84 1 3 4 4 111 105 36 19 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 ARM; PITMAN,STRG
THA 		8-97940-626-0 01 1 0204- ● ● ● ● ●
1 ARM; PITMAN,STRG
THA 		8-97940-626-0 01 1 0009-0110 ● ● ● ● ●
1 ARM; PITMAN,STRG 8-97026-252-0 01 1 0009-0105 ● ● ●
1 ARM; PITMAN,STRG 8-97315-932-0 01 1 0106- ● ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0009- ● ● ● ● ● ● ● ●
4 NUT; PITMAN ARM
M14 		8-94465-411-0 01 1 0204- ● ● ● ● ●
4 NUT; PITMAN ARM
(A) M14 		8-94465-411-0 01 1 0009- ● ● ● ● ● ● ● ●
4 NUT; PITMAN ARM
(B) M22 		9-09111-522-0 01 1 0009- ● ● ● ● ● ● ● ●
19 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 0009- ● ● ● ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.7 L=17 THA 		8-97171-453-0 01 1 0204- ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
(A) OD=2.7 L=17 THA 		8-97171-453-0 01 1 0009- ● ● ● ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
(B) OD=2.8 L=25 		9-08113-025-0 02 1 0009- ● ● ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-97039-325-1 01 1 0009- ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-97106-663-0 01 1 0009- ● ● ●
71 BOLT; RELAY LEVER BRKT
M10X92 FLANGE THA 		8-97916-478-0 04 1 0009- ● ● ● ● ● ● ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		9-09150-816-0 01 1 0009- ● ● ● ● ● ● ● ●
79 NUT; RELAY LEVER
M16 		9-99111-516-0 01 1 0009- ● ● ● ● ● ● ● ●
84 ROD END; TRACK ROD
RH THREAD THA 		8-97940-616-0 02 1 0204- ● ● ● ● ●
84 ROD END; TRACK ROD
LH THREAD THA 		8-97940-617-0 02 1 0204- ● ● ● ● ●
84 ROD END; TRACK ROD
RH THREAD THA 		8-97940-616-0 02 1 0009-0110 ● ● ● ● ●
84 ROD END; TRACK ROD
LH THREAD THA 		8-97940-617-0 02 1 0009-0110 ● ● ● ● ●
84 ROD END; TRACK ROD
RH THREAD 		8-97020-953-1 02 1 0009- ● ● ●
84 ROD END; TRACK ROD
LH THREAD 		8-97020-954-2 02 1 0009- ● ● ●
104 NUT; ROD END
M14 		8-94465-411-0 02 1 0204- ● ● ● ● ●
104 NUT; ROD END
M14 		8-94465-411-0 02 1 0009- ● ● ● ● ● ● ● ●
105 PIN; SPLIT,ROD END
OD=2.7 L=17 THA 		8-97171-453-0 02 1 0204- ● ● ● ● ●
105 PIN; SPLIT,ROD END
OD=2.7 L=17 THA 		8-97171-453-0 02 1 0009- ● ● ● ● ● ● ● ●
109 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 0204- ● ● ● ● ●
109 NUT; ROD
(B) M14 		9-99110-414-0 02 1 0204- ● ● ● ● ●
110 ROD; TRACK,OUTER
THA 		8-97940-615-0 02 1 0204- ● ● ● ● ●
110 ROD; TRACK,OUTER
THA 		8-97940-615-0 02 1 0009-0110 ● ● ● ● ●
110 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 0009- ● ● ●
111 ROD; TRACK,CENTER
THA 		8-97316-966-0 01 1 0204- ● ● ● ● ●
111 ROD; TRACK,CENTER 8-94459-474-2 01 1 0009-0110 ● ● ● ● ●
111 ROD; TRACK,CENTER
SPECIAL PACKAGE VAR.2<7TB> 		8-94389-221-2 01 1 0009-0203 ●
111 ROD; TRACK,CENTER 8-94389-221-2 01 1 0009-0203 ●
111 ROD; TRACK,CENTER 8-97316-968-0 01 1 0204- ● ● ●
111 ROD; TRACK,CENTER
EXC. SPECIAL PACKAGE VAR.2<7TB> 		8-94459-491-2 01 1 0009-0203 ●
111 ROD; TRACK,CENTER 8-94459-491-2 01 1 0009-0203 ●
115 NUT; RELAY LEVER BRKT
M10 FLANGE 		8-94313-797-0 04 1 0009- ● ● ● ● ● ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
OD=2.7 L=15 THA 		8-97171-452-0 01 1 0009- ● ● ● ● ● ● ● ●
117 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 0009- ● ● ● ● ● ● ● ●
120 BOLT; RELAY LEVER STOPPER
THA 		8-97916-476-0 02 1 0009- ● ● ● ● ●
120 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 0009- ● ● ●
122 NUT; RELAY LEVER STOPPER
M10 		9-09111-410-0 02 1 0009- ● ● ● ● ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE
THA 		8-97940-627-0 01 1 0204- ● ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE
THA 		8-97940-627-0 01 1 0009-0110 ● ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE 8-94404-000-6 01 1 0009- ● ● ●

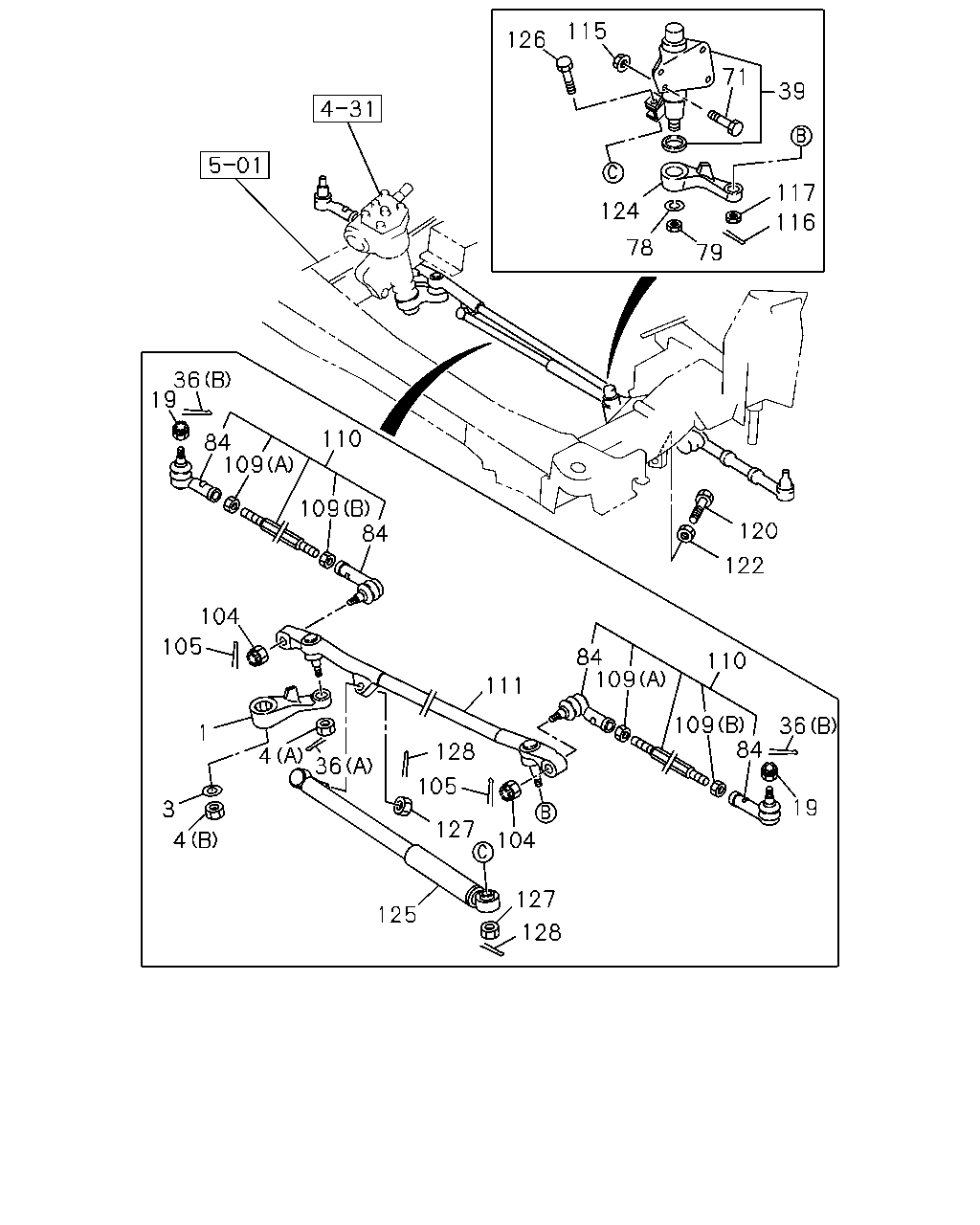

çizim 12570
115 126 71 39 117 116 124 78 79 36 19 110 84 109 109 84 120 122 104 105 84 109 110 111 109 84 36 1 128 4 36 105 19 3 4 127 104 127 128 125
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 ARM; PITMAN,STRG
THA 		8-97940-626-0 01 1 0204- ● ● ● ● ●
1 ARM; PITMAN,STRG
THA 		8-97940-626-0 01 1 0009-0110 ● ● ● ● ●
1 ARM; PITMAN,STRG 8-97026-252-0 01 1 0009-0105 ● ● ●
1 ARM; PITMAN,STRG 8-97315-932-0 01 1 0106- ● ● ●
3 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0009- ● ● ● ● ● ● ● ●
4 NUT; PITMAN ARM
M14 		8-94465-411-0 01 1 0204- ● ● ● ● ●
4 NUT; PITMAN ARM
(A) M14 		8-94465-411-0 01 1 0009- ● ● ● ● ● ● ● ●
4 NUT; PITMAN ARM
(B) M22 		9-09111-522-0 01 1 0009- ● ● ● ● ● ● ● ●
19 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 0009- ● ● ● ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
OD=2.7 L=17 THA 		8-97171-453-0 01 1 0204- ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
(A) OD=2.7 L=17 THA 		8-97171-453-0 01 1 0009- ● ● ● ● ● ● ● ●
36 PIN; SPLIT,DRAG LINK
(B) OD=2.8 L=25 		9-08113-025-0 02 1 0009- ● ● ● ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-97039-325-1 01 1 0009- ● ● ● ● ●
39 LEVER ASM; RELAY,STRG LINKAGE 8-97106-663-0 01 1 0009- ● ● ●
71 BOLT; RELAY LEVER BRKT
M10X92 FLANGE THA 		8-97916-478-0 04 1 0009- ● ● ● ● ● ● ● ●
78 WASHER; LINK,RELAY LEVER
ID=16.2 		9-09150-816-0 01 1 0009- ● ● ● ● ● ● ● ●
79 NUT; RELAY LEVER
M16 		9-99111-516-0 01 1 0009- ● ● ● ● ● ● ● ●
84 ROD END; TRACK ROD
RH THREAD THA 		8-97940-616-0 02 1 0204- ● ● ● ● ●
84 ROD END; TRACK ROD
LH THREAD THA 		8-97940-617-0 02 1 0204- ● ● ● ● ●
84 ROD END; TRACK ROD
RH THREAD THA 		8-97940-616-0 02 1 0009-0110 ● ● ● ● ●
84 ROD END; TRACK ROD
LH THREAD THA 		8-97940-617-0 02 1 0009-0110 ● ● ● ● ●
84 ROD END; TRACK ROD
RH THREAD 		8-97020-953-1 02 1 0009- ● ● ●
84 ROD END; TRACK ROD
LH THREAD 		8-97020-954-2 02 1 0009- ● ● ●
104 NUT; ROD END
M14 		8-94465-411-0 02 1 0204- ● ● ● ● ●
104 NUT; ROD END
M14 		8-94465-411-0 02 1 0009- ● ● ● ● ● ● ● ●
105 PIN; SPLIT,ROD END
OD=2.7 L=17 THA 		8-97171-453-0 02 1 0204- ● ● ● ● ●
105 PIN; SPLIT,ROD END
OD=2.7 L=17 THA 		8-97171-453-0 02 1 0009- ● ● ● ● ● ● ● ●
109 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 0204- ● ● ● ● ●
109 NUT; ROD
(B) M14 		9-99110-414-0 02 1 0204- ● ● ● ● ●
110 ROD; TRACK,OUTER
THA 		8-97940-615-0 02 1 0204- ● ● ● ● ●
110 ROD; TRACK,OUTER
THA 		8-97940-615-0 02 1 0009-0110 ● ● ● ● ●
110 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 0009- ● ● ●
111 ROD; TRACK,CENTER
THA 		8-97316-966-0 01 1 0204- ● ● ● ● ●
111 ROD; TRACK,CENTER 8-94459-474-2 01 1 0009-0110 ● ● ● ● ●
111 ROD; TRACK,CENTER
SPECIAL PACKAGE VAR.2<7TB> 		8-94389-221-2 01 1 0009-0203 ●
111 ROD; TRACK,CENTER 8-94389-221-2 01 1 0009-0203 ●
111 ROD; TRACK,CENTER 8-97316-968-0 01 1 0204- ● ● ●
111 ROD; TRACK,CENTER
EXC. SPECIAL PACKAGE VAR.2<7TB> 		8-94459-491-2 01 1 0009-0203 ●
111 ROD; TRACK,CENTER 8-94459-491-2 01 1 0009-0203 ●
115 NUT; RELAY LEVER BRKT
M10 FLANGE 		8-94313-797-0 04 1 0009- ● ● ● ● ● ● ● ●
116 PIN; SPLIT,TRACK ROD,CENTER
OD=2.7 L=15 THA 		8-97171-452-0 01 1 0009- ● ● ● ● ● ● ● ●
117 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 0009- ● ● ● ● ● ● ● ●
120 BOLT; RELAY LEVER STOPPER
THA 		8-97916-476-0 02 1 0009- ● ● ● ● ●
120 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 0009- ● ● ●
122 NUT; RELAY LEVER STOPPER
M10 		9-09111-410-0 02 1 0009- ● ● ● ● ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE
THA 		8-97940-627-0 01 1 0204- ● ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE
THA 		8-97940-627-0 01 1 0009-0110 ● ● ● ● ●
124 LEVER; RELAY,STRG LINKAGE 8-94404-000-6 01 1 0009- ● ● ●
125 DAMPER; STEERING 8-97161-106-1 01 1 0009- ● ● ●
126 BOLT; STRG DAMPER TO RELAY LEVER BRKT 8-94241-456-0 01 1 0009- ● ● ●
127 NUT; STRG DAMPER
M10 		9-09116-510-0 02 1 0009- ● ● ●
128 PIN; SPLIT,STRG DAMPER
OD=1.8 L=15 		9-08112-015-0 02 1 0009- ● ● ●
