◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#43610) — 48 parça

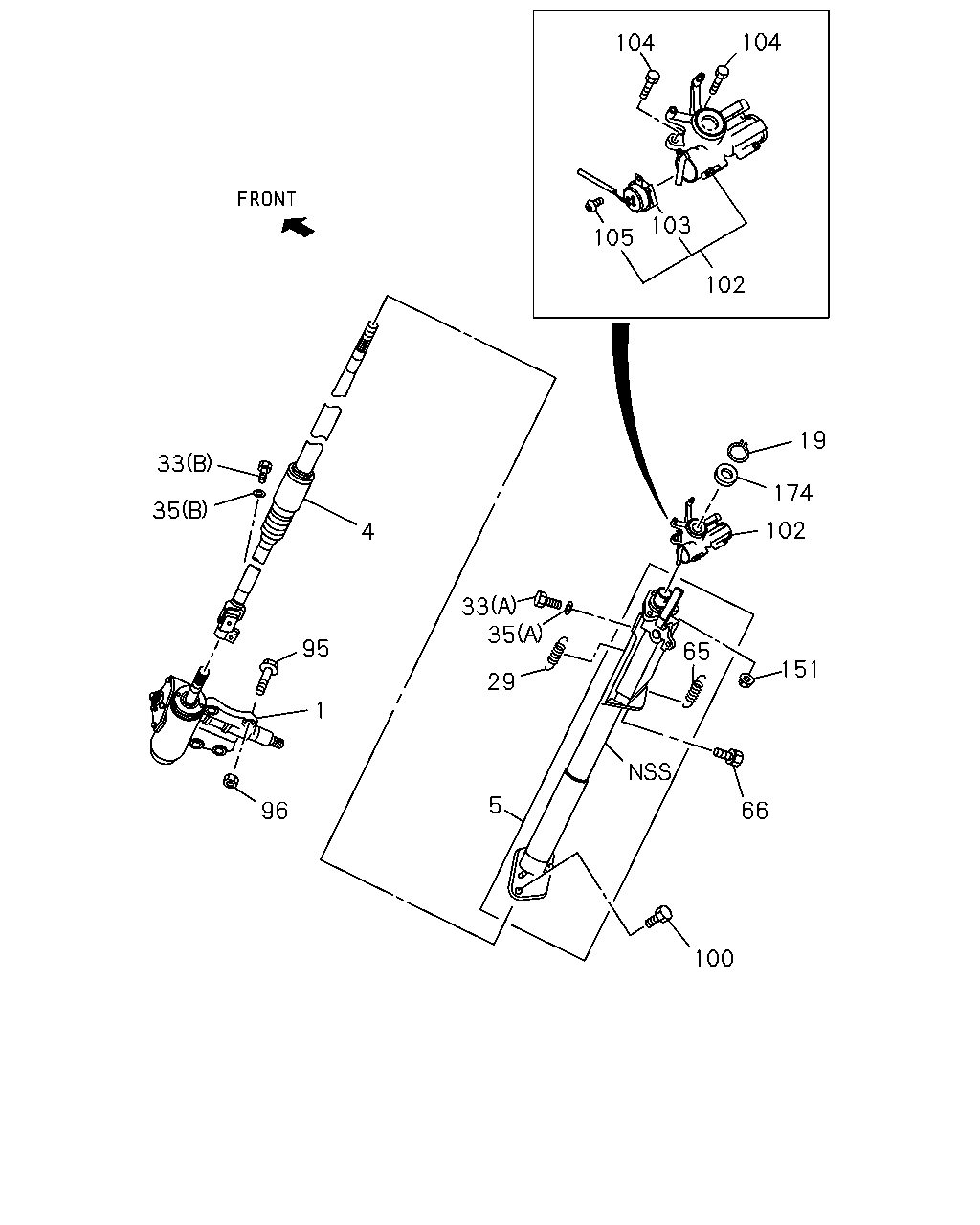

çizim 11687
104 104 103 105 102 19 33 174 35 102 4 33 35 65 95 151 29 1 5 96 66 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA 		8-97940-178-4 01 1 0009- ● ● ● ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA 		8-97940-039-2 01 1 0009- ● ● ● ● ● ● ● ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97207-517-0 01 1 0009- ● ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> THA 		8-97940-023-0 01 1 0009- ● ●
4 SHAFT; STRG
THA 		8-97940-023-0 01 1 0009- ● ● ● ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> 		8-97203-777-0 01 1 0009- ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> THA 		8-97941-898-0 01 1 0009- ● ●
5 COLUMN; STRG
THA 		8-97941-898-0 01 1 0009- ● ● ● ● ● ●
19 RING; SNAP,STRG SHAFT
ID=20.5 		9-09180-022-0 01 1 0009- ● ● ● ● ● ● ● ●
29 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-1 02 1 0009- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M8X30 THA 		8-97916-472-0 01 1 0009- ● ● ● ● ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 0009- ● ●
35 WASHER; LK,STRG SHAFT
(B) ID=8.2 THA 		9-09150-508-0 01 1 0009- ● ● ● ● ● ● ● ●
35 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 0009- ● ●
65 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 01 1 0009- ● ●
66 BOLT; STRG COLUMN
M8X35 		8-97100-457-0 02 1 0009- ● ● ● ● ● ● ● ●
95 BOLT; STRG UNIT
M10X92 FLANGE THA 		8-97916-478-0 04 1 0009- ● ● ● ● ● ● ● ●
96 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 0009- ● ● ● ● ● ● ● ●
100 BOLT; COLUMN TO FLOOR
M8X25 		8-94152-496-1 02 1 0009- ● ● ● ● ● ● ● ●
102 LOCK ASM; STRG 8-97170-879-0 01 1 0009- ● ● ● ● ● ● ● ●
103 SWITCH; IGNITION 8-97145-371-0 01 1 0009- ● ● ● ● ● ● ● ●
104 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER THA 		8-97916-553-0 02 1 0009- ● ● ● ● ● ● ● ●
105 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 0009- ● ● ● ● ● ● ● ●
151 NUT; FLANGE
M6 FLANGE 		0-91150-106-0 01 1 0009- ● ● ● ● ● ● ● ●
174 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 0009- ● ● ● ● ● ● ● ●
çizim 50680
104 104 103 105 102 19 33 174 35 102 4 95 151 1 66 5 96 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> THA 		8-97940-178-4 01 1 0009- ● ● ● ● ● ● ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> THA 		8-97940-039-2 01 1 0009- ● ● ● ● ● ● ● ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97207-517-0 01 1 0009- ● ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> THA 		8-97940-023-0 01 1 0009- ● ●
4 SHAFT; STRG
THA 		8-97940-023-0 01 1 0009- ● ● ● ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> 		8-97203-777-0 01 1 0009- ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> THA 		8-97941-898-0 01 1 0009- ● ●
5 COLUMN; STRG
THA 		8-97941-898-0 01 1 0009- ● ● ● ● ● ●
19 RING; SNAP,STRG SHAFT
ID=20.5 		9-09180-022-0 01 1 0009- ● ● ● ● ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M8X30 THA 		8-97916-472-0 01 1 0009- ● ● ● ● ● ● ● ●
33 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 0009- ● ●
35 WASHER; LK,STRG SHAFT
(B) ID=8.2 THA 		9-09150-508-0 01 1 0009- ● ● ● ● ● ● ● ●
35 WASHER; LK,STRG SHAFT
TILT STEERING<N33> (A) 		8-94477-979-0 01 1 0009- ● ●
66 BOLT; STRG COLUMN
M8X35 		8-97100-457-0 02 1 0009- ● ● ● ● ● ● ● ●
95 BOLT; STRG UNIT
M10X92 FLANGE THA 		8-97916-478-0 04 1 0009- ● ● ● ● ● ● ● ●
96 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 0009- ● ● ● ● ● ● ● ●
100 BOLT; COLUMN TO FLOOR
M8X25 		8-94152-496-1 02 1 0009- ● ● ● ● ● ● ● ●
102 LOCK ASM; STRG 8-97170-879-0 01 1 0009- ● ● ● ● ● ● ● ●
103 SWITCH; IGNITION 8-97145-371-0 01 1 0009- ● ● ● ● ● ● ● ●
104 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER THA 		8-97916-553-0 02 1 0009- ● ● ● ● ● ● ● ●
105 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 0009- ● ● ● ● ● ● ● ●
151 NUT; FLANGE
M6 FLANGE 		0-91150-106-0 01 1 0009- ● ● ● ● ● ● ● ●
174 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 0009- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
