Sayfa 0-50 - Isuzu EPC

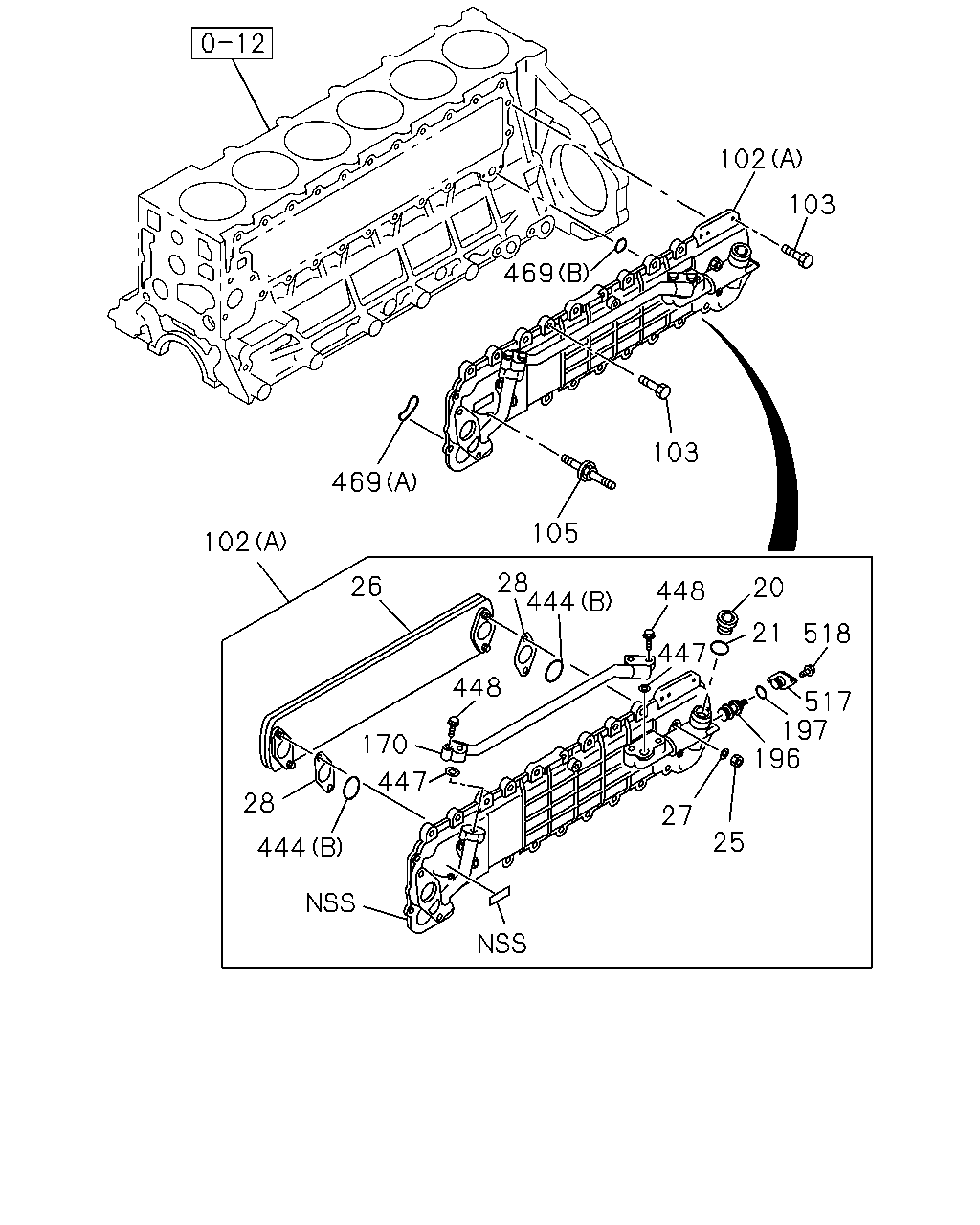

0-50 — OIL COOLER AND OIL FILTER (#4361) — 587 parça

102 469 103 103 469 105 102 28 444 26 20 448 21 518 447 448 517 197 196 170 447 28 27 25 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	PLUG; COOLER BODY	8-94396-753-0	01	1	9505-	●
21	GASKET; PLUG M24	8-94396-755-0	01	1	9505-	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9505-0512	●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-	●
26	CORE ASM; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-712-0	01	1	9505-0203	●
26	CORE ASM; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E>	8-94395-712-0	01	1	0204-	●
26	CORE ASM; OIL COOLER EXC. ENG OIL COOLER HEAVY DUTY<E1E>	8-94395-711-0	01	1	9505-	●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9505-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9505-	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-226-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-226-2	01	1	9101-9504			●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-222-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-222-2	01	1	9101-9504				●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-076-4	01	1	9505-0203	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-076-4	01	1	0204-	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	9505-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	0204-	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-913-0	01	1	9601-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-075-4	01	1	9505-0203	●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9703-9709					●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9710-					●	●
103	BOLT; OIL COOLER M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9101-9104		●	●	●
103	BOLT; OIL COOLER M8X20 W/PL WASHER	1-09030-091-0	02	1	9105-9504		●	●	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	15	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X65 W/LK WASHER	8-94205-986-1	01	1	9101-9504		●	●	●
103	BOLT; OIL COOLER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X45 W/LK&PL WASHER	0-50140-845-0	10	1	9101-9504		●	●	●
103	BOLT; OIL COOLER ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X45 W/LK&PL WASHER	0-50140-845-0	12	1	9101-9504		●	●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9505-9702	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9703-9709					●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9710-9710					●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X35 FLANGE	0-28080-835-0	01	1	9711-9805	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9711-9805					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9806-0512					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	01	1	0601-					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9505-0512	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9703-9709	●				●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9710-	●				●	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9703-9709					●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9710-9710					●	●
105	STUD; OIL COOLER MT643 A/T ALLISON(PR7) M8X39 L=79	8-94393-918-0	01	1	9711-9805	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9711-9805					●	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9806-					●	●
170	PIPE; BYPASS	8-94390-078-2	01	1	9505-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9505-9702	●
196	THERMOSTAT; OIL COOLER EXC. THERMOSTAT DELETE<E6B> 90 CELSIUS	8-94394-815-2	01	1	9703-9709	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9703-9709					●
196	THERMOSTAT; OIL COOLER EXC. THERMOSTAT DELETE<E6B> 90 CELSIUS	8-94394-815-2	01	1	9710-0111	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9710-0111					●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-					●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9505-	●
444	GASKET; ELEMENT TO BODY (C)	1-11282-014-0	02	1	9101-9504		●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9505-9702	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9703-9709	●				●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9710-	●				●	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9601-9702	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9703-9709	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9703-9709					●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9710-0203	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9710-0203					●	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0204-					●	●
447	GASKET; BYPASS PIPE ID=17.8	1-09623-588-0	02	1	9505-	●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	9505-0512	●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28050-830-0	04	1	0601-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11282-012-0	01	1	9101-9504		●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9710-	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9710-0606	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-	●				●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9505-	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9505-0512	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●

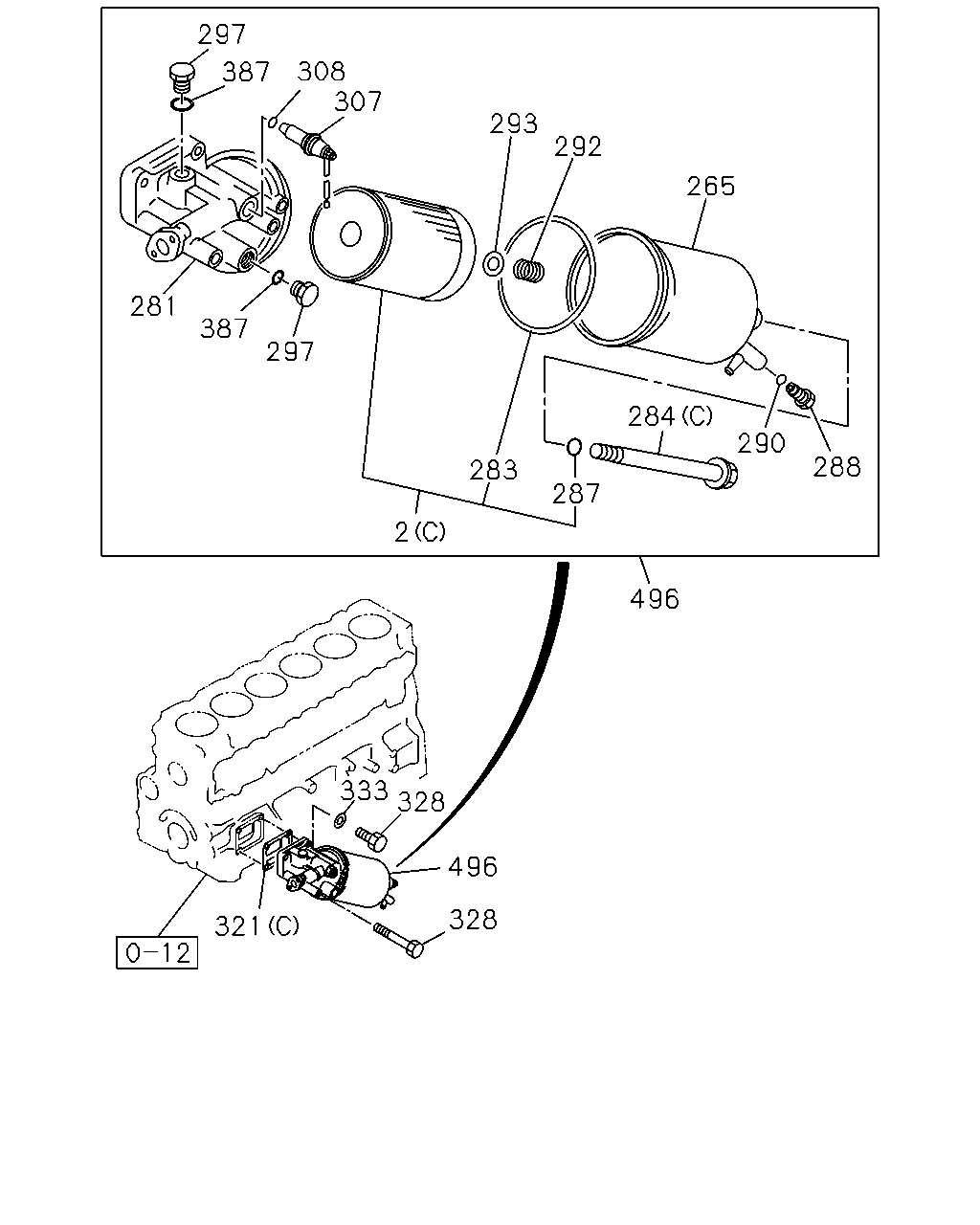

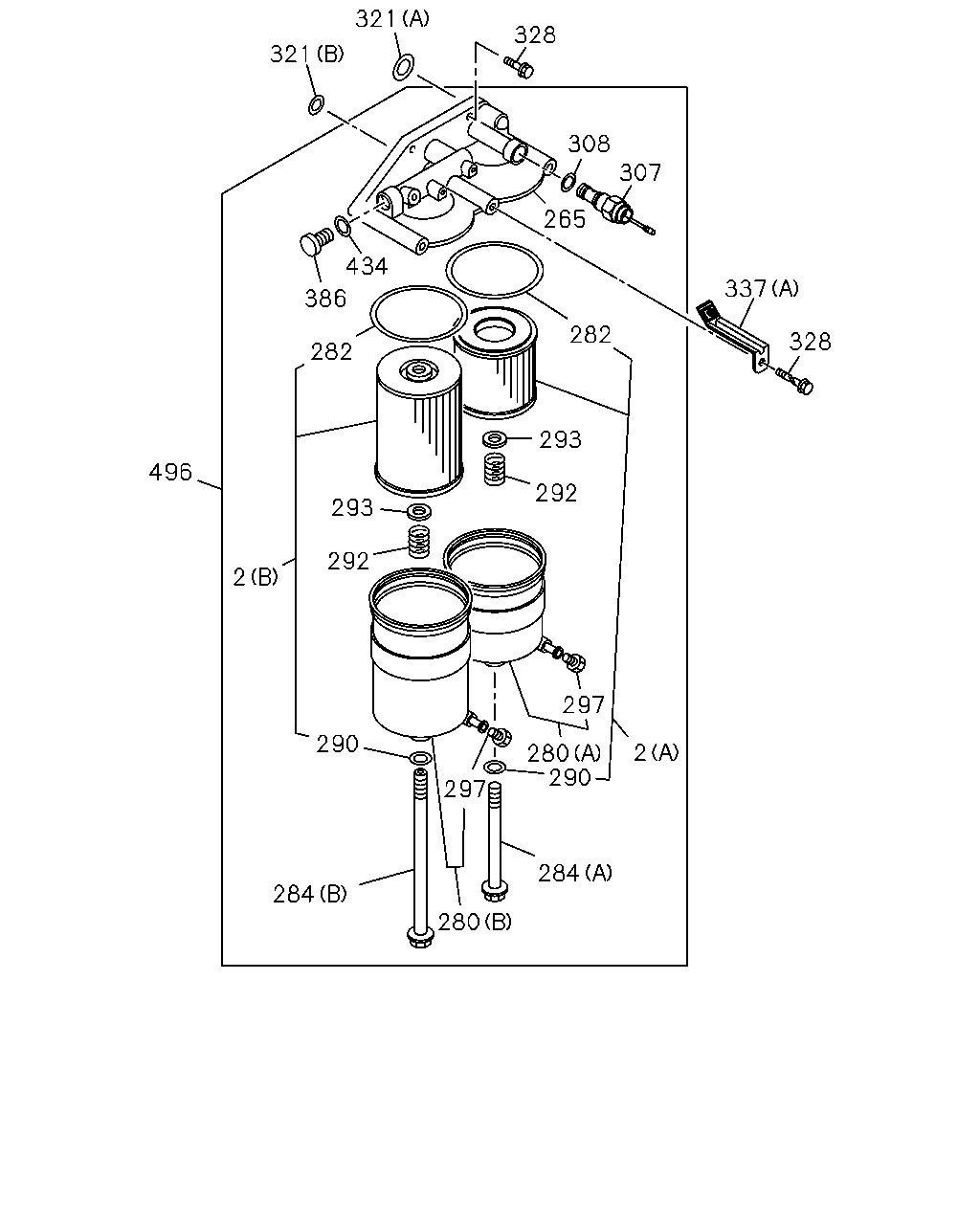

321 328 321 308 307 265 434 386 337 282 328 282 293 496 292 293 292 2 297 290 2 280 290 297 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER (C)	1-87810-075-2	01	1	9101-9504		●	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-87810-239-0	01	1	9101-9504		●	●	●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9505-9702	●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9703-9709	●				●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9710-0904	●				●	●
2	ELEMENT; OIL FILTER (B)	8-98140-515-0	01	1	0905-1406	●				●	●
2	ELEMENT; OIL FILTER (B)	8-98274-487-0	01	1	1407-	●				●	●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9505-9702	●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9703-9709	●				●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9710-1406	●				●	●
2	ELEMENT; OIL FILTER (A)	8-98274-486-0	01	1	1407-	●				●	●
265	BODY; OIL FILTER	1-13211-084-1	01	1	9101-9504		●	●	●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9505-9702	●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9703-9709	●				●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9710-	●				●	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9505-9702	●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9703-9709	●				●
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	9710-	●				●	●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9505-9702	●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9703-9709	●				●
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	9710-	●				●	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9505-9702	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9703-9709	●				●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9710-1406	●				●	●
282	GASKET; BODY TO CASE	8-98274-489-0	02	1	1407-	●				●	●
284	BOLT; CENTER,OIL FILTER (C)	1-13231-052-0	01	1	9101-9504		●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9505-9702	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9703-9709	●				●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9710-	●				●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9505-9702	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9703-9709	●				●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9710-	●				●	●
290	GASKET; PLUG,OIL DRAIN ID=11.8	9-09923-579-0	01	1	9101-9504		●	●	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9505-9702	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9703-9709	●				●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9710-1406	●				●	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	8-98274-488-0	02	1	1407-	●				●	●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9101-9504		●	●	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9505-9702	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9703-9709	●				●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9710-	●				●	●
293	SEAT; SPR	9-13239-025-0	01	1	9101-9504		●	●	●
293	SEAT; SPR	9-13239-025-0	02	1	9505-9702	●
293	SEAT; SPR	9-13239-025-0	02	1	9703-9709	●				●
293	SEAT; SPR	9-13239-025-0	02	1	9710-	●				●	●
297	PLUG; COVER M14X9	9-99202-314-0	02	1	9101-9504		●	●	●
297	PLUG; COVER	1-13219-275-0	02	1	9505-9702	●
297	PLUG; COVER	1-13219-275-0	02	1	9703-9709	●				●
297	PLUG; COVER	1-13219-275-0	02	1	9710-	●				●	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9101-9504		●	●	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9505-9702	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9703-9709	●				●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9710-	●				●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9101-9504		●	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9505-9702	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9703-9709	●				●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9710-	●				●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-13219-194-0	01	1	9101-9504		●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9505-9510	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9511-9702	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9703-9709	●				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9710-	●				●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9505-9702	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9703-9709	●				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9710-	●				●	●
328	BOLT; OIL FILTER M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9101-9504		●	●	●
328	BOLT; OIL FILTER M10X145	9-09800-928-1	02	1	9101-9504		●	●	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9505-9702	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9703-9709	●				●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9710-0512	●				●	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28151-030-0	02	1	0601-	●				●	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9505-9702	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9703-9709	●				●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9710-	●				●	●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9505-9510	●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9703-9709	●				●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9710-	●				●	●
337	BRACKET; FUEL PIPE (B)	8-94391-536-1	01	1	9703-9705					●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9706-9709					●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9710-0602					●	●
337	BRACKET; FUEL PIPE (B)	8-97613-364-0	01	1	0603-					●	●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9505-9702	●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9703-9709	●				●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9710-	●				●	●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9505-9702	●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9703-9709	●				●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9710-	●				●	●
496	FILTER ASM; OIL	1-13200-594-0	01	1	9101-9504		●	●	●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9505-9702	●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9703-9709	●				●
496	FILTER ASM; OIL	8-94393-269-3	01	1	9710-1406	●				●	●
496	FILTER ASM; OIL	8-98274-482-0	01	1	1407-	●				●	●

469 102 103 107 103 104 103 103 111 444 102 193 110 116 115 444 190 192 191 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-226-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-226-2	01	1	9101-9504			●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-222-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-222-2	01	1	9101-9504				●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-076-4	01	1	9505-0203	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-076-4	01	1	0204-	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	9505-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	0204-	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-913-0	01	1	9601-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-075-4	01	1	9505-0203	●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9703-9709					●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9710-					●	●
103	BOLT; OIL COOLER M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9101-9104		●	●	●
103	BOLT; OIL COOLER M8X20 W/PL WASHER	1-09030-091-0	02	1	9105-9504		●	●	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	15	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X65 W/LK WASHER	8-94205-986-1	01	1	9101-9504		●	●	●
103	BOLT; OIL COOLER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X45 W/LK&PL WASHER	0-50140-845-0	10	1	9101-9504		●	●	●
103	BOLT; OIL COOLER ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X45 W/LK&PL WASHER	0-50140-845-0	12	1	9101-9504		●	●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9505-9702	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9703-9709					●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9710-9710					●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X35 FLANGE	0-28080-835-0	01	1	9711-9805	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9711-9805					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9806-0512					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	01	1	0601-					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9505-0512	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9703-9709	●				●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9710-	●				●	●
104	BOLT; OIL COOLER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X50 W/LK WASHER	0-50040-850-0	02	1	9101-9504		●	●	●
104	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X60 W/LK WASHER	0-50040-860-0	02	1	9101-9504		●	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9101-9504		●	●	●
110	BODY; CASE,OIL COOLER	1-11281-026-1	01	1	9101-9504		●	●	●
110	BODY; CASE,OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-283-3	01	1	9601-9702	●
110	BODY; CASE,OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-283-3	01	1	9703-9709	●
110	BODY; CASE,OIL COOLER	8-94395-283-3	01	1	9703-9709					●
110	BODY; CASE,OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-283-3	01	1	9710-0203	●
110	BODY; CASE,OIL COOLER	8-94395-283-3	01	1	9710-0203					●	●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	0204-					●	●
111	CORE; OIL COOLER	1-11282-015-1	01	1	9101-9502		●		●
111	CORE; OIL COOLER EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q>	1-11282-015-1	01	1	9503-9504		●
111	CORE; OIL COOLER	1-11282-015-1	01	1	9503-9504				●
111	CORE; OIL COOLER	1-11282-018-0	01	1	9101-9502			●
111	CORE; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q>	1-11282-018-0	01	1	9503-9504		●
111	CORE; OIL COOLER	1-11282-018-0	01	1	9503-9504			●
111	CORE; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-405-1	01	1	9601-0203	●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9703-9709					●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9710-					●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9101-9504		●	●	●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9601-9702	●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9703-9709	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9703-9709					●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9710-0203	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9710-0203					●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	0204-0512					●	●
115	NUT; ELEMENT M10	0-91111-510-0	04	1	0601-					●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9101-9504		●	●	●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9601-9702	●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9703-9709	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9703-9709					●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9710-0203	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9710-0203					●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	0204-					●	●
189	PLUG; BYPASS VLV	9-13263-010-0	01	1	9101-9504		●	●	●
190	GASKET; PLUG,BYPASS VLV	9-09562-215-0	01	1	9101-9504		●	●	●
191	SPRING; BYPASS VLV	5-09580-092-0	01	1	9101-9504		●	●	●
192	VALVE; BYPASS	5-11288-001-0	01	1	9101-9504		●	●	●
193	PLUG; TAPER	5-09605-017-0	02	1	9101-9504		●	●	●
444	GASKET; ELEMENT TO BODY (C)	1-11282-014-0	02	1	9101-9504		●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9505-9702	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9703-9709	●				●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9710-	●				●	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9601-9702	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9703-9709	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9703-9709					●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9710-0203	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9710-0203					●	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0204-					●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11282-012-0	01	1	9101-9504		●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9710-	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9710-0606	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-	●				●	●

361 153 154 449 132 130 130 133 131 135 134 2 136 449 142 141 143 144 141 130 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER (C)	1-87810-075-2	01	1	9101-9504		●	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-87810-239-0	01	1	9101-9504		●	●	●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9505-9702	●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9703-9709	●				●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9710-0904	●				●	●
2	ELEMENT; OIL FILTER (B)	8-98140-515-0	01	1	0905-1406	●				●	●
2	ELEMENT; OIL FILTER (B)	8-98274-487-0	01	1	1407-	●				●	●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9505-9702	●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9703-9709	●				●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9710-1406	●				●	●
2	ELEMENT; OIL FILTER (A)	8-98274-486-0	01	1	1407-	●				●	●
130	GASKET; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=9.8	1-09623-055-0	02	1	9101-9504		●	●	●
131	GASKET; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13213-006-0	01	1	9101-9504		●	●	●
132	PLUG; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10	1-09000-105-0	02	1	9101-9504		●	●	●
133	COVER; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13212-034-0	01	1	9101-9504		●	●	●
134	CLAMP; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-009-0	01	1	9101-9504		●	●	●
135	WASHER; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=10.5	9-09164-510-0	01	1	9101-9504		●	●	●
136	BOLT; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-09029-021-0	01	1	9101-9504		●	●	●
141	BRACKET; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-077-0	02	1	9101-9504		●	●	●
142	BOLT; PARTIAL OIL FILTER BRKT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-167-0	02	1	9101-9504		●	●	●
143	WASHER; PARTIAL OIL FILTER BRKT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-168-0	02	1	9101-9504		●	●	●
144	NUT; PARTIAL OIL FILTER BRKT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-170-0	02	1	9101-9504		●	●	●
153	BRACKET; OIL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-47475-710-0	01	1	9101-9504		●	●	●
154	BOLT; BRKT,OIL PIPE PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10X20 W/LK WASHER	0-50051-020-0	02	1	9101-9504		●	●	●
361	BOLT; PARTIAL OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M10X20 W/LK WASHER	0-50041-020-0	04	1	9101-9504		●	●	●
449	FILTER ASM; OIL PARTIAL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13200-371-2	01	1	9101-9504		●	●	●

102 469 103 103 469 105 102 112 111 444 113 444 112 112 113 113 444 116 115 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-226-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-226-2	01	1	9101-9504			●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-222-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-222-2	01	1	9101-9504				●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-076-4	01	1	9505-0203	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-076-4	01	1	0204-	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	9505-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	0204-	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-913-0	01	1	9601-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-075-4	01	1	9505-0203	●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9703-9709					●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9710-					●	●
103	BOLT; OIL COOLER M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9101-9104		●	●	●
103	BOLT; OIL COOLER M8X20 W/PL WASHER	1-09030-091-0	02	1	9105-9504		●	●	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	15	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X65 W/LK WASHER	8-94205-986-1	01	1	9101-9504		●	●	●
103	BOLT; OIL COOLER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X45 W/LK&PL WASHER	0-50140-845-0	10	1	9101-9504		●	●	●
103	BOLT; OIL COOLER ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X45 W/LK&PL WASHER	0-50140-845-0	12	1	9101-9504		●	●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9505-9702	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9703-9709					●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9710-9710					●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X35 FLANGE	0-28080-835-0	01	1	9711-9805	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9711-9805					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9806-0512					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	01	1	0601-					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9505-0512	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9703-9709	●				●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9710-	●				●	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9703-9709					●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9710-9710					●	●
105	STUD; OIL COOLER MT643 A/T ALLISON(PR7) M8X39 L=79	8-94393-918-0	01	1	9711-9805	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9711-9805					●	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9806-					●	●
111	CORE; OIL COOLER	1-11282-015-1	01	1	9101-9502		●		●
111	CORE; OIL COOLER EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q>	1-11282-015-1	01	1	9503-9504		●
111	CORE; OIL COOLER	1-11282-015-1	01	1	9503-9504				●
111	CORE; OIL COOLER	1-11282-018-0	01	1	9101-9502			●
111	CORE; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q>	1-11282-018-0	01	1	9503-9504		●
111	CORE; OIL COOLER	1-11282-018-0	01	1	9503-9504			●
111	CORE; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-405-1	01	1	9601-0203	●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9703-9709					●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9710-					●	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94393-604-0	01	1	9601-9702	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94393-604-0	01	1	9703-9709	●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	9703-9709					●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94393-604-0	01	1	9710-0203	●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	9710-0203					●	●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	0204-					●	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9601-9702	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9703-9709	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9703-9709					●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9710-9802	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9710-9802					●	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9804-0203	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9804-0203					●	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	0204-					●	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-09623-499-0	01	1	9601-9702	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-09623-499-0	01	1	9703-9709	●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	9703-9709					●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-09623-499-0	01	1	9710-0203	●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	9710-0203					●	●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	0204-					●	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M24	8-94396-755-0	02	1	9601-9702	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M24	8-94396-755-0	02	1	9703-9802	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	9703-9802					●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M24	8-94396-755-0	02	1	9803-0203	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	9803-0203					●	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	0204-					●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9101-9504		●	●	●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9601-9702	●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9703-9709	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9703-9709					●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9710-0203	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9710-0203					●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	0204-0512					●	●
115	NUT; ELEMENT M10	0-91111-510-0	04	1	0601-					●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9101-9504		●	●	●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9601-9702	●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9703-9709	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9703-9709					●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9710-0203	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9710-0203					●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	0204-					●	●
444	GASKET; ELEMENT TO BODY (C)	1-11282-014-0	02	1	9101-9504		●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9505-9702	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9703-9709	●				●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9710-	●				●	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9601-9702	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9703-9709	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9703-9709					●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9710-0203	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9710-0203					●	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0204-					●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11282-012-0	01	1	9101-9504		●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9710-	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9710-0606	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-	●				●	●

297 308 307 387 293 292 265 281 387 297 284 290 288 283 287 2 496 333 328 496 328 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER (C)	1-87810-075-2	01	1	9101-9504		●	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (D)	1-87810-239-0	01	1	9101-9504		●	●	●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9505-9702	●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9703-9709	●				●
2	ELEMENT; OIL FILTER (B)	1-13240-132-0	01	1	9710-0904	●				●	●
2	ELEMENT; OIL FILTER (B)	8-98140-515-0	01	1	0905-1406	●				●	●
2	ELEMENT; OIL FILTER (B)	8-98274-487-0	01	1	1407-	●				●	●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9505-9702	●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9703-9709	●				●
2	ELEMENT; OIL FILTER (A)	1-87810-372-1	01	1	9710-1406	●				●	●
2	ELEMENT; OIL FILTER (A)	8-98274-486-0	01	1	1407-	●				●	●
265	BODY; OIL FILTER	1-13211-084-1	01	1	9101-9504		●	●	●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9505-9702	●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9703-9709	●				●
265	BODY; OIL FILTER	1-13212-169-0	01	1	9710-	●				●	●
281	COVER; OIL FILTER	1-13212-070-0	01	1	9101-9504		●	●	●
283	GASKET; BODY TO COVER	9-09920-311-0	01	1	9101-9504		●	●	●
284	BOLT; CENTER,OIL FILTER (C)	1-13231-052-0	01	1	9101-9504		●	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9505-9702	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9703-9709	●				●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9710-	●				●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9505-9702	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9703-9709	●				●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9710-	●				●	●
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9101-9504		●	●	●
288	PLUG; OIL DRAIN	1-09604-031-0	01	1	9101-9504		●	●	●
290	GASKET; PLUG,OIL DRAIN ID=11.8	9-09923-579-0	01	1	9101-9504		●	●	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9505-9702	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9703-9709	●				●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9710-1406	●				●	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	8-98274-488-0	02	1	1407-	●				●	●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9101-9504		●	●	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9505-9702	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9703-9709	●				●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9710-	●				●	●
293	SEAT; SPR	9-13239-025-0	01	1	9101-9504		●	●	●
293	SEAT; SPR	9-13239-025-0	02	1	9505-9702	●
293	SEAT; SPR	9-13239-025-0	02	1	9703-9709	●				●
293	SEAT; SPR	9-13239-025-0	02	1	9710-	●				●	●
297	PLUG; COVER M14X9	9-99202-314-0	02	1	9101-9504		●	●	●
297	PLUG; COVER	1-13219-275-0	02	1	9505-9702	●
297	PLUG; COVER	1-13219-275-0	02	1	9703-9709	●				●
297	PLUG; COVER	1-13219-275-0	02	1	9710-	●				●	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9101-9504		●	●	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9505-9702	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9703-9709	●				●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9710-	●				●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9101-9504		●	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9505-9702	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9703-9709	●				●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9710-	●				●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-13219-194-0	01	1	9101-9504		●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9505-9510	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9511-9702	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9703-9709	●				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9710-	●				●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9505-9702	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9703-9709	●				●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9710-	●				●	●
328	BOLT; OIL FILTER M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9101-9504		●	●	●
328	BOLT; OIL FILTER M10X145	9-09800-928-1	02	1	9101-9504		●	●	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9505-9702	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9703-9709	●				●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	02	1	9710-0512	●				●	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28151-030-0	02	1	0601-	●				●	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9505-9702	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9703-9709	●				●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	03	1	9710-	●				●	●
333	GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=19	9-09572-010-0	02	1	9101-9504		●	●	●
387	GASKET; PLUG,COVER ID=14.2 OD=20.0	9-09571-414-0	02	1	9101-9504		●	●	●
496	FILTER ASM; OIL	1-13200-594-0	01	1	9101-9504		●	●	●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9505-9702	●
496	FILTER ASM; OIL	8-94393-269-1	01	1	9703-9709	●				●
496	FILTER ASM; OIL	8-94393-269-3	01	1	9710-1406	●				●	●
496	FILTER ASM; OIL	8-98274-482-0	01	1	1407-	●				●	●

102 103 469 337 95 196 103 469 105 102 444 444 112 113 112 111 112 113 113 116 115 444 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
95	NUT; OIL COOLER BRKT M8 FLANGE	0-91150-108-0	01	1	9703-9709					●
95	NUT; OIL COOLER BRKT M8 FLANGE	0-91150-108-0	01	1	9710-0602					●	●
95	NUT; OIL COOLER BRKT M8 FLANGE	0-91180-108-0	01	1	0603-					●	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-226-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-226-2	01	1	9101-9504			●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (D)	1-21700-222-2	01	1	9101-9504		●
102	COOLER ASM; OIL (D)	1-21700-222-2	01	1	9101-9504				●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-076-4	01	1	9505-0203	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-076-4	01	1	0204-	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	9505-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E> (A)	8-94390-074-4	01	1	0204-	●
102	COOLER ASM; OIL ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94395-913-0	01	1	9601-0203	●
102	COOLER ASM; OIL EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94390-075-4	01	1	9505-0203	●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9703-9709					●
102	COOLER ASM; OIL (C)	8-94390-536-0	01	1	9710-					●	●
103	BOLT; OIL COOLER M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9101-9104		●	●	●
103	BOLT; OIL COOLER M8X20 W/PL WASHER	1-09030-091-0	02	1	9105-9504		●	●	●
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	15	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X65 W/LK WASHER	8-94205-986-1	01	1	9101-9504		●	●	●
103	BOLT; OIL COOLER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> M8X45 W/LK&PL WASHER	0-50140-845-0	10	1	9101-9504		●	●	●
103	BOLT; OIL COOLER ISUZU M/T<X9A> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X45 W/LK&PL WASHER	0-50140-845-0	12	1	9101-9504		●	●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9101-9504		●	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9505-9702	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9703-9709					●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9710-9710					●	●
103	BOLT; OIL COOLER MT643 A/T ALLISON(PR7) M8X35 FLANGE	0-28080-835-0	01	1	9711-9805	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9711-9805					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	01	1	9806-0512					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	01	1	0601-					●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9505-0512	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9703-9709	●				●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9710-	●				●	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9703-9709					●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9710-9710					●	●
105	STUD; OIL COOLER MT643 A/T ALLISON(PR7) M8X39 L=79	8-94393-918-0	01	1	9711-9805	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9711-9805					●	●
105	STUD; OIL COOLER M8X39 L=79	8-94393-918-0	01	1	9806-					●	●
110	BODY; CASE,OIL COOLER	1-11281-026-1	01	1	9101-9504		●	●	●
110	BODY; CASE,OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-283-3	01	1	9601-9702	●
110	BODY; CASE,OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-283-3	01	1	9703-9709	●
110	BODY; CASE,OIL COOLER	8-94395-283-3	01	1	9703-9709					●
110	BODY; CASE,OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-283-3	01	1	9710-0203	●
110	BODY; CASE,OIL COOLER	8-94395-283-3	01	1	9710-0203					●	●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	0204-					●	●
111	CORE; OIL COOLER	1-11282-015-1	01	1	9101-9502		●		●
111	CORE; OIL COOLER EXC. ENG OIL COOLER HEAVY DUTY<E1E>,AIR COMPRESSOR HEAVY DUTY<E1Q>	1-11282-015-1	01	1	9503-9504		●
111	CORE; OIL COOLER	1-11282-015-1	01	1	9503-9504				●
111	CORE; OIL COOLER	1-11282-018-0	01	1	9101-9502			●
111	CORE; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q>	1-11282-018-0	01	1	9503-9504		●
111	CORE; OIL COOLER	1-11282-018-0	01	1	9503-9504			●
111	CORE; OIL COOLER ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	8-94395-405-1	01	1	9601-0203	●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9703-9709					●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9710-					●	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94393-604-0	01	1	9601-9702	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94393-604-0	01	1	9703-9709	●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	9703-9709					●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	8-94393-604-0	01	1	9710-0203	●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	9710-0203					●	●
112	PLUG; OIL COOLER CASE (B)	8-94393-604-0	01	1	0204-					●	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9601-9702	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9703-9709	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9703-9709					●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9710-9802	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9710-9802					●	●
112	PLUG; OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94396-753-0	02	1	9804-0203	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	9804-0203					●	●
112	PLUG; OIL COOLER CASE (A)	8-94396-753-0	02	1	0204-					●	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-09623-499-0	01	1	9601-9702	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-09623-499-0	01	1	9703-9709	●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	9703-9709					●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-09623-499-0	01	1	9710-0203	●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	9710-0203					●	●
113	GASKET; PLUG,OIL COOLER CASE (B)	1-09623-499-0	01	1	0204-					●	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M24	8-94396-755-0	02	1	9601-9702	●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M24	8-94396-755-0	02	1	9703-9802	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	9703-9802					●
113	GASKET; PLUG,OIL COOLER CASE ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A) M24	8-94396-755-0	02	1	9803-0203	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	9803-0203					●	●
113	GASKET; PLUG,OIL COOLER CASE (A) M24	8-94396-755-0	02	1	0204-					●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9101-9504		●	●	●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9601-9702	●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9703-9709	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9703-9709					●
115	NUT; ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M10	9-09111-410-0	04	1	9710-0203	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9710-0203					●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	0204-0512					●	●
115	NUT; ELEMENT M10	0-91111-510-0	04	1	0601-					●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9101-9504		●	●	●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9601-9702	●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9703-9709	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9703-9709					●
116	WASHER; PL,ELEMENT ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> ID=10.5	9-09164-510-0	04	1	9710-0203	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9710-0203					●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	0204-					●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9505-9702	●
196	THERMOSTAT; OIL COOLER EXC. THERMOSTAT DELETE<E6B> 90 CELSIUS	8-94394-815-2	01	1	9703-9709	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9703-9709					●
196	THERMOSTAT; OIL COOLER EXC. THERMOSTAT DELETE<E6B> 90 CELSIUS	8-94394-815-2	01	1	9710-0111	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9710-0111					●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-					●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-	●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9505-9510	●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9703-9709	●				●
337	BRACKET; FUEL PIPE (A)	8-94399-726-0	01	1	9710-	●				●	●
337	BRACKET; FUEL PIPE (B)	8-94391-536-1	01	1	9703-9705					●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9706-9709					●
337	BRACKET; FUEL PIPE (B)	8-94391-697-0	01	1	9710-0602					●	●
337	BRACKET; FUEL PIPE (B)	8-97613-364-0	01	1	0603-					●	●
444	GASKET; ELEMENT TO BODY (C)	1-11282-014-0	02	1	9101-9504		●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9505-9702	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9703-9709	●				●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9710-	●				●	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9601-9702	●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9703-9709	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9703-9709					●
444	GASKET; ELEMENT TO BODY ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A)	8-94394-930-0	02	1	9710-0203	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9710-0203					●	●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	0204-					●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11282-012-0	01	1	9101-9504		●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9710-	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9505-9702	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9703-9709	●				●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9710-0606	●				●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-	●				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
