4-20 — REAR AXLE CASE AND SHAFT (#43607) — 71 parça

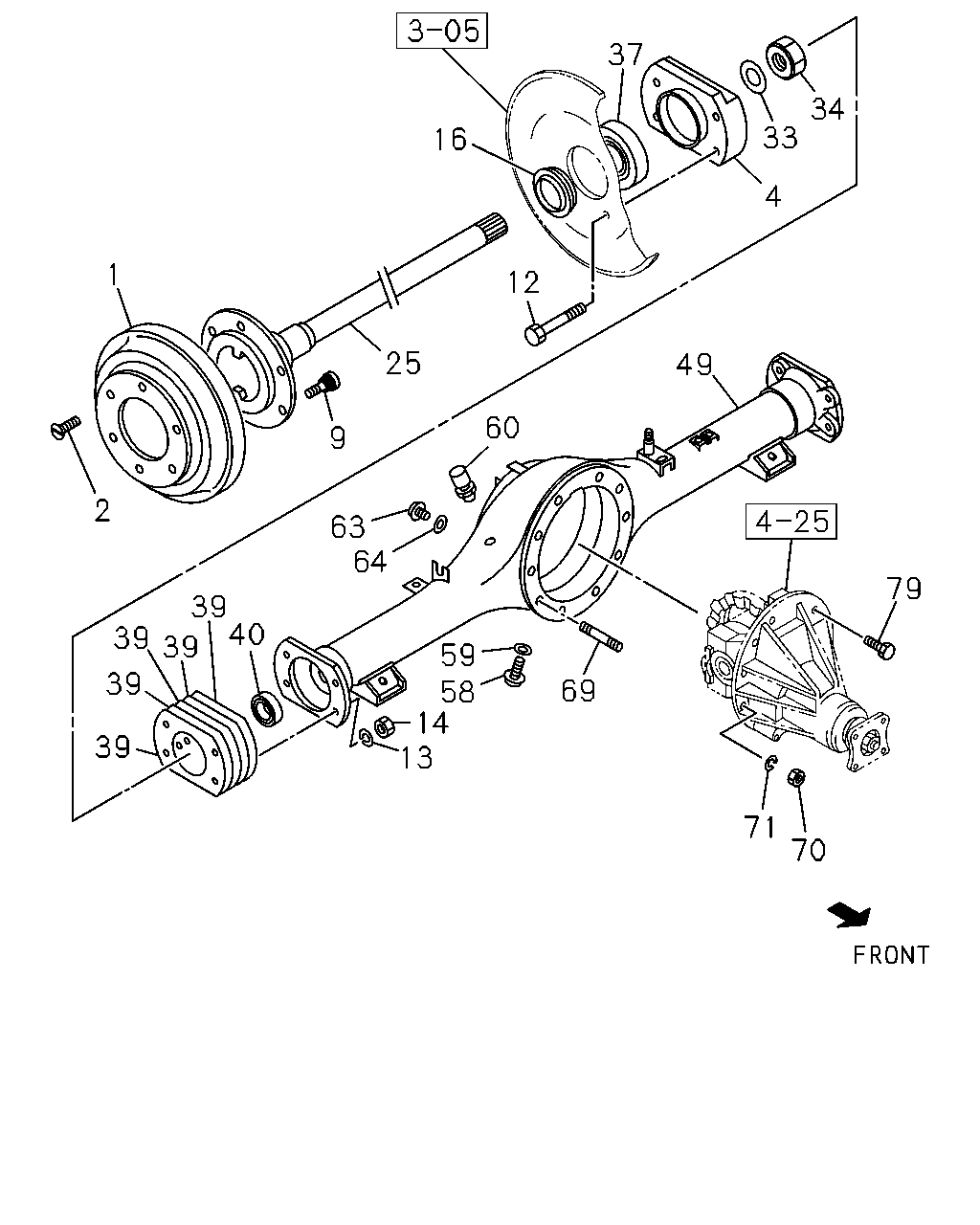

çizim 50679
37 34 33 16 4 1 12 25 49 60 9 2 63 64 39 39 40 39 79 59 58 14 13 39 69 39 71 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 DRUM; BRK,RR
THA 		8-97912-866-0 02 1 0009- ● ● ● ● ●
1 DRUM; BRK,RR
THA 		8-97910-577-1 02 1 0009- ● ● ●
2 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 0009- ● ● ● ● ● ● ● ●
4 HOLDER; BRG,AXLE SHAFT 8-94469-695-1 02 1 0009- ● ● ● ● ● ● ● ●
9 PIN; WHEEL,RR AXLE
THA 		8-97942-156-0 12 1 0009- ● ● ● ● ● ● ● ●
12 BOLT; BRG HOLDER TO CASE
WO/MARK M12X83 		8-94471-384-2 04 1 0009- ● ● ● ● ● ● ● ●
12 BOLT; BRG HOLDER TO CASE
W/MARK M12X83 		8-94471-385-2 04 1 0009- ● ● ● ● ● ● ● ●
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		9-09150-512-0 08 1 0009- ● ● ● ● ● ● ● ●
14 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 0009- ● ● ● ● ●
14 NUT; BRG HOLDER TO CASE
M12 		8-97138-934-0 08 1 0009- ● ● ●
16 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72 		9-09724-022-1 02 1 0009- ● ● ● ● ● ● ● ●
25 SHAFT; AXLE,RR
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97942-193-0 02 1 0009- ● ● ●
25 SHAFT; AXLE,RR
THA 		8-97942-193-0 02 1 0009- ● ● ●
25 SHAFT; AXLE,RR
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97942-192-0 02 1 0009- ●
25 SHAFT; AXLE,RR
THA 		8-97942-192-0 02 1 0009- ● ●
33 WASHER; AXLE SHAFT 8-97086-472-0 02 1 0009- ● ● ● ● ● ● ● ●
34 NUT; AXLE SHAFT
M45 		8-94178-278-0 02 1 0009- ● ● ● ● ● ● ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT THA 		8-97918-180-0 02 1 0009- ● ● ● ● ● ● ● ●
37 BEARING; HUB INNER,RR AXLE
NSK THA 		8-97950-009-0 02 1 0009- ● ● ● ● ● ● ● ●
39 SHIM; BRG HOLDER
T=1.000 THA 		8-97911-104-0 AR 1 0009- ● ● ● ● ●
39 SHIM; BRG HOLDER
FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> T=1.000 THA 		8-97911-104-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.500 THA 		8-97911-105-0 AR 1 0009- ● ● ● ● ●
39 SHIM; BRG HOLDER
FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> T=0.500 THA 		8-97911-105-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.130 THA 		8-97911-106-0 AR 1 0009- ● ● ● ● ●
39 SHIM; BRG HOLDER
FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> T=0.130 THA 		8-97911-106-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.076 THA 		8-97911-107-0 AR 1 0009- ● ● ● ● ●
39 SHIM; BRG HOLDER
FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> T=0.076 THA 		8-97911-107-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.050 THA 		8-97911-108-0 AR 1 0009- ● ● ● ● ●
39 SHIM; BRG HOLDER
FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> T=0.050 THA 		8-97911-108-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> T=1.000 THA 		8-97911-104-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=1.000 THA 		8-97911-104-0 AR 1 0009- ● ●
39 SHIM; BRG HOLDER
FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> T=0.500 THA 		8-97911-105-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.500 THA 		8-97911-105-0 AR 1 0009- ● ●
39 SHIM; BRG HOLDER
FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> T=0.130 THA 		8-97911-106-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.130 THA 		8-97911-106-0 AR 1 0009- ● ●
39 SHIM; BRG HOLDER
FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> T=0.076 THA 		8-97911-107-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.076 THA 		8-97911-107-0 AR 1 0009- ● ●
39 SHIM; BRG HOLDER
FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> T=0.050 THA 		8-97911-108-0 AR 1 0009- ●
39 SHIM; BRG HOLDER
T=0.050 THA 		8-97911-108-0 AR 1 0009- ● ●
40 SEAL; OIL,REAR AXLE
ID=37.5 OD=60 		5-09625-092-0 02 1 0009- ● ● ● ● ● ● ● ●
49 CASE; RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97940-717-2 01 1 0009- ●
49 CASE; RR AXLE
THA 		8-97940-717-2 01 1 0009- ● ●
49 CASE; RR AXLE
A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97940-718-2 01 1 0009- ● ● ●
49 CASE; RR AXLE
THA 		8-97940-718-2 01 1 0009- ● ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0009- ● ● ● ● ● ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 0009- ● ● ● ● ● ● ● ●
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0009- ● ● ● ● ● ● ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0009- ● ● ● ● ● ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 THA 		8-94462-734-0 01 1 0009- ● ● ● ● ● ● ● ●
69 STUD; AXLE CASE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> M8X25 L=36 		5-09300-037-0 02 1 0009- ●
69 STUD; AXLE CASE
M8X25 L=36 		5-09300-037-0 02 1 0009- ● ●
69 STUD; AXLE CASE
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> M10X31 L=43 THA 		9-09630-011-1 02 1 0009- ● ● ●
69 STUD; AXLE CASE
M10X31 L=43 THA 		9-09630-011-1 02 1 0009- ● ● ●
70 NUT; CARRIER
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> M8 		5-09400-020-0 02 1 0009- ●
70 NUT; CARRIER
M8 		5-09400-020-0 02 1 0009- ● ●
70 NUT; CARRIER
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> M10 		9-09110-510-0 02 1 0009- ● ● ●
70 NUT; CARRIER
M10 		9-09110-510-0 02 1 0009- ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> ID=8.2 		9-09150-808-0 02 1 0009- ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=8.2 		9-09150-808-0 02 1 0009- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> ID=10.2 		9-09150-610-0 02 1 0009- ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=10.2 		9-09150-610-0 02 1 0009- ● ● ●
79 BOLT; COVER TO CASE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> M8X25 W/LK WASHER THA 		8-97916-473-0 04 1 0009- ●
79 BOLT; COVER TO CASE
M8X25 W/LK WASHER THA 		8-97916-473-0 04 1 0009- ● ●
79 BOLT; COVER TO CASE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> M8X30 W/LK WASHER THA 		8-97916-529-0 02 1 0009- ●
79 BOLT; COVER TO CASE
M8X30 W/LK WASHER THA 		8-97916-529-0 02 1 0009- ● ●
79 BOLT; COVER TO CASE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> M8X90 W/LK WASHER THA 		8-97916-530-0 02 1 0009- ●
79 BOLT; COVER TO CASE
M8X90 W/LK WASHER THA 		8-97916-530-0 02 1 0009- ● ●
79 BOLT; COVER TO CASE
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> M10X30 		0-50061-030-0 07 1 0009- ● ● ●
79 BOLT; COVER TO CASE
M10X30 		0-50061-030-0 07 1 0009- ● ● ●
79 BOLT; COVER TO CASE
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> M10X90 		0-50061-090-0 01 1 0009- ● ● ●
79 BOLT; COVER TO CASE
M10X90 		0-50061-090-0 01 1 0009- ● ● ●
