◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-16 - FREE WHEEL HUB ▶
4-16 — FREE WHEEL HUB (#43606) — 29 parça

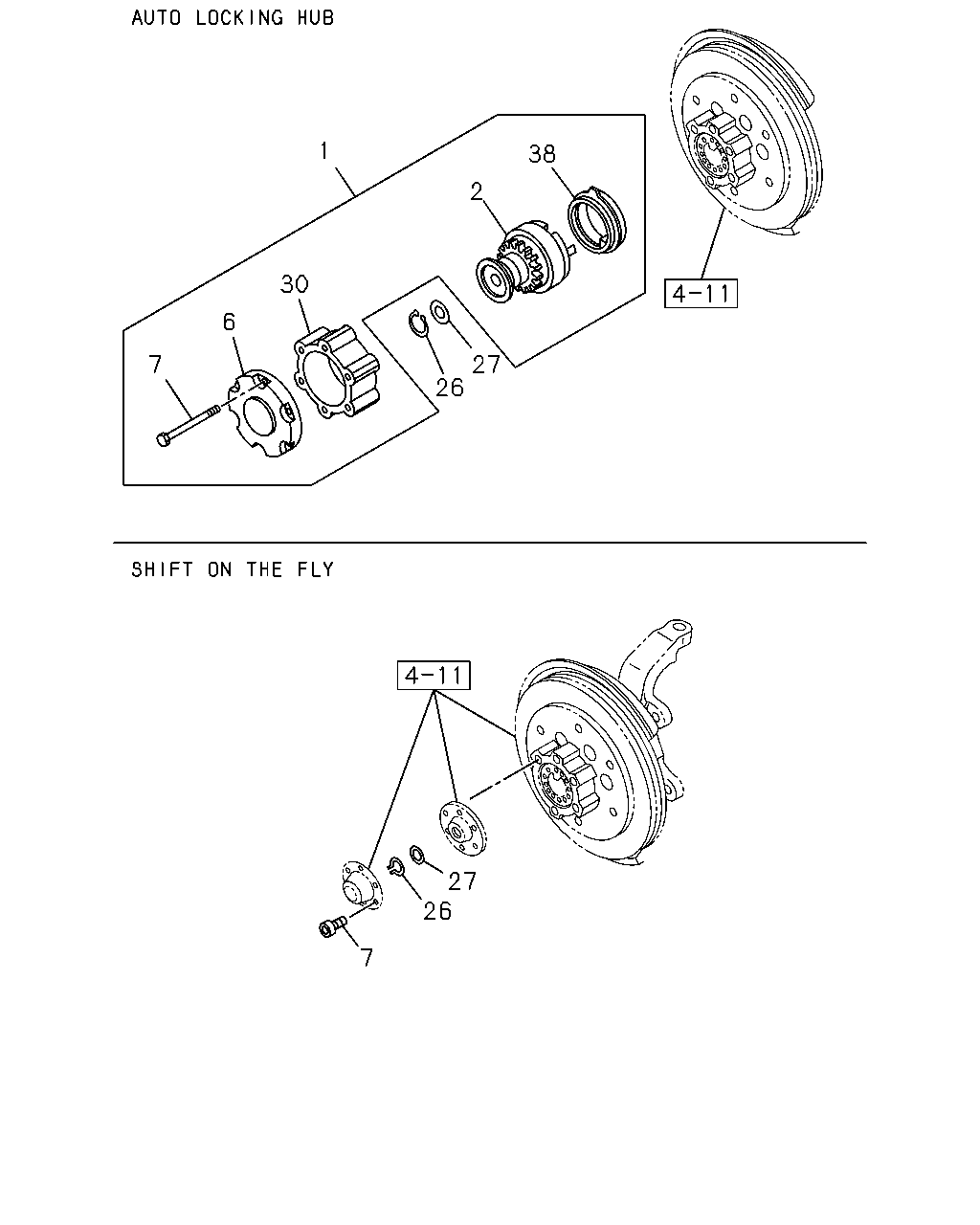

çizim 50059
1 38 2 30 6 27 26 7 27 26 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HUB ASM; FREE WHEEL
AUTO LOCKING HUB<S1Y> THA 		8-97119-362-0 02 1 0009-0011 ● ● ●
2 CLUTCH; DRIVE,AUTO HUB
AUTO LOCKING HUB<S1Y> THA 		8-97118-960-0 02 1 0009-0011 ● ● ●
6 CAP; HUB,AUTO LOCKING HUB
AUTO LOCKING HUB<S1Y> THA 		8-97119-066-0 02 1 0009-0011 ● ● ●
7 BOLT; FREE WHEEL HUB
SHIFT ON THE FLY<7EX> M10X33 THA 		8-94176-987-1 12 1 0009-0011 ● ● ●
7 BOLT; FREE WHEEL HUB
AUTO LOCKING HUB<S1Y> M10X63 THA 		8-97120-682-0 12 1 0009-0011 ● ● ●
7 BOLT; FREE WHEEL HUB
M10X33 THA 		8-94176-987-1 12 1 0012- ● ● ●
26 RING; SNAP,HUB
SHIFT ON THE FLY<7EX> ID=25.9 		9-09180-028-0 02 1 0009-0011 ● ● ●
26 RING; SNAP,HUB
ID=25.9 		9-09180-028-0 02 1 0012- ● ● ●
26 RING; SNAP,HUB
AUTO LOCKING HUB<S1Y> ID=18.7 THA 		8-94453-778-0 02 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
SHIFT ON THE FLY<7EX> T=0.20 		8-94178-929-0 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
T=0.20 		8-94178-929-0 AR 1 0012- ● ● ●
27 SHIM; AXLE SHAFT
SHIFT ON THE FLY<7EX> T=0.30 		8-94178-930-0 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
T=0.30 		8-94178-930-0 AR 1 0012- ● ● ●
27 SHIM; AXLE SHAFT
FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> AUTO LOCKING HUB<S1Y> T=0.20 THA 		8-94178-933-1 AR 1 0010-0011 ●
27 SHIM; AXLE SHAFT
AUTO LOCKING HUB<S1Y> T=0.20 THA 		8-94178-933-1 AR 1 0010-0011 ● ●
27 SHIM; AXLE SHAFT
SHIFT ON THE FLY<7EX> T=0.50 		8-94178-931-0 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
T=0.50 		8-94178-931-0 AR 1 0012- ● ● ●
27 SHIM; AXLE SHAFT
SHIFT ON THE FLY<7EX> T=1.00 		8-94178-932-0 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
T=1.00 		8-94178-932-0 AR 1 0012- ● ● ●
27 SHIM; AXLE SHAFT
AUTO LOCKING HUB<S1Y> T=0.20 THA 		8-94178-933-1 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
AUTO LOCKING HUB<S1Y> T=0.30 THA 		8-94178-934-1 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
AUTO LOCKING HUB<S1Y> T=0.50 THA 		8-94178-935-1 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
AUTO LOCKING HUB<S1Y> T=1.00 THA 		8-94178-936-1 AR 1 0009-0011 ● ● ●
27 SHIM; AXLE SHAFT
T=0.20 		8-94178-929-0 AR 1 0012- ● ● ●
27 SHIM; AXLE SHAFT
T=0.30 		8-94178-930-0 AR 1 0012- ● ● ●
27 SHIM; AXLE SHAFT
T=0.50 		8-94178-931-0 AR 1 0012- ● ● ●
27 SHIM; AXLE SHAFT
T=1.00 		8-94178-932-0 AR 1 0012- ● ● ●
30 HOUSING; FREE WHEEL HUB
AUTO LOCKING HUB<S1Y> THA 		8-97119-064-0 02 1 0009-0011 ● ● ●
38 CAM; INNER,AUTO HUB
AUTO LOCKING HUB<S1Y> THA 		8-97037-210-1 02 1 0009-0011 ● ● ●
