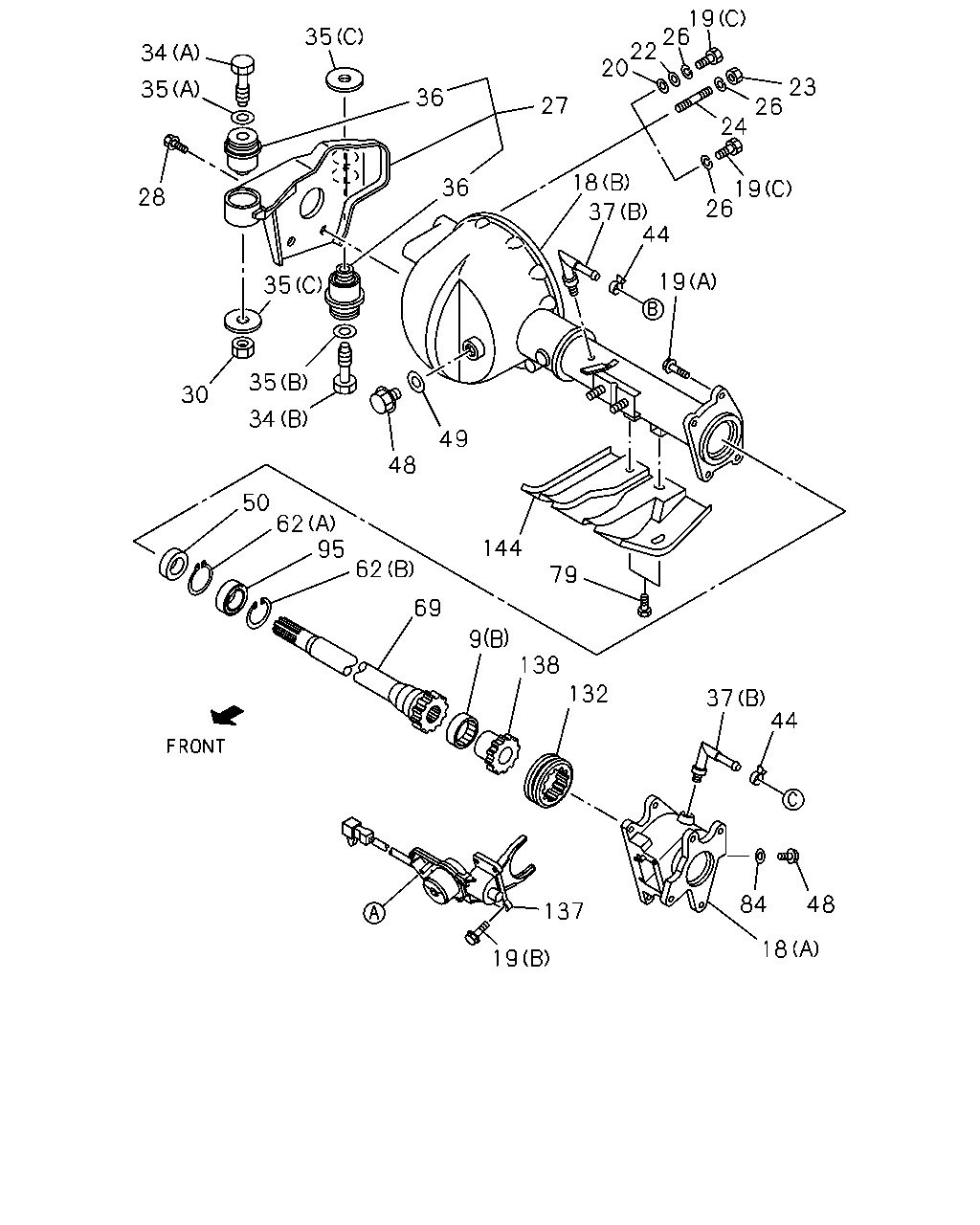

4-12 — FRONT DRIVE SHAFT (#43604) — 148 parça

19 26 22 20 35 34 23 26 24 35 36 27 18 37 44 36 19 26 28 35 19 35 30 34 49 48 50 62 95 62 144 79 69 9 138 132 37 44 84 48 137 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY<7EX> (B)	8-97101-878-0	01	1	0009-0011	●	●	●
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0012-	●	●	●
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0009-	●	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY<7EX> (A)	8-97081-658-2	01	1	0009-0011	●	●	●
18	CASE; FRT AXLE (A)	8-97081-658-3	01	1	0012-	●	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY<7EX> (B)	8-97217-847-0	01	1	0009-0011	●	●	●
18	CASE; FRT AXLE (B)	8-97217-847-0	01	1	0012-	●	●	●
18	CASE; FRT AXLE AUTO LOCKING HUB<S1Y> (B) THA	8-97018-230-0	01	1	0009-0011	●	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY<7EX> (A) M12X22 FLANGE	0-28081-222-0	04	1	0009-0011	●	●	●
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	0012-	●	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY<7EX> (B) M8X20 FLANGE	0-28280-820-0	04	1	0009-0011	●	●	●
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28280-820-0	04	1	0012-	●	●	●
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER THA	8-97093-664-1	06	1	0009-	●	●	●
19	BOLT; FRT AXLE (C) M8X30 W/LK WASHER THA	8-97093-665-1	02	1	0009-	●	●	●
19	BOLT; FRT AXLE (C) M8X90 W/LK WASHER THA	8-97093-666-1	02	1	0009-	●	●	●
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	01	1	0009-	●	●	●
22	WASHER; PL,AXLE CASE ID=8.4	9-09164-508-0	01	1	0009-	●	●	●
23	NUT; FRT AXLE M8	9-09110-508-0	02	1	0009-	●	●	●
24	STUD; CASE,FRT AXLE M8X25 L=37	9-04110-825-0	02	1	0009-	●	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	02	1	0009-	●	●	●
27	BRACKET; AXLE CASE W/BUSHING THA	8-94462-170-2	01	1	0009-	●	●	●
27	BRACKET; AXLE CASE W/BUSHING THA	8-94462-169-2	01	1	0009-	●	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0009-	●	●	●
30	NUT; FRT AXLE MTG M14 THA	9-99110-514-0	02	1	0009-	●	●	●
34	BOLT; FRT AXLE MTG (B) M14X84	8-94452-339-2	02	1	0009-	●	●	●
34	BOLT; FRT AXLE MTG (A) M14X80	9-91066-480-0	02	1	0009-	●	●	●
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	0009-	●	●	●
35	WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	0009-	●	●	●
35	WASHER; FRT AXLE MTG (B) ID=15 OD=36	9-09164-714-0	02	1	0009-	●	●	●
36	BUSHING; RUBBER,FRT AXLE MTG ID=15 L=49.3 THA	8-94481-466-0	04	1	0009-	●	●	●
37	BREATHER; FRT AXLE CASE FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0009-0009	●
37	BREATHER; FRT AXLE CASE FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0009-0009	●
37	BREATHER; FRT AXLE CASE AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0009-0009		●	●
37	BREATHER; FRT AXLE CASE FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0010-0011	●
37	BREATHER; FRT AXLE CASE AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0010-0011		●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0009-0011	●	●	●
37	BREATHER; FRT AXLE CASE FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0009-0011	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0009-0011		●	●
37	BREATHER; FRT AXLE CASE (B)	8-94226-943-0	01	1	0012-	●	●	●
37	BREATHER; FRT AXLE CASE (B)	8-94226-943-0	01	1	0012-	●	●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0010-0011	●	●	●
44	CLIP; AIR BREATHER HOSE SHIFT ON THE FLY<7EX> ID=11	8-97173-219-0	02	1	0009-0011	●	●	●
44	CLIP; AIR BREATHER HOSE ID=11	8-97173-219-0	02	1	0012-	●	●	●
48	PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<7EX> M20X10.5	9-09662-005-0	02	1	0009-0011	●	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	02	1	0012-	●	●	●
48	PLUG; DRAIN,AXLE CASE AUTO LOCKING HUB<S1Y> M20X10.5	9-09662-005-0	01	1	0009-0011	●	●	●
49	GASKET; DRAIN PLUG ID=20 OD=30 THA	8-94462-734-0	01	1	0009-	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE SHIFT ON THE FLY<7EX>	8-97084-507-0	01	1	0009-0011	●	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	0012-	●	●	●
62	RING; SNAP,AXLE SHAFT SHIFT ON THE FLY<7EX> (A) ID=37.0	9-09180-040-0	01	1	0009-0011	●	●	●
62	RING; SNAP,AXLE SHAFT (A) ID=37.0	9-09180-040-0	01	1	0012-	●	●	●
62	RING; SNAP,AXLE SHAFT SHIFT ON THE FLY<7EX> (B) ID=57.9	9-09180-162-0	01	1	0009-0011	●	●	●
62	RING; SNAP,AXLE SHAFT (B) ID=57.9	9-09180-162-0	01	1	0012-	●	●	●
69	SHAFT; AXLE,FRT INNER SHIFT ON THE FLY<7EX>	8-97188-174-0	01	1	0009-0011	●	●	●
69	SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	0012-	●	●	●
79	BOLT; BRKT SHIFT ON THE FLY<7EX>	0-28481-016-0	02	1	0009-0011	●	●	●
79	BOLT; BRKT	0-28481-016-0	02	1	0012-	●	●	●
84	GASKET; PLUG,OIL FILLER SHIFT ON THE FLY<7EX> ID=20 OD=30 THA	8-94462-734-0	01	1	0009-0011	●	●	●
84	GASKET; PLUG,OIL FILLER ID=20 OD=30 THA	8-94462-734-0	01	1	0012-	●	●	●
95	BEARING; AXLE SHAFT,FRT SHIFT ON THE FLY<7EX>	8-97103-392-0	01	1	0009-0011	●	●	●
95	BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	0012-	●	●	●
132	SLEEVE; RUBBER,HOSE SHIFT ON THE FLY<7EX>	8-97130-567-1	01	1	0009-0011	●	●	●
132	SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	0012-	●	●	●
137	ACTUATOR; AXLE SHIFT ON THE FLY<7EX>	8-97208-683-6	01	1	0009-0011	●	●	●
137	ACTUATOR; AXLE	8-97208-683-7	01	1	0012-	●	●	●
138	GEAR; CLUTCH SHIFT ON THE FLY<7EX> Z=17	8-97134-857-1	01	1	0009-0011	●	●	●
138	GEAR; CLUTCH Z=17	8-97134-857-1	01	1	0012-	●	●	●
144	PROTECTOR SHIFT ON THE FLY<7EX>	8-97220-537-2	01	1	0009-0011	●	●	●
144	PROTECTOR	8-97220-537-2	01	1	0012-	●	●	●

17 7 11 17 12 10 9 1 1 9 10 17 17 12 12 5 11 4 14 2 2 4 4 7 5 5 4 2 2 4 4 3 5 3 11 13

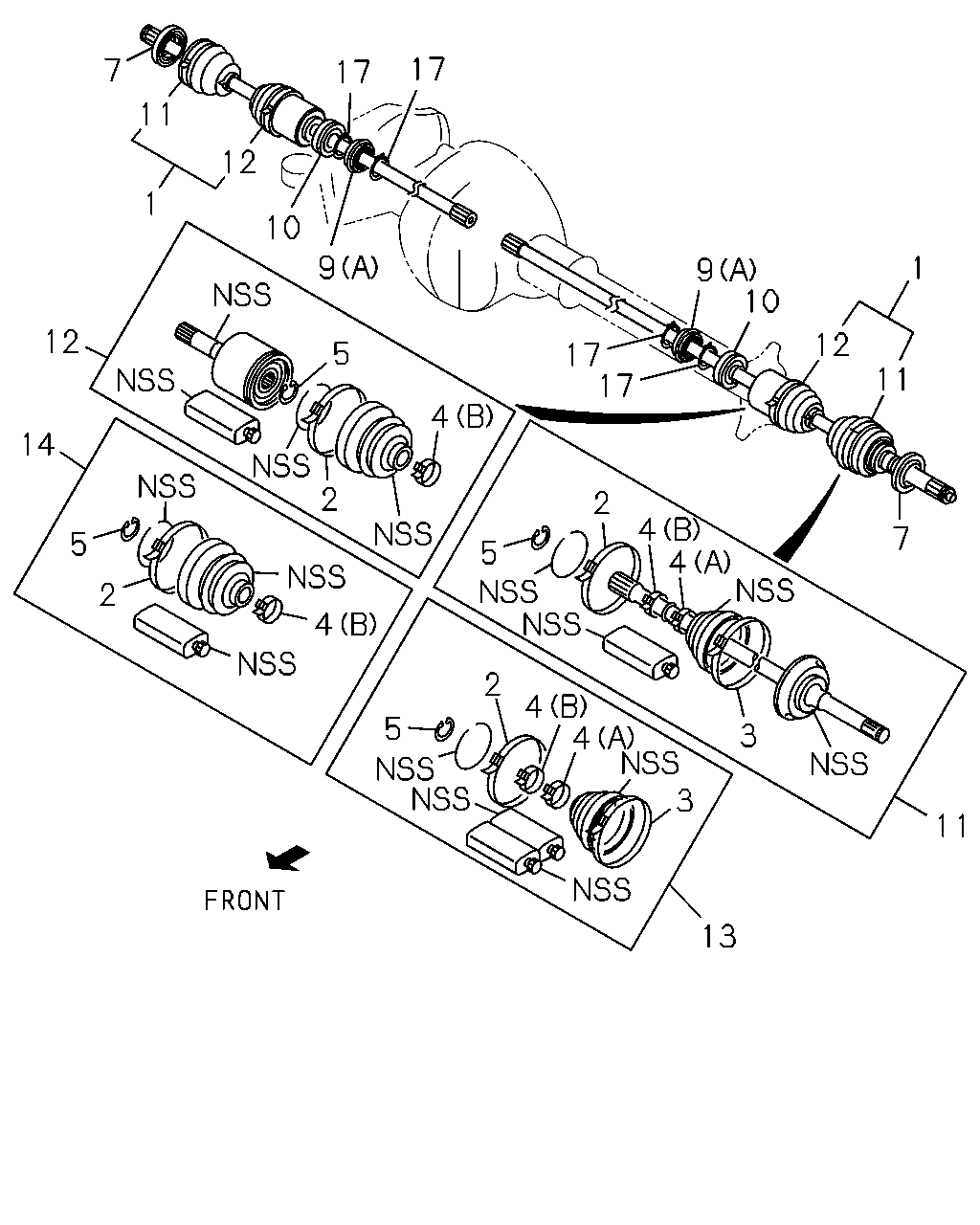

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT ASM; FRT DRIVE SHIFT ON THE FLY<7EX> THA	8-97139-095-0	02	1	0009-0011	●	●	●
1	SHAFT ASM; FRT DRIVE AUTO LOCKING HUB<S1Y> THA	8-97139-096-0	01	1	0009-0011	●	●	●
1	SHAFT ASM; FRT DRIVE AUTO LOCKING HUB<S1Y> THA	8-97139-095-0	01	1	0009-0011	●	●	●
1	SHAFT ASM; FRT DRIVE THA	8-97139-095-0	02	1	0012-	●	●	●
2	BAND; "A",FRT DRIVE SHAFT THA	8-97131-401-0	02	1	0009-	●	●	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-94312-929-0	02	1	0009-0011	●	●	●
3	BAND; "B",FRT DRIVE SHAFT THA	8-94312-929-0	02	1	0010-	●	●	●
4	BAND; "C",FRT DRIVE SHAFT (B) THA	8-94312-931-0	02	1	0009-	●	●	●
4	BAND; "C",FRT DRIVE SHAFT (A) THA	8-97138-938-0	02	1	0009-	●	●	●
5	RING; RET,FRT DRIVE SHAFT THA	8-97131-402-0	02	1	0009-	●	●	●
7	SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	0009-	●	●	●
9	BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY<7EX> (B)	8-97101-878-0	01	1	0009-0011	●	●	●
9	BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0012-	●	●	●
9	BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0009-	●	●	●
10	SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	0009-	●	●	●
11	JOINT ASM; OUTSIDE,FRT DRIVE SHAFT THA	8-97131-396-0	02	1	0009-	●	●	●
12	JOINT ASM SHIFT ON THE FLY<7EX> THA	8-97138-978-0	02	1	0009-0011	●	●	●
12	JOINT ASM AUTO LOCKING HUB<S1Y> THA	8-97138-979-0	01	1	0009-0011	●	●	●
12	JOINT ASM AUTO LOCKING HUB<S1Y> THA	8-97138-978-0	01	1	0009-0011	●	●	●
12	JOINT ASM THA	8-97138-978-0	02	1	0012-	●	●	●
13	BOOT KIT; OUTSIDE,FRT DRIVE SHAFT THA	8-97138-981-0	02	1	0009-	●	●	●
14	BOOT KIT; IN SIDE,FRT DRIVE SHAFT THA	8-97138-980-0	02	1	0009-	●	●	●
17	RING; SNAP,DRIVE SHAFT TO TRANS AXLE ID=27.9	9-09180-030-0	04	1	0009-	●	●	●

19 26 22 20 35 34 35 36 23 26 24 27 36 28 19 26 18 35 35 30 34 49 48 37

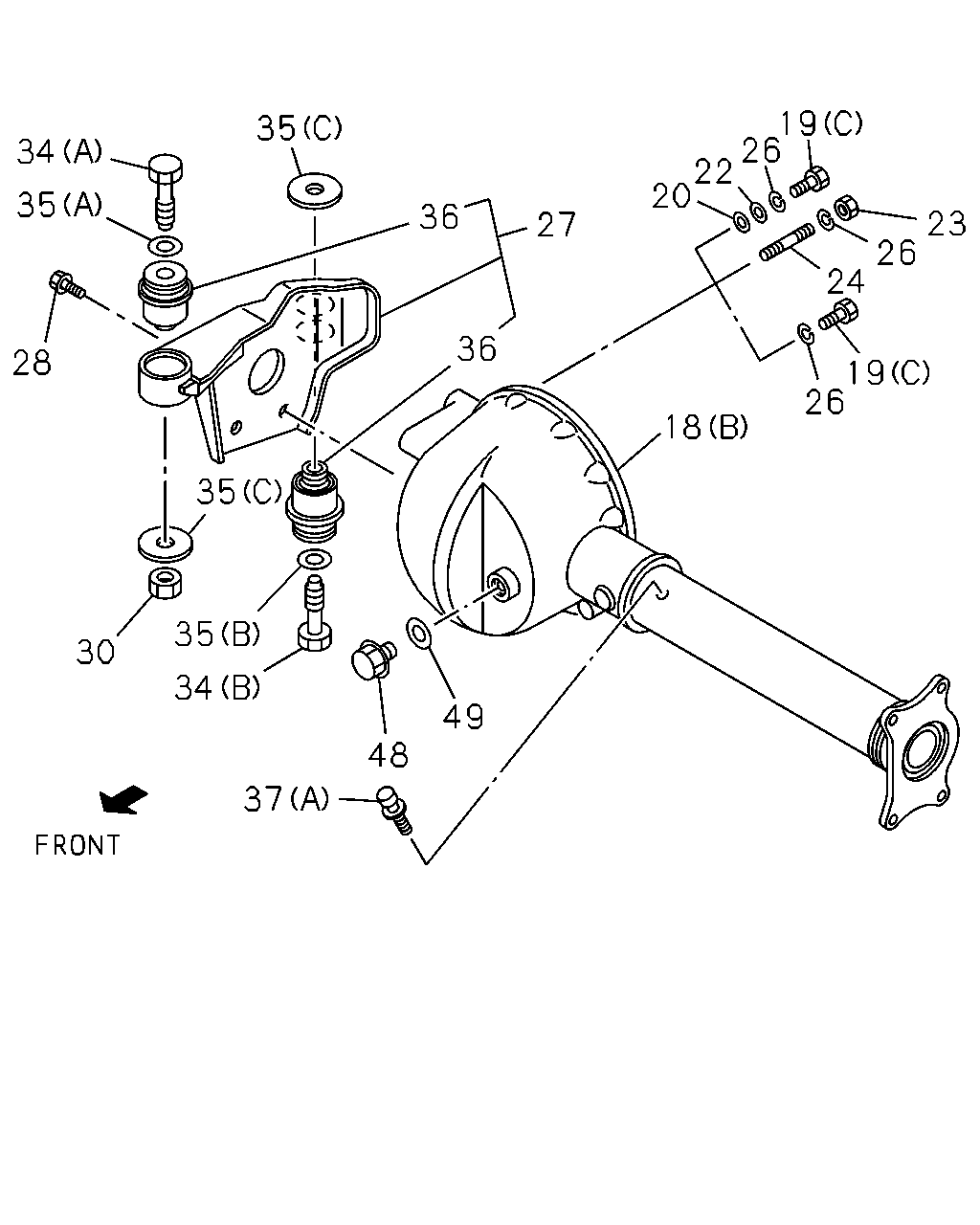

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	CASE; FRT AXLE SHIFT ON THE FLY<7EX> (A)	8-97081-658-2	01	1	0009-0011	●	●	●
18	CASE; FRT AXLE (A)	8-97081-658-3	01	1	0012-	●	●	●
18	CASE; FRT AXLE SHIFT ON THE FLY<7EX> (B)	8-97217-847-0	01	1	0009-0011	●	●	●
18	CASE; FRT AXLE (B)	8-97217-847-0	01	1	0012-	●	●	●
18	CASE; FRT AXLE AUTO LOCKING HUB<S1Y> (B) THA	8-97018-230-0	01	1	0009-0011	●	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY<7EX> (A) M12X22 FLANGE	0-28081-222-0	04	1	0009-0011	●	●	●
19	BOLT; FRT AXLE (A) M12X22 FLANGE	0-28081-222-0	04	1	0012-	●	●	●
19	BOLT; FRT AXLE SHIFT ON THE FLY<7EX> (B) M8X20 FLANGE	0-28280-820-0	04	1	0009-0011	●	●	●
19	BOLT; FRT AXLE (B) M8X20 FLANGE	0-28280-820-0	04	1	0012-	●	●	●
19	BOLT; FRT AXLE (C) M8X25 W/LK WASHER THA	8-97093-664-1	06	1	0009-	●	●	●
19	BOLT; FRT AXLE (C) M8X30 W/LK WASHER THA	8-97093-665-1	02	1	0009-	●	●	●
19	BOLT; FRT AXLE (C) M8X90 W/LK WASHER THA	8-97093-666-1	02	1	0009-	●	●	●
20	GASKET; AXLE CASE ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	01	1	0009-	●	●	●
22	WASHER; PL,AXLE CASE ID=8.4	9-09164-508-0	01	1	0009-	●	●	●
23	NUT; FRT AXLE M8	9-09110-508-0	02	1	0009-	●	●	●
24	STUD; CASE,FRT AXLE M8X25 L=37	9-04110-825-0	02	1	0009-	●	●	●
26	WASHER; LK,CASE,FRT AXLE ID=8.2	9-09150-608-0	02	1	0009-	●	●	●
27	BRACKET; AXLE CASE W/BUSHING THA	8-94462-170-2	01	1	0009-	●	●	●
27	BRACKET; AXLE CASE W/BUSHING THA	8-94462-169-2	01	1	0009-	●	●	●
28	BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0009-	●	●	●
30	NUT; FRT AXLE MTG M14 THA	9-99110-514-0	02	1	0009-	●	●	●
34	BOLT; FRT AXLE MTG (B) M14X84	8-94452-339-2	02	1	0009-	●	●	●
34	BOLT; FRT AXLE MTG (A) M14X80	9-91066-480-0	02	1	0009-	●	●	●
35	WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	0009-	●	●	●
35	WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	0009-	●	●	●
35	WASHER; FRT AXLE MTG (B) ID=15 OD=36	9-09164-714-0	02	1	0009-	●	●	●
36	BUSHING; RUBBER,FRT AXLE MTG ID=15 L=49.3 THA	8-94481-466-0	04	1	0009-	●	●	●
37	BREATHER; FRT AXLE CASE FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0009-0009	●
37	BREATHER; FRT AXLE CASE FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0009-0009	●
37	BREATHER; FRT AXLE CASE AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0009-0009		●	●
37	BREATHER; FRT AXLE CASE FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0010-0011	●
37	BREATHER; FRT AXLE CASE AUTO LOCKING HUB<S1Y> (A) THA	8-94311-349-0	01	1	0010-0011		●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0009-0011	●	●	●
37	BREATHER; FRT AXLE CASE FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0009-0011	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0009-0011		●	●
37	BREATHER; FRT AXLE CASE (B)	8-94226-943-0	01	1	0012-	●	●	●
37	BREATHER; FRT AXLE CASE (B)	8-94226-943-0	01	1	0012-	●	●	●
37	BREATHER; FRT AXLE CASE SHIFT ON THE FLY<7EX> (B)	8-94226-943-0	01	1	0010-0011	●	●	●
48	PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<7EX> M20X10.5	9-09662-005-0	02	1	0009-0011	●	●	●
48	PLUG; DRAIN,AXLE CASE M20X10.5	9-09662-005-0	02	1	0012-	●	●	●
48	PLUG; DRAIN,AXLE CASE AUTO LOCKING HUB<S1Y> M20X10.5	9-09662-005-0	01	1	0009-0011	●	●	●
49	GASKET; DRAIN PLUG ID=20 OD=30 THA	8-94462-734-0	01	1	0009-	●	●	●

39 45 45 45 39 31 43

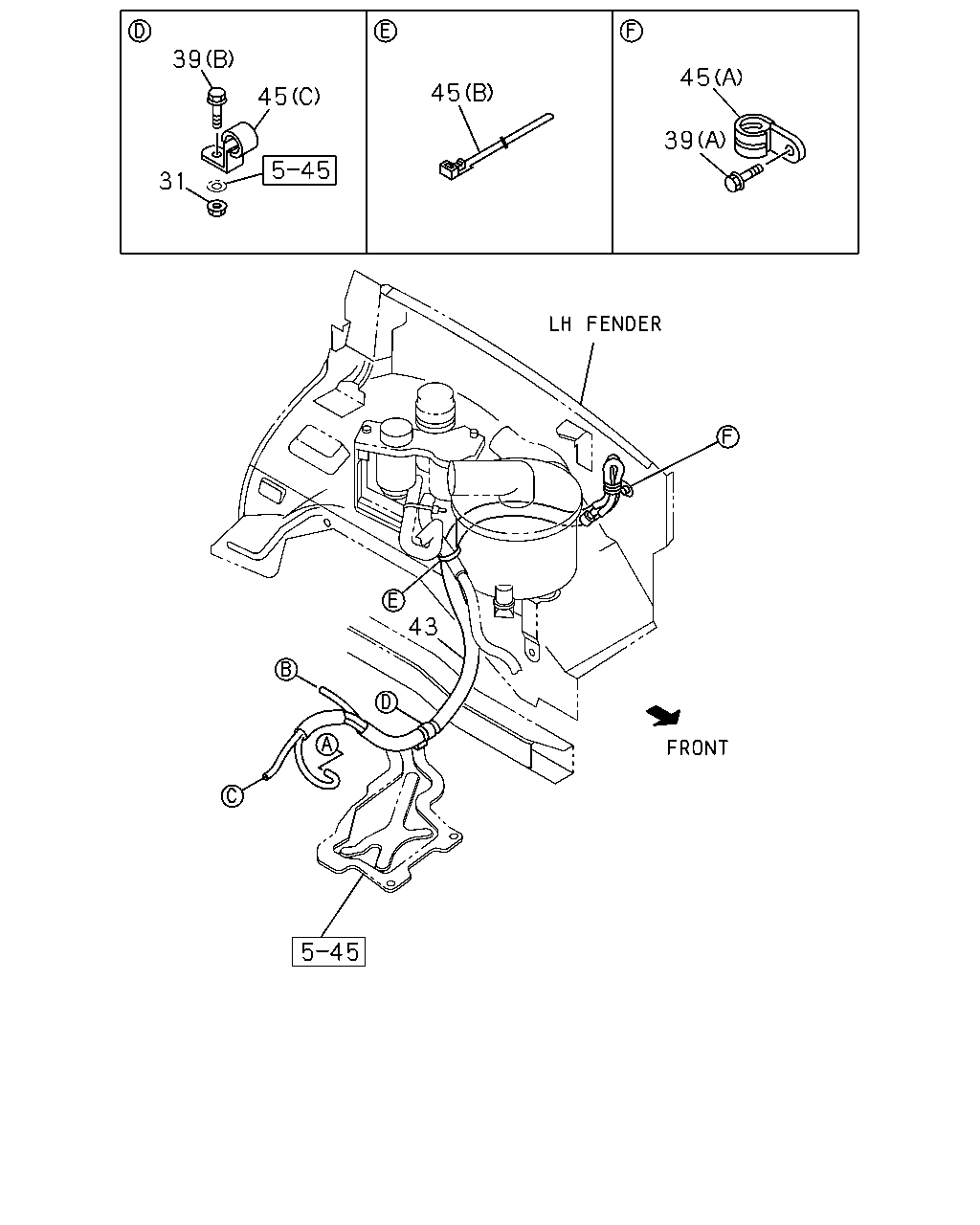

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NUT; MUD COVER TO BRKT SHIFT ON THE FLY<7EX> M6 FLANGE	0-91150-106-0	01	1	0009-0011	●	●	●
31	NUT; MUD COVER TO BRKT M6 FLANGE	0-91150-106-0	01	1	0012-	●	●	●
39	BOLT; BREATHER HOSE CLIP SHIFT ON THE FLY<7EX> (A) M6X16 FLANGE	0-28680-616-0	01	1	0009-0011	●	●	●
39	BOLT; BREATHER HOSE CLIP (A) M6X16 FLANGE	0-28680-616-0	01	1	0012-	●	●	●
39	BOLT; BREATHER HOSE CLIP SHIFT ON THE FLY<7EX> (B) M6X25 FLANGE	0-28680-625-0	01	1	0009-0011	●	●	●
39	BOLT; BREATHER HOSE CLIP (B) M6X25 FLANGE	0-28680-625-0	01	1	0012-	●	●	●
43	HOSE; RUBBER,AIR BREATHER SHIFT ON THE FLY<7EX>	8-97260-166-0	01	1	0009-0011	●	●	●
43	HOSE; RUBBER,AIR BREATHER	8-97260-166-0	01	1	0012-	●	●	●
45	CLIP SHIFT ON THE FLY<7EX> (A) ID=28 L=32	1-09701-064-1	01	1	0009-0011	●	●	●
45	CLIP (A) ID=28 L=32	1-09701-064-1	01	1	0012-	●	●	●
45	CLIP SHIFT ON THE FLY<7EX> (B) L=170	5-09707-054-0	01	1	0009-0011	●	●	●
45	CLIP (B) L=170	5-09707-054-0	01	1	0012-	●	●	●
45	CLIP SHIFT ON THE FLY<7EX> (C)	8-94121-003-0	01	1	0009-0011	●	●	●
45	CLIP (C)	8-94121-003-0	01	1	0012-	●	●	●
