4-11 — FRONT HUB AND DRUM OR ROTOR (#43603) — 53 parça

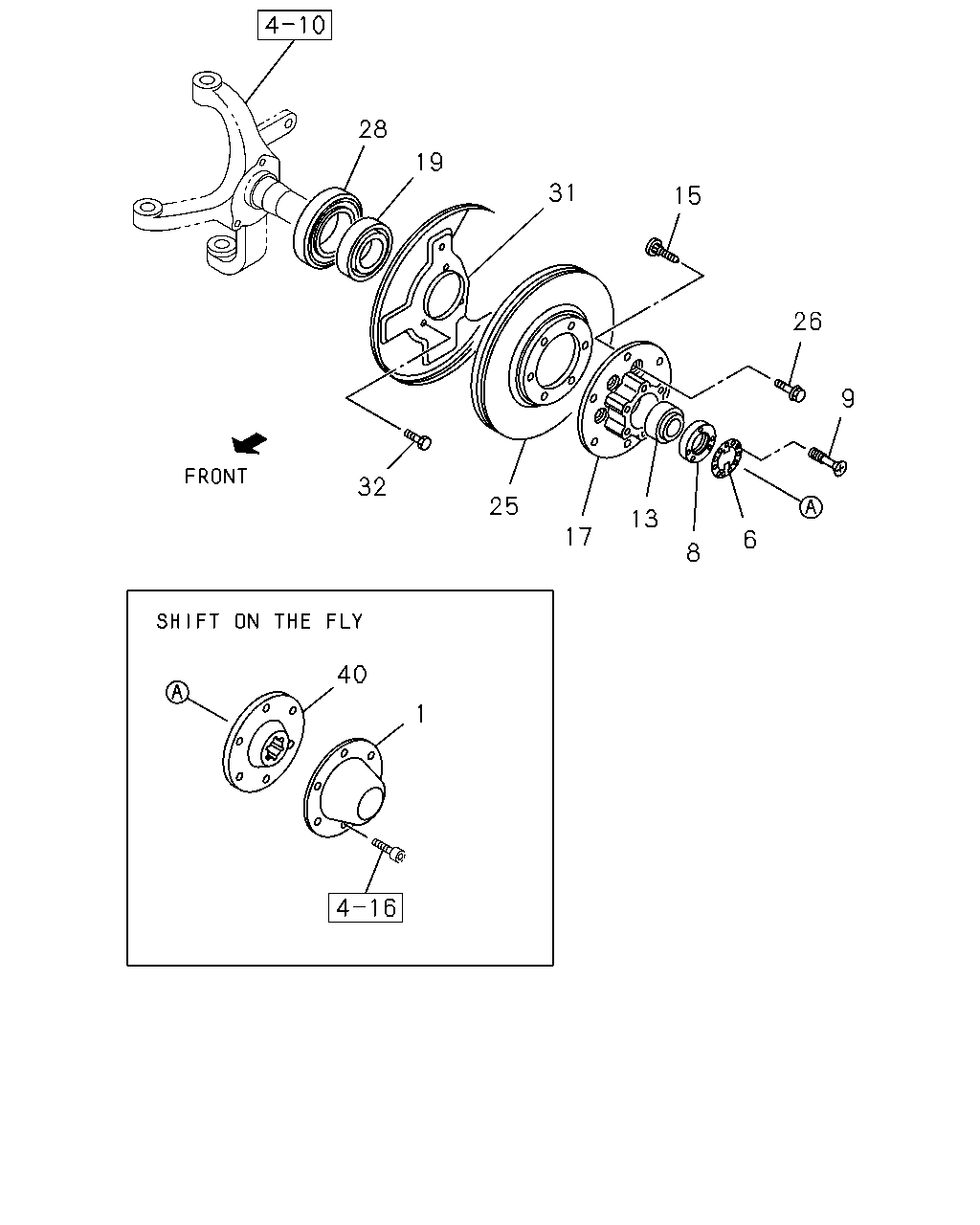

çizim 49706
28 19 31 15 26 9 32 25 13 17 6 8 40 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 CAP; HUB,FRT AXLE 9-42313-080-1 02 1 0009- ● ● ● ● ●
1 CAP; HUB,FRT AXLE
SHIFT ON THE FLY<7EX> THA 		8-94173-314-2 02 1 0009-0011 ● ● ●
1 CAP; HUB,FRT AXLE
THA 		8-94173-314-2 02 1 0012- ● ● ●
6 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-94256-973-0 02 1 0009- ● ● ● ● ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0009- ● ● ●
8 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 0009- ● ● ●
9 SCREW; ADJ,NUT
M4X8 CK-HEAD 		9-93090-408-0 06 1 0009- ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT THA 		8-97918-170-0 02 1 0009- ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-97950-005-0 02 1 0009- ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94227-041-0 02 1 0009- ● ● ●
15 PIN; WHEEL,FRT AXLE
THA 		8-97942-155-0 12 1 0009- ● ● ● ● ● ● ● ●
17 HUB; FRT AXLE
THA 		8-97911-090-0 02 1 0009- ● ● ● ● ●
17 HUB; FRT AXLE
THA 		8-97911-092-2 02 1 0009- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT THA 		8-97918-171-0 02 1 0009- ● ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-97950-006-0 02 1 0009- ● ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94258-819-0 02 1 0009- ● ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-97911-091-0 02 1 0009- ● ● ● ● ● ● ● ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 		8-94409-921-0 12 1 0009- ● ● ● ● ● ● ● ●
28 SEAL; OIL,FRT HUB 8-94433-718-0 02 1 0009- ● ● ● ● ●
28 SEAL; OIL,FRT HUB 8-94407-711-0 02 1 0009- ● ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-97915-602-0 01 1 0009- ● ● ● ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-97915-601-0 01 1 0009- ● ● ● ● ●
31 COVER; DUST,FRT BRAKE 8-94173-247-1 01 1 0009- ● ● ●
31 COVER; DUST,FRT BRAKE 8-94173-246-1 01 1 0009- ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA 		8-97025-916-0 06 1 0009- ● ● ● ● ● ● ● ●
40 FLANGE; FRT WHEEL HUB
SHIFT ON THE FLY<7EX> 		8-94173-313-0 02 1 0009-0011 ● ● ●
40 FLANGE; FRT WHEEL HUB 8-94173-313-0 02 1 0012- ● ● ●

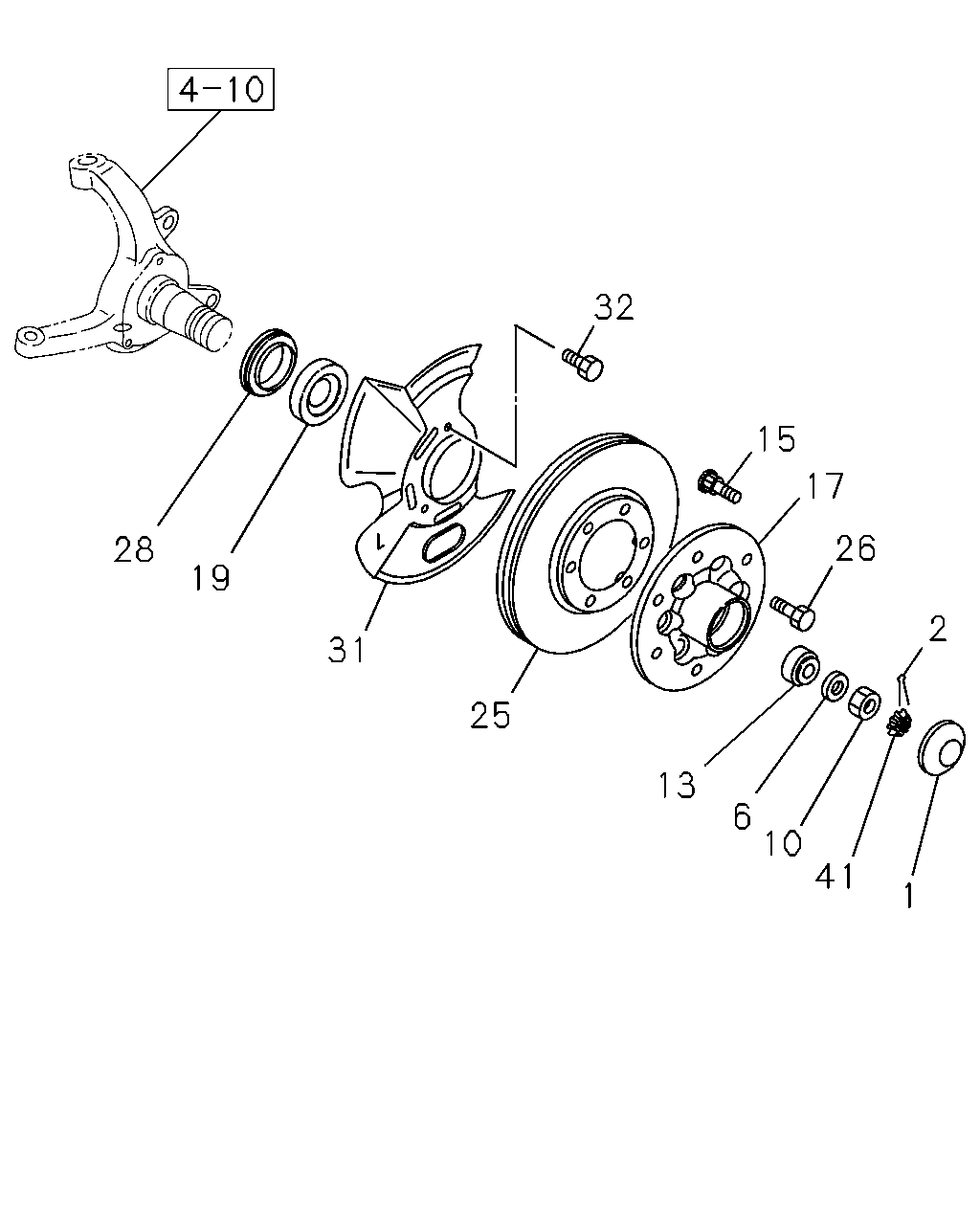

çizim 50136
32 15 17 26 28 19 2 31 25 13 6 10 41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 CAP; HUB,FRT AXLE 9-42313-080-1 02 1 0009- ● ● ● ● ●
1 CAP; HUB,FRT AXLE
SHIFT ON THE FLY<7EX> THA 		8-94173-314-2 02 1 0009-0011 ● ● ●
1 CAP; HUB,FRT AXLE
THA 		8-94173-314-2 02 1 0012- ● ● ●
2 PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30 		9-08114-030-0 02 1 0009- ● ● ● ● ●
6 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-94256-973-0 02 1 0009- ● ● ● ● ●
6 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0009- ● ● ●
10 NUT; FRT HUB BRG
M18 		8-94243-927-1 02 1 0009- ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT THA 		8-97918-170-0 02 1 0009- ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-97950-005-0 02 1 0009- ● ● ● ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK THA 		8-94227-041-0 02 1 0009- ● ● ●
15 PIN; WHEEL,FRT AXLE
THA 		8-97942-155-0 12 1 0009- ● ● ● ● ● ● ● ●
17 HUB; FRT AXLE
THA 		8-97911-090-0 02 1 0009- ● ● ● ● ●
17 HUB; FRT AXLE
THA 		8-97911-092-2 02 1 0009- ● ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT THA 		8-97918-171-0 02 1 0009- ● ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-97950-006-0 02 1 0009- ● ● ● ● ●
19 BEARING; HUB INNER,FRT AXLE
NSK THA 		8-94258-819-0 02 1 0009- ● ● ●
25 ROTOR; DISC BRK,FRT
THA 		8-97911-091-0 02 1 0009- ● ● ● ● ● ● ● ●
26 BOLT; BRK,DISC TO HUB
M12X31.5 		8-94409-921-0 12 1 0009- ● ● ● ● ● ● ● ●
28 SEAL; OIL,FRT HUB 8-94433-718-0 02 1 0009- ● ● ● ● ●
28 SEAL; OIL,FRT HUB 8-94407-711-0 02 1 0009- ● ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-97915-602-0 01 1 0009- ● ● ● ● ●
31 COVER; DUST,FRT BRAKE
THA 		8-97915-601-0 01 1 0009- ● ● ● ● ●
31 COVER; DUST,FRT BRAKE 8-94173-247-1 01 1 0009- ● ● ●
31 COVER; DUST,FRT BRAKE 8-94173-246-1 01 1 0009- ● ● ●
32 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER THA 		8-97025-916-0 06 1 0009- ● ● ● ● ● ● ● ●
41 RETAINER; NUT,FRT HUB 8-94243-928-1 02 1 0009- ● ● ● ● ●
