◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#43602) — 126 parça

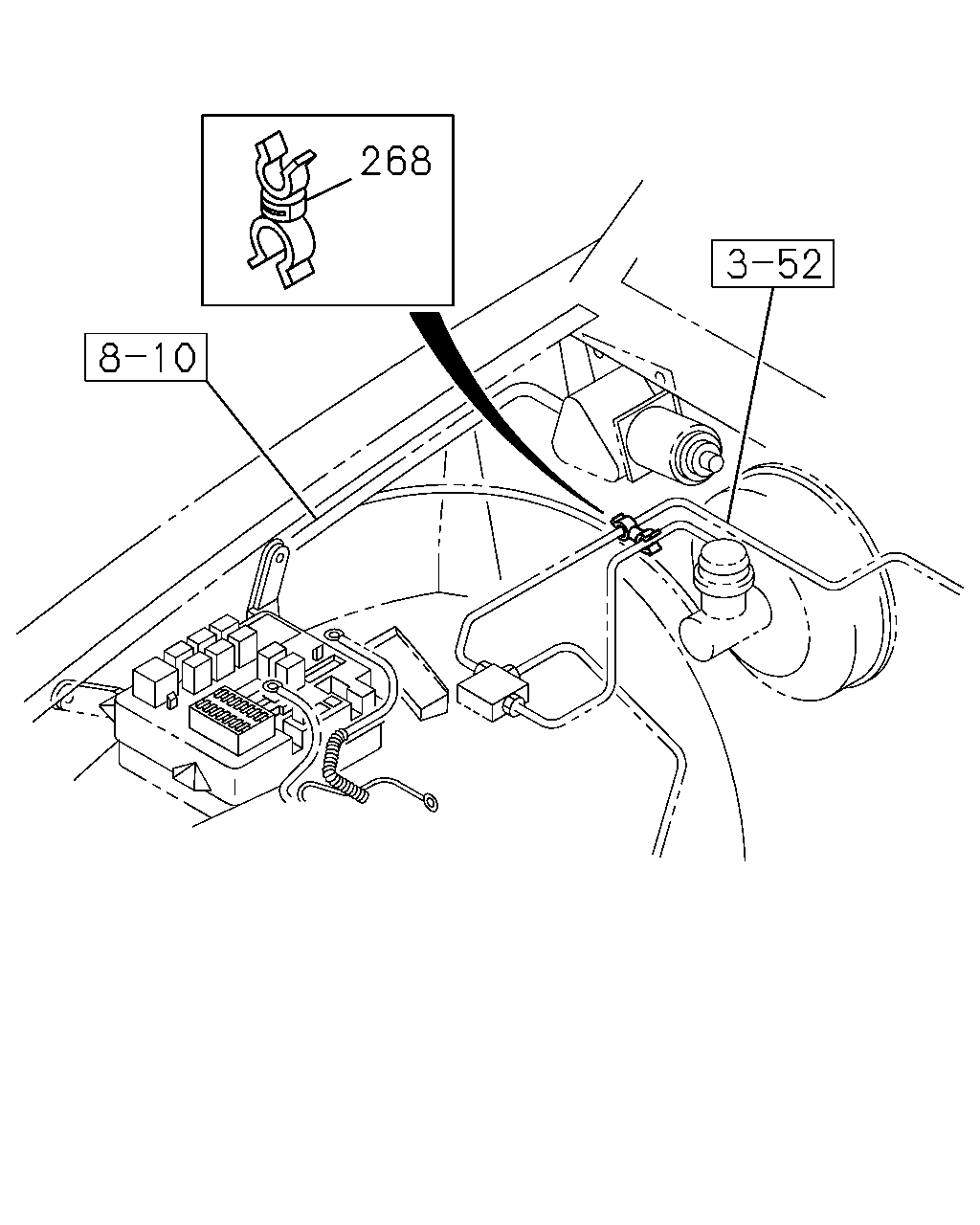

çizim 50704
268
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
268 CLIP; HARNESS
ID=8 & 4.8 THA 		8-94430-297-0 01 1 0009- ● ● ● ● ● ● ● ●

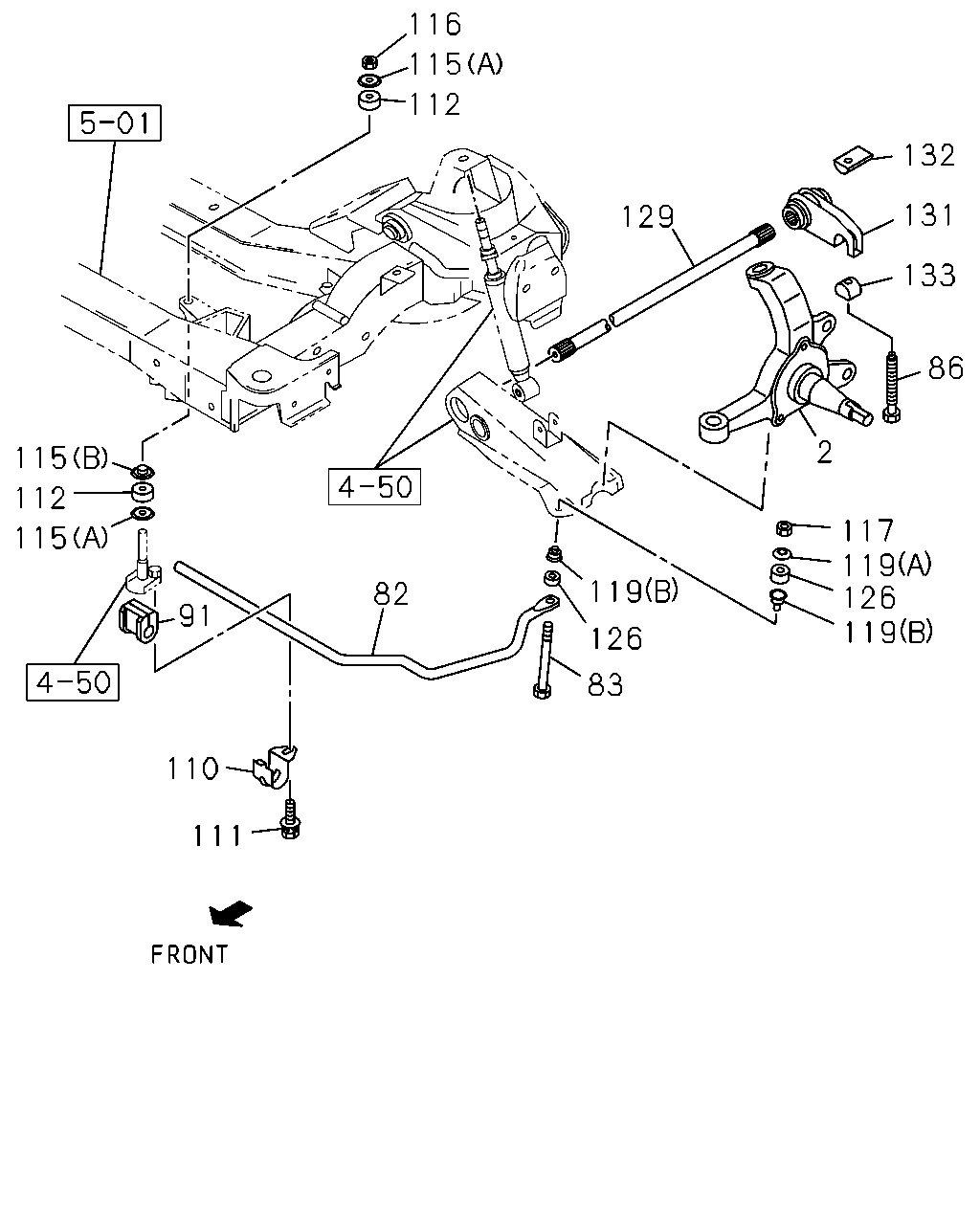

çizim 51292
116 115 112 132 131 129 133 86 2 115 112 115 117 119 126 119 119 82 91 126 83 110 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 KNUCKLE; FRT AXLE
THA 		8-97941-085-0 01 1 0009- ● ● ● ● ●
2 KNUCKLE; FRT AXLE
THA 		8-97941-084-0 01 1 0009- ● ● ● ● ●
2 KNUCKLE; FRT AXLE
THA 		8-94173-341-5 01 1 0009- ● ● ●
2 KNUCKLE; FRT AXLE
THA 		8-94173-340-5 01 1 0009- ● ● ●
82 BAR; STAB,FRT SUSP
THA 		8-97913-570-0 01 1 0009- ● ● ● ● ●
82 BAR; STAB,FRT SUSP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-878-0 01 1 0009- ●
82 BAR; STAB,FRT SUSP
THA 		8-97913-878-0 01 1 0009- ●
82 BAR; STAB,FRT SUSP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-568-0 01 1 0009- ●
82 BAR; STAB,FRT SUSP
THA 		8-97913-568-0 01 1 0009- ●
83 BOLT; STAB BAR TO CONT ARM
THA 		8-97913-558-0 02 1 0009- ● ● ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
A/T AISIN<RMD> M18X148 		8-97033-127-2 02 1 0009-0101 ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 0009-0101 ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
A/T AISIN<RMD> M18X148 		8-97307-297-0 02 1 0102- ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97307-297-0 02 1 0102- ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M14X130 THA 		8-97916-474-0 02 1 0009- ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M14X130 THA 		8-97916-474-0 02 1 0009- ● ●
91 BUSHING; RUBBER,STAB BAR
THA 		8-97913-569-0 02 1 0009- ● ● ● ● ●
91 BUSHING; RUBBER,STAB BAR
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-879-0 02 1 0009- ●
91 BUSHING; RUBBER,STAB BAR
THA 		8-97913-879-0 02 1 0009- ●
91 BUSHING; RUBBER,STAB BAR
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-571-0 02 1 0009- ●
91 BUSHING; RUBBER,STAB BAR
THA 		8-97913-571-0 02 1 0009- ●
110 CLAMP; STAB TO ROD 8-94322-472-0 02 1 0009- ● ● ● ● ●
110 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 0009- ● ● ●
110 CLAMP; STAB TO ROD
(B) OD=39 THA 		8-97913-562-0 02 1 0009- ● ● ●
110 CLAMP; STAB TO ROD
(A) OD=32 THA 		8-97913-563-0 08 1 0009- ● ● ●
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0009- ● ● ● ● ●
111 BOLT; CLAMP TO ROD
M8X25 W/LK WASHER 		0-50040-825-0 04 1 0009- ● ● ●
112 BUSHING; ROD 8-94143-210-0 04 1 0009- ● ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=10.5 OD=32 		9-51631-048-0 04 1 0009- ● ● ● ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=15.0 OD=32 		9-51631-049-0 02 1 0009- ● ● ● ● ●
116 NUT; LK,STAB TO FRAME
M10 		9-09110-410-0 02 1 0009- ● ● ● ● ●
117 NUT; STAB BAR BUSHING
M10 		9-09110-410-0 02 1 0009- ● ● ● ● ●
117 NUT; STAB BAR BUSHING
M8 FLANGE THA 		8-97913-559-0 04 1 0009- ● ● ●
119 WASHER; CTR,STAB BAR
(B) THA 		8-97914-044-0 04 1 0009- ● ● ● ● ●
119 WASHER; CTR,STAB BAR
(A) THA 		8-97914-045-0 02 1 0009- ● ● ● ● ●
126 RUBBER; MTG,STAB BAR
THA 		8-97914-043-0 04 1 0009- ● ● ● ● ●
126 RUBBER; MTG,STAB BAR
THA 		8-97913-561-0 08 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
A/T AISIN<RMD> THA 		8-97911-053-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
A/T AISIN<RMD> THA 		8-97911-056-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97911-095-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-095-0 01 1 0009- ● ●
129 BAR; TORSION,FRT SUSP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97911-054-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-054-0 01 1 0009- ● ●
129 BAR; TORSION,FRT SUSP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-125-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97919-125-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-124-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97919-124-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97911-052-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-052-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97911-055-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-055-0 01 1 0009- ●
131 ARM; HEIGHT CONT
A/T AISIN<RMD> THA 		8-97915-818-0 02 1 0009- ● ● ●
131 ARM; HEIGHT CONT
THA 		8-97915-818-0 02 1 0009- ● ● ●
131 ARM; HEIGHT CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97915-817-0 02 1 0009- ● ● ●
131 ARM; HEIGHT CONT
THA 		8-97915-817-0 02 1 0009- ● ●
132 COLLAR; TORSION BAR
A/T AISIN<RMD> 		8-94367-757-0 02 1 0009- ● ● ●
132 COLLAR; TORSION BAR 8-94367-757-0 02 1 0009- ● ● ●
132 COLLAR; TORSION BAR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-94468-556-2 02 1 0009- ● ● ●
132 COLLAR; TORSION BAR 8-94468-556-2 02 1 0009- ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
A/T AISIN<RMD> 		8-97032-976-1 02 1 0009- ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 0009- ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-94367-950-0 02 1 0009- ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 0009- ● ●

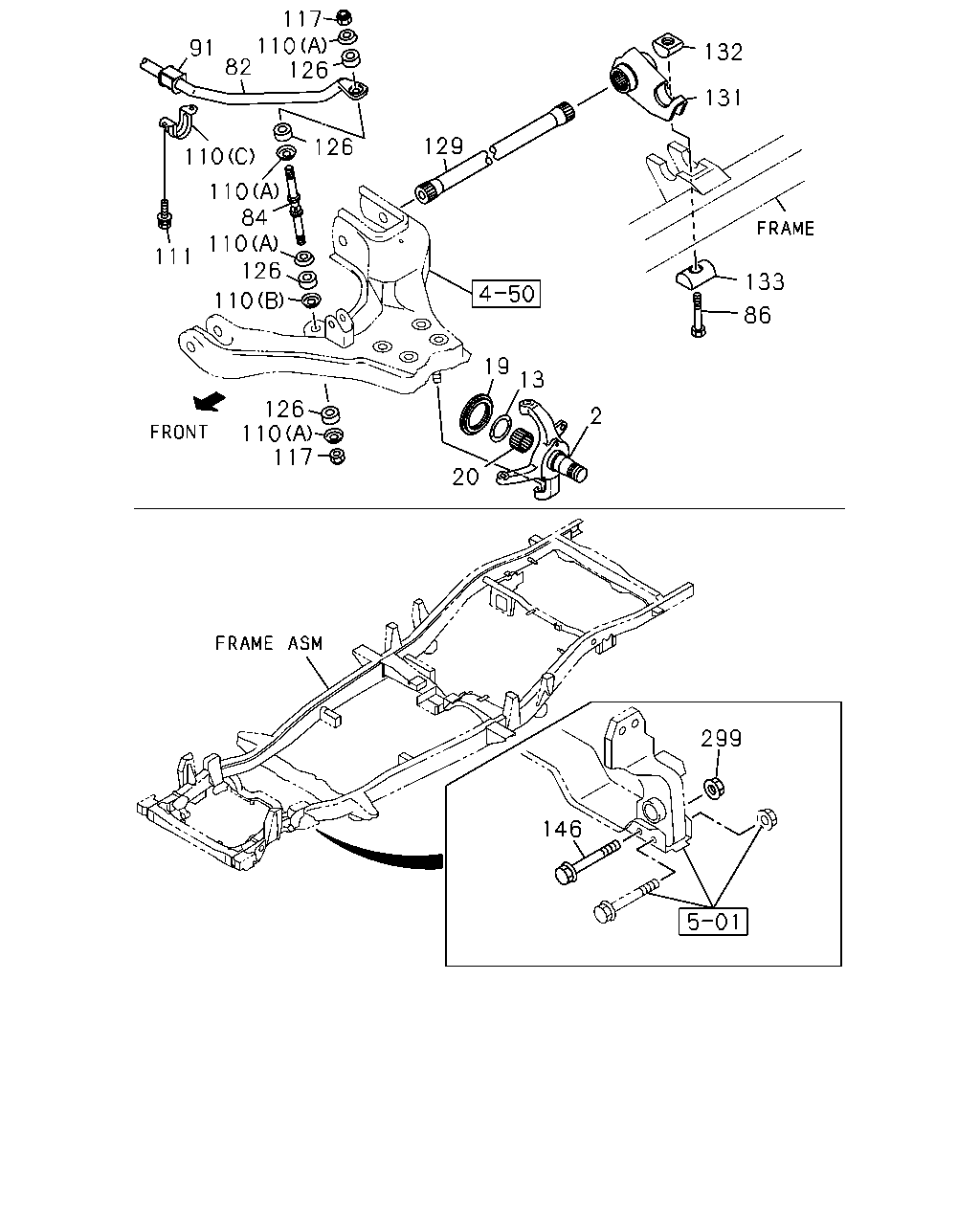

çizim 51331
117 91 110 82 126 132 131 129 126 110 110 84 110 126 110 111 133 86 19 13 126 110 117 2 20 299 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 KNUCKLE; FRT AXLE
THA 		8-97941-085-0 01 1 0009- ● ● ● ● ●
2 KNUCKLE; FRT AXLE
THA 		8-97941-084-0 01 1 0009- ● ● ● ● ●
2 KNUCKLE; FRT AXLE
THA 		8-94173-341-5 01 1 0009- ● ● ●
2 KNUCKLE; FRT AXLE
THA 		8-94173-340-5 01 1 0009- ● ● ●
13 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 0009- ● ● ●
19 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 0009- ● ● ●
20 BEARING; KNUCKLE 8-94407-708-0 02 1 0009- ● ● ●
82 BAR; STAB,FRT SUSP
THA 		8-97913-570-0 01 1 0009- ● ● ● ● ●
82 BAR; STAB,FRT SUSP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-878-0 01 1 0009- ●
82 BAR; STAB,FRT SUSP
THA 		8-97913-878-0 01 1 0009- ●
82 BAR; STAB,FRT SUSP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-568-0 01 1 0009- ●
82 BAR; STAB,FRT SUSP
THA 		8-97913-568-0 01 1 0009- ●
84 BOLT; STAB SHAFT TO CONT LINK
THA 		8-97913-564-0 02 1 0009- ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
A/T AISIN<RMD> M18X148 		8-97033-127-2 02 1 0009-0101 ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97033-127-2 02 1 0009-0101 ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
A/T AISIN<RMD> M18X148 		8-97307-297-0 02 1 0102- ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M18X148 		8-97307-297-0 02 1 0102- ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> M14X130 THA 		8-97916-474-0 02 1 0009- ● ● ●
86 BOLT; TORSION BAR,HEIGHT CONT
M14X130 THA 		8-97916-474-0 02 1 0009- ● ●
91 BUSHING; RUBBER,STAB BAR
THA 		8-97913-569-0 02 1 0009- ● ● ● ● ●
91 BUSHING; RUBBER,STAB BAR
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-879-0 02 1 0009- ●
91 BUSHING; RUBBER,STAB BAR
THA 		8-97913-879-0 02 1 0009- ●
91 BUSHING; RUBBER,STAB BAR
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97913-571-0 02 1 0009- ●
91 BUSHING; RUBBER,STAB BAR
THA 		8-97913-571-0 02 1 0009- ●
110 CLAMP; STAB TO ROD 8-94322-472-0 02 1 0009- ● ● ● ● ●
110 CLAMP; STAB TO ROD
(C) ID=36 		8-97032-869-0 02 1 0009- ● ● ●
110 CLAMP; STAB TO ROD
(B) OD=39 THA 		8-97913-562-0 02 1 0009- ● ● ●
110 CLAMP; STAB TO ROD
(A) OD=32 THA 		8-97913-563-0 08 1 0009- ● ● ●
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0009- ● ● ● ● ●
111 BOLT; CLAMP TO ROD
M8X25 W/LK WASHER 		0-50040-825-0 04 1 0009- ● ● ●
117 NUT; STAB BAR BUSHING
M10 		9-09110-410-0 02 1 0009- ● ● ● ● ●
117 NUT; STAB BAR BUSHING
M8 FLANGE THA 		8-97913-559-0 04 1 0009- ● ● ●
126 RUBBER; MTG,STAB BAR
THA 		8-97914-043-0 04 1 0009- ● ● ● ● ●
126 RUBBER; MTG,STAB BAR
THA 		8-97913-561-0 08 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
A/T AISIN<RMD> THA 		8-97911-053-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
A/T AISIN<RMD> THA 		8-97911-056-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97911-095-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-095-0 01 1 0009- ● ●
129 BAR; TORSION,FRT SUSP
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97911-054-0 01 1 0009- ● ● ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-054-0 01 1 0009- ● ●
129 BAR; TORSION,FRT SUSP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-125-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97919-125-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
SPECIAL PACKAGE VAR.2<7TB> THA 		8-97919-124-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97919-124-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97911-052-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-052-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
EXC. SPECIAL PACKAGE VAR.2<7TB> THA 		8-97911-055-0 01 1 0009- ●
129 BAR; TORSION,FRT SUSP
THA 		8-97911-055-0 01 1 0009- ●
131 ARM; HEIGHT CONT
A/T AISIN<RMD> THA 		8-97915-818-0 02 1 0009- ● ● ●
131 ARM; HEIGHT CONT
THA 		8-97915-818-0 02 1 0009- ● ● ●
131 ARM; HEIGHT CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97915-817-0 02 1 0009- ● ● ●
131 ARM; HEIGHT CONT
THA 		8-97915-817-0 02 1 0009- ● ●
132 COLLAR; TORSION BAR
A/T AISIN<RMD> 		8-94367-757-0 02 1 0009- ● ● ●
132 COLLAR; TORSION BAR 8-94367-757-0 02 1 0009- ● ● ●
132 COLLAR; TORSION BAR
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-94468-556-2 02 1 0009- ● ● ●
132 COLLAR; TORSION BAR 8-94468-556-2 02 1 0009- ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
A/T AISIN<RMD> 		8-97032-976-1 02 1 0009- ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 0009- ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> 		8-94367-950-0 02 1 0009- ● ● ●
133 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 0009- ● ●
146 BOLT; SUPPORT
M10X83 FLANGE THA 		8-97805-841-1 02 1 0009- ● ● ●
299 NUT; SUPPORT BAR
M10 FLANGE THA 		8-94383-595-0 02 1 0009- ● ● ●
