4-01 — PROPELLER SHAFT (#43601) — 120 parça

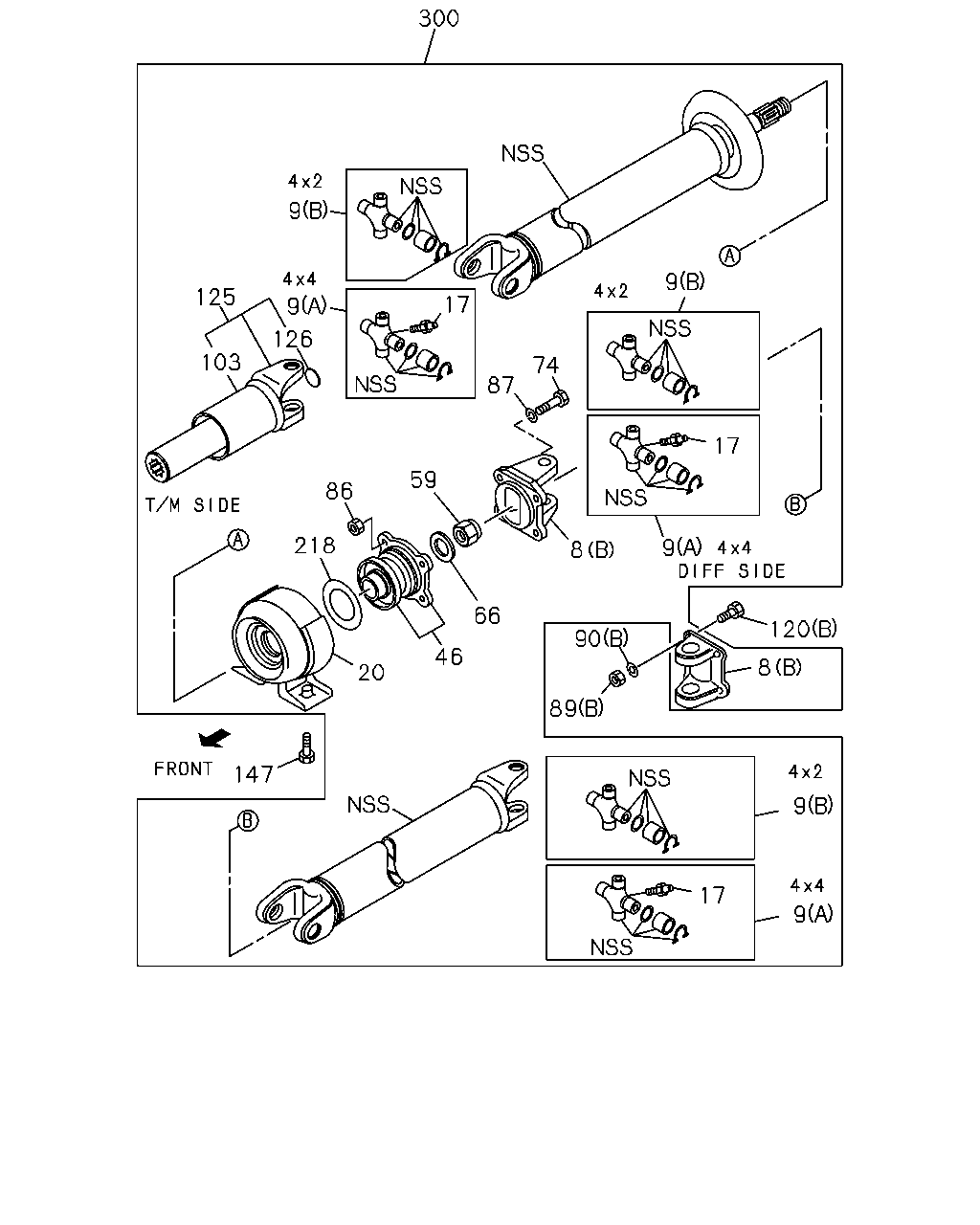

çizim 46923
300 9 9 9 126 125 17 103 74 87 17 59 86 218 9 8 66 120 90 46 8 20 89 9 147 9 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 YOKE; FLANGE,PROP SHAFT
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97941-182-0 01 1 0103- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-97941-182-0 01 1 0103- ● ●
8 YOKE; FLANGE,PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97941-184-0 01 1 0103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) THA 		8-97941-182-0 02 1 0009-0102 ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-97941-182-0 02 1 0009-0102 ● ●
8 YOKE; FLANGE,PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97941-184-0 02 1 0009-0102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-97941-184-0 02 1 0009-0102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-97941-184-0 02 1 0103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97211-120-0 02 1 0009- ● ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-97941-178-0 03 1 0103- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-97941-178-0 03 1 0009-0102 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-97211-133-0 02 1 0009- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-97941-179-0 03 1 0009- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		9-09031-006-0 05 1 0009- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-94328-800-0 01 1 0103- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-94328-800-0 01 1 0009-0102 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-94328-799-0 01 1 0009- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97940-881-0 01 1 0009-0102 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-97940-881-0 01 1 0009-0102 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97940-882-0 01 1 0009-0102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-97940-882-0 01 1 0009-0102 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-97940-882-0 01 1 0103- ● ● ●
59 NUT; RET TO SUPPORT
M18 THA 		8-08937-737-0 01 1 0009- ● ● ● ● ● ● ● ●
66 WASHER
ID=18.5 OD=35 THA 		8-03431-198-0 01 1 0009- ● ● ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> M8X26 THA 		8-94437-365-1 04 1 0009-0102 ●
74 BOLT; YOKE,TRANS
M8X26 THA 		8-94437-365-1 04 1 0009-0102 ● ●
74 BOLT; YOKE,TRANS
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> M10X29 THA 		8-97168-458-1 04 1 0009-0102 ● ● ●
74 BOLT; YOKE,TRANS
M10X29 THA 		8-97168-458-1 04 1 0009-0102 ● ● ●
74 BOLT; YOKE,TRANS
M10X29 THA 		8-97168-458-1 04 1 0103- ● ● ●
86 NUT; COUPLING DRIVER TO YOKE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> M8 		9-09110-508-0 04 1 0009-0102 ●
86 NUT; COUPLING DRIVER TO YOKE
M8 		9-09110-508-0 04 1 0009-0102 ● ●
86 NUT; COUPLING DRIVER TO YOKE
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> M10 		9-09110-510-0 04 1 0009-0102 ● ● ●
86 NUT; COUPLING DRIVER TO YOKE
M10 		9-09110-510-0 04 1 0009-0102 ● ● ●
86 NUT; COUPLING DRIVER TO YOKE
M10 		9-09110-510-0 04 1 0103- ● ● ●
87 WASHER; LK,1ST PROP TO 2ND PROP
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> ID=8.2 		9-09150-608-0 04 1 0009-0102 ●
87 WASHER; LK,1ST PROP TO 2ND PROP
ID=8.2 		9-09150-608-0 04 1 0009-0102 ● ●
87 WASHER; LK,1ST PROP TO 2ND PROP
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> ID=10.2 		9-09150-610-0 04 1 0009-0102 ● ● ●
87 WASHER; LK,1ST PROP TO 2ND PROP
ID=10.2 		9-09150-610-0 04 1 0009-0102 ● ● ●
87 WASHER; LK,1ST PROP TO 2ND PROP
ID=10.2 		9-09150-610-0 04 1 0103- ● ● ●
89 NUT; YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) M8 		9-09110-508-0 04 1 0009- ●
89 NUT; YOKE TO RR AXLE
(B) M8 		9-09110-508-0 04 1 0009- ● ●
89 NUT; YOKE TO RR AXLE
4JH1 ENG<RJX> (B) M10 		8-94159-009-1 04 1 0009- ●
89 NUT; YOKE TO RR AXLE
(B) M10 		8-94159-009-1 04 1 0009- ● ● ● ● ●
89 NUT; YOKE TO RR AXLE
(A) M10 		8-94159-009-1 08 1 0009- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) ID=8.2 		9-09150-608-0 04 1 0009- ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=8.2 		9-09150-608-0 04 1 0009- ● ●
90 WASHER; LK,YOKE TO RR AXLE
4JH1 ENG<RJX> (B) ID=10.2 		9-09150-610-0 04 1 0009- ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=10.2 		9-09150-610-0 04 1 0009- ● ● ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=10.2 		9-09150-610-0 08 1 0009- ● ● ●
103 BOOT; PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97942-134-0 01 1 0103- ●
103 BOOT; PROP SHAFT
A/T AISIN<RMD> THA 		8-97942-134-0 01 1 0103- ● ●
103 BOOT; PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97942-134-0 01 1 0009-0102 ●
103 BOOT; PROP SHAFT
A/T AISIN<RMD> THA 		8-97942-134-0 01 1 0009-0102 ● ●
103 BOOT; PROP SHAFT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97940-114-0 01 1 0009- ● ● ●
103 BOOT; PROP SHAFT
THA 		8-97940-114-0 01 1 0009- ● ● ● ● ●
120 BOLT; YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) M8X26 THA 		8-94437-365-1 04 1 0009-0105 ●
120 BOLT; YOKE TO RR AXLE
(B) M8X26 THA 		8-94437-365-1 04 1 0009-0105 ● ●
120 BOLT; YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97942-207-0 04 1 0106- ●
120 BOLT; YOKE TO RR AXLE
THA 		8-97942-207-0 04 1 0106- ● ●
120 BOLT; YOKE TO RR AXLE
4JH1 ENG<RJX> (B) M10X29 THA 		8-97168-458-1 04 1 0009- ●
120 BOLT; YOKE TO RR AXLE
(B) M10X29 THA 		8-97168-458-1 04 1 0009- ● ● ● ● ●
120 BOLT; YOKE TO RR AXLE
(A) M10X29 THA 		8-97168-458-1 08 1 0009- ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97942-133-0 01 1 0103- ●
125 YOKE ASM; SPLINED,PROP SHAFT
A/T AISIN<RMD> THA 		8-97942-133-0 01 1 0103- ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
THA 		8-97942-533-0 01 1 0104- ● ● ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97942-133-0 01 1 0009-0102 ●
125 YOKE ASM; SPLINED,PROP SHAFT
A/T AISIN<RMD> THA 		8-97942-133-0 01 1 0009-0102 ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97941-176-0 01 1 0009- ● ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
THA 		8-97941-176-0 01 1 0009- ● ● ● ● ●
126 PLUG; SPLINED YOKE
THA 		8-97940-102-0 01 1 0009- ● ● ● ● ● ● ● ●
147 BOLT; CENTER BRG MTG
M12X20 FLANGE 		0-28081-220-0 02 1 0009- ● ● ● ● ● ● ● ●
218 WASHER; PL,PROP SHAFT
ID=30 H=40 L=35 THA 		8-97192-641-0 01 1 0009- ● ● ● ● ● ● ● ●
300 SHAFT ASM; PROP,RR
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97942-131-0 01 1 0009-0102 ●
300 SHAFT ASM; PROP,RR
A/T AISIN<RMD> THA 		8-97942-131-0 01 1 0009-0102 ● ●
300 SHAFT ASM; PROP,RR
4JH1 ENG<RJX> A/T AISIN<RMD> THA 		8-97942-525-0 01 1 0103- ●
300 SHAFT ASM; PROP,RR
A/T AISIN<RMD> THA 		8-97942-525-0 01 1 0103- ● ●
300 SHAFT ASM; PROP,RR
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97941-159-0 01 1 0009-0102 ●
300 SHAFT ASM; PROP,RR
THA 		8-97941-159-0 01 1 0009-0102 ● ●
300 SHAFT ASM; PROP,RR
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97942-523-0 01 1 0103- ●
300 SHAFT ASM; PROP,RR
THA 		8-97942-523-0 01 1 0103- ● ●
300 SHAFT ASM; PROP,RR
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97941-160-0 01 1 0009-0102 ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED<RMN> THA 		8-97941-160-0 01 1 0009-0102 ● ●
300 SHAFT ASM; PROP,RR
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> THA 		8-97942-524-0 01 1 0103- ●
300 SHAFT ASM; PROP,RR
M/T MUA 5 SPEED<RMN> THA 		8-97942-524-0 01 1 0103- ● ●
300 SHAFT ASM; PROP,RR
THA 		8-97941-162-0 01 1 0009- ● ● ●

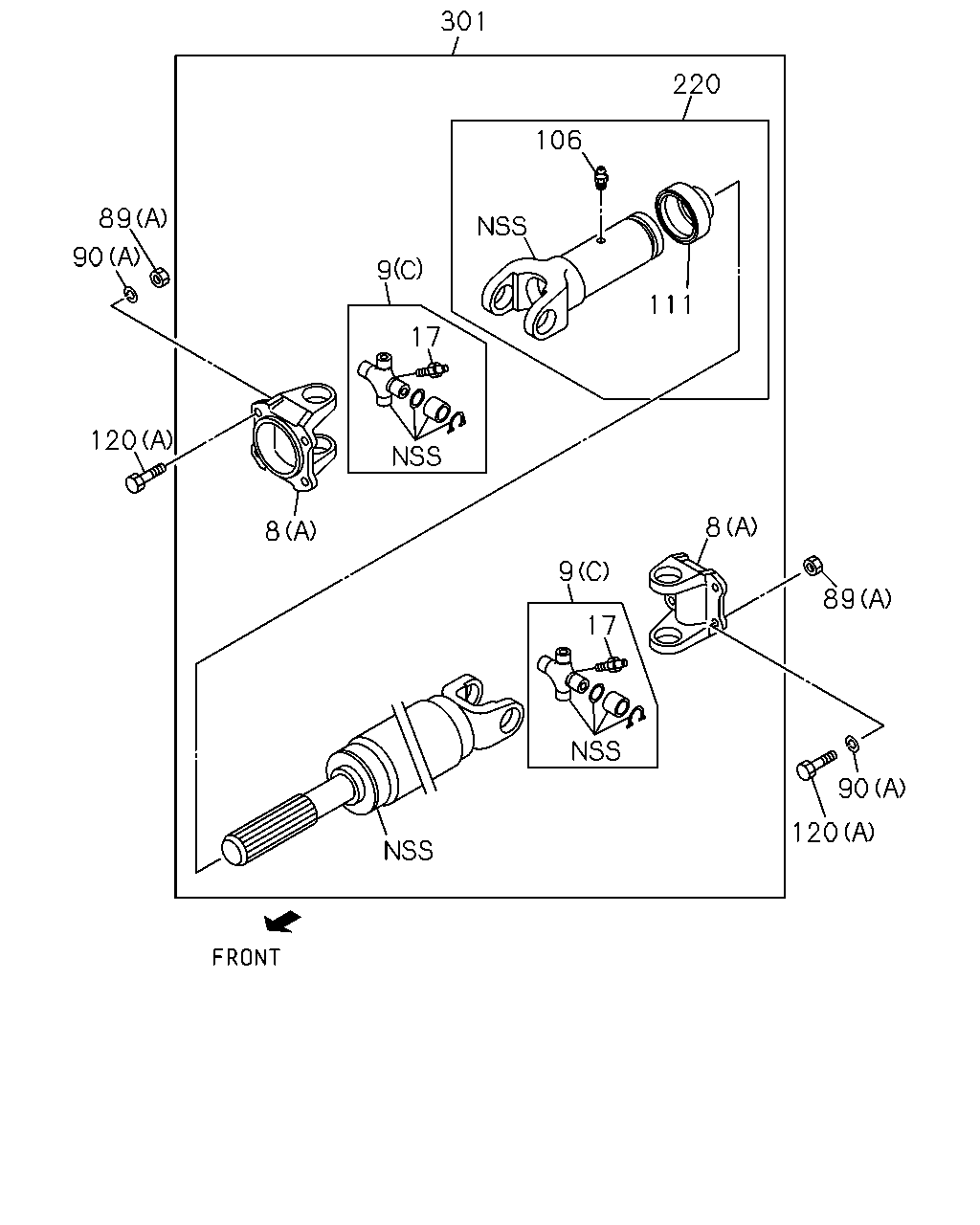

çizim 48628
301 220 106 89 90 9 111 17 120 8 8 9 89 17 90 120
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 YOKE; FLANGE,PROP SHAFT
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97941-182-0 01 1 0103- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-97941-182-0 01 1 0103- ● ●
8 YOKE; FLANGE,PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> THA 		8-97941-184-0 01 1 0103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) THA 		8-97941-182-0 02 1 0009-0102 ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-97941-182-0 02 1 0009-0102 ● ●
8 YOKE; FLANGE,PROP SHAFT
4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97941-184-0 02 1 0009-0102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-97941-184-0 02 1 0009-0102 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		8-97941-184-0 02 1 0103- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-97211-120-0 02 1 0009- ● ● ●
9 JOURNAL ASM; PROP SHAFT
THA 		8-97941-178-0 03 1 0103- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) THA 		8-97941-178-0 03 1 0009-0102 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-97211-133-0 02 1 0009- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		8-97941-179-0 03 1 0009- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		9-09031-006-0 05 1 0009- ● ● ●
89 NUT; YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) M8 		9-09110-508-0 04 1 0009- ●
89 NUT; YOKE TO RR AXLE
(B) M8 		9-09110-508-0 04 1 0009- ● ●
89 NUT; YOKE TO RR AXLE
4JH1 ENG<RJX> (B) M10 		8-94159-009-1 04 1 0009- ●
89 NUT; YOKE TO RR AXLE
(B) M10 		8-94159-009-1 04 1 0009- ● ● ● ● ●
89 NUT; YOKE TO RR AXLE
(A) M10 		8-94159-009-1 08 1 0009- ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) ID=8.2 		9-09150-608-0 04 1 0009- ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=8.2 		9-09150-608-0 04 1 0009- ● ●
90 WASHER; LK,YOKE TO RR AXLE
4JH1 ENG<RJX> (B) ID=10.2 		9-09150-610-0 04 1 0009- ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=10.2 		9-09150-610-0 04 1 0009- ● ● ● ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=10.2 		9-09150-610-0 08 1 0009- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		9-09031-006-0 01 1 0009- ● ● ●
111 RING; SLEEVE 5-37249-004-0 01 1 0009- ● ● ●
120 BOLT; YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> (B) M8X26 THA 		8-94437-365-1 04 1 0009-0105 ●
120 BOLT; YOKE TO RR AXLE
(B) M8X26 THA 		8-94437-365-1 04 1 0009-0105 ● ●
120 BOLT; YOKE TO RR AXLE
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> THA 		8-97942-207-0 04 1 0106- ●
120 BOLT; YOKE TO RR AXLE
THA 		8-97942-207-0 04 1 0106- ● ●
120 BOLT; YOKE TO RR AXLE
4JH1 ENG<RJX> (B) M10X29 THA 		8-97168-458-1 04 1 0009- ●
120 BOLT; YOKE TO RR AXLE
(B) M10X29 THA 		8-97168-458-1 04 1 0009- ● ● ● ● ●
120 BOLT; YOKE TO RR AXLE
(A) M10X29 THA 		8-97168-458-1 08 1 0009- ● ● ●
220 YOKE; SPLINED 8-97211-130-0 01 1 0009- ● ● ●
301 SHAFT ASM; PROP,FRT 8-97211-638-1 01 1 0009- ● ● ●
