Sayfa 0-42 - Isuzu EPC

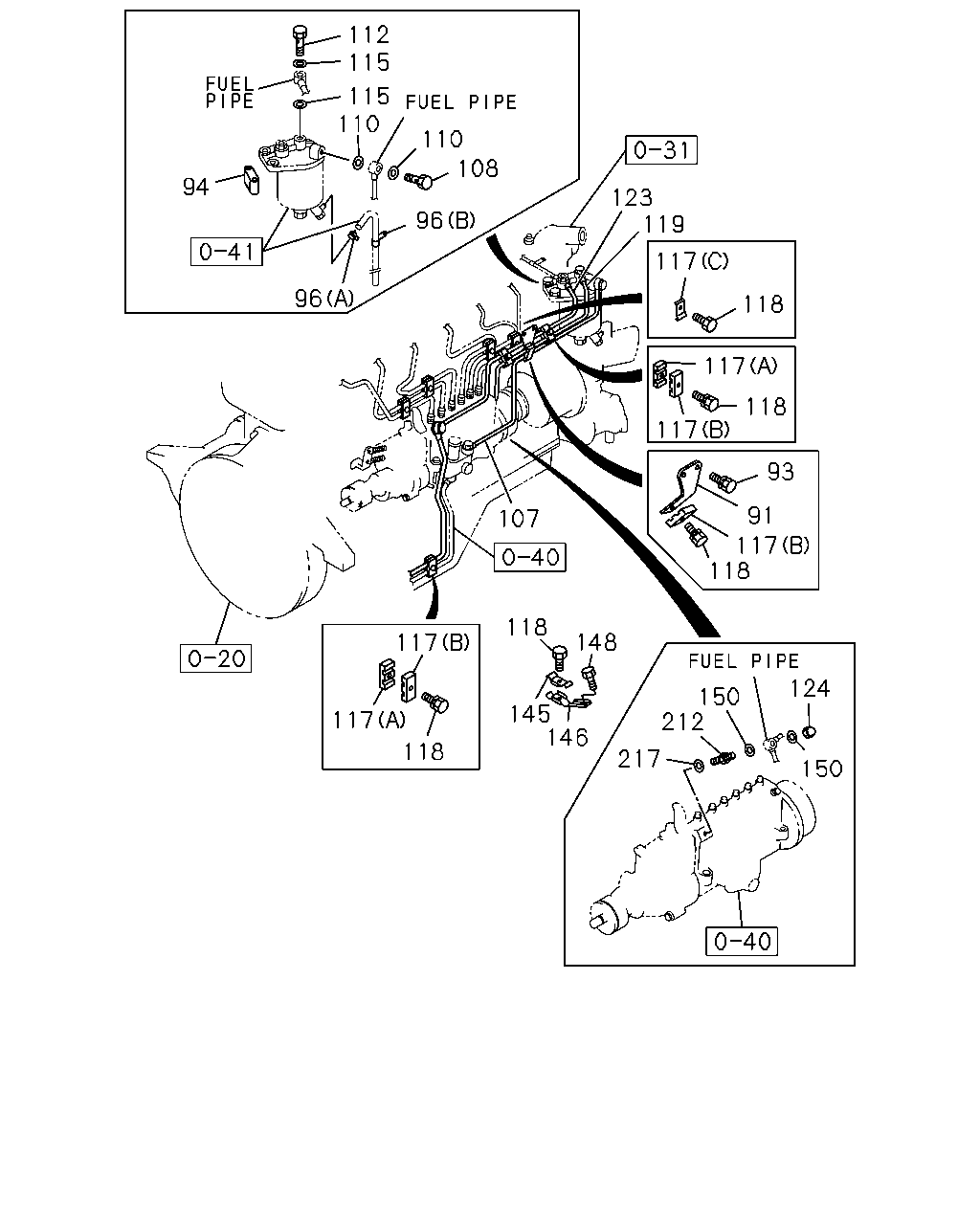

0-42 — FUEL PUMP AND PIPE (#4360) — 303 parça

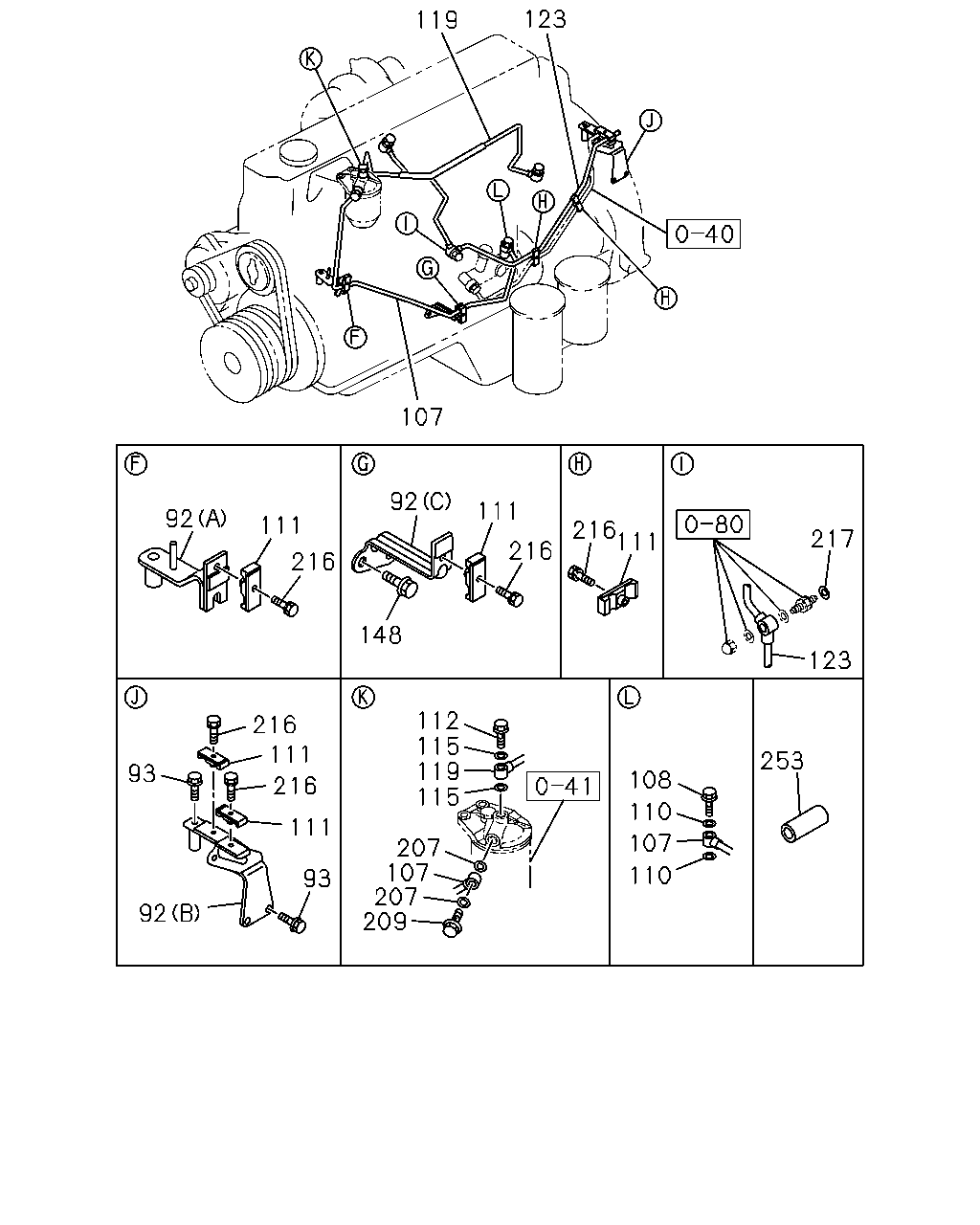

123 119 107 92 111 92 111 216 216 111 217 216 148 123 112 115 119 115 216 111 216 253 93 108 110 107 110 111 207 107 207 209 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9505-9702	●
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9703-9709	●	●
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9710-9711	●	●	●
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9712-	●	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94395-127-0	01	1	9505-9512	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-127-0	01	1	9601-9605	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94395-127-0	01	1	9606-	●
92	BRACKET; FUEL PIPE EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94396-160-0	01	1	9505-9608	●
92	BRACKET; FUEL PIPE EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-160-0	01	1	9609-	●
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9703-9709		●
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9710-9805		●	●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9703-9709		●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9710-9805		●	●
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9806-		●	●
92	BRACKET; FUEL PIPE (B)	8-94392-249-0	01	1	9712-			●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9806-		●	●
93	BOLT; PIPE BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9101-9504				●	●	●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	9505-	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9505-9702	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9703-9709	●	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9710-0512	●	●	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28050-860-0	01	1	0601-	●	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9505-9702	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9703-9709	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9710-9805	●	●	●
93	BOLT; PIPE BRKT LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) M8X18 FLANGE	0-28080-818-0	02	1	9711-9805	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9806-0512	●	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28751-020-0	02	1	0601-	●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-205-1	01	1	9101-9504				●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-508-1	01	1	9101-9504				●		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-316-2	01	1	9505-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9703-9709		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9710-		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9101-9504				●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9505-9702	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9703-9709	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER EMISSION PARTS<TCA> M14X27 FLANGE	1-09675-086-0	01	1	0005-0112			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0004	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION PARTS<TCA> ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
111	CLIP; FUEL PIPE W/TUBE L=48	5-09709-103-0	08	1	9505-	●
111	CLIP; FUEL PIPE L=45	5-09709-104-0	03	1	9505-	●
111	CLIP; FUEL PIPE L=48	5-09709-103-0	06	1	9703-9709		●
111	CLIP; FUEL PIPE L=48	5-09709-103-0	06	1	9710-		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9101-9504				●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9505-9702	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9703-9709	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9710-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-1312	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	5-15411-517-0	01	1	9101-9504				●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-509-0	01	1	9101-9504				●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-317-2	01	1	9505-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9703-9709		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9710-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9101-9310				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15413-510-1	01	1	9101-9310						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9311-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF LEFT HAND DRIVE(LTR6FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9311-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,FLYWHEEL HSG SAE #2<E4C>	1-15413-921-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-15413-921-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-15413-921-1	01	1	9101-9504					●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-15414-205-1	01	1	9101-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15414-205-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-15414-204-1	01	1	9101-9201						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-15414-204-1	01	1	9202-9310				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15414-204-1	01	1	9202-9310						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-15414-204-1	01	1	9311-9504				●		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15414-204-1	01	1	9311-9504						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94395-230-0	01	1	9505-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94391-537-1	01	1	9703-9709		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94391-537-1	01	1	9710-		●	●
148	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	01	1	9101-9504				●	●	●
148	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	02	1	9703-9709		●
148	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	02	1	9710-0512		●	●
148	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-		●	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709		●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0112		●	●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9703-9709		●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9710-0112		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	08	1	9505-0512	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	08	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	06	1	9703-9709		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	06	1	9710-0512		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	06	1	0601-		●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2	1-09630-085-0	01	1	9101-9504				●	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2	1-09630-085-0	01	1	9505-9702	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09630-085-0	01	1	9703-9709	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09630-085-0	01	1	9710-1312	●	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98251-345-0	01	1	1401-	●	●	●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0006-		●	●

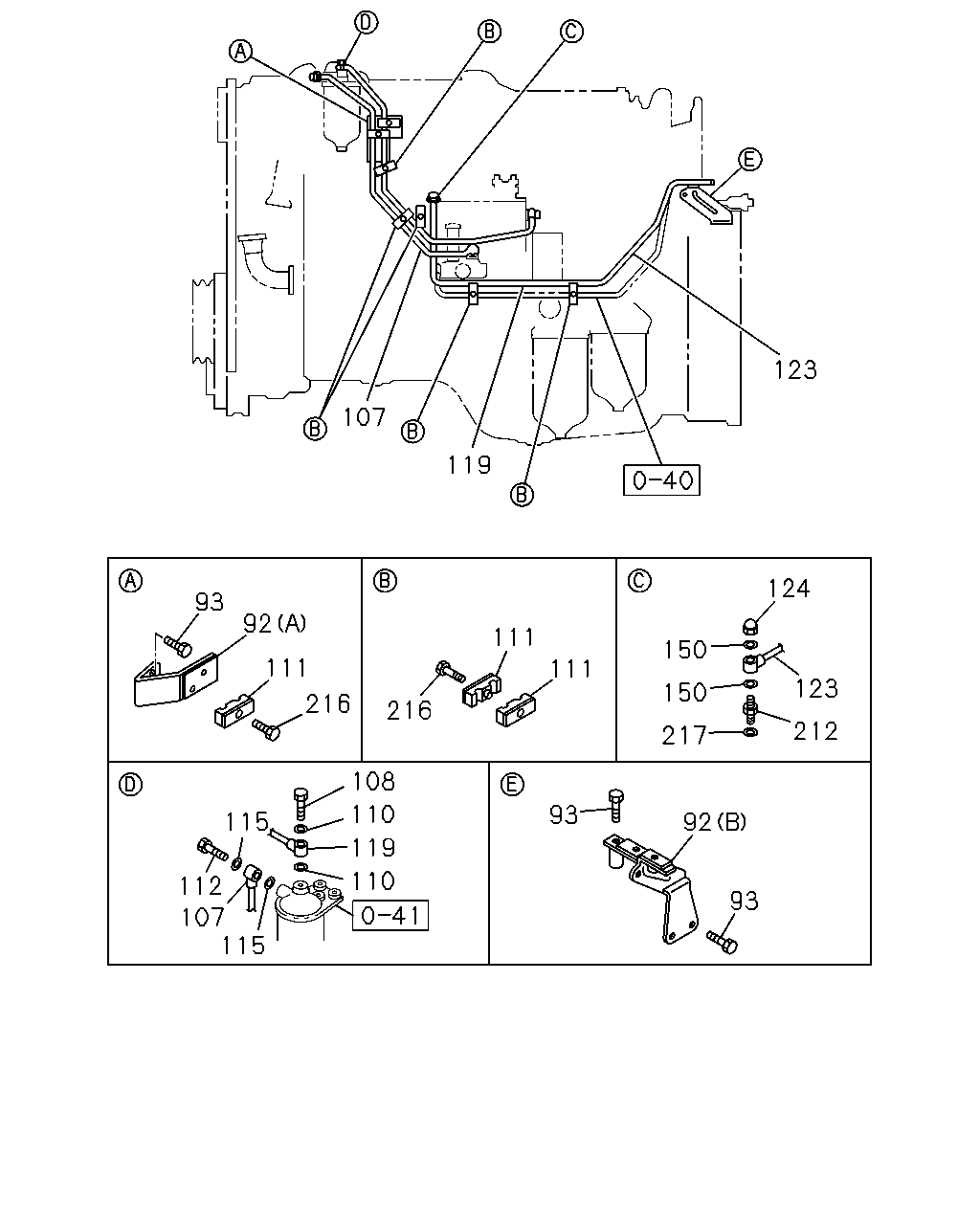

123 107 119 124 93 92 111 150 111 216 111 123 150 216 212 217 108 110 119 112 110 107 115 93 115 92 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9505-9702	●
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9703-9709	●	●
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9710-9711	●	●	●
92	BRACKET; FUEL PIPE (B)	8-94395-569-0	01	1	9712-	●	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94395-127-0	01	1	9505-9512	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-127-0	01	1	9601-9605	●
92	BRACKET; FUEL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94395-127-0	01	1	9606-	●
92	BRACKET; FUEL PIPE EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94396-160-0	01	1	9505-9608	●
92	BRACKET; FUEL PIPE EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94396-160-0	01	1	9609-	●
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9703-9709		●
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9710-9805		●	●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9703-9709		●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9710-9805		●	●
92	BRACKET; FUEL PIPE (A)	8-94391-326-1	01	1	9806-		●	●
92	BRACKET; FUEL PIPE (B)	8-94392-249-0	01	1	9712-			●
92	BRACKET; FUEL PIPE (C)	8-94391-535-0	01	1	9806-		●	●
93	BOLT; PIPE BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9101-9504				●	●	●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	9505-	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9505-9702	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9703-9709	●	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9710-0512	●	●	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28050-860-0	01	1	0601-	●	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9505-9702	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9703-9709	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9710-9805	●	●	●
93	BOLT; PIPE BRKT LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) M8X18 FLANGE	0-28080-818-0	02	1	9711-9805	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9806-0512	●	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28751-020-0	02	1	0601-	●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-205-1	01	1	9101-9504				●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-508-1	01	1	9101-9504				●		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-316-2	01	1	9505-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9703-9709		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9710-		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9101-9504				●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9505-9702	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9703-9709	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER EMISSION PARTS<TCA> M14X27 FLANGE	1-09675-086-0	01	1	0005-0112			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0004	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION PARTS<TCA> ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
111	CLIP; FUEL PIPE W/TUBE L=48	5-09709-103-0	08	1	9505-	●
111	CLIP; FUEL PIPE L=45	5-09709-104-0	03	1	9505-	●
111	CLIP; FUEL PIPE L=48	5-09709-103-0	06	1	9703-9709		●
111	CLIP; FUEL PIPE L=48	5-09709-103-0	06	1	9710-		●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9101-9504				●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9505-9702	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9703-9709	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9710-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-1312	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	5-15411-517-0	01	1	9101-9504				●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-509-0	01	1	9101-9504				●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-317-2	01	1	9505-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9703-9709		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9710-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9101-9310				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15413-510-1	01	1	9101-9310						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9311-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF LEFT HAND DRIVE(LTR6FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9311-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,FLYWHEEL HSG SAE #2<E4C>	1-15413-921-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-15413-921-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-15413-921-1	01	1	9101-9504					●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-15414-205-1	01	1	9101-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15414-205-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-15414-204-1	01	1	9101-9201						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-15414-204-1	01	1	9202-9310				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15414-204-1	01	1	9202-9310						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-15414-204-1	01	1	9311-9504				●		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15414-204-1	01	1	9311-9504						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94395-230-0	01	1	9505-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94391-537-1	01	1	9703-9709		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94391-537-1	01	1	9710-		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9101-9504				●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9505-	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-1312	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
212	VALVE; OVERFLOW	1-13260-001-1	01	1	9101-9504				●	●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9505-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	08	1	9505-0512	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	08	1	0601-	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	06	1	9703-9709		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	06	1	9710-0512		●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	06	1	0601-		●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2	1-09630-085-0	01	1	9101-9504				●	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2	1-09630-085-0	01	1	9505-9702	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09630-085-0	01	1	9703-9709	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09630-085-0	01	1	9710-1312	●	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98251-345-0	01	1	1401-	●	●	●

112 115 115 110 110 108 94 123 119 96 117 96 118 117 118 117 93 91 117 118 107 118 148 117 124 150 212 145 146 117 118 150 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
91	BRACKET; FUEL PIPE TO INL MANIF EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15419-246-0	01	1	9101-9504				●	●	●
91	BRACKET; FUEL PIPE TO INL MANIF AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15419-151-0	01	1	9101-9504				●		●
93	BOLT; PIPE BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9101-9504				●	●	●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	9505-	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9505-9702	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9703-9709	●	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28080-860-0	01	1	9710-0512	●	●	●
93	BOLT; PIPE BRKT M8X60 FLANGE	0-28050-860-0	01	1	0601-	●	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9505-9702	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9703-9709	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9710-9805	●	●	●
93	BOLT; PIPE BRKT LEFT HAND DRIVE(LTR6FB) MT643 A/T ALLISON(PR7) M8X18 FLANGE	0-28080-818-0	02	1	9711-9805	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28781-020-0	02	1	9806-0512	●	●	●
93	BOLT; PIPE BRKT M10X20 FLANGE	0-28751-020-0	02	1	0601-	●	●	●
94	SPACER; MANIF TO FUEL FILTER	5-13219-003-0	01	1	9101-9504				●	●	●
96	CLIP; VINYL PIPE (A) ID=8	8-94107-762-0	01	1	9101-9504				●	●	●
96	CLIP; VINYL PIPE (B) ID=13 L=20	9-09525-235-0	01	1	9101-9504				●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-205-1	01	1	9101-9504				●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-508-1	01	1	9101-9504				●		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-316-2	01	1	9505-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9703-9709		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94391-534-0	01	1	9710-		●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9101-9504				●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9505-9702	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9703-9709	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER EMISSION PARTS<TCA> M14X27 FLANGE	1-09675-086-0	01	1	0005-0112			●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0004	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION PARTS<TCA> ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9101-9504				●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9505-9702	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9703-9709	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9710-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9702	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9709	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-1312	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
117	CLIP; FUEL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B) L=48	5-09709-103-0	04	1	9101-9504				●	●	●
117	CLIP; FUEL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (A) L=45	5-09709-104-0	03	1	9101-9504				●	●	●
117	CLIP; FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> (B) WO/NUT ID=10 & 10	1-09700-163-0	02	1	9101-9411				●		●
117	CLIP; FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> (B) ID=10 & 10 L=25	9-09716-114-0	02	1	9412-9504				●		●
117	CLIP; FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> (A) W/NUT ID=10 & 10	1-09700-164-0	02	1	9101-9411				●		●
117	CLIP; FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> (A) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9412-9504				●		●
117	CLIP; FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> (C) WO/NUT ID=10	1-09700-491-0	01	1	9101-9504				●		●
117	CLIP; FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> (B) L=48	5-09709-103-0	01	1	9101-9504				●		●
117	CLIP; FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> (A) L=45	5-09709-104-0	01	1	9101-9504				●		●
118	BOLT; CLIP,FUEL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M6X30 W/LK WASHER	9-01900-630-0	05	1	9101-9204				●	●	●
118	BOLT; CLIP,FUEL PIPE EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> M6X30 W/LK WASHER	0-50040-630-0	05	1	9205-9504				●	●	●
118	BOLT; CLIP,FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> M6X30 W/LK WASHER	9-01900-630-0	04	1	9101-9204				●		●
118	BOLT; CLIP,FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> M6X30 W/LK WASHER	0-50040-630-0	04	1	9205-9504				●		●
118	BOLT; CLIP,FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204				●		●
118	BOLT; CLIP,FUEL PIPE AIR COMPRESSOR HEAVY DUTY<E1Q> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9504				●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	5-15411-517-0	01	1	9101-9504				●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15413-509-0	01	1	9101-9504				●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-317-2	01	1	9505-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9703-9709		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94391-547-0	01	1	9710-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9101-9310				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15413-510-1	01	1	9101-9310						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9311-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF LEFT HAND DRIVE(LTR6FB) ISUZU M/T<X9A> BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FLYWHEEL HSG SAE #2<E4C>	1-15413-510-1	01	1	9311-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,FLYWHEEL HSG SAE #2<E4C>	1-15413-921-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-15413-921-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-15413-921-1	01	1	9101-9504					●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF MT643 A/T ALLISON(PR7) BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-15414-205-1	01	1	9101-9504				●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>	1-15414-205-1	01	1	9101-9504				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER STRG(N40)	1-15414-204-1	01	1	9101-9201						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-15414-204-1	01	1	9202-9310				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15414-204-1	01	1	9202-9310						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ISUZU M/T<X9A> AIR COMPRESSOR HEAVY DUTY<E1Q> FLYWHEEL HSG SAE #2<E4C>	1-15414-204-1	01	1	9311-9504				●		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF RIGHT HAND DRIVE(LTR5FB) MT643 A/T ALLISON(PR7) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-15414-204-1	01	1	9311-9504						●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94395-230-0	01	1	9505-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94391-537-1	01	1	9703-9709		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94391-537-1	01	1	9710-		●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9101-9504				●	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9505-	●
145	CLIP; FUEL PIPE	5-09700-192-0	01	1	9101-9504				●	●	●
146	BRACKET; FUEL END	5-09700-264-0	01	1	9101-9504				●	●	●
148	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	01	1	9101-9504				●	●	●
148	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	02	1	9703-9709		●
148	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	02	1	9710-0512		●	●
148	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-		●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9101-9504				●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-1312	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
212	VALVE; OVERFLOW	1-13260-001-1	01	1	9101-9504				●	●	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9505-	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2	1-09630-085-0	01	1	9101-9504				●	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2	1-09630-085-0	01	1	9505-9702	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09630-085-0	01	1	9703-9709	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09630-085-0	01	1	9710-1312	●	●	●
217	GASKET; OVERFLOW VLV ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98251-345-0	01	1	1401-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
