3-55 — BRAKE PIPING; OIL,REAR (#43598) — 15 parça

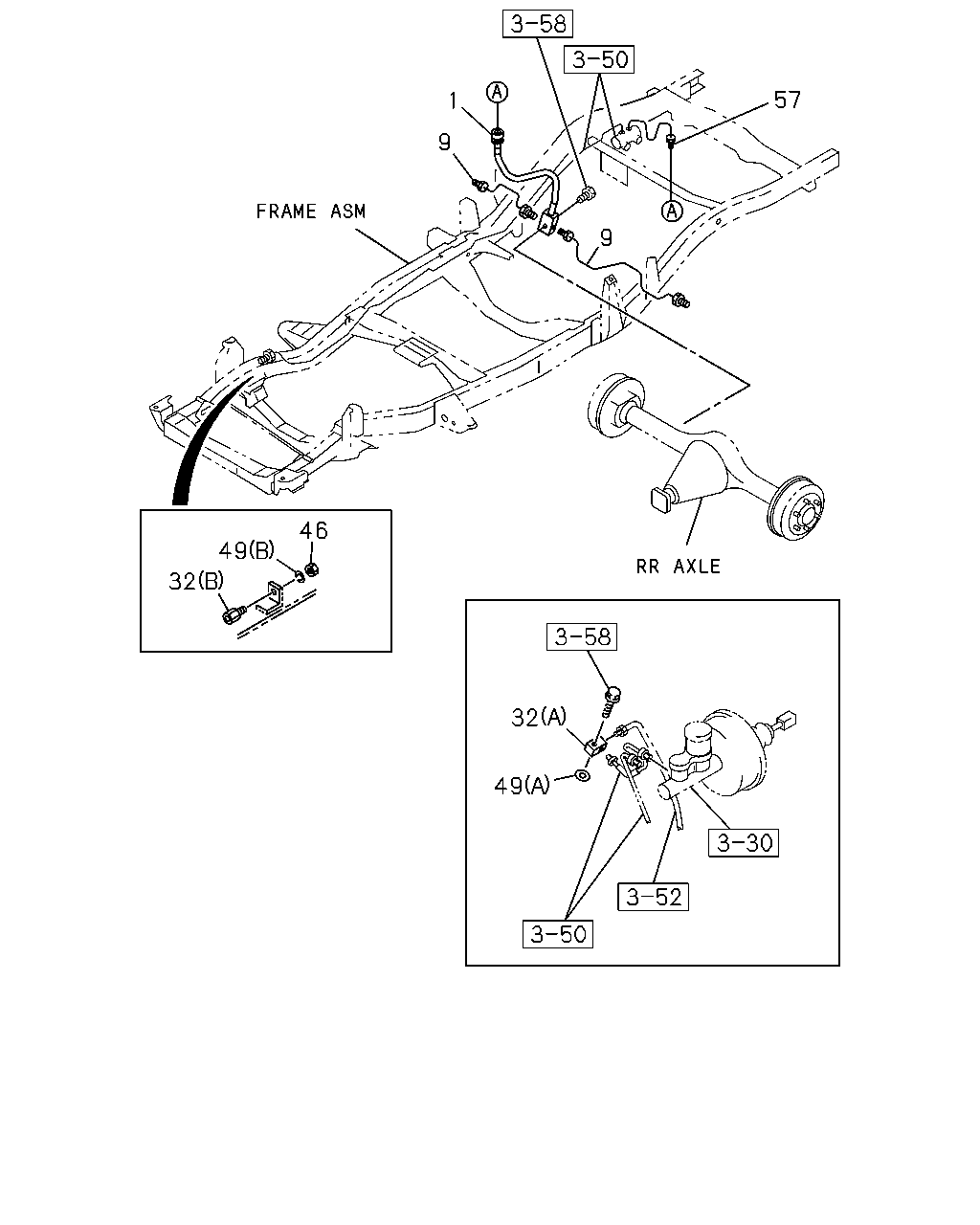

çizim 50318
57 1 9 9 46 49 32 32 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 HOSE; FLEX,RR BRK
THA 		8-97940-711-1 01 1 0009- ● ● ● ● ●
1 HOSE; FLEX,RR BRK
L=479.5 THA 		8-97940-710-1 01 1 0009- ● ● ●
9 PIPE; BRK,RR AXLE
4JA1 ENG<RLE> THA 		8-97912-093-1 01 1 0009- ●
9 PIPE; BRK,RR AXLE
THA 		8-97912-093-1 01 1 0009- ● ●
9 PIPE; BRK,RR AXLE
4JH1 ENG<RJX> THA 		8-97910-558-3 01 1 0009- ●
9 PIPE; BRK,RR AXLE
THA 		8-97910-558-3 01 1 0009- ● ●
9 PIPE; BRK,RR AXLE
THA 		8-97912-092-0 01 1 0009- ● ● ● ● ●
9 PIPE; BRK,RR AXLE
THA 		8-97910-555-3 01 1 0009- ● ● ●
9 PIPE; BRK,RR AXLE
THA 		8-97910-556-1 01 1 0009- ● ● ●
32 UNION; OIL PIPE
(A) 		8-94406-895-0 01 1 0009- ● ● ● ● ● ● ● ●
32 UNION; OIL PIPE
(B) M10 STRAIGHT OUTER M16X21 		9-09227-055-0 01 1 0009- ● ● ● ● ● ● ● ●
46 NUT; UNION,OIL PIPE
M16 		9-99111-416-0 01 1 0009- ● ● ● ● ● ● ● ●
49 WASHER; LK,UNION,OIL PIPE
(A) ID=6.4 		1-09985-038-0 01 1 0009- ● ● ● ● ● ● ● ●
49 WASHER; LK,UNION,OIL PIPE
(B) ID=16.2 		9-09150-516-0 01 1 0009- ● ● ● ● ● ● ● ●
57 PIPE; BRK,BYPASS VALVE TO RR AXLE
THA 		8-97911-263-0 01 1 0009- ● ● ● ● ● ● ● ●
