Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶

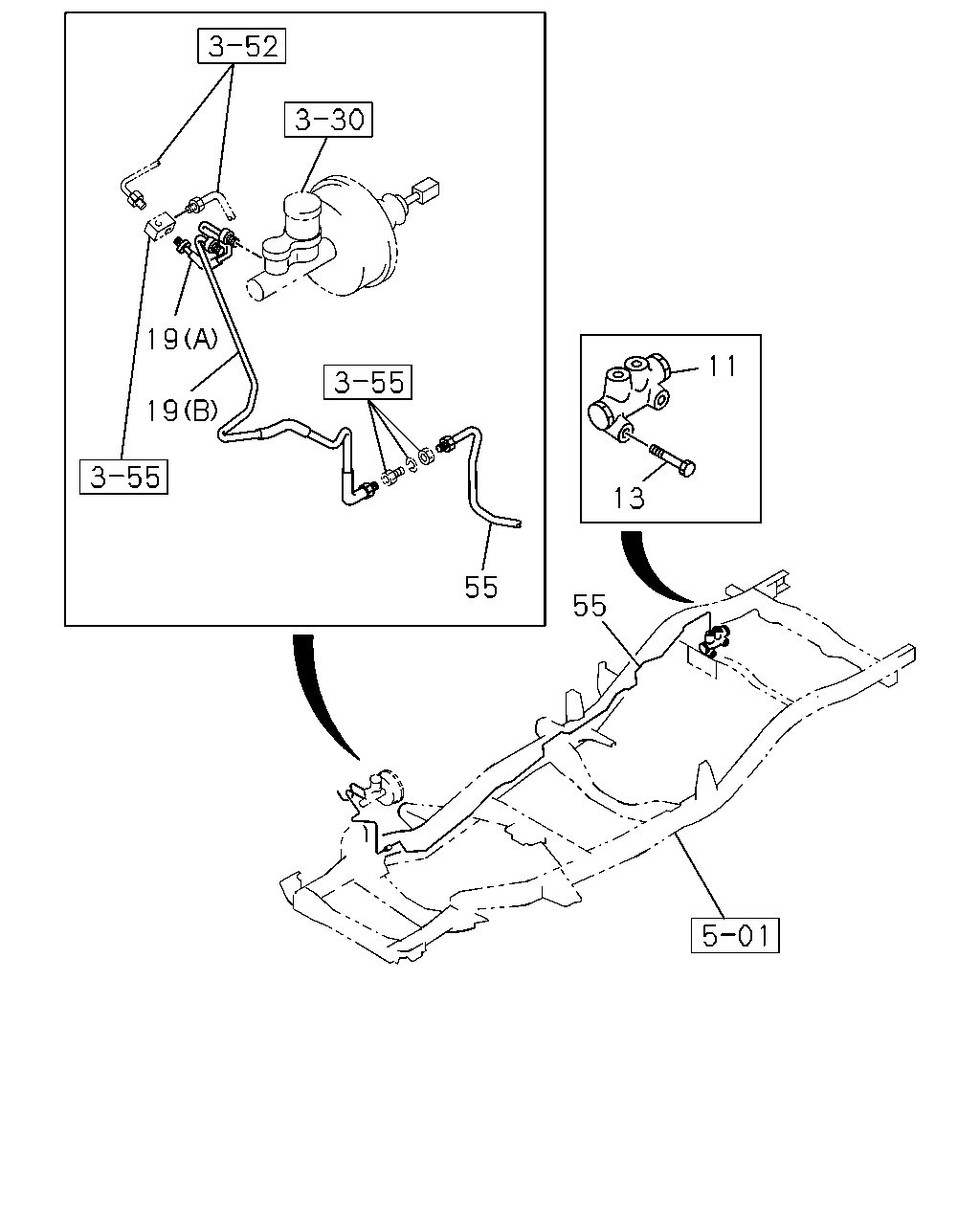

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#43596) — 16 parça
Tümü
A - TFB5CF
B - TFB5PF
C - TFB5QF
D - TFB5SF
E - TFB5WF
F - TFS5CF
G - TFS5PF
H - TFS5WF
19
11
19
13
55
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
11
VALVE; BRK CONT
8-94126-764-3
01
1
0009-
●
●
●
●
●
11
VALVE; BRK CONT
8-97171-502-0
01
1
0009-
●
●
●
13
BOLT; VLV TO BRKT
M8X50 FLANGE
0-28080-850-0
02
1
0009-
●
●
●
●
●
●
●
●
19
PIPE; BRK,M/CYL TO UNION
(A) THA
8-97911-255-1
01
1
0009-
●
●
●
●
●
●
●
●
19
PIPE; BRK,M/CYL TO UNION
(B) THA
8-97912-126-0
01
1
0009-
●
●
●
●
●
●
●
●
55
PIPE; BRK,VLV TO UNION
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA
8-97921-019-0
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
4JH1 ENG<RJX> A/T AISIN<RMD> THA
8-97921-020-0
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
A/T AISIN<RMD> THA
8-97919-385-1
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
M/T MUA 5 SPEED<RMN> THA
8-97919-380-1
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
THA
8-97919-380-1
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
THA
8-97921-364-0
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
M/T MUA 5 SPEED<RMN> THA
8-97921-364-0
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
A/T AISIN<RMD> THA
8-97921-366-0
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
THA
8-97921-022-0
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
THA
8-97919-386-1
01
1
0009-
●
55
PIPE; BRK,VLV TO UNION
THA
8-97921-365-0
01
1
0009-
●
