◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#43593) — 120 parça

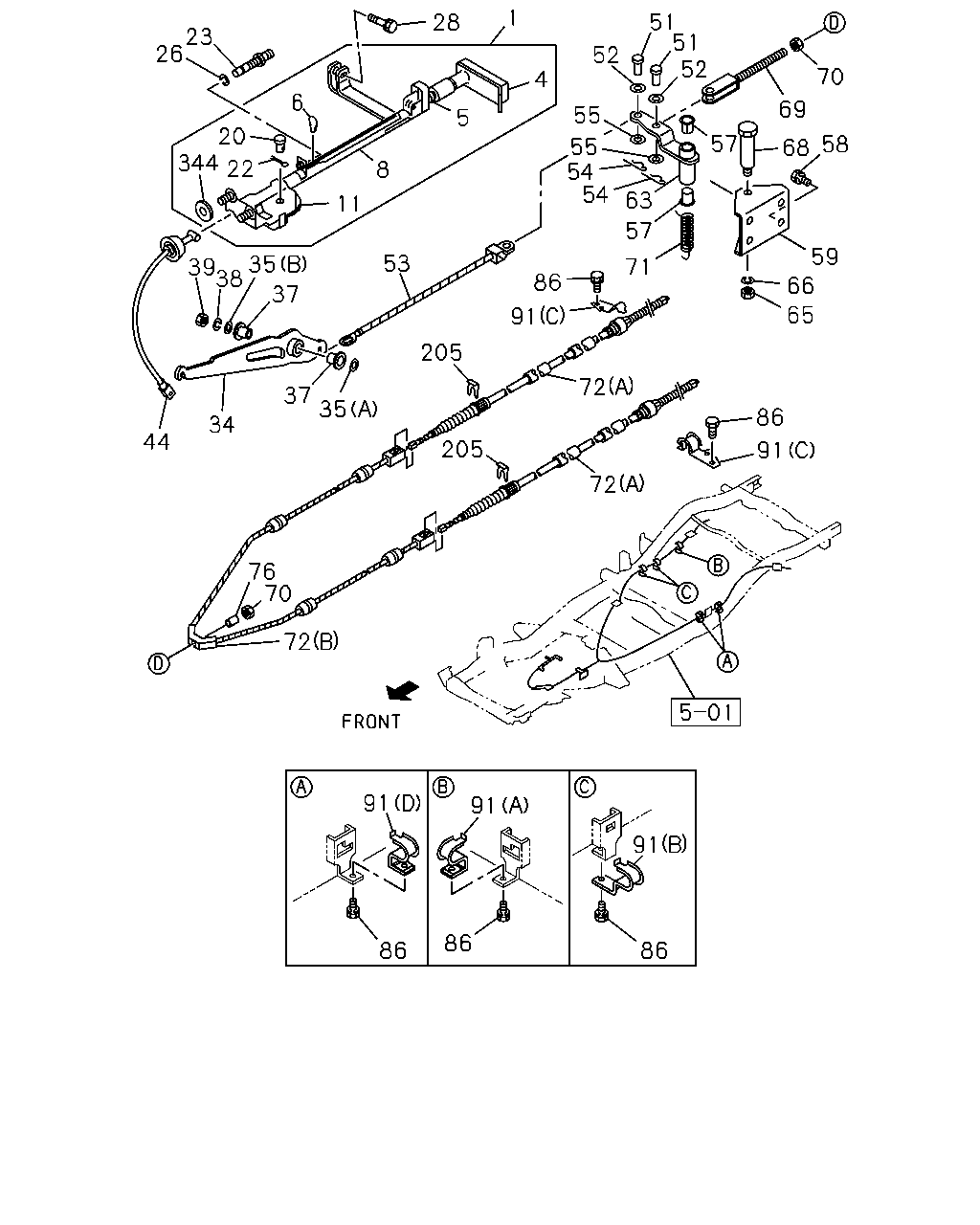

çizim 10380
1 51 51 52 55 55 54 54 28 23 26 52 70 69 4 6 5 20 344 22 57 68 58 8 63 57 11 59 66 65 53 39 35 38 37 71 86 91 205 72 37 35 86 91 34 44 205 72 76 70 72 91 91 91 86 86 86
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97910-384-0 01 1 0009- ●
4 STEM; PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97913-298-0 01 1 0009- ●
5 BUSHING; PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97913-303-0 01 1 0009- ●
6 PIN; STEM,PARK BRK
SINGLE CAB<TF**S*> THA 		8-97913-307-0 01 1 0009- ●
8 GUIDE; PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97913-302-0 01 1 0009- ●
11 ROLLER; PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97913-304-0 01 1 0009- ●
20 PIN; PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97913-306-0 01 1 0009- ●
22 PIN; SHAFT,PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97913-305-0 01 1 0009- ●
23 SWITCH; PARKING BRK
SINGLE CAB<TF**S*> 12V 		9-82750-367-0 01 1 0009- ●
23 SWITCH; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97941-054-0 01 1 0009- ● ● ●
26 WASHER; PARKING BRK SW
SINGLE CAB<TF**S*> ID=8.2 THA 		9-09150-508-0 01 1 0009- ●
28 BOLT; HAND BRK LEVER
SINGLE CAB<TF**S*> M8X50 FLANGE 		0-28080-850-0 01 1 0009- ●
34 LEVER; PARK BRK CONT
SINGLE CAB<TF**S*> 		8-94479-100-1 01 1 0009- ●
35 WASHER; PL,RELAY LEVER,PARK BRK
SINGLE CAB<TF**S*> (A) ID=15.5 OD=24 		8-94222-473-0 01 1 0009- ●
35 WASHER; PL,RELAY LEVER,PARK BRK
SINGLE CAB<TF**S*> (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0009- ●
37 BUSHING; RELAY LEVER,PARK BRK
SINGLE CAB<TF**S*> 		8-94408-022-0 02 1 0009- ●
38 WASHER; LK,RELAY LEVER,PARK BRK
SINGLE CAB<TF**S*> ID=10.2 THA 		9-09150-510-0 01 1 0009- ●
39 NUT; RELAY LEVER,PARK BRK
SINGLE CAB<TF**S*> M10 		9-09110-410-0 01 1 0009- ●
44 CABLE; PARKING BRK,FRT
SINGLE CAB<TF**S*> THA 		8-97911-249-0 01 1 0009- ●
51 PIN; JOINT,RELAY LEVER
SINGLE CAB<TF**S*> OD=8 L=20 		9-08233-820-0 02 1 0009- ●
52 WASHER; CURVED RELAY LEVER
SINGLE CAB<TF**S*> ID=8.5 T=0.3 		5-09509-001-0 02 1 0009- ●
53 CABLE; PARK BRK,FRT LWR
SINGLE CAB<TF**S*> THA 		8-97911-254-0 01 1 0009- ●
54 PIN; SNAP,CABLE TO LEVER
SINGLE CAB<TF**S*> OD=1.8 L=15 		9-08112-015-0 02 1 0009- ●
55 WASHER; PL,PARK BRK CABLE
SINGLE CAB<TF**S*> ID=8.4 THA 		9-09160-508-0 02 1 0009- ●
57 BUSHING; RELAY LEVER
SINGLE CAB<TF**S*> 		5-33659-053-0 02 1 0009- ●
58 BOLT; RELAY LEVER,PARK BRK
SINGLE CAB<TF**S*> M8X20 FLANGE 		0-28680-820-0 04 1 0009- ●
59 BRACKET; RELAY LEVER
SINGLE CAB<TF**S*> 		8-94479-094-0 01 1 0009- ●
63 LEVER; RELAY,HAND BRK
SINGLE CAB<TF**S*> 		8-94324-632-0 01 1 0009- ●
65 NUT; RELAY LEVER
SINGLE CAB<TF**S*> M10 		9-09110-410-0 01 1 0009- ●
66 WASHER; LK,RELAY LEVER
SINGLE CAB<TF**S*> ID=10.2 THA 		9-09150-510-0 01 1 0009- ●
68 PIN; FULCRUM,RELAY LEVER,PARK BRK
SINGLE CAB<TF**S*> 		8-94404-908-1 01 1 0009- ●
69 ROD; RELAY LEVER
SINGLE CAB<TF**S*> 		8-94314-430-0 01 1 0009- ●
70 NUT; EQUALIZER TO FRT CABLE
SINGLE CAB<TF**S*> M8 		9-09111-408-0 02 1 0009- ●
71 SPRING; RETURN,PARKING BRK TO BODY
SINGLE CAB<TF**S*> THA 		8-97915-401-1 01 1 0009- ●
72 CABLE; PARKING BRK
SINGLE CAB<TF**S*> (B) THA 		8-97911-250-0 01 1 0009- ●
72 CABLE; PARKING BRK
SINGLE CAB<TF**S*> (A) THA 		8-97912-087-0 01 1 0009- ●
72 CABLE; PARKING BRK
SINGLE CAB<TF**S*> (A) THA 		8-97915-365-0 01 1 0009- ●
72 CABLE; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> (C) THA 		8-97919-131-0 01 1 0009- ● ● ●
72 CABLE; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> (C) THA 		8-97919-129-0 01 1 0009- ● ● ●
72 CABLE; PARKING BRK
4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> (C) THA 		8-97919-130-0 01 1 0009- ● ● ●
72 CABLE; PARKING BRK
4X4 THAIRUNG STATION WAGON<TFS*P*> (C) THA 		8-97918-573-1 01 1 0009- ●
72 CABLE; PARKING BRK
4X4 THAIRUNG STATION WAGON<TFS*P*> (C) THA 		8-97918-572-1 01 1 0009- ●
72 CABLE; PARKING BRK
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (C) THA 		8-97910-694-5 01 1 0009- ●
72 CABLE; PARKING BRK
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (C) THA 		8-97910-693-4 01 1 0009- ●
76 SLEEVE; CABLE GUIDE,PARKING BRK
SINGLE CAB<TF**S*> 		8-11042-301-3 01 1 0009- ●
86 BOLT
M6X12 FLANGE 		0-28080-612-0 04 1 0009- ● ● ●
86 BOLT
M6X16 FLANGE 		0-28480-616-0 05 1 0009- ● ● ●
86 BOLT
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> M8X16 FLANGE 		0-28080-816-0 01 1 0009- ● ● ●
86 BOLT
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M6X12 FLANGE 		0-28080-612-0 01 1 0009- ● ● ●
86 BOLT
4X4<TFS***> M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
(D) 		8-94146-602-0 02 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-94450-389-0 01 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-94459-413-0 02 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
4X2<TFB***> (C) 		8-94126-640-1 01 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
4X2<TFB***> (C) 		8-94126-639-1 01 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (E) ID=14 		9-09916-883-0 01 1 0009- ● ●
91 CLIP; PARKING BRK CABLE
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> (E) ID=14 		9-09916-883-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (E) ID=14 		9-09916-883-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 THAIRUNG STATION WAGON<TFS*P*> (G) 		8-97045-075-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 THAIRUNG STATION WAGON<TFS*P*> (G) 		8-97045-074-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (F) 		8-97087-002-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (F) 		8-97087-001-0 01 1 0009- ●
205 CLIP; 3RD C/MBR
SINGLE CAB<TF**S*> 		5-09709-039-0 02 1 0009- ●
344 GASKET; DASH LWR
SINGLE CAB<TF**S*> THA 		8-97914-321-0 02 1 0009- ●

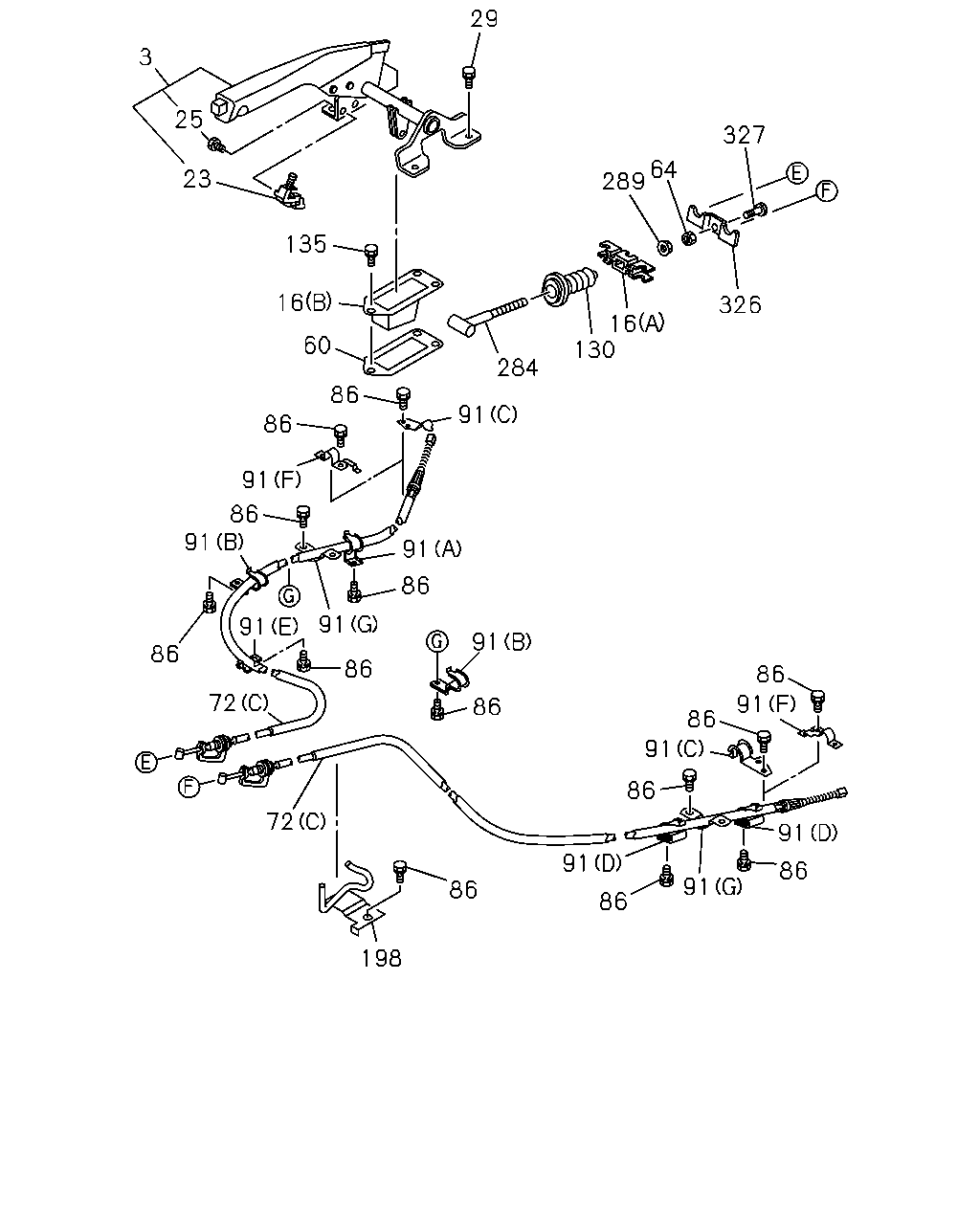

çizim 10381
29 3 25 327 64 289 23 135 16 326 16 130 60 284 86 91 86 91 86 91 91 86 91 91 91 86 86 86 91 72 86 86 91 86 91 86 72 91 91 86 86 198
BalonParca AdiParca NoAdetTipApplied Date A B C
3 LEVER; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97940-667-0 01 1 0009- ● ● ●
16 BRACKET; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> (B) THA 		8-97941-071-0 01 1 0009- ● ● ●
16 BRACKET; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> (A) THA 		8-97941-074-0 01 1 0009- ● ● ●
23 SWITCH; PARKING BRK
SINGLE CAB<TF**S*> 12V 		9-82750-367-0 01 1 0009- ●
23 SWITCH; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97941-054-0 01 1 0009- ● ● ●
25 SCREW; SW,PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97941-055-0 01 1 0009- ● ● ●
29 BOLT; PARKING BRK LEVER TO BODY
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M8X20 FLANGE 		0-28680-820-0 04 1 0009- ● ● ●
60 GASKET; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97941-075-0 01 1 0009- ● ● ●
64 NUT; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M8 		9-09110-408-0 01 1 0009- ● ● ●
72 CABLE; PARKING BRK
SINGLE CAB<TF**S*> (B) THA 		8-97911-250-0 01 1 0009- ●
72 CABLE; PARKING BRK
SINGLE CAB<TF**S*> (A) THA 		8-97912-087-0 01 1 0009- ●
72 CABLE; PARKING BRK
SINGLE CAB<TF**S*> (A) THA 		8-97915-365-0 01 1 0009- ●
72 CABLE; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> (C) THA 		8-97919-131-0 01 1 0009- ● ● ●
72 CABLE; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> (C) THA 		8-97919-129-0 01 1 0009- ● ● ●
72 CABLE; PARKING BRK
4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> (C) THA 		8-97919-130-0 01 1 0009- ● ● ●
72 CABLE; PARKING BRK
4X4 THAIRUNG STATION WAGON<TFS*P*> (C) THA 		8-97918-573-1 01 1 0009- ●
72 CABLE; PARKING BRK
4X4 THAIRUNG STATION WAGON<TFS*P*> (C) THA 		8-97918-572-1 01 1 0009- ●
72 CABLE; PARKING BRK
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (C) THA 		8-97910-694-5 01 1 0009- ●
72 CABLE; PARKING BRK
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (C) THA 		8-97910-693-4 01 1 0009- ●
86 BOLT
M6X12 FLANGE 		0-28080-612-0 04 1 0009- ● ● ●
86 BOLT
M6X16 FLANGE 		0-28480-616-0 05 1 0009- ● ● ●
86 BOLT
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> M8X16 FLANGE 		0-28080-816-0 01 1 0009- ● ● ●
86 BOLT
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M6X12 FLANGE 		0-28080-612-0 01 1 0009- ● ● ●
86 BOLT
4X4<TFS***> M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
(D) 		8-94146-602-0 02 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-94450-389-0 01 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
(B) 		8-94459-413-0 02 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
4X2<TFB***> (C) 		8-94126-640-1 01 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
4X2<TFB***> (C) 		8-94126-639-1 01 1 0009- ● ● ●
91 CLIP; PARKING BRK CABLE
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (E) ID=14 		9-09916-883-0 01 1 0009- ● ●
91 CLIP; PARKING BRK CABLE
4X2 SPACE CAB LONG<TFB5CF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> (E) ID=14 		9-09916-883-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (E) ID=14 		9-09916-883-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 THAIRUNG STATION WAGON<TFS*P*> (G) 		8-97045-075-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 THAIRUNG STATION WAGON<TFS*P*> (G) 		8-97045-074-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (F) 		8-97087-002-0 01 1 0009- ●
91 CLIP; PARKING BRK CABLE
4X4 SPACE CAB LONG<TFS5CF> 4X4 DOUBLE CAB LONG<TFS5WF> (F) 		8-97087-001-0 01 1 0009- ●
130 COVER; DUST,PARK BRK LEVER
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97941-072-0 01 1 0009- ● ● ●
135 BOLT; PARKING BRK BRKT
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M6X16 W/PL WASHER 		8-94204-636-0 03 1 0009- ● ● ●
198 BRACKET; CABLE
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 		8-97189-469-0 01 1 0009-0011 ● ● ●
198 BRACKET; CABLE
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 		8-97217-152-0 01 1 0012- ● ● ●
284 ROD; HAND BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> THA 		8-97941-073-0 01 1 0009- ● ● ●
289 NUT; PARKING BRK
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ●
326 RETAINER; PARK CABLE
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> 		8-97024-708-0 01 1 0009- ● ● ●
327 BOLT; RETAINER
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M8X25 FLANGE 		0-28680-825-0 01 1 0009- ● ● ●
çizim 49794
41 41 87 328 230 180 41 41 179 180 1 43 47 187 179 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
SINGLE CAB<TF**S*> THA 		8-97910-384-0 01 1 0009- ●
41 NUT; HAND BRK STEM
M8 FLANGE THA 		5-09440-005-0 02 1 0009- ● ● ●
42 ROLLER; PARK BRK CABLE
SINGLE CAB<TF**S*> 		8-94341-286-0 01 1 0009- ●
43 BOLT; ROLLER,PARK BRK CABLE
SINGLE CAB<TF**S*> M8X40 FLANGE 		0-28680-840-0 01 1 0009- ●
47 COLLAR; ROLLER,PARK BRK CABLE
SINGLE CAB<TF**S*> 		9-46129-013-1 01 1 0009- ●
87 NUT
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> M8 FLANGE 		0-91150-108-0 04 1 0009- ● ● ●
179 NUT; ROLLER,PARK BRK CABLE
SINGLE CAB<TF**S*> (A) M8 FLANGE THA 		5-09440-005-0 04 1 0009- ●
179 NUT; ROLLER,PARK BRK CABLE
SINGLE CAB<TF**S*> (B) M8 		9-09110-408-0 01 1 0009- ●
180 GASKET; ROLLER BRKT,PARKING BRK 8-94334-899-0 04 1 0009- ● ● ●
187 BRACKET; HAND BRK
SINGLE CAB<TF**S*> 		8-94479-103-0 01 1 0009- ●
230 WASHER; PL
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> ID=8.4 OD=22 		9-09160-708-0 04 1 0009- ● ● ●
328 PLATE; SEAL
4X2 SPACE CAB LONG<TFB5CF> 4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 THAIRUNG DOUBLE CAB LONG<TFB5QF> 4X2 DOUBLE CAB LONG<TFB5WF> 4X4 SPACE CAB LONG<TFS5CF> 4X4 THAIRUNG STATION WAGON LONG<TFS5PF> 4X4 DOUBLE CAB LONG<TFS5WF> 		8-97069-885-1 01 1 0009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
