3-10 — BRAKE PEDAL AND CONTROL (#43592) — 21 parça

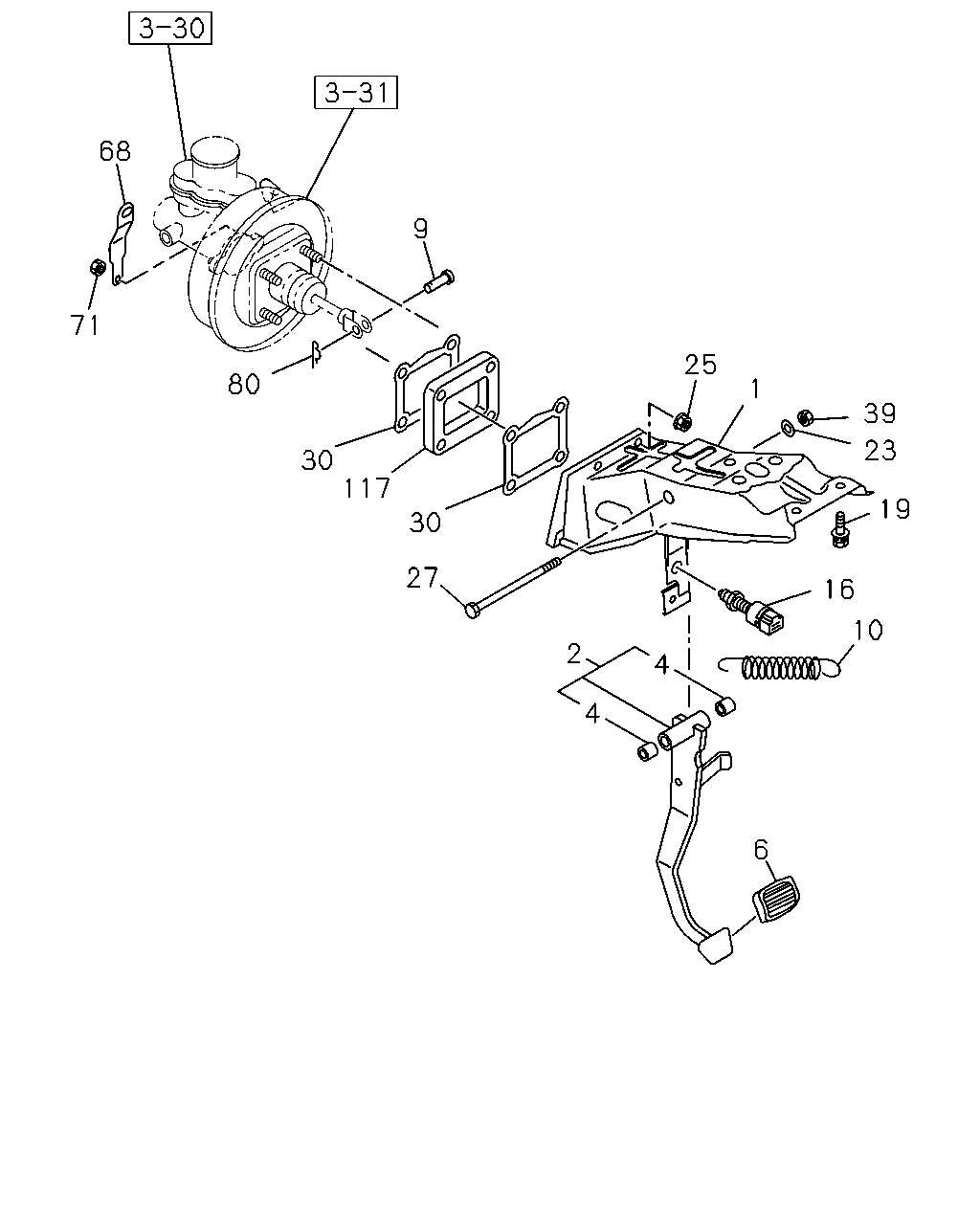

çizim 51768
68 9 71 25 80 1 39 23 30 117 30 19 27 16 10 2 4 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 BRACKET ASM; PEDAL 8-97134-254-2 01 1 0009- ● ● ● ● ● ● ● ●
2 PEDAL; BRK
A/T AISIN<RMD> THA 		8-97914-374-0 01 1 0009- ● ● ●
2 PEDAL; BRK
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97914-373-1 01 1 0009- ● ● ●
2 PEDAL; BRK
THA 		8-97914-373-1 01 1 0009- ● ● ● ● ●
4 BUSHING; BRK PEDAL
THA 		8-97914-379-0 02 1 0009- ● ● ● ● ● ● ● ●
6 COVER; BRK PEDAL
A/T AISIN<RMD> 		5-31413-004-0 01 1 0009- ● ● ●
6 COVER; BRK PEDAL
M/T MSG 5 SPEED<M75>,M/T MUA 5 SPEED<RMN> THA 		8-97915-151-0 01 1 0009- ● ● ●
6 COVER; BRK PEDAL
THA 		8-97915-151-0 01 1 0009- ● ● ● ● ●
9 PIN; JAW JOINT 8-94250-182-0 01 1 0009- ● ● ● ● ● ● ● ●
10 SPRING; RETURN,BRK PEDAL
THA 		8-97915-402-0 01 1 0009- ● ● ● ● ● ● ● ●
16 SWITCH; STOP LAMP
THA 		8-97918-841-0 01 1 0009- ● ● ● ● ● ● ● ●
19 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 0009- ● ● ● ● ● ● ● ●
23 WASHER; LK,SHAFT
ID=10.2 THA 		9-09150-510-0 01 1 0009- ● ● ● ● ● ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA 		5-09440-005-0 04 1 0009- ● ● ● ● ● ● ● ●
27 SHAFT; BRK PEDAL 8-94480-803-0 01 1 0009- ● ● ● ● ● ● ● ●
30 GASKET; M/VAC TO BODY 8-94111-590-0 02 1 0009- ● ● ● ● ● ● ● ●
39 NUT; STOPPER LK
M10 		9-09110-410-0 01 1 0009- ● ● ● ● ● ● ● ●
68 BRACKET; SERVO TO DASH PANEL
THA 		8-97061-908-0 01 1 0009- ● ● ● ● ● ● ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0009- ● ● ● ● ● ● ● ●
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 0009- ● ● ● ● ● ● ● ●
117 SPACER; M/VAC TO BODY 8-94126-762-0 01 1 0009- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
