3-05 — REAR WHEEL BRAKE (#43591) — 46 parça

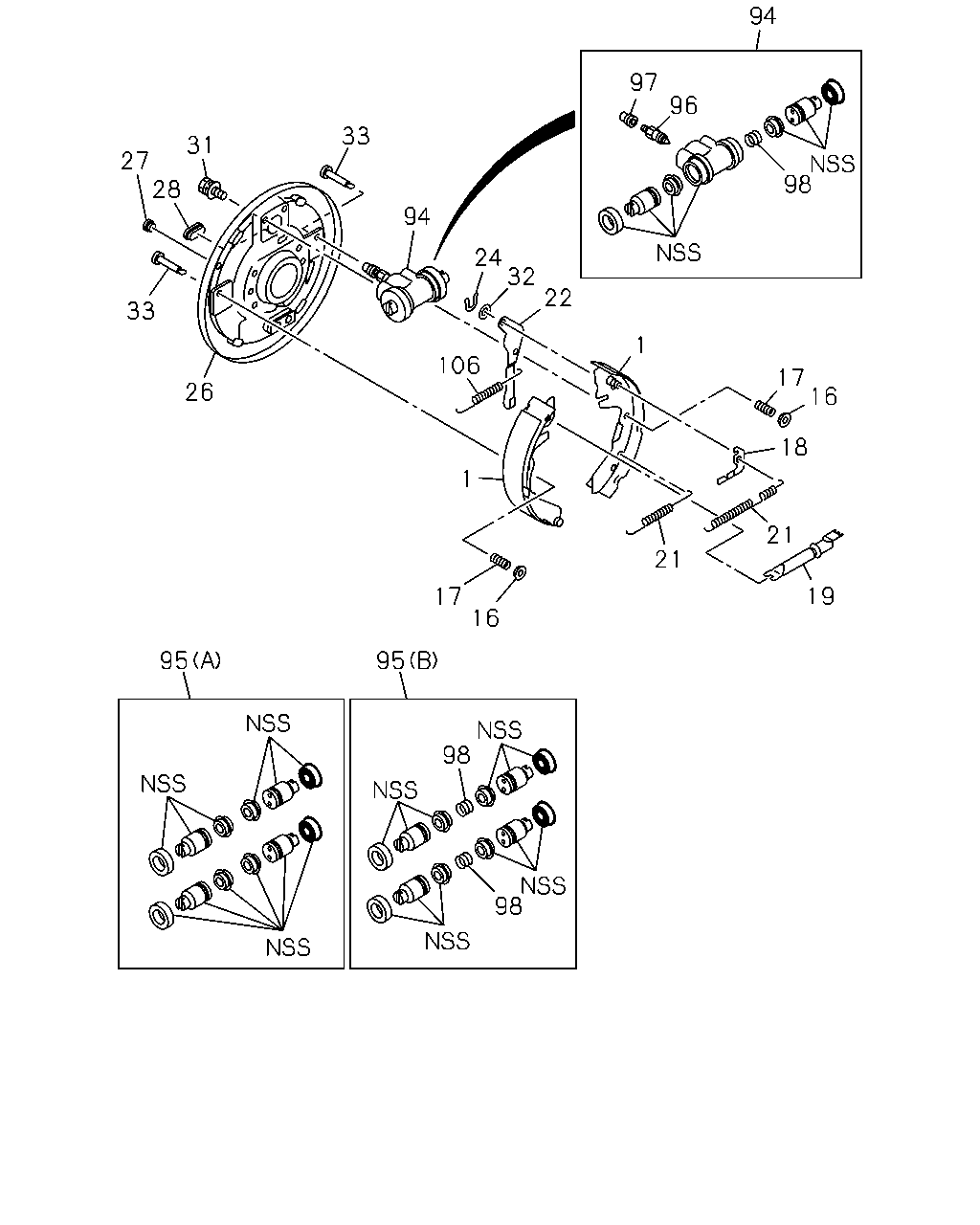

çizim 50005
16 17 1 22 32 24 94 33 31 27 33 28 26 95 95 98 98 19 21 21 16 17 1 106 96 97 94 98 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 SHOE; BRK,RR
LEADING 		8-97147-565-1 02 1 0009- ● ● ● ● ●
1 SHOE; BRK,RR
TRAILING 		8-97049-177-1 01 1 0009- ● ● ● ● ●
1 SHOE; BRK,RR
TRAILING 		8-97049-176-1 01 1 0009- ● ● ● ● ●
1 SHOE; BRK,RR
LEADING 		8-97113-220-1 02 1 0009- ● ● ●
1 SHOE; BRK,RR
TRAILING 		8-97113-219-1 01 1 0009- ● ● ●
1 SHOE; BRK,RR
TRAILING 		8-97113-218-1 01 1 0009- ● ● ●
16 CUP; SHOE HOLDING 9-47162-033-0 04 1 0009- ● ● ● ● ● ● ● ●
17 SPRING; SHOE HOLD DOWN 8-94134-106-0 04 1 0009- ● ● ● ● ● ● ● ●
18 LEVER; AUTO ADJ 8-94124-866-1 01 1 0009- ● ● ● ● ● ● ● ●
18 LEVER; AUTO ADJ 8-94124-865-1 01 1 0009- ● ● ● ● ● ● ● ●
19 ADJUSTER; RR BRK 8-94127-078-1 01 1 0009- ● ● ● ● ● ● ● ●
19 ADJUSTER; RR BRK 8-94127-077-1 01 1 0009- ● ● ● ● ● ● ● ●
21 SPRING; SHOE,RET
LOWER 		8-94127-066-0 02 1 0009- ● ● ● ● ●
21 SPRING; SHOE,RET
UPPER 		8-94480-191-0 02 1 0009- ● ● ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-94124-868-2 01 1 0009- ● ● ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-94124-867-2 01 1 0009- ● ● ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97127-628-1 01 1 0009- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97127-627-1 01 1 0009- ● ● ●
24 RETAINER; PARKING BRK 9-46349-005-1 02 1 0009- ● ● ● ● ●
26 PLATE; BACK,RR BRK 8-97147-567-0 01 1 0009- ● ● ● ● ●
26 PLATE; BACK,RR BRK 8-97147-566-0 01 1 0009- ● ● ● ● ●
26 PLATE; BACK,RR BRK 8-97113-217-1 01 1 0009- ● ● ●
26 PLATE; BACK,RR BRK 8-97113-216-1 01 1 0009- ● ● ●
27 COVER; CHECK HOLE,DRUM COVER 8-97122-854-0 02 1 0009- ● ● ● ● ● ● ● ●
28 COVER; ADJ HOLE
FRT&RR 225R15-6PR 6JJX15 ALUMI<BPW> THA 		5-47169-002-0 02 1 0109- ●
28 COVER; ADJ HOLE 8-94111-509-0 02 1 0009- ● ● ● ● ●
28 COVER; ADJ HOLE 8-97123-320-0 02 1 0009-0108 ● ● ●
28 COVER; ADJ HOLE
FRT&RR 245/70R16 7JJX16 5 SPOKE POLISH ALUMI <BPC> 		8-97123-320-0 02 1 0109- ●
28 COVER; ADJ HOLE 8-97123-320-0 02 1 0109- ● ●
31 BOLT; RR WHEEL CYL
M6X10 FLANGE 		8-94134-103-0 04 1 0009- ● ● ● ● ● ● ● ●
32 WASHER; LK
ID=9.5 		9-09850-529-0 02 1 0009- ● ● ● ● ●
33 PIN; SHOE HOLD DOWN 8-94201-061-0 04 1 0009- ● ● ● ● ● ● ● ●
94 CYLINDER; WHEEL,RR BRK
4JA1 ENG<RLE> M/T MSG 5 SPEED<M75> 		8-94233-500-6 02 1 0009- ●
94 CYLINDER; WHEEL,RR BRK
4JH1 ENG<RJX> A/T AISIN<RMD> 		8-94233-500-6 02 1 0009- ●
94 CYLINDER; WHEEL,RR BRK
A/T AISIN<RMD> 		8-94233-500-6 02 1 0009- ● ●
94 CYLINDER; WHEEL,RR BRK 8-94233-500-6 02 1 0009- ● ●
94 CYLINDER; WHEEL,RR BRK
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> 		8-97230-425-0 02 1 0009- ●
94 CYLINDER; WHEEL,RR BRK
M/T MUA 5 SPEED<RMN> 		8-97230-425-0 02 1 0009- ● ●
94 CYLINDER; WHEEL,RR BRK 8-97127-616-0 02 1 0009- ● ● ●
95 CUP SET; RR WHEEL CYL
(A) 		5-87831-828-0 01 1 0009- ● ● ● ● ●
95 CUP SET; RR WHEEL CYL
(B) 		5-87831-543-0 01 1 0009- ● ● ●
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 0009- ● ● ● ● ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 0009- ● ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-94482-339-0 02 1 0009- ● ● ●
98 SPRING; RR WHEEL CYL 8-94230-597-2 02 1 0009- ● ● ● ● ● ● ● ●
106 SPRING; ADJ LEVER 8-94480-190-0 02 1 0009- ● ● ● ● ●
