◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#43590) — 20 parça

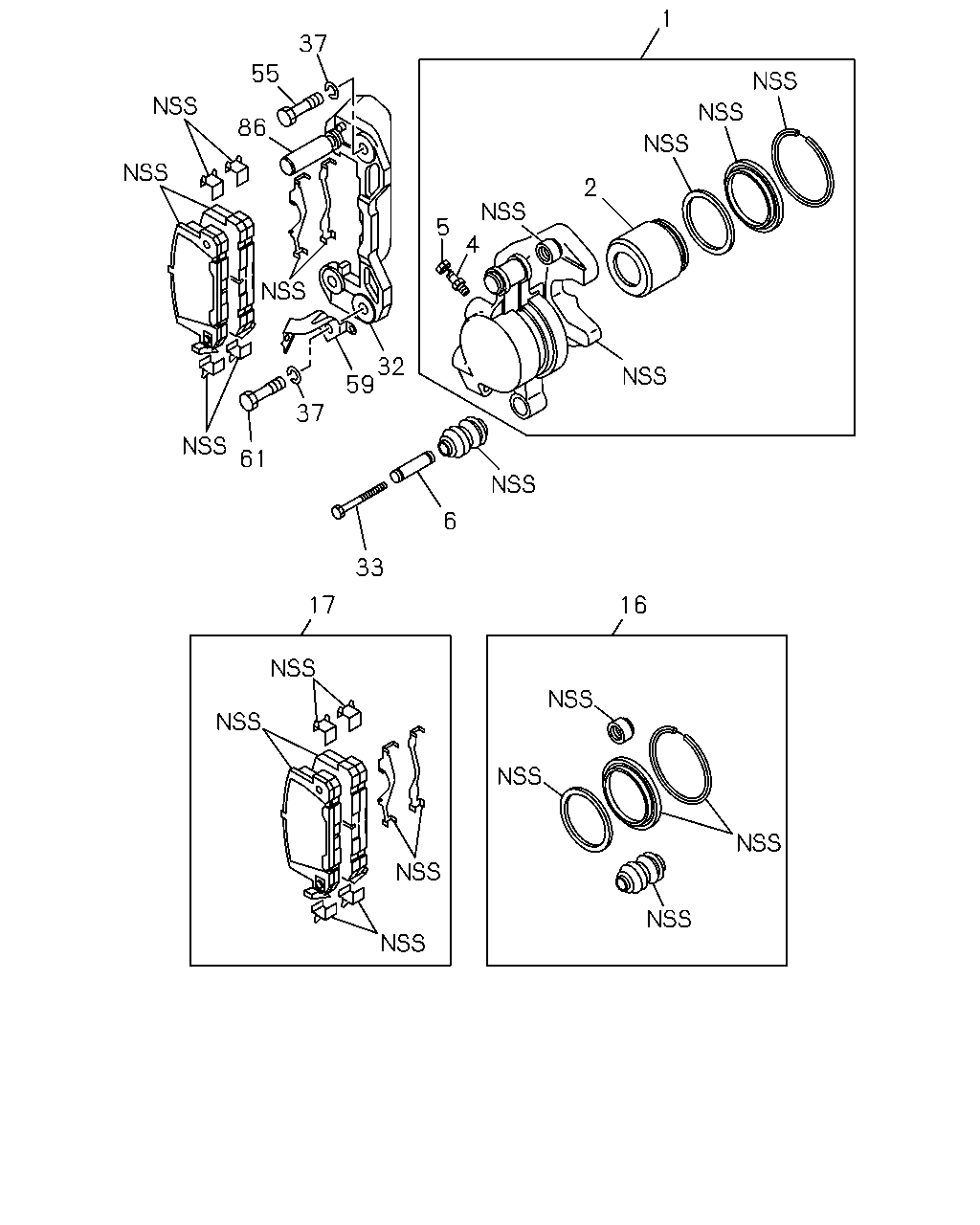

çizim 50129
1 37 55 86 2 5 4 32 59 37 61 6 33 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 CALIPER; FRT DISC BRK
IDN 		8-97956-915-0 01 1 0009- ● ● ● ● ●
1 CALIPER; FRT DISC BRK
IDN 		8-97956-914-0 01 1 0009- ● ● ● ● ●
1 CALIPER; FRT DISC BRK
IDN 		8-97957-004-0 01 1 0009- ● ● ●
1 CALIPER; FRT DISC BRK
IDN 		8-97957-005-0 01 1 0009- ● ● ●
2 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 04 1 0009- ● ● ● ● ● ● ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
THA 		8-97113-867-0 04 1 0009- ● ● ● ● ● ● ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 04 1 0009- ● ● ● ● ● ● ● ●
6 SLEEVE; BOOT,CALIPER 8-94136-644-0 02 1 0009- ● ● ● ● ● ● ● ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
THA 		8-97134-715-0 01 1 0009- ● ● ● ● ● ● ● ●
17 PAD KIT; CALIPER,DISC BRK,FRT
IDN 		8-97956-925-0 01 1 0009- ● ● ● ● ● ● ● ●
32 SUPPORT; FRT DISC BRK
IDN 		8-97956-918-0 02 1 0009- ● ● ● ● ● ● ● ●
33 BOLT; SUPPORT BRKT TO DISC BRK
M10X59.5 		8-94438-712-0 02 1 0009- ● ● ● ● ● ● ● ●
37 WASHER; LK
ID=14.2 		9-09150-814-0 04 1 0009- ● ● ● ● ● ● ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 THA 		8-97126-347-0 02 1 0009-0201 ● ● ● ● ● ● ● ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M14X29 		8-97327-422-0 02 1 0202- ● ● ● ● ● ● ● ●
59 BRACKET; FLEX HOSE,FRT 8-94433-667-1 01 1 0009- ● ● ● ● ●
59 BRACKET; FLEX HOSE,FRT 8-94433-666-1 01 1 0009- ● ● ● ● ●
61 BOLT; SUPPORT BRKT TO KNUCKLE
M14X29 THA 		8-97126-347-0 02 1 0009-0201 ● ● ● ● ● ● ● ●
61 BOLT; SUPPORT BRKT TO KNUCKLE
M14X29 		8-97327-422-0 02 1 0202- ● ● ● ● ● ● ● ●
86 PIN; GUIDE 8-94438-694-0 02 1 0009- ● ● ● ● ● ● ● ●
