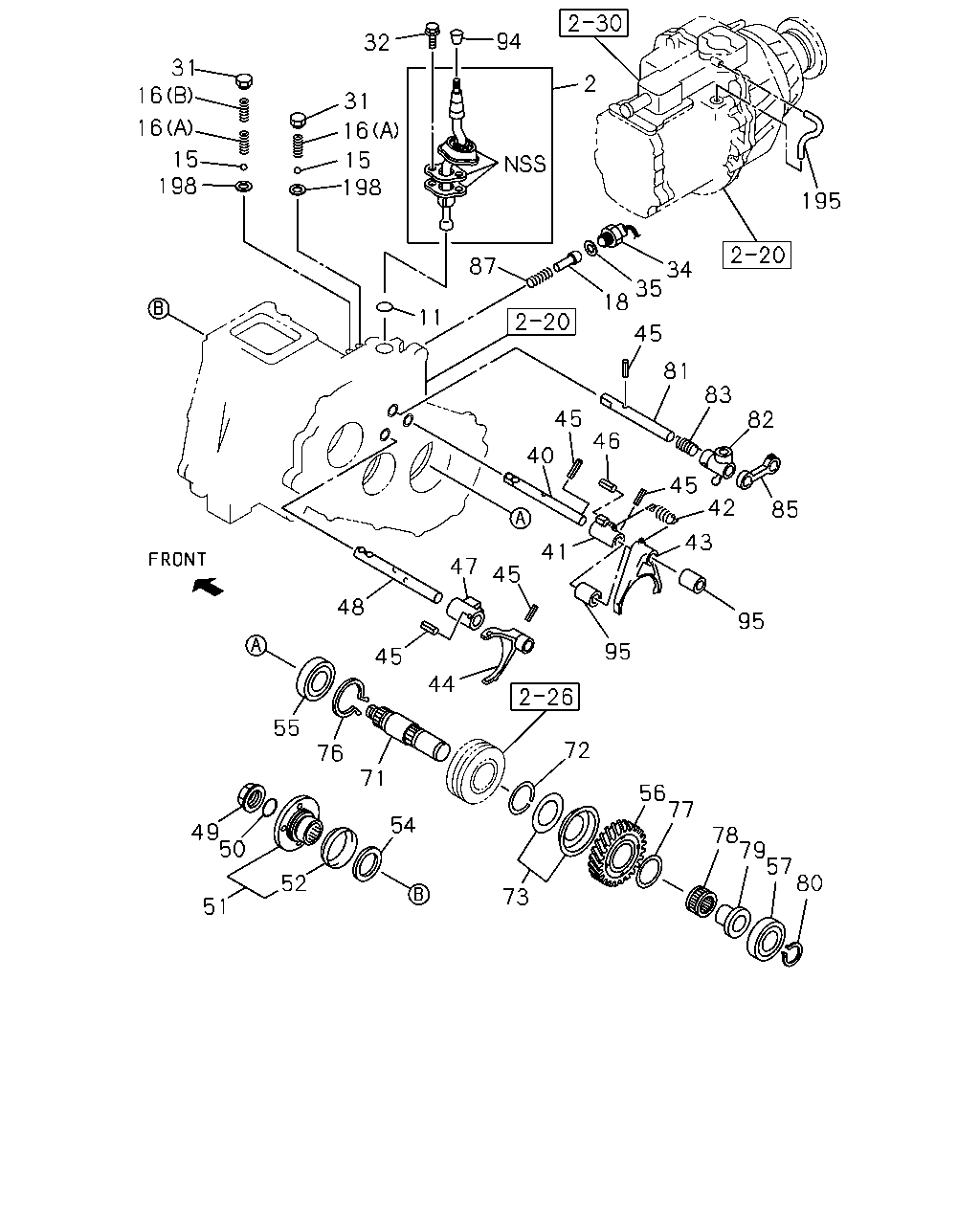

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#43589) — 53 parça

94 32 31 16 16 15 198 2 31 16 15 198 195 87 34 35 18 45 11 81 83 45 46 82 40 45 42 43 85 41 47 45 48 95 95 45 44 55 72 76 71 56 77 54 49 50 78 79 57 80 52 73 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER ASM; CHANGE,TRANSFER	8-97217-562-3	01	1	0009-	●	●	●
11	GASKET; CHANGE LEVER ID=33.2	1-09623-378-0	01	1	0009-	●	●	●
15	BALL; DETENT,SHIFT ROD,TRANSFER	8-94435-335-0	02	1	0009-	●	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER (A) L=26.8	8-94320-193-0	02	1	0009-	●	●	●
16	SPRING; DETENT,SHIFT ROD,TRANSFER (B) L=23.2 THA	8-97241-351-0	01	1	0009-	●	●	●
18	PIN; INTER LOCK,SHIFT ROD,TRANSFER	8-94461-898-0	01	1	0009-	●	●	●
31	PLUG; DETENT BALL,TRANSFER M12X9	9-99202-312-0	02	1	0009-	●	●	●
32	BOLT; CHANGE LEVER TO SIDE CASE M8X16 FLANGE	0-28080-816-0	02	1	0009-	●	●	●
34	SWITCH; TRANSFER INDICATOR	8-97138-632-1	01	1	0009-	●	●	●
35	GASKET; INDICATOR SWITCH,TRANSFER ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	0009-	●	●	●
40	ROD; SHIFT,4X2-4X4,TRANSFER	8-97070-675-2	01	1	0009-	●	●	●
41	BLOCK; SHIFT,4X2-4X4,TRANSFER	8-97033-094-2	01	1	0009-	●	●	●
42	SPRING; GEAR LOCK RELEASE,TRANSFER L=30	8-94422-188-0	01	1	0009-	●	●	●
43	ARM; SHIFT,4X2-4X4,TRANSFER	8-97100-915-2	01	1	0009-	●	●	●
44	ARM; SHIFT,HIGH-LOW,TRANSFER	8-94421-922-3	01	1	0009-	●	●	●
45	PIN; SPR,SHIFT ARM TO ROD D=4.2 L=25	8-94171-541-0	06	1	0009-	●	●	●
46	PIN; SPR,SELECT LEVER	8-94448-816-1	01	1	0009-	●	●	●
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER	8-97141-883-1	01	1	0009-	●	●	●
48	ROD; SHIFT,HIGH-LOW,TRANSFER	8-97182-406-1	01	1	0009-	●	●	●
49	NUT; COUPLING DRIVER,FRT OUTPUT M27 FLANGE	8-94422-073-0	01	1	0009-	●	●	●
50	GASKET; COUPLING DRIVER,FRT OUTPUT ID=29.7 OD=36.1	8-94483-035-0	01	1	0009-	●	●	●
51	FLANGE ASM; COUPLING DRIVER,TRANSFER	8-94453-699-7	01	1	0009-	●	●	●
52	COVER; DUST,TRANSFER FLANGE	8-94320-867-2	01	1	0009-	●	●	●
54	SEAL; OIL,TRANSFER FLANGE TKK	8-97046-702-0	01	1	0009-0010	●	●	●
54	SEAL; OIL,TRANSFER FLANGE NOK	8-97046-703-2	01	1	0009-	●	●	●
55	BEARING; BALL,TRANSFER FLANGE,FRT SIDE NSK	8-94422-172-1	01	1	0009-	●	●	●
56	GEAR; OUTPUT,FRT WHEEL,TRANSFER Z=49	8-97126-101-1	01	1	0009-	●	●	●
57	BEARING; BALL,TRANSFER FLANGE,RR SIDE NSK	8-94422-052-0	01	1	0009-	●	●	●
71	SHAFT; TRANSFER OUTPUT	8-94377-437-5	01	1	0009-	●	●	●
72	RING; SNAP,ANTI LASH PLATE,FRT OUTPUT	8-94482-501-0	01	1	0009-	●	●	●
73	PLATE ASM; ANTI LASH,TRANSFER GEAR	8-97164-346-0	01	1	0009-	●	●	●
76	RING; SNAP,BRG OUTER,TRANSFER OD=77.0	8-94422-092-0	01	1	0009-	●	●	●
77	SPRING; BELLEVILLE,ANTI LASH PLATE	8-94482-499-0	01	1	0009-	●	●	●
78	BEARING; FRT OUTPUT GEAR,TRANSFER NSK	8-94422-064-0	01	1	0009-	●	●	●
78	BEARING; FRT OUTPUT GEAR,TRANSFER JTEKT	8-94422-065-1	01	1	0009-	●	●	●
79	COLLAR; FRT OUTPUT GEAR,TRANSFER	8-94422-076-1	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.55 WHITE	8-94422-180-0	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.60 YELLOW	8-94422-181-0	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.65 BLUE	8-94422-182-0	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.70 PINK	8-94422-183-0	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.75 GREEN	8-94422-184-0	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.80 BROWN	8-94422-185-0	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.85 RED	8-94422-186-0	01	1	0009-	●	●	●
80	RING; FRT OUTPUT SHAFT,TRANSFER T=1.90 ORANGE	8-94422-187-0	01	1	0009-	●	●	●
81	ROD; TRANSFER SELECT	8-94370-499-2	01	1	0009-	●	●	●
82	BLOCK; TRANSFER	8-97033-092-1	01	1	0009-	●	●	●
83	SPRING; SELECT	8-94462-235-0	01	1	0009-	●	●	●
85	BRIDGE; CONT ROD,TRANSFER	8-97128-522-0	01	1	0009-	●	●	●
87	SPRING; INTER LOCK,TRANSFER	8-94461-897-0	01	1	0009-	●	●	●
94	KNOB; TRANSFER LEVER BLACK	8-94453-161-1	01	1	0009-	●	●	●
95	BUSHING	8-97103-115-0	02	1	0009-	●	●	●
195	HOSE; AIR	8-97172-683-0	01	1	0009-	●	●	●
198	GASKET; PLUG,DETENT ID=12.2	1-09630-084-0	02	1	0009-	●	●	●
