◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55 - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER (#43585) — 34 parça

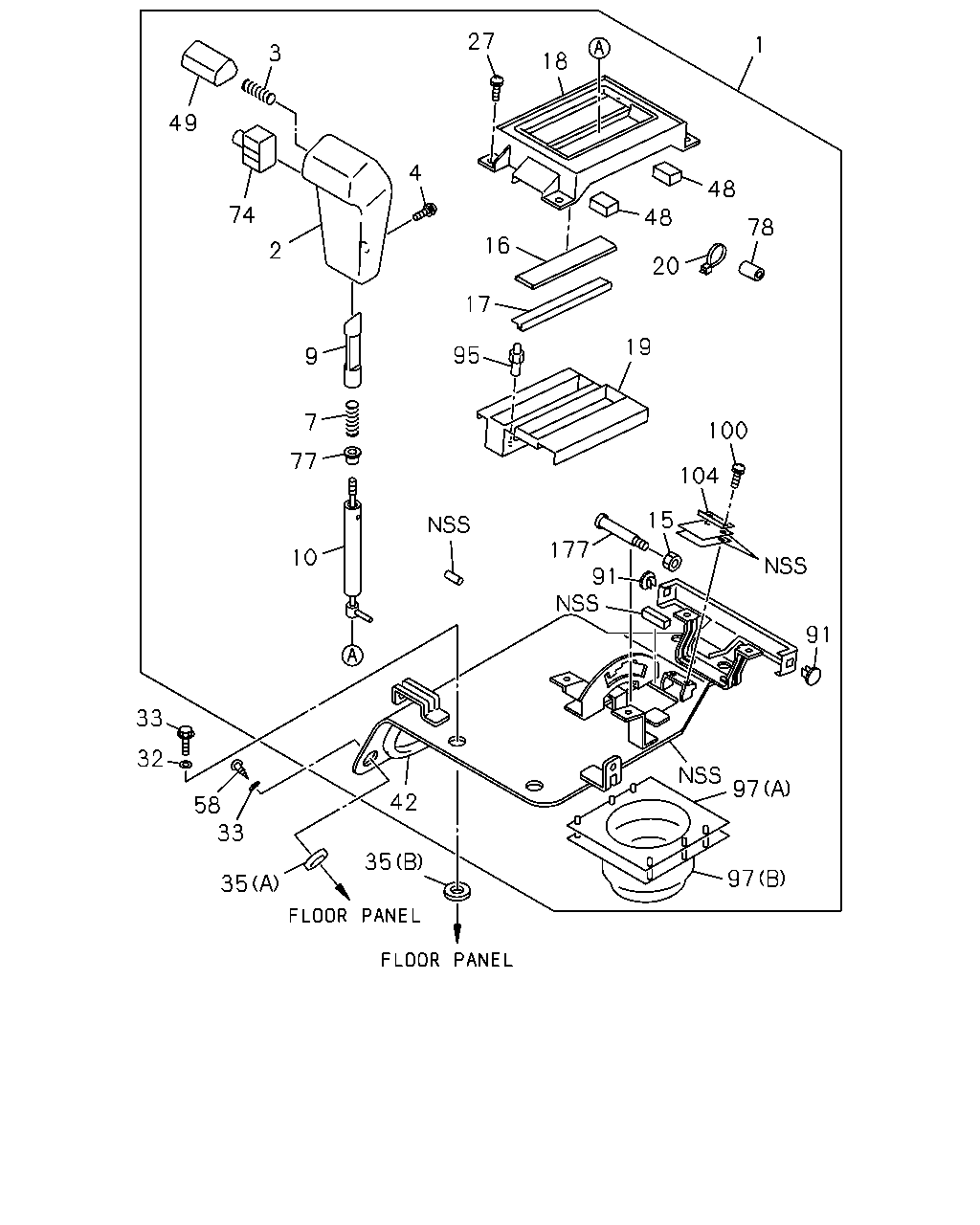

çizim 9619
27 1 3 18 49 4 48 74 48 78 16 2 20 17 19 95 9 7 100 77 104 15 177 91 10 91 33 32 97 42 58 33 35 97 35
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
4X2 SPACE CAB<TFB*C*> 4JH1 ENG<RJX> SPECIAL PACKAGE<7BB> 		8-97295-042-2 01 1 0009-
1 LEVER; SHIFT,A/T
4X2 THAIRUNG STATION WAGON LONG<TFB5PF> 4X2 DOUBLE CAB LONG<TFB5WF> 		8-97295-042-2 01 1 0009-
1 LEVER; SHIFT,A/T
4X2 SPACE CAB<TFB*C*> 4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> 		8-97295-043-2 01 1 0009-
2 KNOB ASM; AUTO CONT LEVER
4JH1 ENG<RJX> BLACK 		8-94389-630-0 01 1 0009-
3 SPRING; RETURN,KNOB
4JH1 ENG<RJX> 		8-94370-126-0 01 1 0009-
4 SCREW; KNOB TO LEVER
4JH1 ENG<RJX> 		8-94370-128-0 02 1 0009-
7 SPRING; RETURN,ROD
4JH1 ENG<RJX> 		8-97029-913-0 01 1 0009-
9 SLEEVE; KNOB,SHIFT LEVER
4JH1 ENG<RJX> 		8-94370-129-0 01 1 0009-
10 LEVER; A/T CONT
4JH1 ENG<RJX> 		8-97221-457-0 01 1 0009-
15 NUT; LEVER TO SHAFT
4JH1 ENG<RJX> M8 		9-09111-408-0 01 1 0009-
16 LENS; INDICATOR
4JH1 ENG<RJX> 		8-97221-401-0 01 1 0009-
17 PLATE; INDICATOR
4JH1 ENG<RJX> 		8-97240-972-0 01 1 0009-
18 COVER; INDICATOR,UPR
4JH1 ENG<RJX> 		8-97039-063-0 01 1 0009-
19 COVER; INDICATOR,LWR
4JH1 ENG<RJX> 		8-97039-064-0 01 1 0009-
20 CLIP; INHIBITOR SW
4JH1 ENG<RJX> 		8-94389-647-0 02 1 0009-
27 SCREW; INDICATOR TO BRKT
4JH1 ENG<RJX> M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0009-
32 BOLT; CONT LEVER TO BODY
M8X25 W/LK&PL WASHER THA 		8-94411-977-0 04 1 0009-
33 WASHER; PL,CONT LEVER TO BODY
ID=8.4 OD=22 		9-09164-708-0 02 1 0009-
35 SPACER; BRKT TO FLOOR,SELECT LEVER
(A) OD=13 T=4.5 		8-94230-464-1 02 1 0009-
35 SPACER; BRKT TO FLOOR,SELECT LEVER
(B) OD=15 T=6.8 		8-94437-495-0 04 1 0009-
42 SEAL; RUBBER
4JH1 ENG<RJX> 		8-97137-597-0 01 1 0009-
48 INSULATION; PLATE
4JH1 ENG<RJX> 		8-97066-477-0 02 1 0009-
49 BUTTON; PUSH,KNOB
4JH1 ENG<RJX> BLACK 		8-94389-615-0 01 1 0009-
58 SCREW; BRKT 8-94220-277-0 02 1 0009-
74 SWITCH; OVERDRIVE,A/T CONT LEVER
4JH1 ENG<RJX> 		8-97221-400-0 01 1 0009-
77 SUPPORT; SPRING,A/T CONT LEVER
4JH1 ENG<RJX> 		8-94370-130-0 01 1 0009-
78 PROTECTOR; LAMP CABLE,A/T CONT LEVER
4JH1 ENG<RJX> 		8-97218-342-0 01 1 0009-
91 GROMMET
4X2 SPACE CAB<TFB*C*> 4JH1 ENG<RJX> EXC. SPECIAL PACKAGE<7BB> 		8-97221-308-0 02 1 0009-
95 LAMP; INDICATOR
4JH1 ENG<RJX> 		8-97221-398-0 01 1 0009-
97 BOOT
4JH1 ENG<RJX> (A) 		8-97032-475-0 01 1 0009-
97 BOOT
4JH1 ENG<RJX> (B) 		8-97047-213-0 01 1 0009-
100 SCREW
4JH1 ENG<RJX> M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 0009-
104 PLATE; LINK
4JH1 ENG<RJX> 		8-97035-016-1 01 1 0009-
177 SHAFT; SHIFT LEVER,A/T
4JH1 ENG<RJX> 		8-97066-339-1 01 1 0009-
