Isuzu WW
▶
PICKUP
▶
TFR
▶
50890 - TFR/S(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

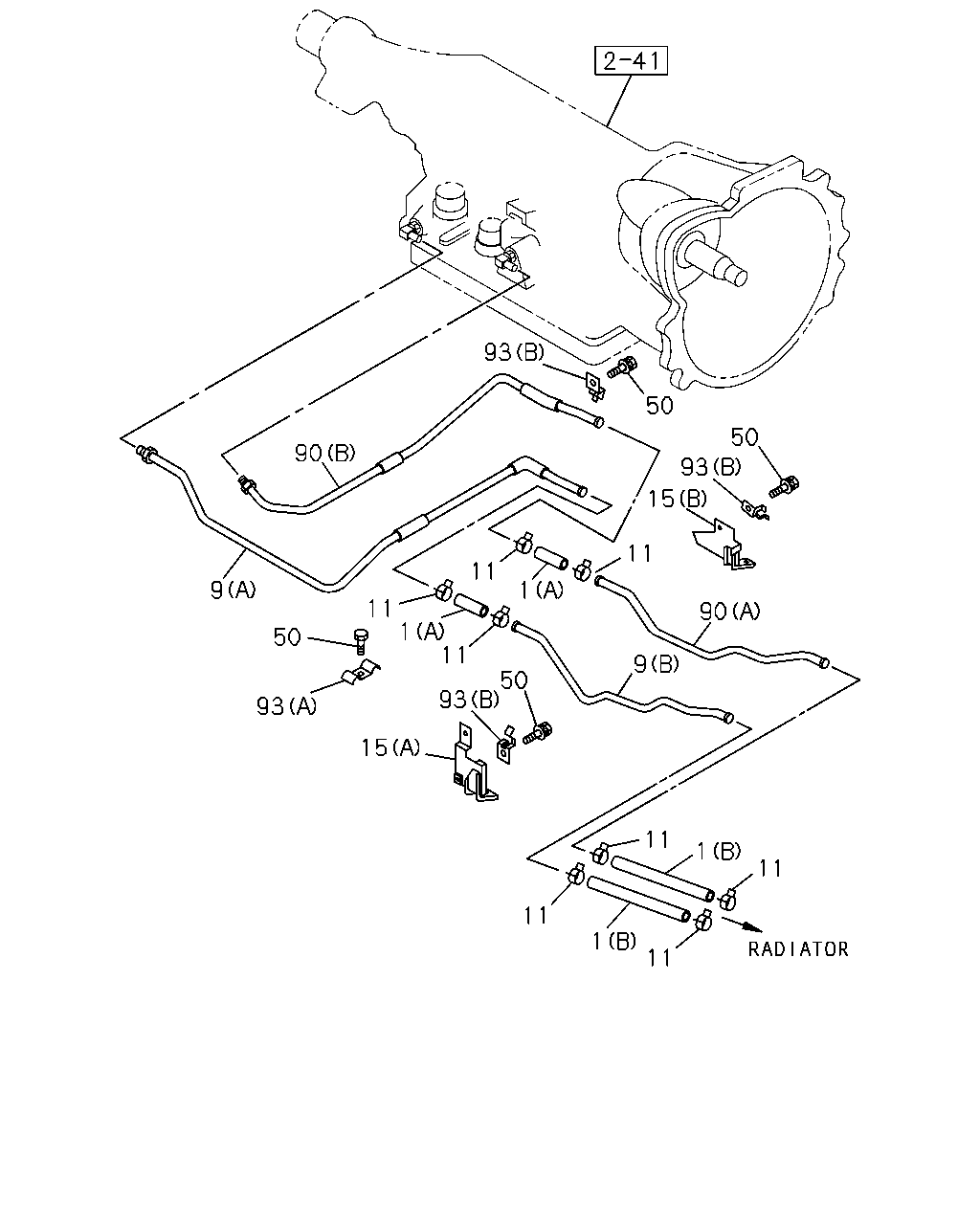

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#43584) — 14 parça
93
50
50
93
15
90
11
11
9
1
11
1
11
90
50
9
50
93
93
15
11
1
11
11
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
4JH1 ENG<RJX> (A) L=96
8-97019-868-1
02
1
0009-
1
HOSE; ATF
4JH1 ENG<RJX> (B) L=250
8-97089-701-0
02
1
0009-
9
PIPE; ATF,INL,A/T
4JH1 ENG<RJX> (B) THA
8-97910-314-1
01
1
0009-
9
PIPE; ATF,INL,A/T
4JH1 ENG<RJX> (A) THA
8-97920-779-1
01
1
0009-0009
9
PIPE; ATF,INL,A/T
4JH1 ENG<RJX> (A) THA
8-97921-704-0
01
1
0009-
11
CLIP; PIPE
4JH1 ENG<RJX> ID=14
8-97173-221-0
08
1
0009-
15
BRACKET; ATF PIPE
4JH1 ENG<RJX> (A) THA
8-97919-976-1
01
1
0009-
15
BRACKET; ATF PIPE
4JH1 ENG<RJX> (B) THA
8-97919-977-2
01
1
0009-
50
BOLT; CLIP
4JH1 ENG<RJX> M6X16 FLANGE
0-28080-616-0
02
1
0009-
50
BOLT; CLIP
4JH1 ENG<RJX> M8X16 W/LK WASHER
0-50040-816-0
04
1
0009-
90
PIPE ASM; ATF
4JH1 ENG<RJX> (A) THA
8-97910-315-1
01
1
0009-
90
PIPE ASM; ATF
4JH1 ENG<RJX> (B) THA
8-97910-548-0
01
1
0009-
93
CLIP; BRKT
4JH1 ENG<RJX> (A) THA
8-94334-345-1
01
1
0009-
93
CLIP; BRKT
4JH1 ENG<RJX> (B)
8-97062-040-0
03
1
0009-
